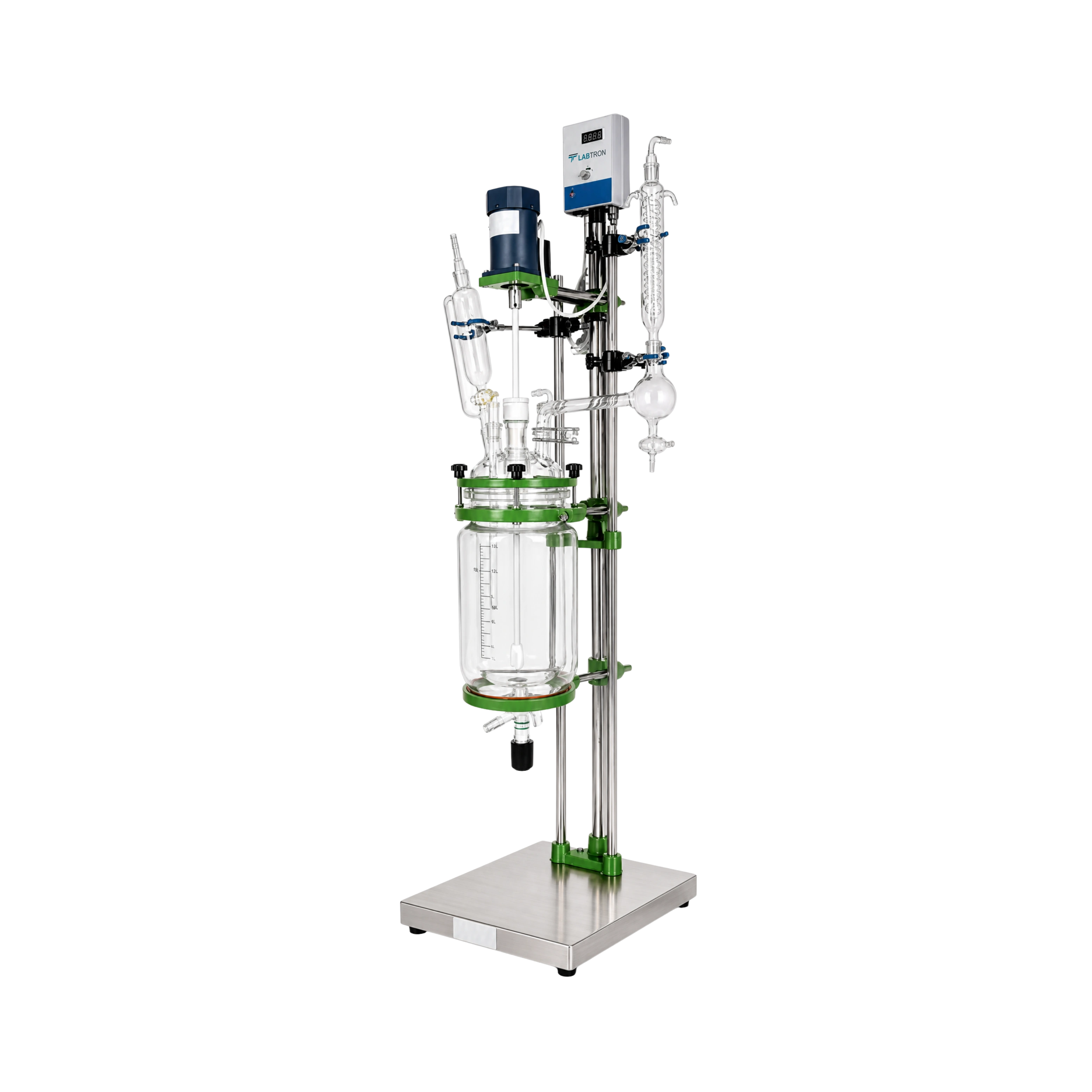

Jacketed Glass Reactor LJGR-B28

Name: Jacketed Glass Reactor LJGR-B28
Brand: Labtron
SKU: LJGR-B28
Rating: 4.8 (808 reviews)

Jacketed Glass Reactor LJGR-B28 has a 0.5 L capacity and features a compact design. It is built to withstand high temperatures offering low thermal expansion, providing strong corrosion resistance. The unit includes a spiral condenser that ensures an efficient and wide cooling area. Equipped with stepless speed control, it allows smooth and precise adjustment of stirring speed. This reactor is suitable for use in chemical, biopharmaceutical, food, agricultural, and aerospace research and industrial applications.

Request Quote

Reactor Volume	0.5 L
Jacket Volume	0.4 L
Operating Temperature Range	-80°C to 200°C
Reactor Pressure	-0.1 to 0.0 Mpa
Jacketed Pressure	Less than or equal to ±0.03 Mpa
Rotation Speed Range	0 to 1000 rpm
Pressure Equalizing Volume	0.25 L
Recovery Head Volume	0.25L
Speed Control Mode	Stepless speed regulation
Glass Material	High borosilicate 3.3
Frame Material	SUS304
Sealing Parts Material	Fluororubber
Stirrer Sealing Type	Skeleton oil seal
Agitator Blade	Stainless steel material with PTFE outer layer, paddle agitator
Kettle Temperature Difference Limit	Less than or equal to 80°C
Ambient Temperature Range	5°C to 35°C
Relative Humidity	Less than or equal to 65%
Power Consumption	90 W
Power Supply	220V/50Hz,1P
Condenser Area	0.05 Square Meters
Dimension	380×380×1200 mm

Transparent reaction chamber
Uniform heat distribution
Secure sealing
Bottom discharge valve
Organic solvent-resistant
Flange reactor lid
Superior airtightness

Jacketed Glass Reactor LJGR-B28 is used for chemical synthesis, biopharmaceutical research, material development, food processing, agricultural studies, and aerospace applications in both laboratory and industrial environments.

Download catalog for
Jacketed Glass Reactor LJGR-B28 Catalog

Models of Jacketed Glass Reactor

Jacketed Glass Reactor supports controlled mixing with adjustable stirring speed, ensuring consistent reaction dynamics in varied experiments. They maintain thermal stability using a jacketed layer for fluid circulation without exposing the medium. Their borosilicate glass build withstands thermal stress and chemical exposure over time. These systems include a display panel for monitoring key parameters during operation. Our glass reactor is suited for synthesis, distillation, extraction, crystallization, and pharmaceutical development.
