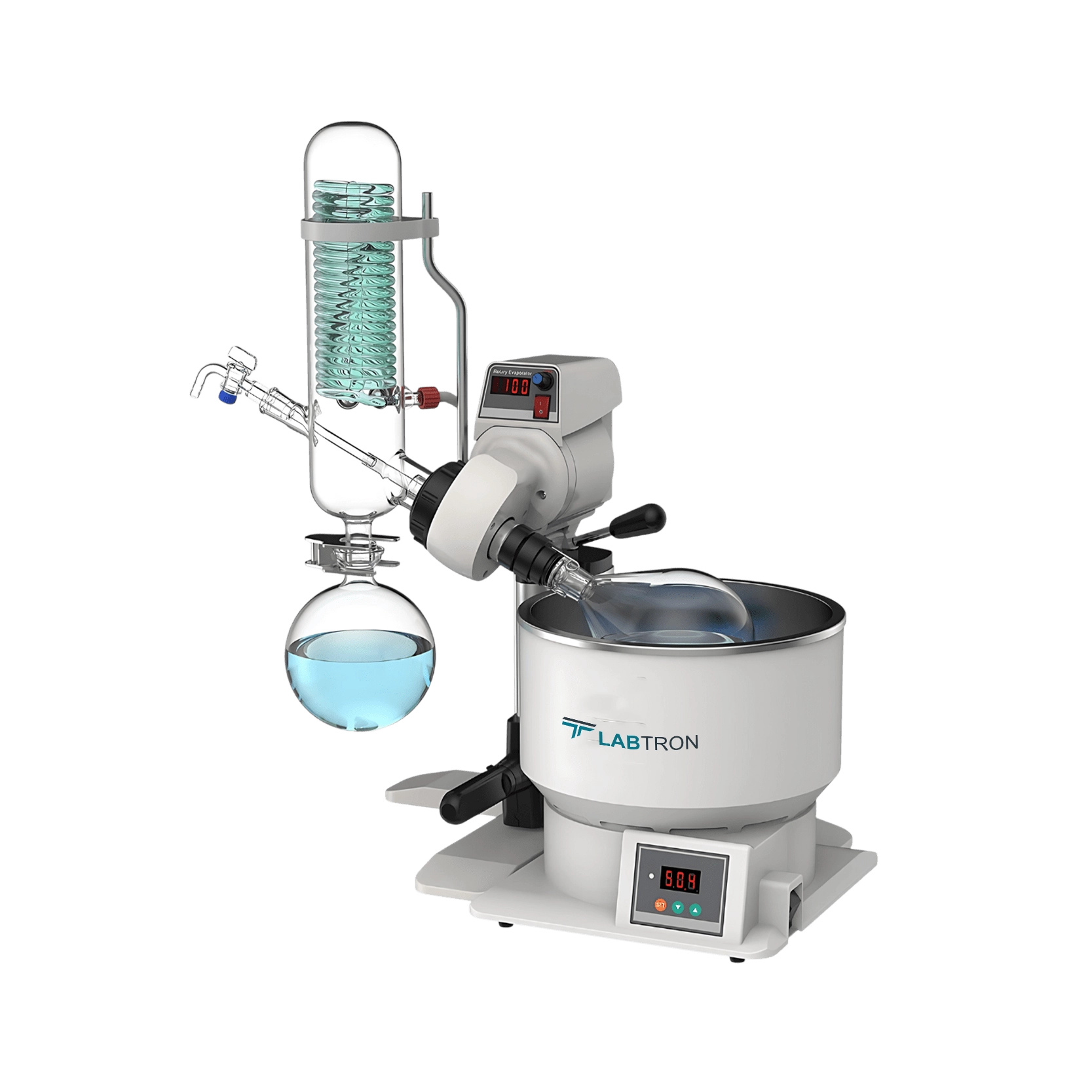

Manual Lifting Rotary Evaporator LMRE-C18

Manual Lifting Rotary Evaporator LMRE-C18

Manual Lifting Rotary Evaporator LMRE-C18 supports 500 ml and 1000 ml flasks for chemical separation, distillation, and solvent removal. It uses fluorine rubber double seals to hold system pressure without frequent maintenance. The structure promotes balanced heat transfer across the bath, helping maintain steady thermal conditions. Our Manual Lifting Rotary Evaporator supports tasks like herbal extraction and biochemical pharmaceuticals.

Manual Lifting Rotary Evaporator LMRE-C18
Manual Lifting Rotary Evaporator LMRE-C18
Manual Lifting Rotary Evaporator LMRE-C18
Request Quote
Evaporating Flask Up to 1000ml (compatible with 500 and 1000 ml)
Receiving Bottle 1000 ml
Rotation Speed 20 to 180 rpm
Rotation Control Electric
Rotation Speed Setting 1 rpm/step
Lifting Mode Manual
Water Bath Temperature RT to 95°C
Oil Bath Temperature RT to 180°C
Temperature Sensor 2-wire PT100 RTD
Ambient Temperature 5 to 35°C
Environment Relative Humidity Less than or equal to 70%
Bath Temperature Setting 0.1°C/step
Heating Capacity 1050 W
Vacuum Leakage Less than or equal to 0.33 kPa/min
Nominal Adjustment Accuracy +/-1.5°C
Maximum Sea Level 2000 m
Bath Size Φ254×130 mm
Protection Grade IP20
Sealing Parts PTFE
Glass 3.3 borosilicate
Power Consumption 1080 W
Power Supply 110V,60 Hz or 240V,50 Hz
Dimensions (L×W×H) 640×400×670 mm
Weight 13 kg
  • Adjustable flask inclination

  • Customizable bath temperature
  • Quick system setup

  • Clear visibility during operation

  • Compact and portable design

Manual Lifting Rotary Evaporator LMRE-C18 is designed for efficient evaporation, distillation, and separation of chemicals. It finds widespread use in labs for applications like herbal extraction, food purification, and biochemical pharmaceutical processes.



Models of Manual Lifting Rotary Evaporator

Labtron Manual Lifting Rotary Evaporator quickly distill out solvent with wide temperature range of up to 180 °C and 20 to 200 rpm speed range. They offer ergonomic operation with smooth manual lift mechanism. These are easy to operate with integrated interface, vacuum pump, and recirculating chiller. They are expanded with range of accessories and various glass assemblies for flexible evaporation process. Our robust Manual Lifting Rotary Evaporator ensure quick and reliable removal of solvents.

Manual Lifting Rotary Evaporator LMRE-C10

Manual Lifting Rotary Evaporator LMRE-C10

  • Evaporating Flask : 1 L
  • Receiving Bottle : 1 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 150 mm
Manual Lifting Rotary Evaporator LMRE-C12

Manual Lifting Rotary Evaporator LMRE-C12

  • Evaporating Flask : 1 L
  • Receiving Bottle : 1 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 200 mm
Manual Lifting Rotary Evaporator LMRE-C13

Manual Lifting Rotary Evaporator LMRE-C13

  • Evaporating Flask : 1 L
  • Receiving Bottle : 1 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 200 mm
Manual Lifting Rotary Evaporator LMRE-C17
Manual Lifting Rotary Evaporator LMRE-C17
  • Evaporating Flask : 5 L
  • Receiving Bottle : 3 L (with discharge valve)
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 200 mm
Manual Lifting Rotary Evaporator LMRE-A10
Manual Lifting Rotary Evaporator LMRE-A10
  • Evaporating Flask : 2 L
  • Lifting Mode : Manual
  • Optional Evaporating Flask : 0.25 L, 1L
  • Condenser Type : Vertical condenser and top cold trap
Manual Lifting Rotary Evaporator LMRE-C11

Manual Lifting Rotary Evaporator LMRE-C11

  • Evaporating Flask : 1 L
  • Receiving Bottle : 1 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 150 mm
Manual Lifting Rotary Evaporator LMRE-B10

Manual Lifting Rotary Evaporator LMRE-B10

  • Rotary Evaporating Flask : 3 L
  • Optional Evaporating Flask : 1 L, 2 L
  • Receiving Flask : 2 L
  • Rotating Speed Range : 0 to 120 rpm
Manual Lifting Rotary Evaporator LMRE-C14

Manual Lifting Rotary Evaporator LMRE-C14

  • Evaporating Flask : 3 L
  • Receiving Bottle : 2 L
  • Rotation Speed : 0 to 120 rpm
  • Lifting Distance : 200 mm
Manual Lifting Rotary Evaporator LMRE-C18 FAQ's
  • Our Manual Lifting Rotary Evaporator is designed to cater to diverse laboratory needs, accommodating tasks like extraction, distillation, and solvent separation. Its manual lifting mechanism allows for quick adjustments between flask sizes and positions. Researchers can rely on it for back-to-back processes, transitioning from one sample to another without requiring a complex setup. It’s a versatile choice for labs with ever-changing workloads. The equipment is durable enough for constant use and offers consistent results. No need to recalibrate it constantly, making it a reliable choice for busy research environments. The simple design ensures it remains user-friendly under high-pressure tasks.

  • Our Manual Lifting Rotary Evaporator is a great option for shared labs where users from various disciplines need quick, flexible equipment. Its manual lifting design ensures that it can be operated with minimal training. Researchers working in fields like chemistry, food science, and pharmacology can all use the same unit for different tasks. The easy-to-adjust components ensure that switching between sample types is fast and smooth. There’s no need for complex setup changes, and multiple users can use it throughout the day without interruptions. It’s designed to be adaptable, responding quickly to different flask sizes and requirements. The simple operation makes it a suitable option for collaborative, multi-user settings.

  • The Manual Lifting Rotary Evaporator is perfect for labs that need to maintain a high throughput. With its manual lifting system, users can quickly adjust flask positions, allowing them to swap out samples without losing valuable time. The ability to control rotation and heating manually ensures rapid transitions from one experiment to the next. This flexibility helps maintain the lab’s momentum during busy hours, particularly when sample processing needs to be completed in a limited window. There’s no waiting for software resets or digital calibrations. Its robust design allows it to withstand the daily demands of high-volume labs. The simplicity of its operation means even the most time-strapped researchers can get results quickly.

  • Labtron Manual Lifting Rotary Evaporator with temperature-sensitive processes in mind. For delicate compounds, it ensures the evaporation process remains controlled to avoid thermal degradation. The water or oil bath is manually adjustable to keep temperatures within a safe range for the sample. Users can keep a close eye on temperature fluctuations, avoiding sudden spikes or drops. This manual control makes it ideal for working with materials like heat-sensitive chemicals and essential oils. The evaporator’s straightforward design allows users to make real-time adjustments if a sample begins to show signs of instability. It’s a reliable tool for handling fragile substances during distillation or extraction processes.

  • Manual Lifting Rotary Evaporator performs well in high-altitude laboratories where atmospheric pressure differs from standard conditions. Unlike automated systems that may struggle with fluctuating pressure, the manual controls of this model allow for more consistent results in areas with thinner air. Its robust build ensures it can withstand the challenges of operating in elevated zones. Researchers in mountainous regions or research fields requiring stable evaporation will find it reliable. The manual design removes the need for digital sensors, which may be prone to errors due to altitude changes. It’s a durable tool for use in high-pressure or high-altitude settings, ensuring dependable operation.

  • Labtron Manual Lifting Rotary Evaporator to be functional even in labs with limited infrastructure. It operates efficiently without the need for complex digital setups or IT support. Its manual operation means it doesn’t rely on external power grids or high-tech environments. Labs that experience power fluctuations or lack internet connectivity find it to be a dependable solution. The design focuses on simplicity, ensuring that it remains effective even in remote or resource-limited areas. Its construction is durable enough to handle regular use without requiring specialized tools or frequent maintenance. This makes it a perfect choice for labs that need straightforward equipment with minimal dependency on external systems.
