| Evaporating Flask | 5 L |

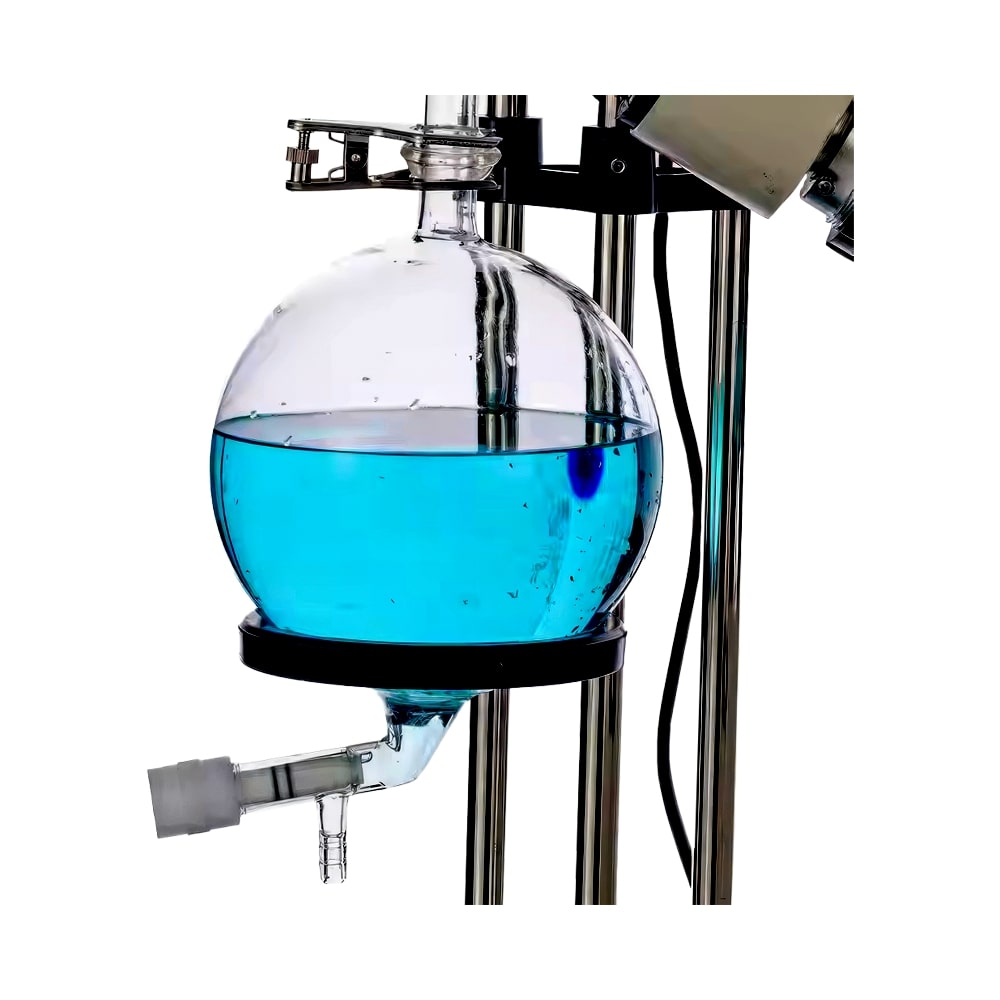

| Receiving Bottle | 3 L (with discharge valve) |
| Rotation Speed | 0 to 120 rpm |
| Lifting Distance | 200 mm |
| Lifting Mode | Manual |
| Temperature Range | RT to 180°C |
| Temperature Control Accuracy | +/- 1°C |
| Vacuum Degree | 0.098 Mpa |
| Condensing Area | 0.17 m2 |
| Rotating Motor Power | 40 W |
| Heating Power | 1200 W |
| Bath Capacity | 10.4 L |
| Power Consumption | 1240 W |
| Power Supply | 220 to 240 V,5O Hz |
| Dimensions (L×W×H) | 760×330×1030 mm |
| Weight | 24.5 Kg |
Clear scale markings
User-friendly interface
Space-saving structure
Double fuse safety system
Variable speed control knob

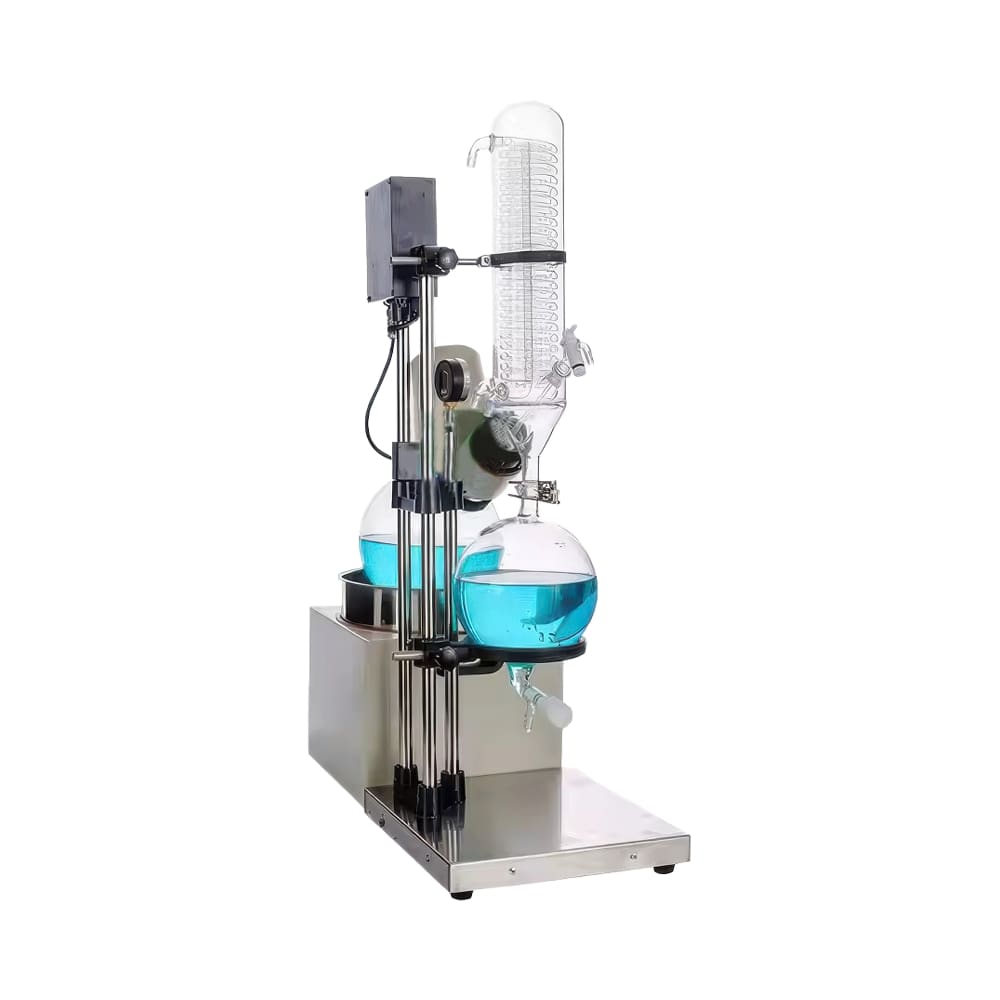

Manual Lifting Rotary Evaporator LMRE-C16 efficiently removes solvents using controlled vacuum evaporation. It is frequently implemented in chemical labs, food research units, pharmaceutical setups, and academic environments where safe and effective solvent recovery is required.
Download catalog for
Manual Lifting Rotary Evaporator LMRE-C16 Catalog
Available Range :
Manual Lifting Rotary Evaporator LMRE-C10 : 1 L Manual Lifting Rotary Evaporator LMRE-A10 : 2 L Manual Lifting Rotary Evaporator LMRE-C15 : 3 L Manual Lifting Rotary Evaporator LMRE-C16 : 5 L Manual Lifting Rotary Evaporator LMRE-C18 : Up to 1000ml (compatible with 500 and 1000 ml)Labtron Manual Lifting Rotary Evaporator quickly distill out solvent with wide temperature range of up to 180 °C and 20 to 200 rpm speed range. They offer ergonomic operation with smooth manual lift mechanism. These are easy to operate with integrated interface, vacuum pump, and recirculating chiller. They are expanded with range of accessories and various glass assemblies for flexible evaporation process. Our robust Manual Lifting Rotary Evaporator ensure quick and reliable removal of solvents.








The Labtron Manual Lifting Rotary Evaporator is constructed using durable materials that can withstand repeated exposure to heat and solvents. Its robust frame minimizes wear during extended hours of operation. The unit’s components are tightly fitted to reduce performance drops over time. The build quality is especially helpful in laboratories where consistent functioning is essential. Users have reported fewer interruptions even in high-frequency usage. It maintains consistent operation with minimal manual intervention. The stability factor improves its overall usability. This consistent structure adds long-term operational value.
Our manual rotary evaporator is frequently implemented in labs handling volatile compounds that require controlled removal. The rotary action helps reduce the risk of residue retention. The gentle rotation supports the careful handling of delicate substances. Its slow-speed capability keeps materials from degrading under stress. Laboratories often use it for herbal extraction or similar processes where compound protection is essential. Unlike aggressive methods, it doesn’t strip key properties from the material. Even fragile contents can be processed with minimal loss. This makes it suitable for procedures involving bioactive elements.
The Manual Lifting Rotary Evaporator LMRE-C16 consumes manageable wattage, making it suitable for facilities with basic electrical setups. It operates without placing excess load on standard sockets or local circuits. This is especially useful in university labs or mobile stations. The equipment’s wattage supports steady use without triggering safety breakers. It’s chosen in settings that require performance without specialized wiring. It can function even during moderate voltage fluctuations. Users rarely report tripped breakers or shutdowns. Its compatibility with common lab outlets simplifies installation.
Labtron’s Manual Lifting Rotary Evaporator offers a maintenance-friendly structure requiring no specialized tools. Components like the condenser and discharge valve can be rinsed easily. No intensive servicing is necessary to keep it running smoothly. Users mostly rely on manual cleaning and routine inspection. The design allows for hassle-free dismantling during clean-up. It fits labs that prioritize low-maintenance equipment. Downtime due to servicing is rare. Frequent cleaning supports steady functionality without extra cost.
Our manual rotary evaporator is often favored in academic setups due to its intuitive handling. First-time users adapt quickly without long tutorials. The manual lift design offers physical control that’s easy to understand. All controls are labeled and accessible for guided learning. Instructors report minimal errors from new operators. No complex calibration is required before starting. Tasks like sample loading or valve usage are easy to pick up. This makes it suitable for structured lab training.
Yes, the Manual Lifting Rotary Evaporator LMRE-C16 includes multiple protective elements such as a dual fuse setup for heating and rotation. These elements act as buffers during power inconsistencies. The glassware is made from borosilicate which prevents cracking under high temperatures. Its manual control prevents overheating by allowing close monitoring. Several users have noted its resilience during fluctuating lab conditions. The fuse elements add an extra line of security. This configuration suits busy labs that run long shifts. The construction reflects safety-driven engineering choices.
