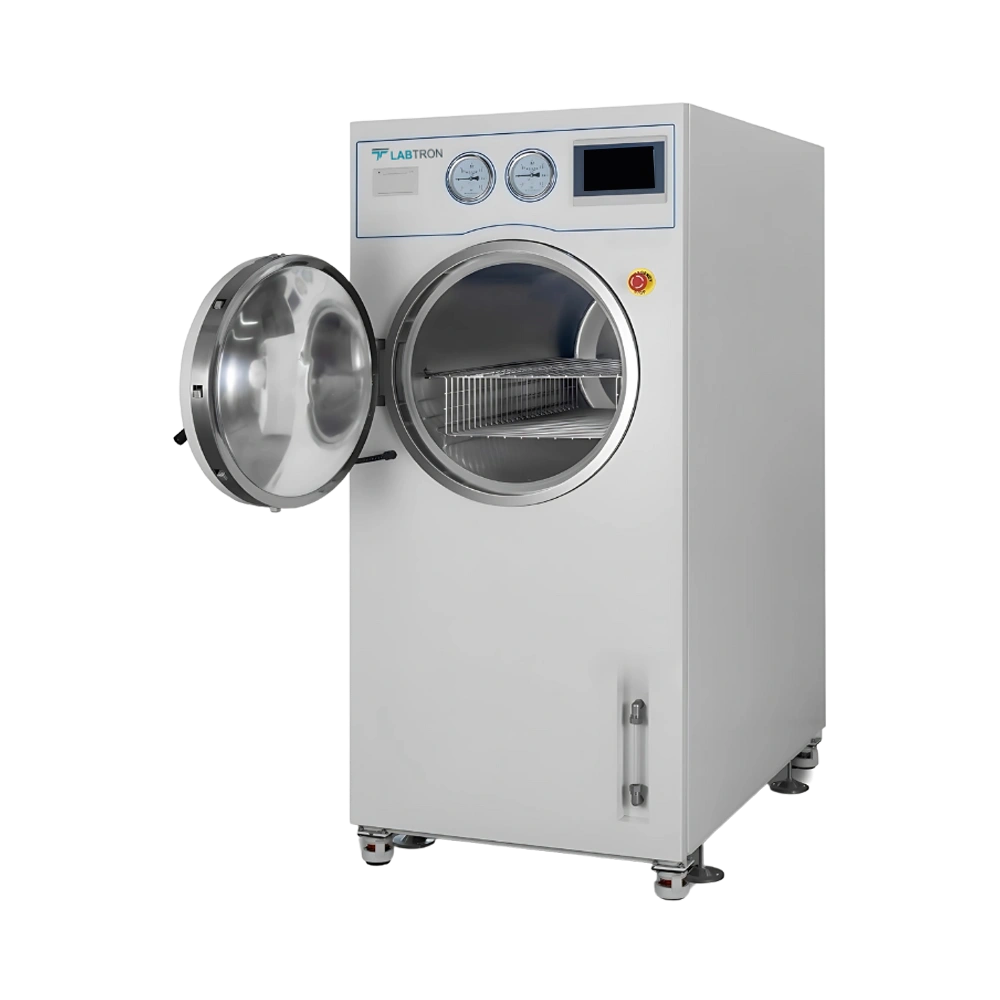

Medical Horizontal Autoclave LMHA-B10

The Medical Horizontal Autoclave LMHA-B10 offers a sterilization temperature range from 105°C to 138°C, which is crucial for eliminating a broad spectrum of microorganisms, including bacteria, viruses, fungi, and spores. This wide range allows it to accommodate the sterilization needs of various medical instruments and materials without compromising their integrity. The high-temperature capability ensures effective decontamination, especially important in hospital operating rooms, laboratories, and pharmaceutical settings.

The Medical Horizontal Autoclave LMHA-B10 is designed to sterilize a variety of medical and laboratory equipment, including surgical instruments, medical textiles, lab glassware, bio-waste, culture media, and other heat-resistant items. Its 135L capacity and efficient sterilization tray system make it ideal for bulk sterilization cycles in hospitals, research labs, clinics, and pharmaceutical facilities.

The built-in steam generator in the Medical Horizontal Autoclave LMHA-B10 ensures quick and consistent production of saturated steam, which is vital for efficient and uniform sterilization. It reduces startup time and maintains steady pressure and temperature throughout the cycle. This feature eliminates the need for external steam sources, making the unit more self-sufficient and compact, ideal for space-constrained medical environments.

The Medical Horizontal Autoclave LMHA-B10 incorporates multiple safety features to ensure operator and equipment protection. These include a safety interlock door system that prevents the autoclave from opening under pressure, high-accuracy temperature and pressure sensors to avoid overheating, and a microcomputer-controlled system for error detection and alerts. Additionally, the built-in water tank and pressure release mechanism provide added safety during operation.

Yes, the Medical Horizontal Autoclave LMHA-B10 allows for adjustable sterilization and drying times, ranging from 0 to 99 minutes. This flexibility enables users to tailor cycles based on the type of load, material sensitivity, and sterilization requirements. The feature enhances efficiency by allowing faster cycles for less complex loads and extended times for dense or highly contaminated materials.

The Medical Horizontal Autoclave is a steam sterilization system designed with a horizontal chamber orientation, ideal for processing large volumes of instruments and materials. Unlike vertical autoclaves, which load from the top and are typically used for smaller batches, horizontal autoclaves are front-loading, making them more ergonomic and suitable for high-throughput settings such as hospitals, laboratories, and pharmaceutical industries. The triple-layer construction, consisting of a sterilization chamber, an external jacket, and mineral glass wool insulation, enhances temperature retention and operational efficiency.

The Medical Horizontal Autoclave boasts a robust and safe design, incorporating a triple-layered build with a central chamber, jacket, and thermal insulation using mineral glass wool. This configuration ensures optimal heat distribution and energy efficiency. For safety, it features stainless steel safety interlock doors with radial levers, which provide an airtight seal to prevent steam leakage. The interlock mechanism ensures the door cannot be opened during sterilization, thereby enhancing user safety.

The Medical Horizontal Autoclave is equipped with a 7-inch LCD color touch screen, providing an intuitive and user-friendly interface. This advanced control panel allows operators to configure sterilization programs, monitor real-time operating parameters, and access operational reports with ease. It also supports traceability functions, which are crucial for compliance and documentation in healthcare and laboratory environments.

Featuring a microcomputer control system, the Medical Horizontal Autoclave enables precise regulation of temperature, pressure, and cycle duration. The system includes programmable settings for different sterilization needs and supports real-time parameter monitoring. This ensures consistent sterilization performance and helps maintain compliance with hygiene and safety standards in medical and scientific applications.

Yes, the Medical Horizontal Autoclave is specifically designed for high-capacity operations. Its horizontal design allows for larger sterilization loads compared to vertical models. This makes it highly suitable for central sterile supply departments (CSSDs), hospitals, research labs, and pharmaceutical facilities where bulk sterilization of instruments, porous items, wrapped/unwrapped materials, and liquids is required.
