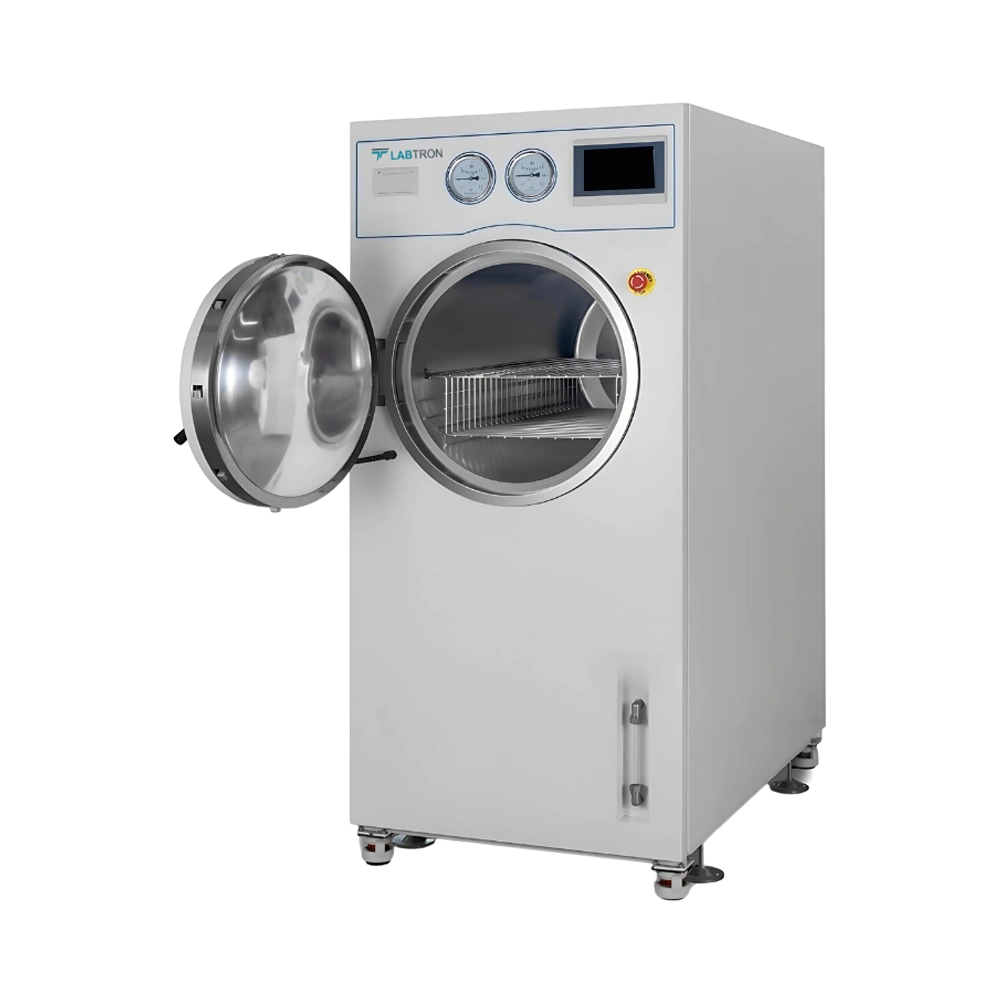

Medical Horizontal Autoclave LMHA-B12

The Medical Horizontal Autoclave LMHA-B12 offers a sterilization temperature range of 105°C to 138°C, which ensures comprehensive sterilization of various medical and laboratory instruments. This wide range is ideal for eliminating a broad spectrum of microorganisms, including bacteria, viruses, and spores. The system maintains consistent pressure and temperature through a microcomputer-controlled interface and a built-in steam generator, ensuring precise and uniform sterilization cycles.

Designed with a large 185-liter chamber and chamber dimensions of Ø500 × 950 mm, the Medical Horizontal Autoclave LMHA-B12 caters to high-throughput sterilization. Its large chamber allows simultaneous sterilization of multiple instruments and trays, making it especially suitable for hospitals, research laboratories, and pharmaceutical settings with heavy sterilization requirements.

The Medical Horizontal Autoclave LMHA-B12 includes several safety-focused design elements, most notably a safety interlock door that prevents accidental opening during operation under pressure. This autoclave also provides accurate temperature and pressure display readings (with 0.1°C and 0.1 kPa precision, respectively), ensuring users can monitor sterilization conditions in real-time for maximum operational safety.

The LMHA-B12 autoclave is equipped with a microcomputer control system and an intuitive LCD color touchscreen display, making it user-friendly and easy to operate. It allows for adjustable cycle settings for both sterilization and drying (from 0 to 99 minutes each), enabling customization based on the type and volume of instruments being sterilized. Additionally, the built-in printer allows automatic documentation of sterilization cycles for regulatory compliance and quality control.

With features like a dual voltage system (220V/380V, 50/60Hz), integrated water tank, and sterilization tray loading method, the Medical Horizontal Autoclave LMHA-B12 is highly adaptable across a variety of environments. Whether it's a hospital operating room, a pharmaceutical manufacturing plant, or a research laboratory, the LMHA-B12 ensures flexible, efficient, and reliable sterilization of critical equipment.

The Medical Horizontal Autoclave is a steam sterilization system designed with a horizontal chamber orientation, ideal for processing large volumes of instruments and materials. Unlike vertical autoclaves, which load from the top and are typically used for smaller batches, horizontal autoclaves are front-loading, making them more ergonomic and suitable for high-throughput settings such as hospitals, laboratories, and pharmaceutical industries. The triple-layer construction, consisting of a sterilization chamber, an external jacket, and mineral glass wool insulation, enhances temperature retention and operational efficiency.

The Medical Horizontal Autoclave boasts a robust and safe design, incorporating a triple-layered build with a central chamber, jacket, and thermal insulation using mineral glass wool. This configuration ensures optimal heat distribution and energy efficiency. For safety, it features stainless steel safety interlock doors with radial levers, which provide an airtight seal to prevent steam leakage. The interlock mechanism ensures the door cannot be opened during sterilization, thereby enhancing user safety.

The Medical Horizontal Autoclave is equipped with a 7-inch LCD color touch screen, providing an intuitive and user-friendly interface. This advanced control panel allows operators to configure sterilization programs, monitor real-time operating parameters, and access operational reports with ease. It also supports traceability functions, which are crucial for compliance and documentation in healthcare and laboratory environments.

Featuring a microcomputer control system, the Medical Horizontal Autoclave enables precise regulation of temperature, pressure, and cycle duration. The system includes programmable settings for different sterilization needs and supports real-time parameter monitoring. This ensures consistent sterilization performance and helps maintain compliance with hygiene and safety standards in medical and scientific applications.

Yes, the Medical Horizontal Autoclave is specifically designed for high-capacity operations. Its horizontal design allows for larger sterilization loads compared to vertical models. This makes it highly suitable for central sterile supply departments (CSSDs), hospitals, research labs, and pharmaceutical facilities where bulk sterilization of instruments, porous items, wrapped/unwrapped materials, and liquids is required.
