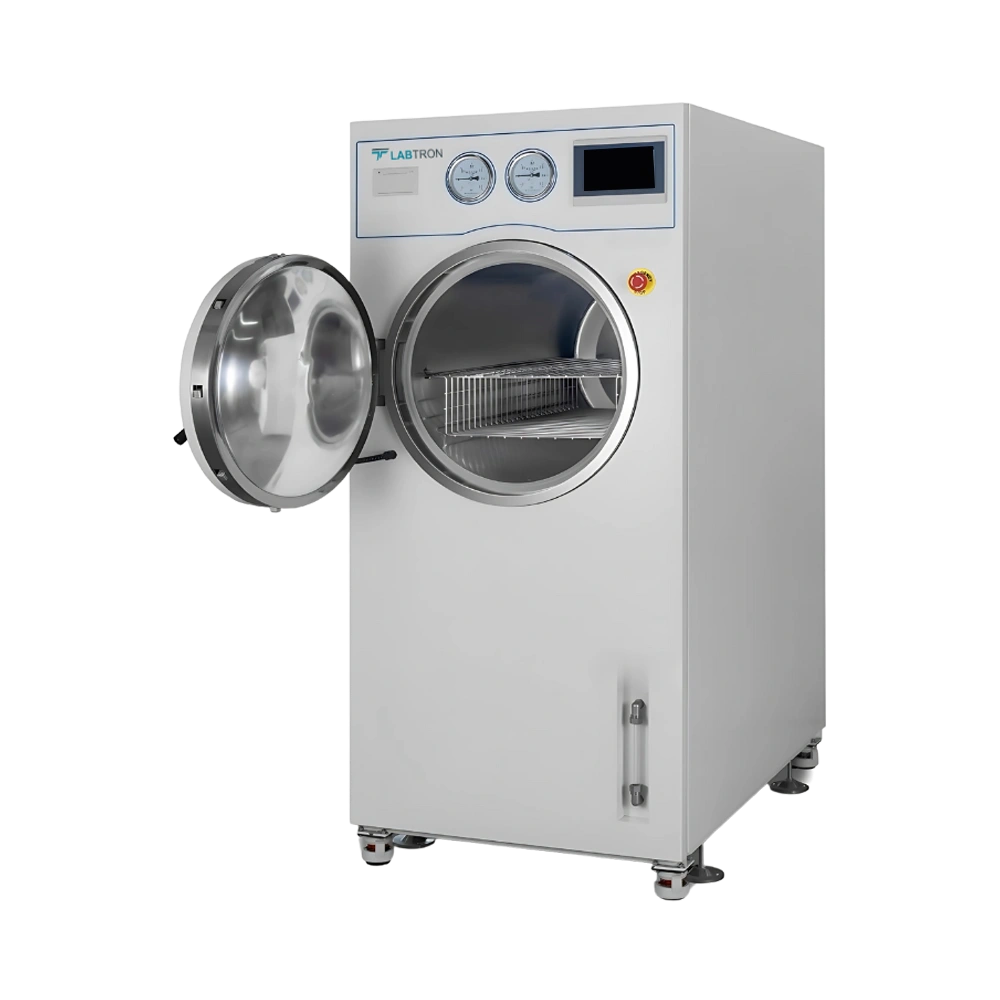

Medical Horizontal Autoclave LMHA-B20

The Medical Horizontal Autoclave LMHA-B20 features a 135-liter chamber, making it suitable for medium to large sterilization loads. This capacity allows for the sterilization of various medical instruments, laboratory glassware, surgical tools, and pharmaceutical items in a single cycle. It’s especially beneficial for high-throughput environments such as hospitals, research labs, and production facilities where efficiency and reliability are crucial.

The LMHA-B20 is equipped with a microcomputer-based control system and an LCD color touchscreen display. This advanced interface allows operators to easily configure sterilization parameters, monitor cycle progress in real-time, and adjust settings such as sterilization time, temperature, and drying cycles with high accuracy. The touchscreen provides a user-friendly experience with clear visual indicators, improving operational efficiency and reducing the learning curve for new users.

The Medical Horizontal Autoclave LMHA-B20 supports a temperature range of 105°C to 138°C, providing flexibility to accommodate various sterilization requirements. This range is ideal for effectively killing a broad spectrum of microorganisms, including heat-resistant bacterial spores, without compromising the integrity of delicate instruments. The temperature display accuracy of 0.1°C ensures precise monitoring throughout the sterilization cycle.

The LMHA-B20 comes with multiple built-in safety mechanisms including a safety interlock door, which prevents the autoclave from opening under pressure, thereby avoiding accidental burns or system malfunctions. It also features automatic pressure and temperature regulation, and the vacuum system ensures safe removal of air pockets, enhancing sterilization efficiency while maintaining safety standards.

The integrated steam generator of Medical Horizontal Autoclave LMHA-B20 enables rapid production of saturated steam, minimizing preheating time and ensuring uniform heat distribution throughout the chamber. The vacuum system (rated at –0.096 MPa) effectively removes air before and after sterilization, which helps in achieving deep and uniform sterilization, particularly for porous materials and instruments with complex geometries. This enhances sterilization performance and reduces the risk of residual contamination.

The Medical Horizontal Autoclave is a steam sterilization system designed with a horizontal chamber orientation, ideal for processing large volumes of instruments and materials. Unlike vertical autoclaves, which load from the top and are typically used for smaller batches, horizontal autoclaves are front-loading, making them more ergonomic and suitable for high-throughput settings such as hospitals, laboratories, and pharmaceutical industries. The triple-layer construction, consisting of a sterilization chamber, an external jacket, and mineral glass wool insulation, enhances temperature retention and operational efficiency.

The Medical Horizontal Autoclave boasts a robust and safe design, incorporating a triple-layered build with a central chamber, jacket, and thermal insulation using mineral glass wool. This configuration ensures optimal heat distribution and energy efficiency. For safety, it features stainless steel safety interlock doors with radial levers, which provide an airtight seal to prevent steam leakage. The interlock mechanism ensures the door cannot be opened during sterilization, thereby enhancing user safety.

The Medical Horizontal Autoclave is equipped with a 7-inch LCD color touch screen, providing an intuitive and user-friendly interface. This advanced control panel allows operators to configure sterilization programs, monitor real-time operating parameters, and access operational reports with ease. It also supports traceability functions, which are crucial for compliance and documentation in healthcare and laboratory environments.

Featuring a microcomputer control system, the Medical Horizontal Autoclave enables precise regulation of temperature, pressure, and cycle duration. The system includes programmable settings for different sterilization needs and supports real-time parameter monitoring. This ensures consistent sterilization performance and helps maintain compliance with hygiene and safety standards in medical and scientific applications.

Yes, the Medical Horizontal Autoclave is specifically designed for high-capacity operations. Its horizontal design allows for larger sterilization loads compared to vertical models. This makes it highly suitable for central sterile supply departments (CSSDs), hospitals, research labs, and pharmaceutical facilities where bulk sterilization of instruments, porous items, wrapped/unwrapped materials, and liquids is required.
