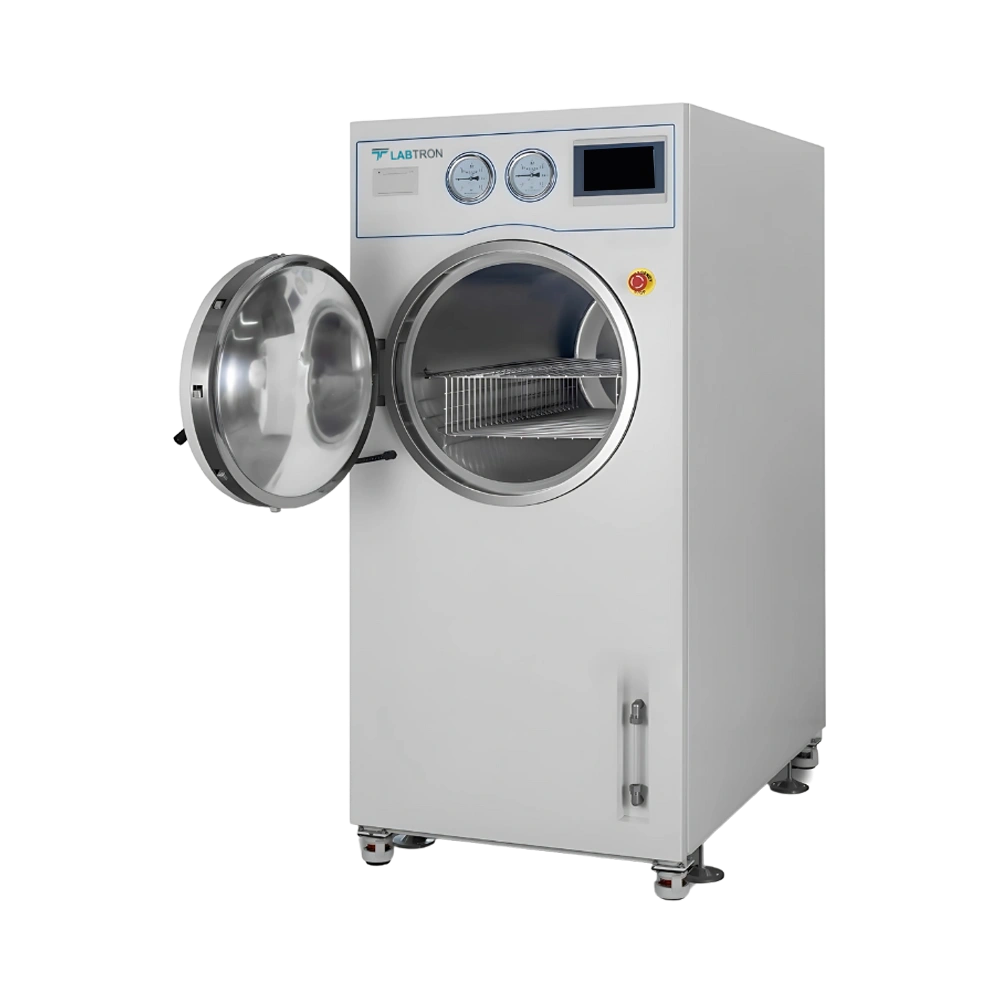

Medical Horizontal Autoclave LMHA-B22

The Medical Horizontal Autoclave LMHA-B22 is equipped with a wide sterilization temperature range from 105°C to 138°C, which ensures the elimination of a broad spectrum of microorganisms, including bacteria, viruses, fungi, and spores. This high-temperature range is supported by a built-in steam generator and advanced vacuum system, creating the necessary conditions for deep and uniform sterilization. Whether it's surgical instruments, laboratory equipment, or pharmaceutical tools, the LMHA-B22 guarantees optimal decontamination, even for complex and hollow instruments.

The vacuum system in the Medical Horizontal Autoclave LMHA-B22 plays a critical role in enhancing sterilization by removing air from the chamber before and during the sterilization cycle. Air pockets can prevent steam from making direct contact with surfaces, leading to ineffective sterilization. The LMHA-B22 achieves a vacuum rate of –0.096 MPa, enabling deep penetration of steam into porous loads and complex instruments. This feature ensures consistent, high-level sterilization across every cycle, making it ideal for hospital, clinical, and lab settings.

The Medical Horizontal Autoclave LMHA-B22 is built with a microcomputer-controlled system and features a full-color LCD touchscreen display, allowing operators to configure and monitor sterilization parameters with precision. The intuitive interface offers real-time display of temperature, pressure, cycle time, and system alerts, thereby reducing the chances of user error. The control system also includes safety interlocks, ensuring the door cannot be opened during high-pressure operations, significantly enhancing operator safety.

Yes, the Medical Horizontal Autoclave LMHA-B22 is well-suited for continuous high-volume usage, thanks to its integrated water tank and built-in steam generator. These components ensure a reliable internal water supply, enabling multiple sterilization cycles without the need for external water connections or frequent refilling. The durable construction and robust 185L chamber, combined with automated functions like drying and adjustable timers, make it ideal for busy hospitals and laboratories that require frequent sterilization.

The Medical Horizontal Autoclave LMHA-B22 includes several built-in safety mechanisms such as a safety interlock door, precise pressure and temperature sensors, and automated shutdown in case of system errors. The temperature display accuracy of 0.1°C and pressure display accuracy of 0.1 kPa allow for precise monitoring. Additionally, its robust chamber and control algorithms prevent over-pressurization, overheating, or premature door opening, ensuring that instruments are safely sterilized and users are protected at all times.

The Medical Horizontal Autoclave is a steam sterilization system designed with a horizontal chamber orientation, ideal for processing large volumes of instruments and materials. Unlike vertical autoclaves, which load from the top and are typically used for smaller batches, horizontal autoclaves are front-loading, making them more ergonomic and suitable for high-throughput settings such as hospitals, laboratories, and pharmaceutical industries. The triple-layer construction, consisting of a sterilization chamber, an external jacket, and mineral glass wool insulation, enhances temperature retention and operational efficiency.

The Medical Horizontal Autoclave boasts a robust and safe design, incorporating a triple-layered build with a central chamber, jacket, and thermal insulation using mineral glass wool. This configuration ensures optimal heat distribution and energy efficiency. For safety, it features stainless steel safety interlock doors with radial levers, which provide an airtight seal to prevent steam leakage. The interlock mechanism ensures the door cannot be opened during sterilization, thereby enhancing user safety.

The Medical Horizontal Autoclave is equipped with a 7-inch LCD color touch screen, providing an intuitive and user-friendly interface. This advanced control panel allows operators to configure sterilization programs, monitor real-time operating parameters, and access operational reports with ease. It also supports traceability functions, which are crucial for compliance and documentation in healthcare and laboratory environments.

Featuring a microcomputer control system, the Medical Horizontal Autoclave enables precise regulation of temperature, pressure, and cycle duration. The system includes programmable settings for different sterilization needs and supports real-time parameter monitoring. This ensures consistent sterilization performance and helps maintain compliance with hygiene and safety standards in medical and scientific applications.

Yes, the Medical Horizontal Autoclave is specifically designed for high-capacity operations. Its horizontal design allows for larger sterilization loads compared to vertical models. This makes it highly suitable for central sterile supply departments (CSSDs), hospitals, research labs, and pharmaceutical facilities where bulk sterilization of instruments, porous items, wrapped/unwrapped materials, and liquids is required.
