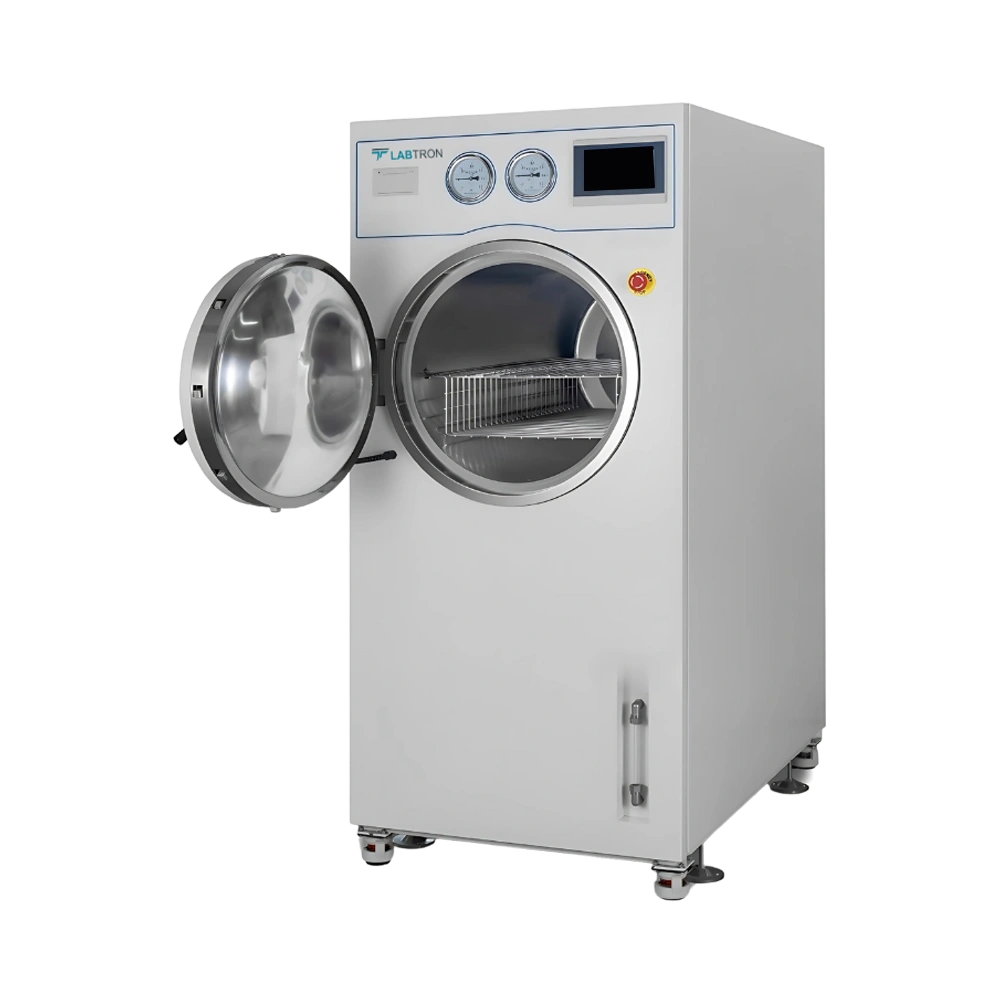

Medical Horizontal Autoclave LMHA-B21

The Medical Horizontal Autoclave LMHA-B21 offers a substantial 150-liter chamber capacity and operates under a working pressure of 0.22 MPa, which ensures thorough and rapid sterilization of medical tools and materials. The high-pressure environment combined with a sterilization temperature range of 105°C to 138°C allows for deep penetration of steam, effectively eliminating bacteria, viruses, and spores. This makes it ideal for high-volume clinical applications, including hospitals, surgical centers, and laboratories.

The built-in steam generator in the Medical Horizontal Autoclave LMHA-B21 ensures a consistent and reliable steam supply during the sterilization cycle, reducing dependency on external steam sources. The integrated vacuum system enhances steam penetration by removing air pockets within the chamber and materials. This results in uniform sterilization, particularly important for porous or wrapped instruments, and is essential in maintaining infection control standards in medical and research environments.

The Medical Horizontal Autoclave LMHA-B21 is equipped with a safety interlock door system, which prevents the chamber from opening while pressure or high temperatures are still present, significantly reducing the risk of accidents. Additionally, the microcomputer control system monitors and regulates sterilization parameters to prevent operational errors. The unit’s LCD touchscreen displays real-time temperature and pressure readings with a high accuracy of 0.1°C and 0.1 kPa, ensuring complete visibility and control for operators.

Designed with user convenience in mind, the Medical Horizontal Autoclave LMHA-B21 features a microcomputer control system and a color LCD touchscreen for intuitive operation and parameter setting. Users can easily program sterilization and drying times (ranging from 0 to 99 minutes each), and the built-in printer automatically records sterilization data, including temperature, pressure, and cycle duration. This documentation supports quality assurance protocols and regulatory compliance in medical facilities.

Yes, the Medical Horizontal Autoclave LMHA-B21 is specifically designed for continuous and high-frequency use in clinical and laboratory settings. Its integrated water tank supports uninterrupted steam generation without requiring constant manual refilling, while its durable construction ensures long-term reliability. The sterilization tray loading system allows for quick and organized placement of instruments, enabling faster turnaround times between sterilization cycles.

The Medical Horizontal Autoclave is a steam sterilization system designed with a horizontal chamber orientation, ideal for processing large volumes of instruments and materials. Unlike vertical autoclaves, which load from the top and are typically used for smaller batches, horizontal autoclaves are front-loading, making them more ergonomic and suitable for high-throughput settings such as hospitals, laboratories, and pharmaceutical industries. The triple-layer construction, consisting of a sterilization chamber, an external jacket, and mineral glass wool insulation, enhances temperature retention and operational efficiency.

The Medical Horizontal Autoclave boasts a robust and safe design, incorporating a triple-layered build with a central chamber, jacket, and thermal insulation using mineral glass wool. This configuration ensures optimal heat distribution and energy efficiency. For safety, it features stainless steel safety interlock doors with radial levers, which provide an airtight seal to prevent steam leakage. The interlock mechanism ensures the door cannot be opened during sterilization, thereby enhancing user safety.

The Medical Horizontal Autoclave is equipped with a 7-inch LCD color touch screen, providing an intuitive and user-friendly interface. This advanced control panel allows operators to configure sterilization programs, monitor real-time operating parameters, and access operational reports with ease. It also supports traceability functions, which are crucial for compliance and documentation in healthcare and laboratory environments.

Featuring a microcomputer control system, the Medical Horizontal Autoclave enables precise regulation of temperature, pressure, and cycle duration. The system includes programmable settings for different sterilization needs and supports real-time parameter monitoring. This ensures consistent sterilization performance and helps maintain compliance with hygiene and safety standards in medical and scientific applications.

Yes, the Medical Horizontal Autoclave is specifically designed for high-capacity operations. Its horizontal design allows for larger sterilization loads compared to vertical models. This makes it highly suitable for central sterile supply departments (CSSDs), hospitals, research labs, and pharmaceutical facilities where bulk sterilization of instruments, porous items, wrapped/unwrapped materials, and liquids is required.
