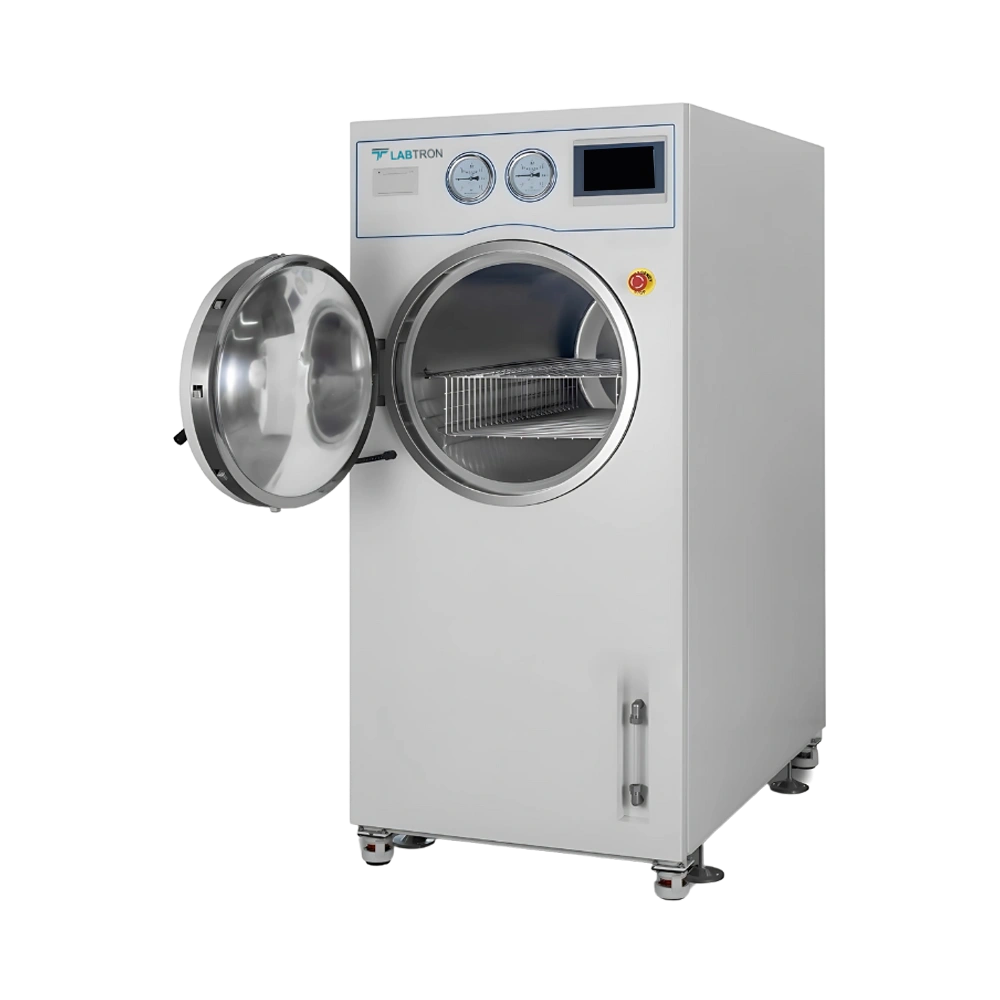

Medical Horizontal Autoclave LMHA-B23

The Medical Horizontal Autoclave LMHA-B23 has a spacious 200-liter chamber, making it ideal for hospitals, pharmaceutical industries, and research institutions that require medium to high-volume sterilization. The chamber size of Ø650 × 800 mm allows it to accommodate large instruments, surgical tools, and equipment in bulk, enhancing workflow efficiency and reducing sterilization cycle frequency.

The LMHA-B23 is designed with multiple safety mechanisms. Most notably, it features a safety interlock door system, which prevents the chamber from being opened while under pressure, thereby eliminating any risk of accidental burns or exposure. Additionally, the vacuum system, built-in steam generator, and advanced microcomputer control ensure safe and regulated pressure and temperature conditions during every cycle.

The Medical Horizontal Autoclave LMHA-B23 operates within a sterilization temperature range of 105°C to 138°C, with a maximum temperature of 138°C. The sterilization time and drying time are both adjustable from 0 to 99 minutes, providing flexibility based on the type of material or load. This wide range of control ensures thorough sterilization while protecting sensitive instruments.

The LMHA-B23 is designed for ease of use with a high-precision LCD color touchscreen display and microcomputer control system. These features provide real-time monitoring of temperature, pressure, and cycle time, with temperature and pressure display accuracies of 0.1°C and 0.1 kPa respectively. The intuitive interface simplifies operation, making it accessible for medical personnel with minimal technical training.

Yes, the LMHA-B23 autoclave includes a built-in printer that automatically records sterilization parameters and cycle information. This is crucial for traceability, record-keeping, and compliance with medical regulations, particularly in hospital and laboratory settings where documentation of sterilization processes is mandatory.

The Medical Horizontal Autoclave is a steam sterilization system designed with a horizontal chamber orientation, ideal for processing large volumes of instruments and materials. Unlike vertical autoclaves, which load from the top and are typically used for smaller batches, horizontal autoclaves are front-loading, making them more ergonomic and suitable for high-throughput settings such as hospitals, laboratories, and pharmaceutical industries. The triple-layer construction, consisting of a sterilization chamber, an external jacket, and mineral glass wool insulation, enhances temperature retention and operational efficiency.

The Medical Horizontal Autoclave boasts a robust and safe design, incorporating a triple-layered build with a central chamber, jacket, and thermal insulation using mineral glass wool. This configuration ensures optimal heat distribution and energy efficiency. For safety, it features stainless steel safety interlock doors with radial levers, which provide an airtight seal to prevent steam leakage. The interlock mechanism ensures the door cannot be opened during sterilization, thereby enhancing user safety.

The Medical Horizontal Autoclave is equipped with a 7-inch LCD color touch screen, providing an intuitive and user-friendly interface. This advanced control panel allows operators to configure sterilization programs, monitor real-time operating parameters, and access operational reports with ease. It also supports traceability functions, which are crucial for compliance and documentation in healthcare and laboratory environments.

Featuring a microcomputer control system, the Medical Horizontal Autoclave enables precise regulation of temperature, pressure, and cycle duration. The system includes programmable settings for different sterilization needs and supports real-time parameter monitoring. This ensures consistent sterilization performance and helps maintain compliance with hygiene and safety standards in medical and scientific applications.

Yes, the Medical Horizontal Autoclave is specifically designed for high-capacity operations. Its horizontal design allows for larger sterilization loads compared to vertical models. This makes it highly suitable for central sterile supply departments (CSSDs), hospitals, research labs, and pharmaceutical facilities where bulk sterilization of instruments, porous items, wrapped/unwrapped materials, and liquids is required.
