Vertical Planetary Ball Mill LPBM-A10

Name: Vertical Planetary Ball Mill LPBM-A10
Brand: Labtron
SKU: LPBM-A10
Rating: 4.8 (757 reviews)

Vertical Planetary Ball Mill LPBM-A10 can rotate with an adjustable speed range of 70 to 670 r/min. The machine is controlled by a frequency converter, with a motor protection function. It can produce four powder samples of different sizes and materials simultaneously. It features timing power off, self-timing forward and reverse rotation. Our ball mill uses the planetary movement principle, offering high speed, large energy, high efficiency, and fine granularity.

Request Quote

Jar Capacity	500ml
Rotational Speed	70 to 670 r/min (adjustable)
Revolution: Rotation	1:2
Material Capacity	< 2/3 volume
Work Mode	2 or 4 jars working together
Milling Mode	Dry or wet milling
Speed Frequency	Adjustable
Drive Mode	Gear drive
Operating Time	72 hours
Input Granularity Size	< 10mm for soft material < 3mm for hard material
Output Granularity Size	minimum 0.1μm
Operation Interval	yes, with direction reversal
Feed Material	Soft, hard, brittle, fibrous, cellulose, herb, glass, soil, ore, pharmacy, chemical, fluorescent, pigment, etc.
Grinding Jar Types	Stainless steel, zirconia, alumina, nylon, PU, tungsten, PTFE, etc., vacuum jars are available as well.
Power Supply	220V - 50Hz / 110V - 60Hz
Dimension	750 × 470 × 590mm
Weight	80 Kg

Low center of gravity and easy operation
Features a touch screen micro-computer
Lower noise and minimal loss
A safety switch is installed to prevent accidents
Forward and reverse alternating control
Timing and power-off memory function

Our planetary ball mill is applicable in many fields of geology, mining, metallurgy, electric industry, construction, ceramics, chemicals, light industry, medicine, environmental protection, etc.

25 ml 304 Mill Jar

50 ml 304 Mill Jar

100 ml 304 Mill Jar

500 ml 304 Mill Jar

25 ml Zirconia Mill Jar

50 ml Zirconia Mill Jar

100 ml Zirconia Mill Jar

500 ml Zirconia Mill Jar

Stainless steel grinding jar 50ml

Stainless steel grinding jar 100ml

Stainless steel grinding jar 250ml

Stainless steel grinding jar 500ml

Stainless steel grinding jar 1L

Stainless steel grinding jar 1.5L

Stainless steel grinding jar 2L

Stainless steel grinding jar 2.5L

Stainless steel grinding jar 3L

Tungsten carbide grinding jar 50ml

Tungsten carbide grinding jar 100ml

Tungsten carbide grinding jar 250ml

Tungsten carbide grinding jar 500 ml

Tungsten carbide grinding jar 1L

Tungsten carbide grinding jar 1.5L

Tungsten carbide grinding jar 2L

Stainless steel ball 3-15mm

Stainless steel ball 20-30mm

Download catalog for
Vertical Planetary Ball Mill LPBM-A10 Catalog

Available Range :

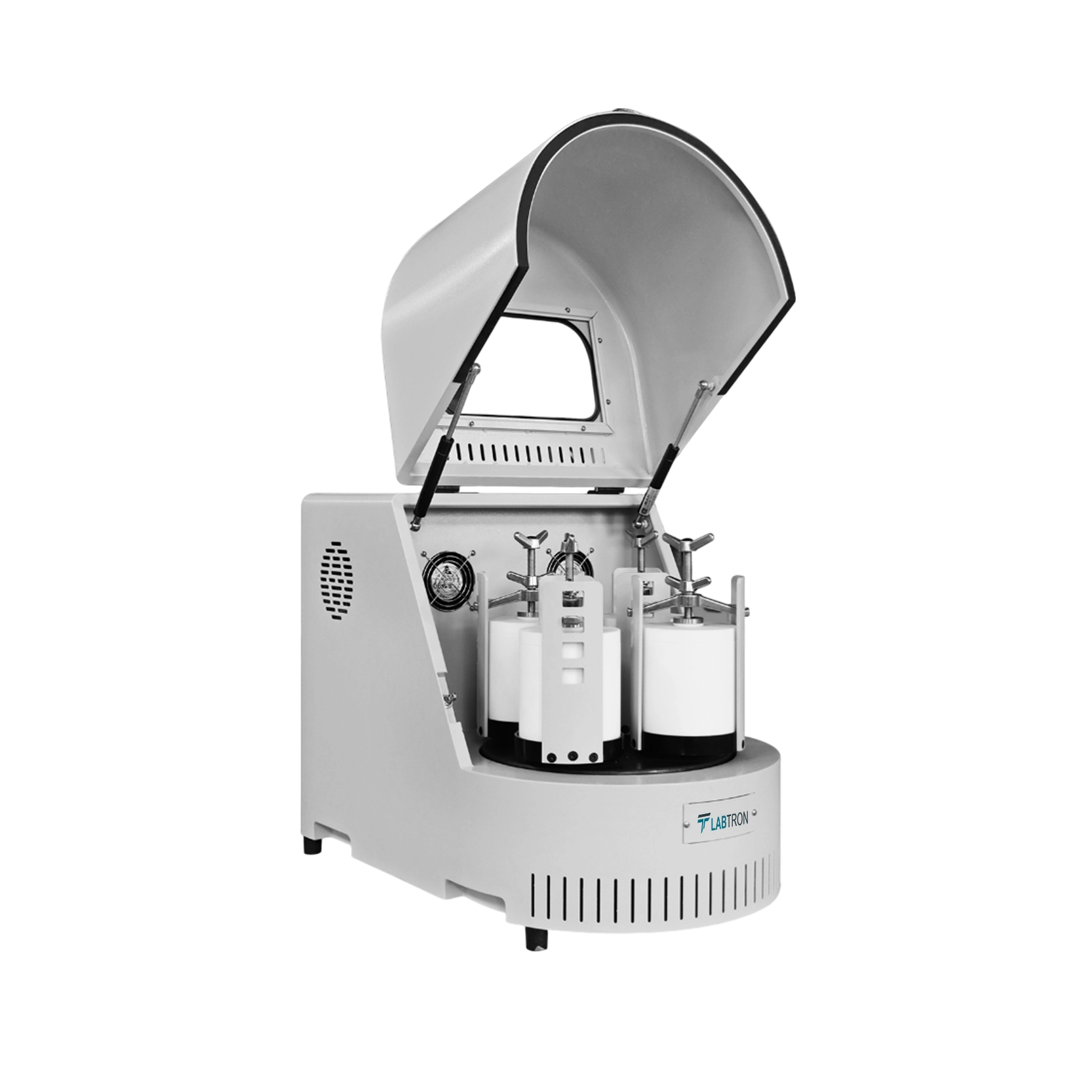

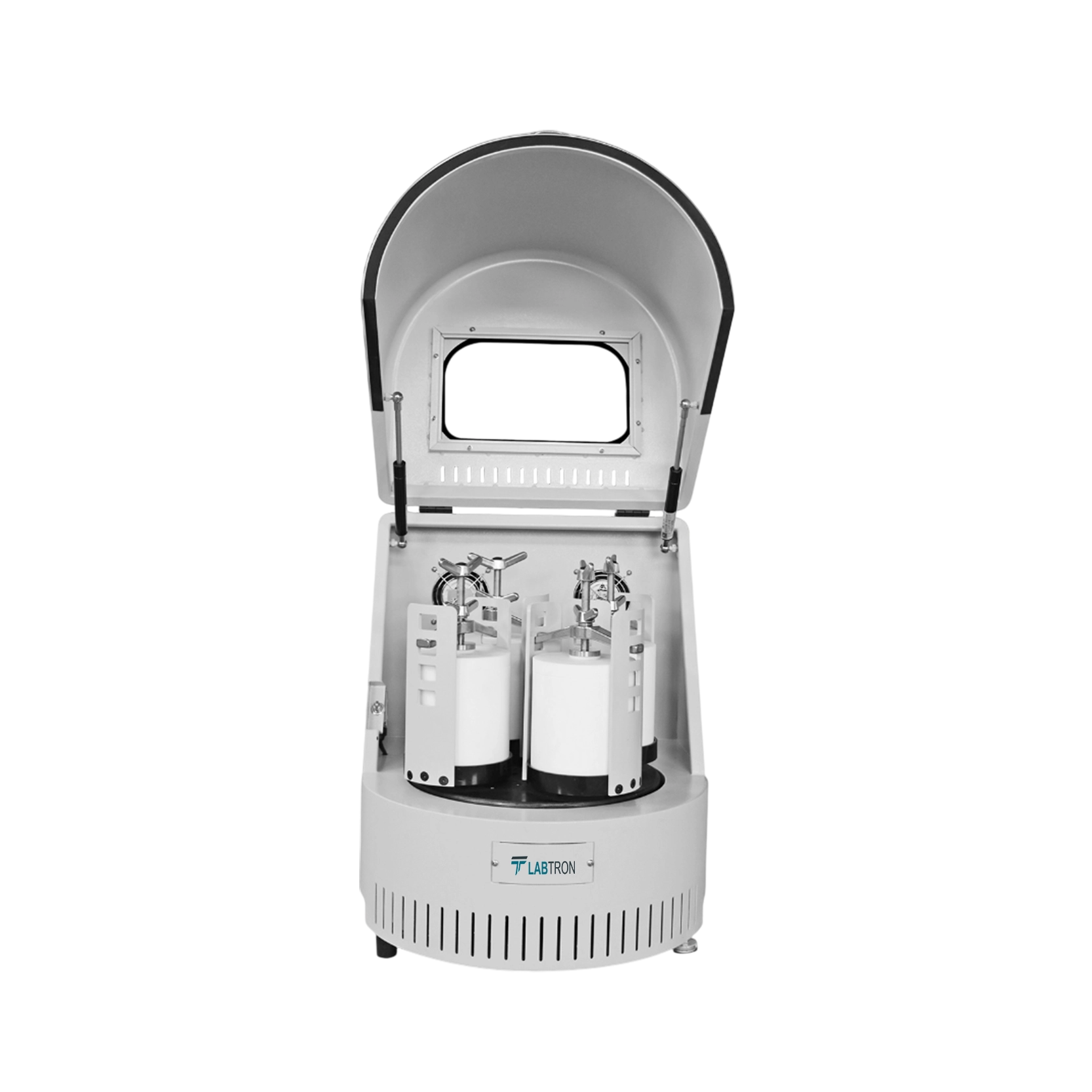

Vertical Planetary Ball Mill LPBM-B13 : 10 L Vertical Planetary Ball Mill LPBM-B15 : 16 L Vertical Planetary Ball Mill LPBM-A10 : 500ml

Models of Planetary Ball Mill

Labtron Planetary Ball Mill provide blending of various ingredients by combining rotating and orbiting motions. They consist of multiple grinding jars mounted on rotating platform, where it rotates in opposite direction to create high-energy impact and shear force. Their cylindrical design allows for uniform motion during milling, enhancing efficiency. They incorporate vacuum options for reactive materials, preventing contamination during process. Our Planetary Ball Mill is versatile for materials science, and nanotechnology for synthesizing various components into fine powders.
