| Jar Capacity | 10 L |
| Number of Jars Accommodated | 4 |
| Mill Jar Compatibility | 1 to 2.5 L |
| Vacuum Mill Jar Compatibility | 1 to 2 L |
| Revolution Speed | 35 to 290 rpm |
| Rotational Speed | 70 to 580 rpm |
| Revolution: Rotation | 1:2 |
| Speed Regulation | Frequency control |
| Material Capacity | Not more than 2/3 of mill jar volume |
| Work Mode | 2 or 4 jars working together |
| Milling Mode | Dry or wet milling |
| Drive Mode | Gear drive/belt drive |
| Total Timing | 1 to 9999 min |
| Alternate Running Time | 1 to 999 min |
| Feed Size | Soil and crispy materials: Up to 10 mm for soft material Other materials: Up to 3 mm |
| Output Granularity Size | Minimum up to 0.1μm |
| Noise | 60 ± 5 dB |
| Power | 1500 W |
| Power Supply | 220V, 50 to 60Hz |
| Dimension | 880 × 560 × 670 mm |
| Weight | 132 kg |
Supports vacuum operation
Multiple sample grinding
Highly efficient
Durable structure
Wide speed range

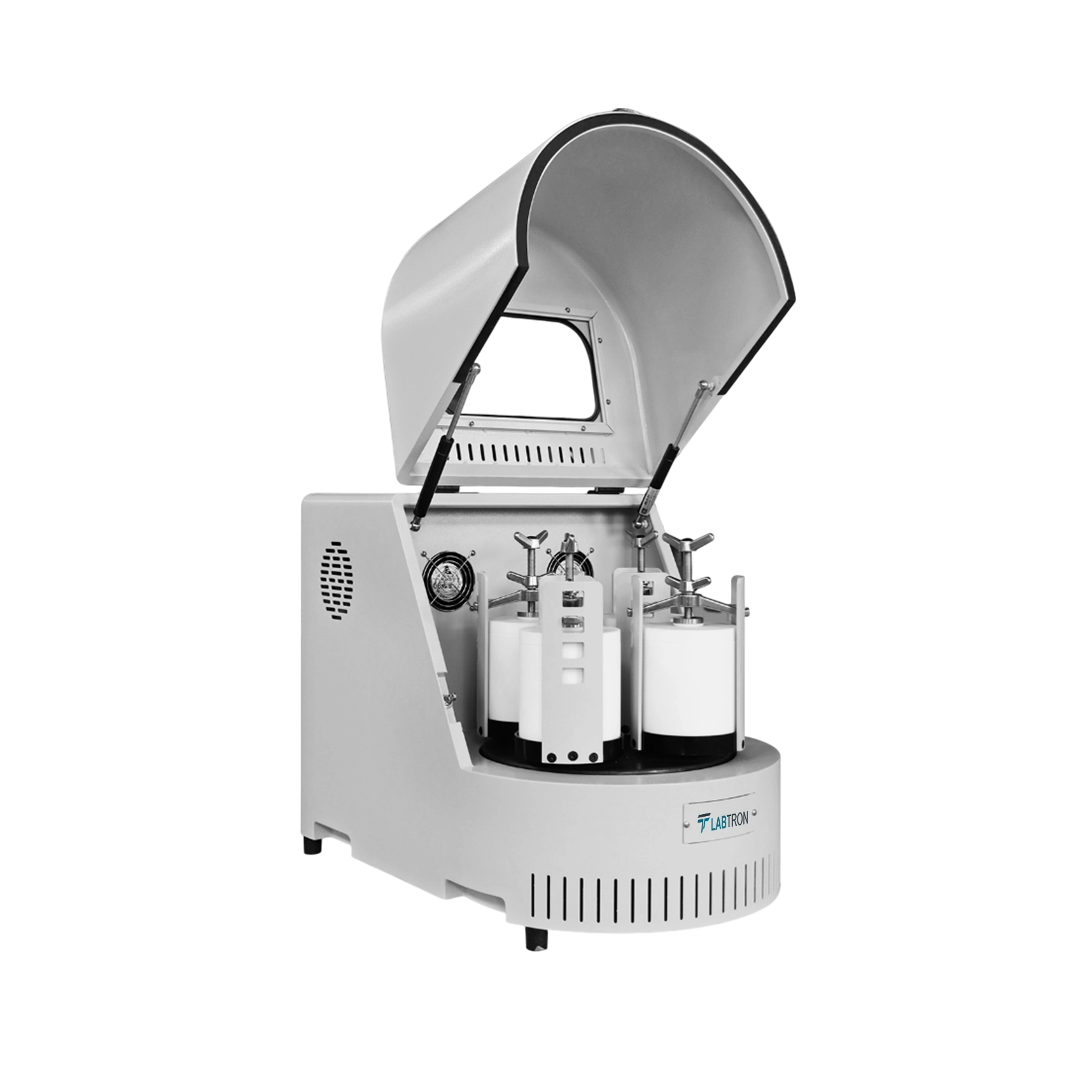

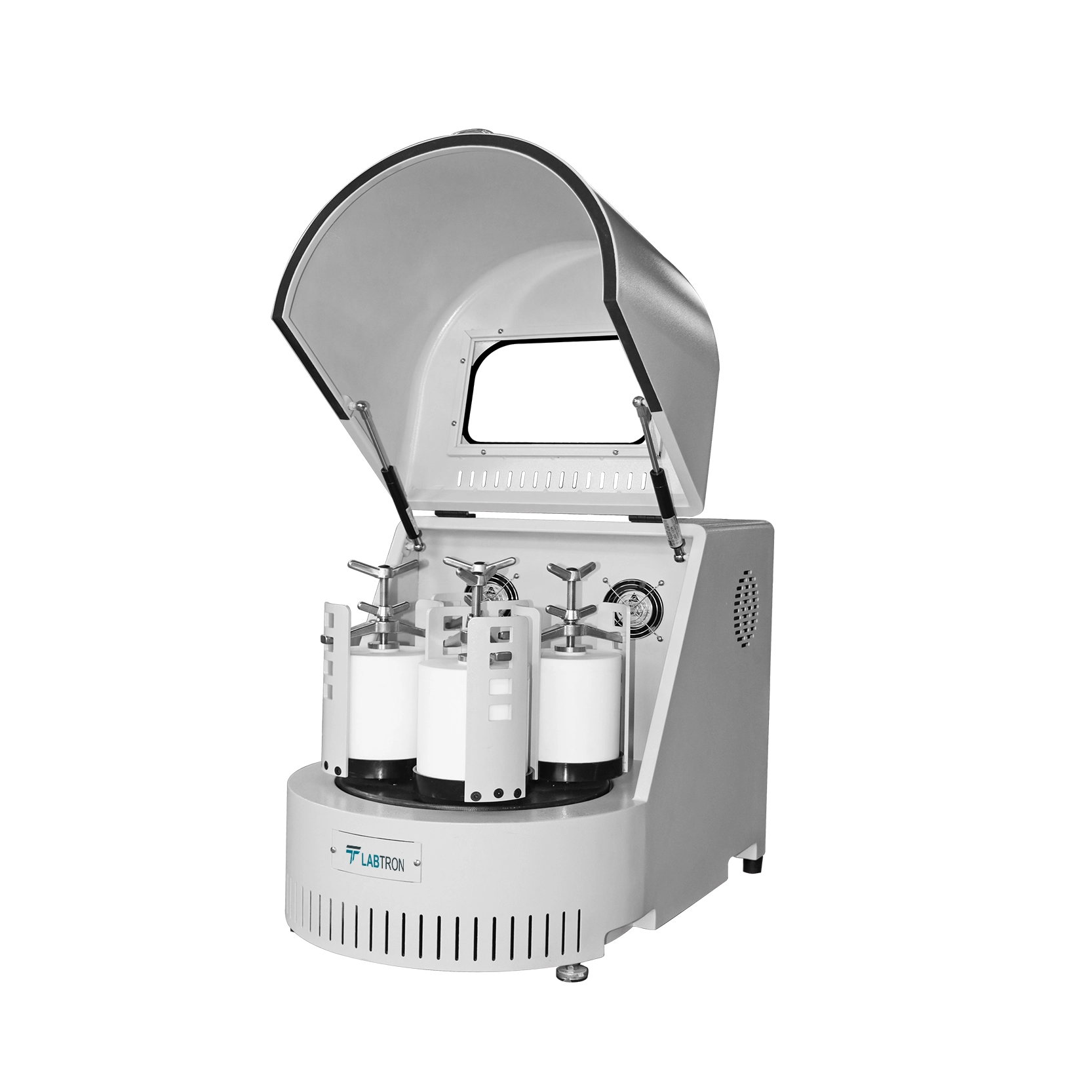

Our Vertical Planetary Ball Mill LPBM-B13 is used for fine grinding, mixing, and preparing small sample batches of materials in laboratories. It is widely applied in fields such as ceramics, metallurgy, electronics, chemistry, and materials research.
Sr.No. | Name |
1 | 1 L Agate grinding jar |
2 | 1.5 L Agate grinding jar |
3 | 2 L Agate grinding jar |
4 | 1 L Zirconia grinding jar |
5 | 1.5 L Zirconia grinding jar |
6 | 2 L Zirconia grinding jar |
7 | 2.5 L Zirconia grinding jar |
8 | 1 L Corundum grinding jar |
9 | 1.5 L Corundum grinding jar |
10 | 2 L Corundum grinding jar |
11 | 1 L 304 Stainless steel grinding jar |
12 | 1.5 L 304 Stainless steel grinding jar |
13 | 2 L 304 Stainless steel grinding jar |
14 | 2.5 L 304 Stainless steel grinding jar |
15 | 1 L Tungsten carbide grinding jar |
16 | 1.5 L Tungsten carbide grinding jar |
17 | 2 L Tungsten carbide grinding jar |
18 | 1 L Nylon grinding jar |
19 | 1.5 L Nylon grinding jar |
20 | 2 L Nylon grinding jar |
21 | 2.5 L Nylon grinding jar |
22 | 1 L PTFE grinding jar |
23 | Agate ball (6 to 10 mm) |
24 | Agate ball (11 to 15 mm) |
25 | Agate ball (16 to 35 mm) |
26 | Agate ball (50 mm) |
27 | Mix Agate ball (5 to 15 mm) |
28 | Aluminum ball (1 to 2 mm) |
29 | Aluminum ball (3 to 15 mm) |
30 | Aluminum ball (20 to 50 mm) |
31 | Zirconia ball (0.1 mm) |
32 | Zirconia ball (0.3 mm) |
33 | Zirconia ball (0.4 mm) |
34 | Zirconia ball (0.5 mm) |
35 | Zirconia ball (1 to 4 mm) |
36 | Zirconia ball (5 to 15 mm) |
37 | Zirconia ball (16 to 30 mm) |
38 | 304 stainless steel ball (1 mm) |
39 | 304 stainless steel ball (2 mm) |
40 | 304 stainless steel ball (3 to 15 mm) |
41 | 304 stainless steel ball (20 to 30 mm) |
42 | Polished Tungsten carbide ball (1 mm) |
43 | Polished Tungsten carbide ball (2 mm) |
44 | Polished Tungsten carbide ball (3 mm) |
45 | Polished Tungsten carbide ball (4 mm) |
46 | Polished Tungsten carbide ball (5 mm) |
47 | Polished Tungsten carbide ball (6 mm) |
48 | Polished Tungsten carbide ball (7 mm) |
49 | Polished Tungsten carbide ball (10 mm) |
Note: The balls come in a pack of 1 kg each except for Agate ball (50 mm).
Labtron Planetary Ball Mill provide blending of various ingredients by combining rotating and orbiting motions. They consist of multiple grinding jars mounted on rotating platform, where it rotates in opposite direction to create high-energy impact and shear force. Their cylindrical design allows for uniform motion during milling, enhancing efficiency. They incorporate vacuum options for reactive materials, preventing contamination during process. Our Planetary Ball Mill is versatile for materials science, and nanotechnology for synthesizing various components into fine powders.
Our Vertical Planetary Ball Mill is primarily used for fine grinding, mixing, homogenizing, and mechanical alloying of materials in research laboratories and industrial settings. It is especially effective for preparing small sample batches in powder form and is widely applied across industries like electronics, ceramics, metallurgy, chemistry, geology, pharmaceuticals, and environmental science. Its ability to finely grind even tough and fibrous materials makes it a valuable tool for high-precision material processing and experimentation.
Labtron’s Vertical Planetary Ball Mill supports vacuum operation when used with vacuum-compatible tanks, allowing for contamination-free sample processing. It supports vacuum mill jars ranging from 1 L to 2.5 L, however, the total volume should not exceed more than 10 L.
It is extremely versatile and can process a wide range of materials, including soft, hard, brittle, and fibrous substances. Common materials include metals, ceramics, minerals, ores, glass, polymers, biological tissues, soil, and even pharmaceuticals. Due to the high-impact energy generated, it is particularly effective for materials that are otherwise difficult to grind or homogenize with conventional methods.
Yes, our Vertical Planetary Ball Mill supports both wet and dry grinding techniques. Dry grinding is suitable for moisture-sensitive or non-water-soluble materials, while wet grinding is beneficial for achieving finer particle sizes and preventing dust. In wet grinding, liquid (usually water, alcohol, or solvent) is added to aid in dispersing and suspending the sample materials, which helps enhance grinding efficiency and cooling.
Revoltuion speed refers to the speed at which the turntable (the base holding the grinding tanks) rotates around its axis. Rotation speed refers to the speed at which the individual grinding tanks (or jars) rotate around their own axes while also moving around the turntable's axis (in planetary motion). Their combined effect ensures the efficient grinding and mixing of materials in the ball mill.
