Vertical Planetary Ball Mill LPBM-B16

Name: Vertical Planetary Ball Mill LPBM-B16
Brand: Labtron
SKU: LPBM-B16
Rating: 4.9 (905 reviews)

Vertical Planetary Ball Mill LPBM-B16 offers a total capacity of 0.4 L with 100 ml mill jar capacity. It can accommodate 4 jars simultaneously, improving the grinding efficiency. With a thick welded steel shell, provides high strength and impact resistance. This ball mill has 1:2 Revolution: Rotation for both fine and coarse grinding of samples. Our ball mill is useful for small batch production for advanced materials mixing, fine grinding, and sample preparation.

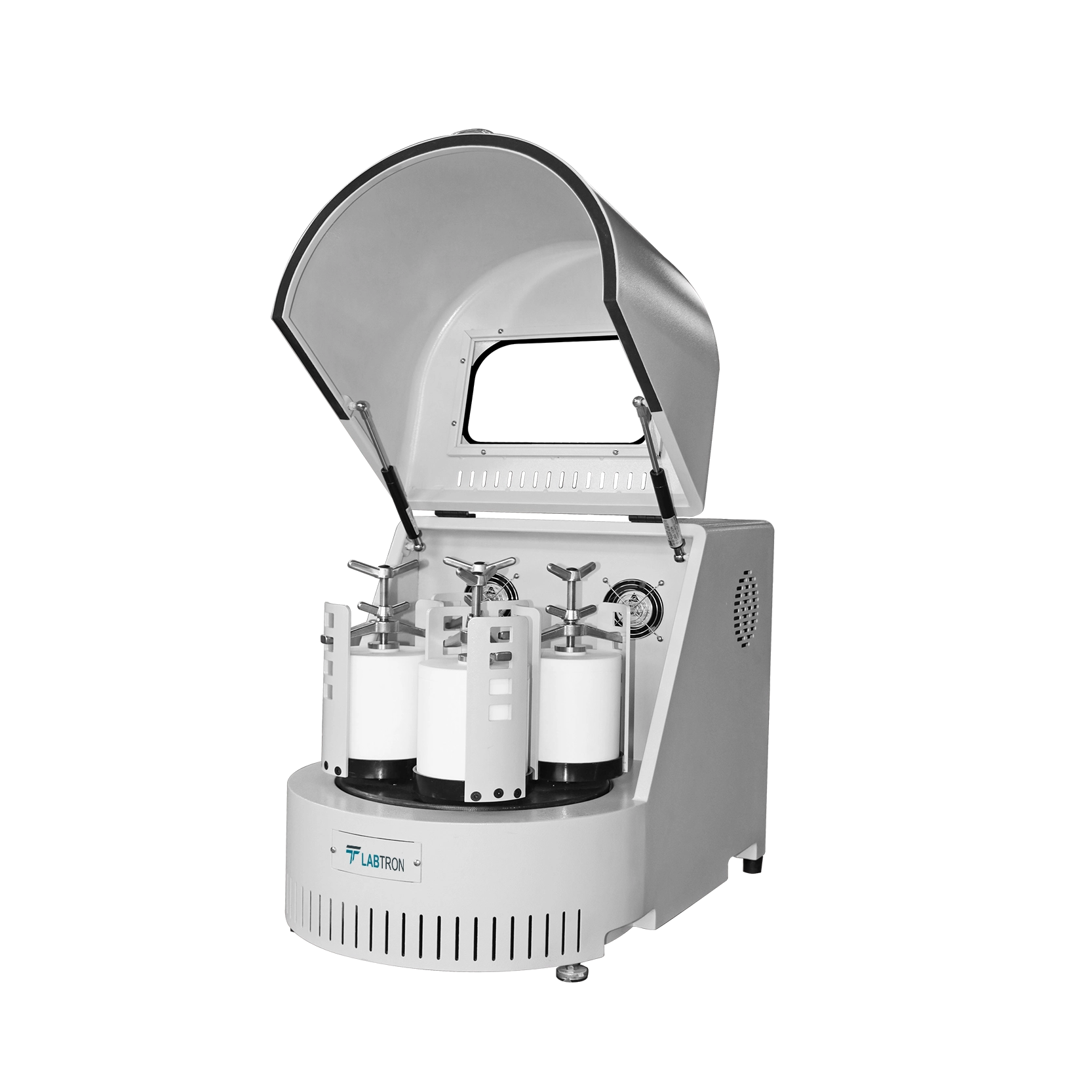

Vertical Planetary Ball Mill LPBM-B16_side view

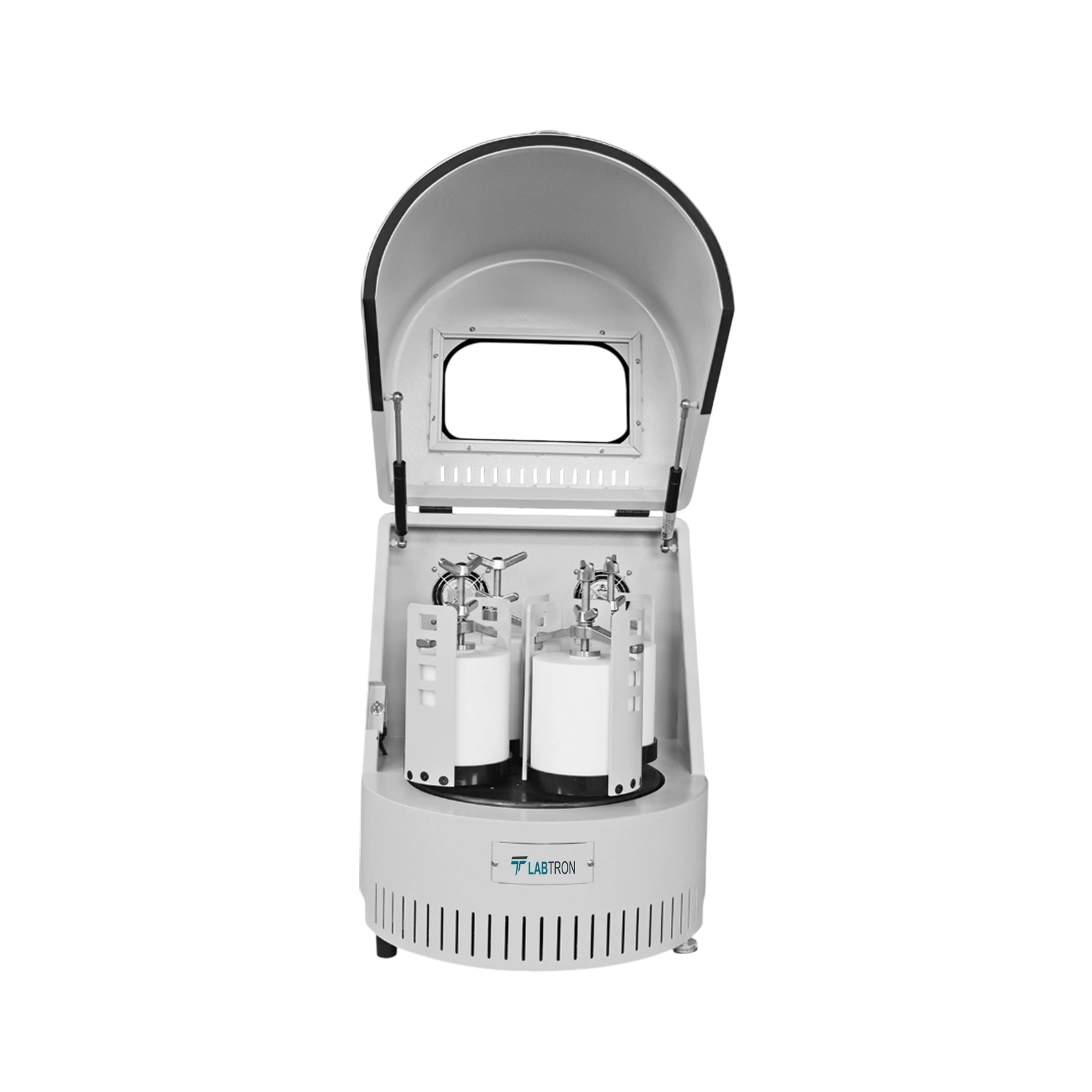

Vertical Planetary Ball Mill LPBM-B16_front View

Request Quote

Total Capacity	0.4 l
Mill jar Capacity	100 ml
Number of Jars	4
Revolution Speed	5-400 rpm/min
Rotation Speed	10-800 rpm/min
Revolution: Rotation	1:2
Milling Mode	Dry or wet
Speed Frequency	Adjustable
Drive Mode	Gear drive
Maximum continuous working time (full load)	72 hours
Input Granularity Size	≤10 mm (soft material); ≤ 3 mm m (hard material)
Output Granularity Size	Minimum 0.1 micron (but the final output particle size is related to the material characteristics.)
Power Consumption	0.25kw
Power Supply	220V/50 Hz/Single phase
Dimension (W × D × H)	500 × 300 × 340 mm
Packing Dimension (W × D × H)	590 × 350 × 510 mm
Net Weight	29 kg
Gross Weight	45 kg

Multiple sample grinding
Wet and dry grinding
Low noise operation
Durable construction
Energy efficient

Vertical Planetary Ball Mill LPBM-B16 is used for fine grinding, mixing, and preparing small sample batches of materials in laboratories. It is widely applied in fields such as ceramics, metallurgy, electronics, chemistry, and materials research.

Jar and balls

100 mL Zirconia grinding jar

100 mL Corundum grinding jar

100 mL 304 Stainless steel grinding jar

100 mL Agate grinding jar

100 mL Tungsten carbide grinding jar

100 mL Nylon grinding jar

100 mL PTFE grinding jar

Agate ball (6 to 10 mm)

Aluminum ball (1 to 2 mm)

Zirconia ball (0.1 mm)

Zirconia ball (0.3 mm)

Zirconia ball (0.4 mm)

Zirconia ball (0.5 mm)

Zirconia ball (1 to 4 mm)

304 stainless steel ball (1 mm)

304 stainless steel ball (2 mm)

304 stainless steel ball (3 to 15 mm)

Polished Tungsten carbide ball (1 mm)

Polished Tungsten carbide ball (2 mm)

Polished Tungsten carbide ball (3 mm)

Polished Tungsten carbide ball (4 mm)

Polished Tungsten carbide ball (5 mm)

Polished Tungsten carbide ball (6 mm)

Polished Tungsten carbide ball (7 mm)

Polished Tungsten carbide ball (10 mm)

Download catalog for
Vertical Planetary Ball Mill LPBM-B16 Catalog

Available Range :

Vertical Planetary Ball Mill LPBM-B16 : 0.4 l Vertical Planetary Ball Mill LPBM-A11 : 10 L Vertical Planetary Ball Mill LPBM-B14 : 12 L Vertical Planetary Ball Mill LPBM-B10 : 2 L Vertical Planetary Ball Mill LPBM-B11 : 4 L Vertical Planetary Ball Mill LPBM-A13 : 6 L Vertical Planetary Ball Mill LPBM-B12 : 8 L
