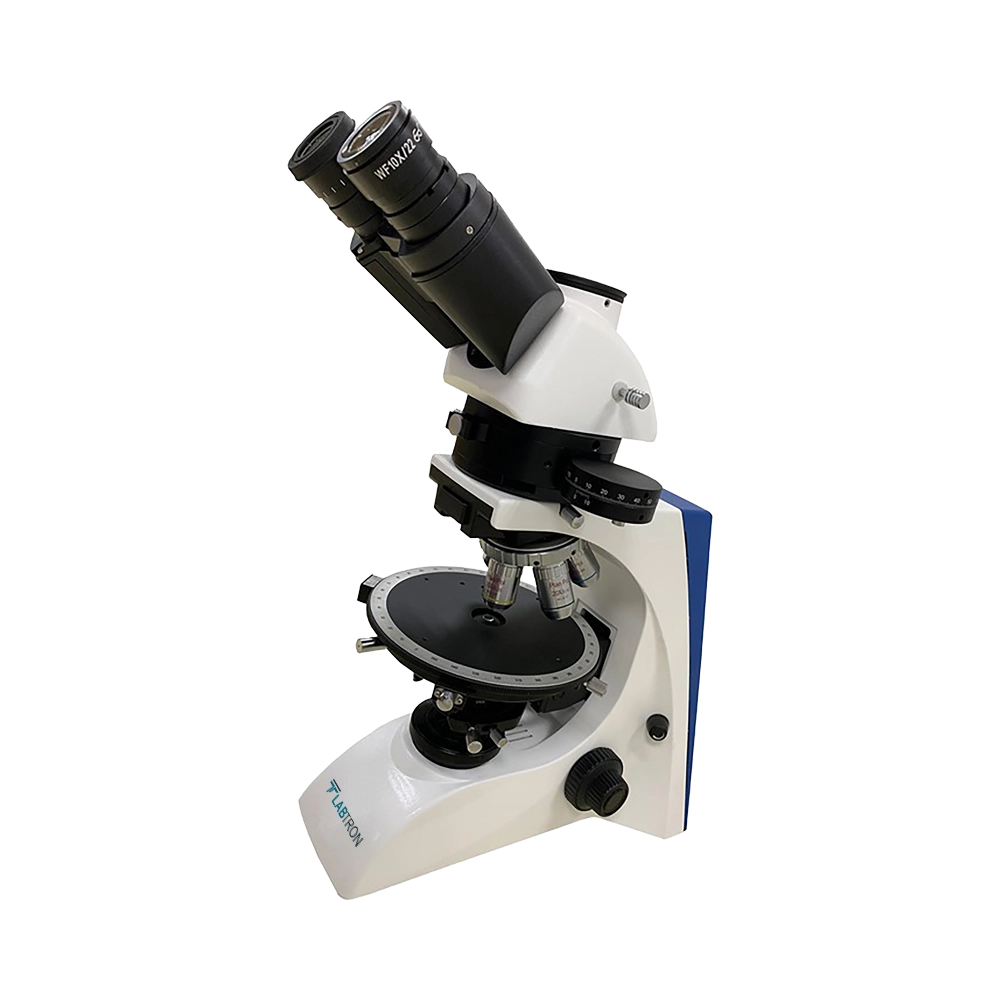

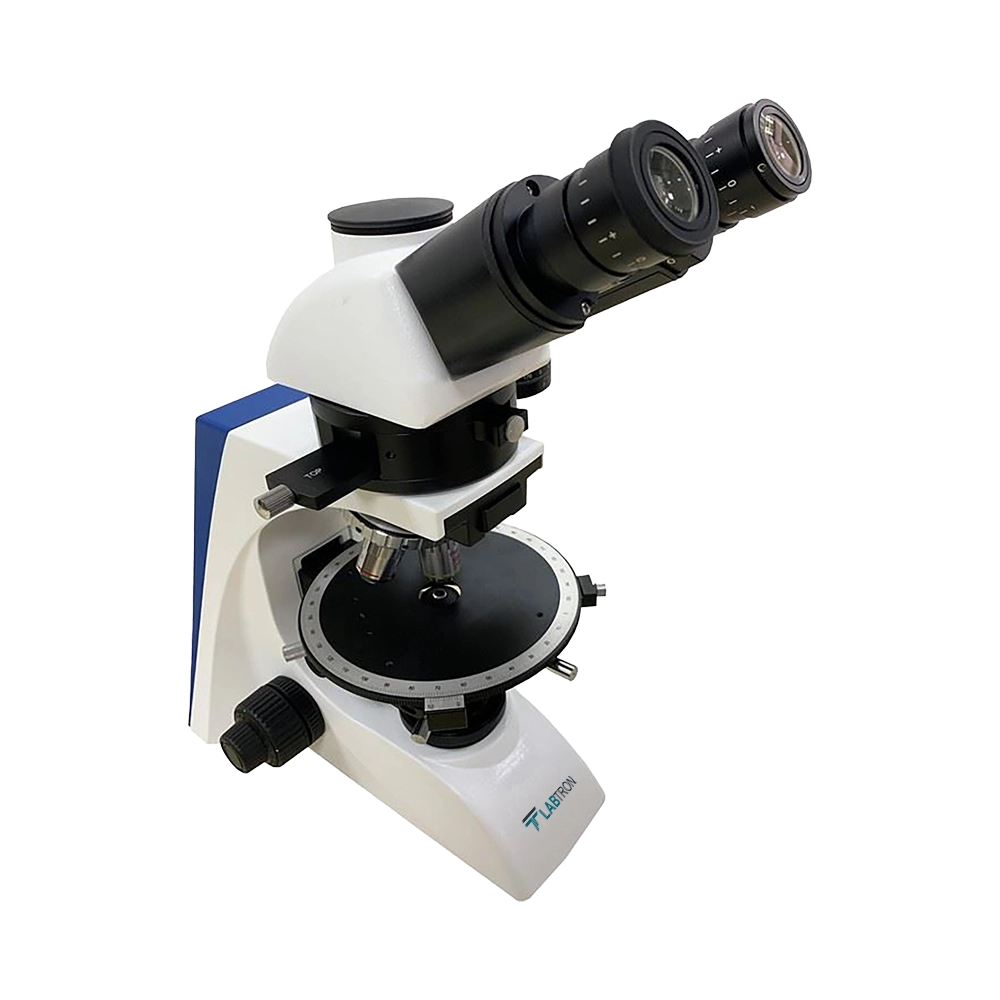

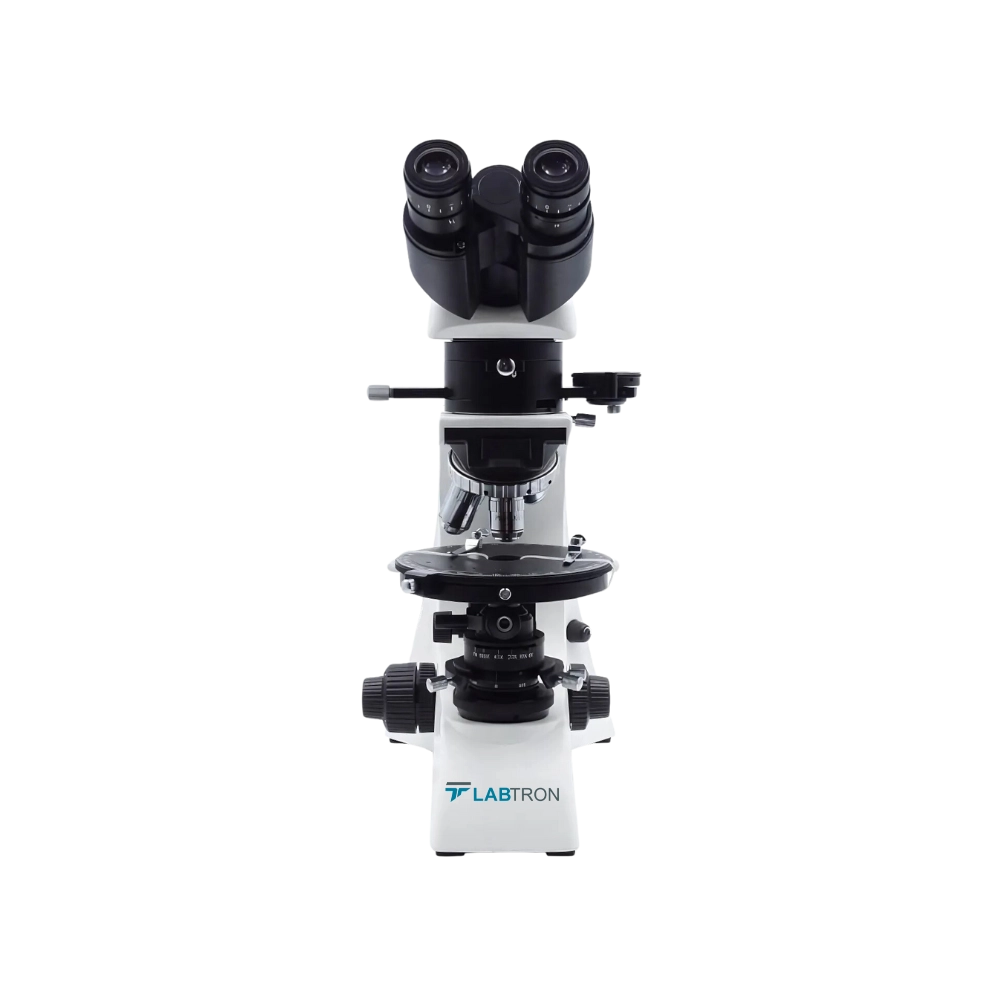

Polarizing Microscope LPM-A12

Polarizing Microscope LPM-A12

Polarizing Microscope LPM-A12 features a revolving round stage with a 360° rotation, allowing smooth and precise movement. It includes a stable cross in the eyepiece, ensuring consistent observation during adjustments. Its collision-free mechanical stage enhances safety and usability in laboratory settings. The swing-out condenser offers excellent clarity for high-power objectives. Our microscope provides reliable performance for polarizing microscopy needs.

Polarizing Microscope LPM-A12
Polarizing Microscope LPM-A12
Polarizing Microscope LPM-A12
Polarizing Microscope LPM-A12
Request Quote
Non-Stress Infinity Plan Objective (Transmitting) PLAN 4x/ 0.10; W.D.= 12.1 mm
PLAN 10x/ 0.25; W.D.= 4.64 mm
PLAN 40x/ 0.66 (s); W.D.= 0.65 mm
PLAN 60x/ 0.80 (s); W.D.= 0.33 mm
Eyepiece WF10x/22 mm (adjustable)
WF10x/22 mm (adjustable, reticule 0.1 mm)
Professional Polarizing Seidentopf Trinocular Head Inclined 30°, Rotatable 360°, interpupillary distance: 48 mm to 76 mm
Light distribution 100: 0 (eyepiece)
80:20 (camera port)
Nosepiece Quintuple (centre adjustable)
Pol Media Analyzer Rotatable 360°, module type, can be locked
Slip λ slip (First Class Red), λ/4 slip, Quartz wedge (1 to 4)
Revolving Round Stage Rotatable 360°, centre adjustable, can be locked, Division 1°, vernier division 6’, 174mm diameter
Swing-Out Condenser N.A.0.9/0.13, polarizing unit (with scale, rotatable 360°, can be locked)
Coaxial Coarse and Fine Focusing Unit Coarse stroke 25 mm, Fine stroke per rotation: 0.2 mm, fine division 2 µm
Transmitting Illumination 12V 30W halogen lamp (Universal voltage: 100V to 240V), DC input
Packaging Dimension 520 mm × 470 mm × 285 mm
Net Weight 10 kg
Gross Weight 12.5 kg
  • Adjustable built-in Bertrand lens
  • Strain-free objectives
  • Ergonomic design
  • Coarse and fine focus adjustment
  • Durable construction

Polarizing Microscope LPM-A12 is used for researching double refraction sample or for analysing birefringent materials. It is widely used in geology, mineral, chemical industry, medical, drug, criminal investigation fields etc.

Non-stress Plan 20x/0.40(S) W.D.=2.41 mm × 1 Piece Non-stress Plan 100x/1.25 oil × 1 Piece Attached polarizing mechanical stage × 1 Piece Filters (Blue/ Amber/ Green/ Neutral) × 1 Piece Digital camera × 1 Piece

Download catalog for
Polarizing Microscope LPM-A12 Catalog

Download manual for
Polarizing Microscope LPM-A12 Manual

Available Range :

Polarizing Microscope LPM-A12 : PLAN 4x/ 0.10; W.D.= 12.1 mm
PLAN 10x/ 0.25; W.D.= 4.64 mm
PLAN 40x/ 0.66 (s); W.D.= 0.65 mm
PLAN 60x/ 0.80 (s); W.D.= 0.33 mm
Polarizing Microscope LPM-A12 | Light distribution: 100: 0 (eyepiece) ; 80:20 (camera port) | Swing-Out Condenser: N.A.0.9/0.13
Polarizing Microscope LPM-A12 | Adjustable built-in Bertrand lens | Strain-free objectives

Models of Polarizing Microscope

Labtron Polarizing Microscope is specialized to enhance contrast of transparent or translucent specimens. Their condenser improves luminescence focus, enhancing the clarity and quality of image. They feature light source that provides consistent illumination for optimal viewing of specimens. Their built-in camera systems allow for easy documentation and sharing of observations. Our Polarizing Microscope is suitable in forensics, art conservation, microelectronics, textiles, environmental science, and petrography.

Polarizing Microscope LPM-A13

Polarizing Microscope LPM-A13
  • Viewing Head : Seidentopf Trinocular Head, 30° inclined, 360° rotatable, interpupillary distance 48 to 76 mm
  • Eyepiece : SWF10x/22 mm, diopter adjustable, diameter 30 mm
  • Nosepiece : Quintuple, center adjustable
  • Non-stress infinity plan Objectives : PLAN 4x/0.10, W.D. = 12.1 mm PLAN 10x/0.25, W.D. = 4.64 mm PLAN 20x/0.40, W.D. = 2.41 mm PLAN 40x/0.66, W.D. = 0.65 mm
Polarizing Microscope LPM-A14

Polarizing Microscope LPM-A14
  • Optical System : Infinite Optical System
  • Viewing Head : Seidentopf Trinocular Head, inclined at 30°, 360° Rotatable
  • Eyepiece : WF10×/22 mm (Reticule 0.1mm)
  • Infinite Strain-Free Plan Achromatic Objective (Transmitted) : 4×/0.10, 10×/0.25, 20×/0.40(S), 40×/0.66(S), 60×/0.80(S)
Polarizing Microscope LPM-A11

Polarizing Microscope LPM-A11
  • Viewing Head : Polarizing siedentopf trinocular head 30° inclined, eyepiece rotation 360°Interpupillary adjustable distance 48 to 76 mmLight distribution 100:1 (100% for eyepiece)
  • Eyepiece : WF10X/20 mm, WF10X/20 mm (reticle 0.1 mm)
  • Nosepiece : Quintuple, center adjustable
  • Condenser : Swing out type N.A. 0.9/0.13 polarizing unit, (with scale, rotable 3600, can be locked)
Polarizing Microscope LPM-B10
Polarizing Microscope LPM-B10
  • Optical System : Finite optical system
  • Viewing head : Trinocular viewing head, 30° inclined
  • Polarizing Attachment : Polarizer: Sliding in/out of optical path, located on the top of collectorAnalyzer: Rotatable analyzer with gradation 0°-90°Bertrand lens: Bertrand lens, sliding in/out of optical pathOptical Compensator: λ Slip (first class red), 1/4λ Slip, Quartz wedge
  • Eyepiece : Eyepiece WF10X/18 with Division eyepiece 10X/18 mm 0.10 mm/div
Polarizing Microscope LPM-A21
Polarizing Microscope LPM-A21
  • Optical System : Color Corrected Infinite Optical System
  • Viewing Head : Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance: 48-75mm Light Distribution 20:80 (Eyepiece: Trinocular Port)
  • Eyepiece : WF 10×/18mm (Reticule 0.1mm)
  • Nosepiece : Quintuple click stop revolving mechanism with multiple ball bearing
Polarizing Microscope LPM-A20

Polarizing Microscope LPM-A20
  • Optical System : Color Corrected Infinite Optical System
  • Viewing Head : Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance: 48-75mm
  • Eyepiece : WF 10×/18mm (Reticule 0.1mm)
  • Nosepiece : Quintuple click stop revolving mechanism with multiple ball bearing
Polarizing Microscope LPM-A10

Polarizing Microscope LPM-A10
  • Viewing Head : Siedentopf type binocular head, 30° inclined, eyepiece rotation 360ºInterpupillary adjustable distance 50 to 75 mm
  • Eyepiece : WF10X/20 mm, WF10X/20 mm (reticle 0.1 mm)
  • Nosepiece : Quintuple click stop revolving mechanism with multiple ball bearing
  • Condenser : Swing type N.A. 1.25 with iris diaphragm and filter
