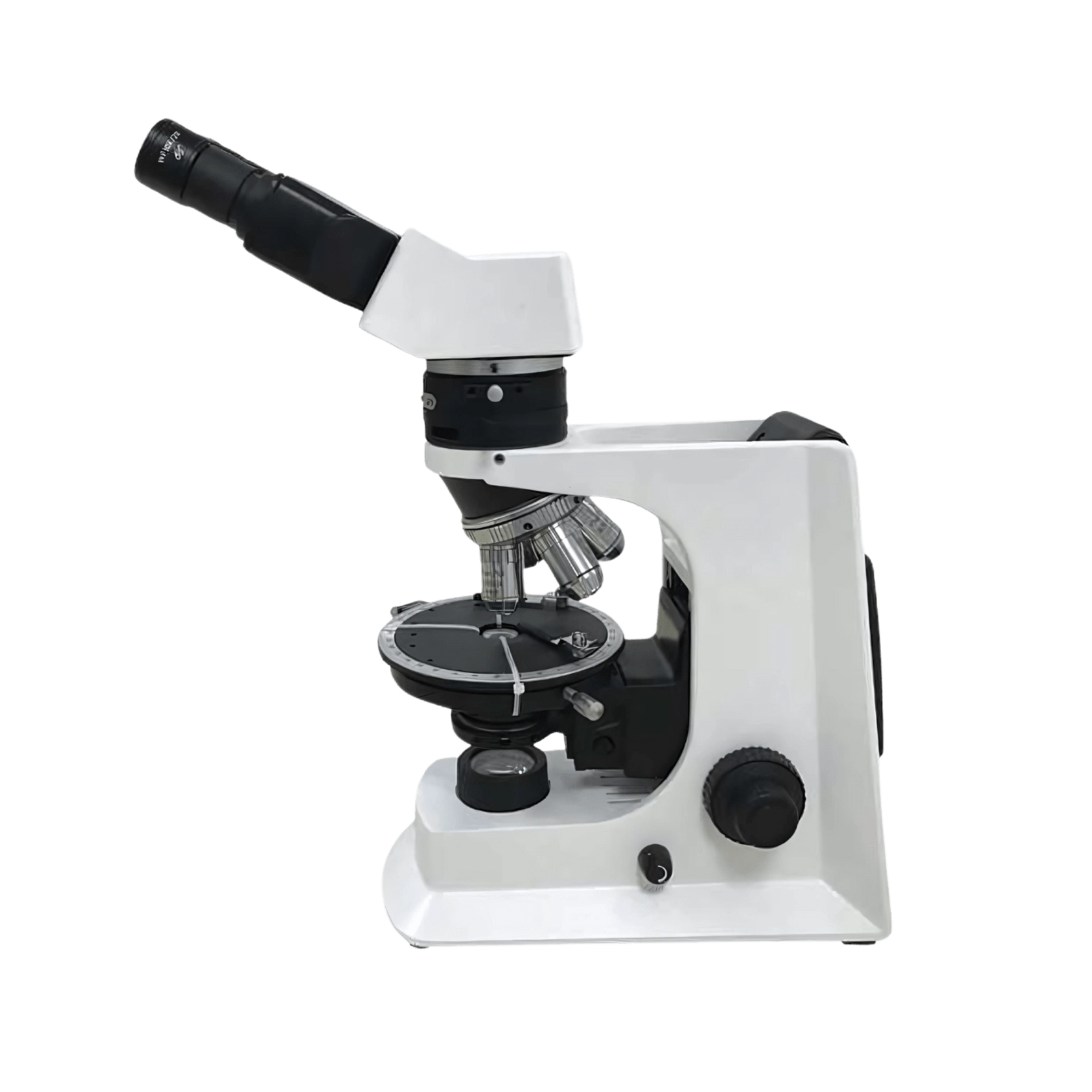

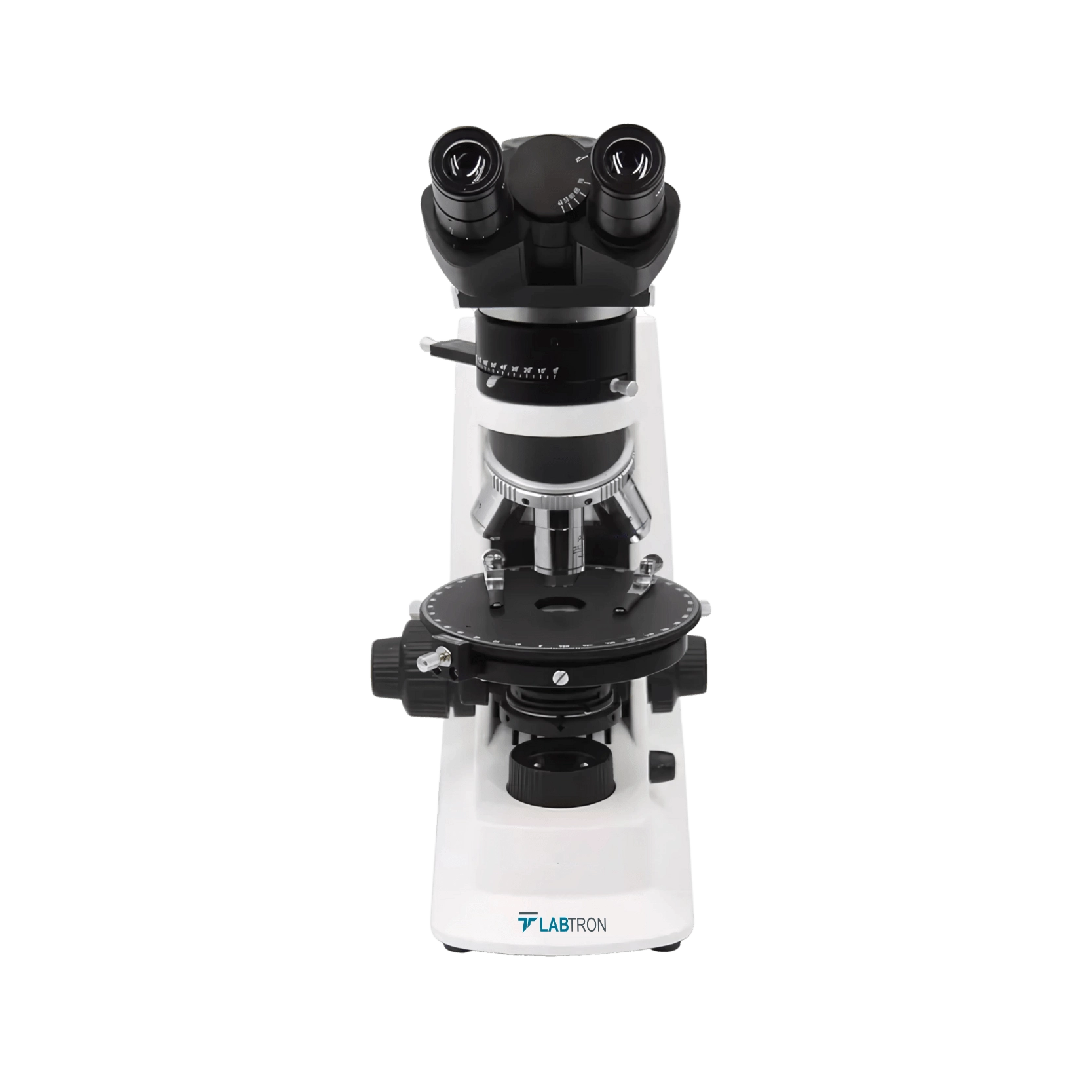

Polarizing Microscope LPM-A20

Name: Polarizing Microscope LPM-A20
Brand: Labtron
SKU: LPM-A20
Rating: 4.8 (615 reviews)

Polarizing Microscope LPM-A20 comes with a Seidentopf binocular head, featuring 48-75mm interpupillary adjustment for customized comfort. Its quintuple revolving nosepiece enables seamless switching between strain-free objectives, ensuring enhanced accuracy. A high-precision Abbe condenser (N.A. 1.25) provides uniform illumination and optimal contrast control. The 5V/5W LED lamp delivers consistent brightness for detailed microscopic analysis. Ideal for geological studies, polymer characterization, and optical crystallography applications.

Request Quote

Optical System	Color Corrected Infinite Optical System

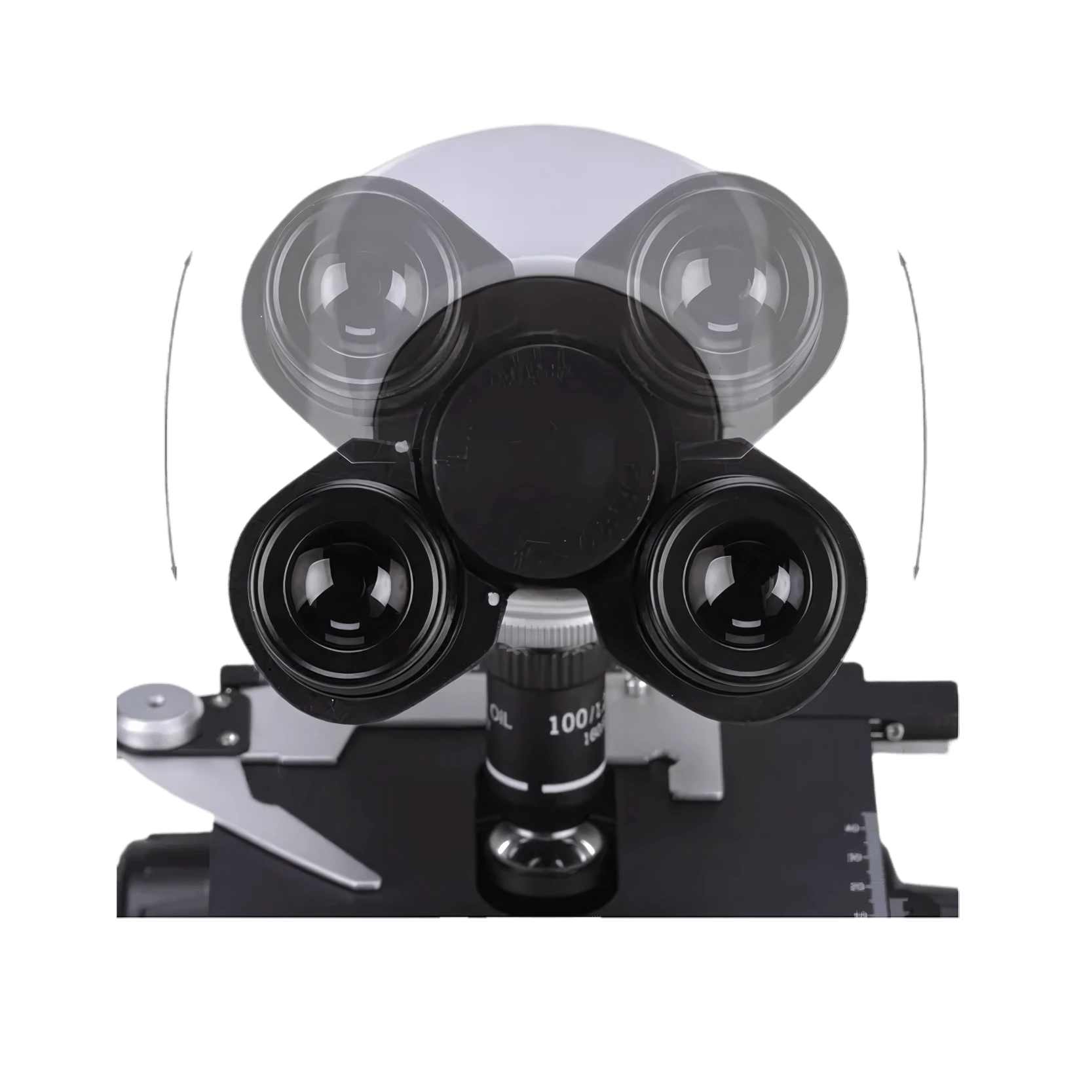

Viewing Head	Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance: 48-75mm
Eyepiece	WF 10×/18mm (Reticule 0.1mm)
Nosepiece	Quintuple click stop revolving mechanism with multiple ball bearing
Condenser	Abbe N.A. 1.25 Strain-free condenser
Objectives	4x, 10x, 20x (S), 40x (S)
Magnification	40x to 400x
Stage	360° Rotatable Round Stage, Center Adjustable, Division 1°, Vernier division 6’
Focusing	Coaxial Coarse & Fine Focusing knobs, Travel Range: 26mm, Scale: 2µm
Filter	Blue (Built-in), Optional: Amber, Green, Neutral

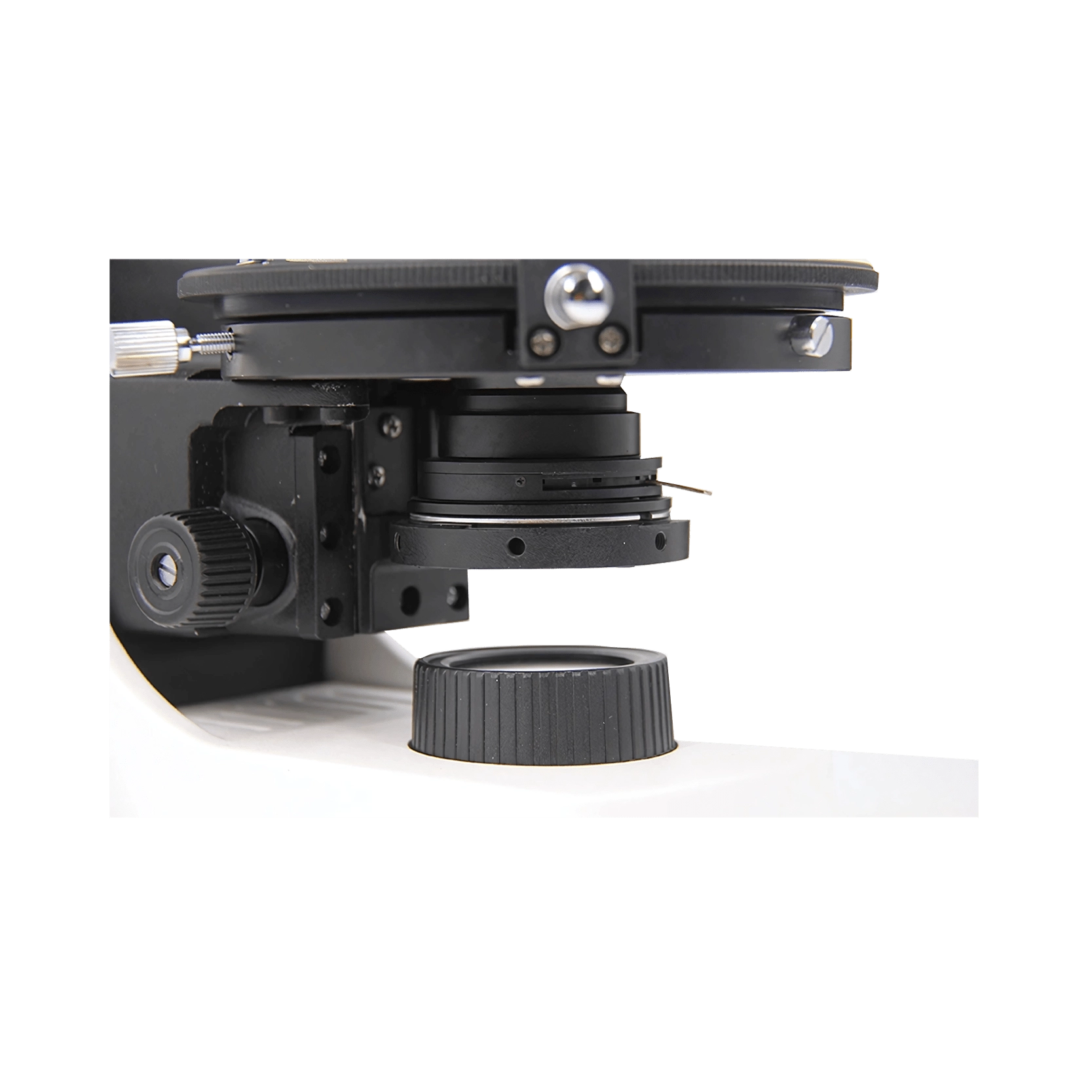

Polarizing Unit	Under the condenser, With Scale Rotatable 360°, Can Be Locked, Can be moved out of the optical path
Illumination	6V/30W Halogen Lamp
Analyzing Unit	0-90°, can be moved out of the optical path for single polarizing observation
Bertrand Lens	Can be moved out of the optical path
Optical Compensator	1/4λ Slip (Ⅰ-Ⅳ Class) Quartz Wedge
Dimensions	570 × 275 × 450 mm
Net Weight	7.5 kg
Gross Weight	8.6 kg

Coaxial focusing with precise 2µm increments
360° rotatable stage for versatile viewing
Built-in filters for superior contrast
Anti-reflective coatings for clearer images
Integrated polarizing unit for effective light control
Robust metal housing for durability
Vibration-dampening design for stability

Our Polarizing Microscope LPM-A20 is ideal for geology, mineralogy, and metallurgy applications, offering precise optical analysis of rock and mineral structures. It is also widely used in university teaching laboratories for research-based education.
