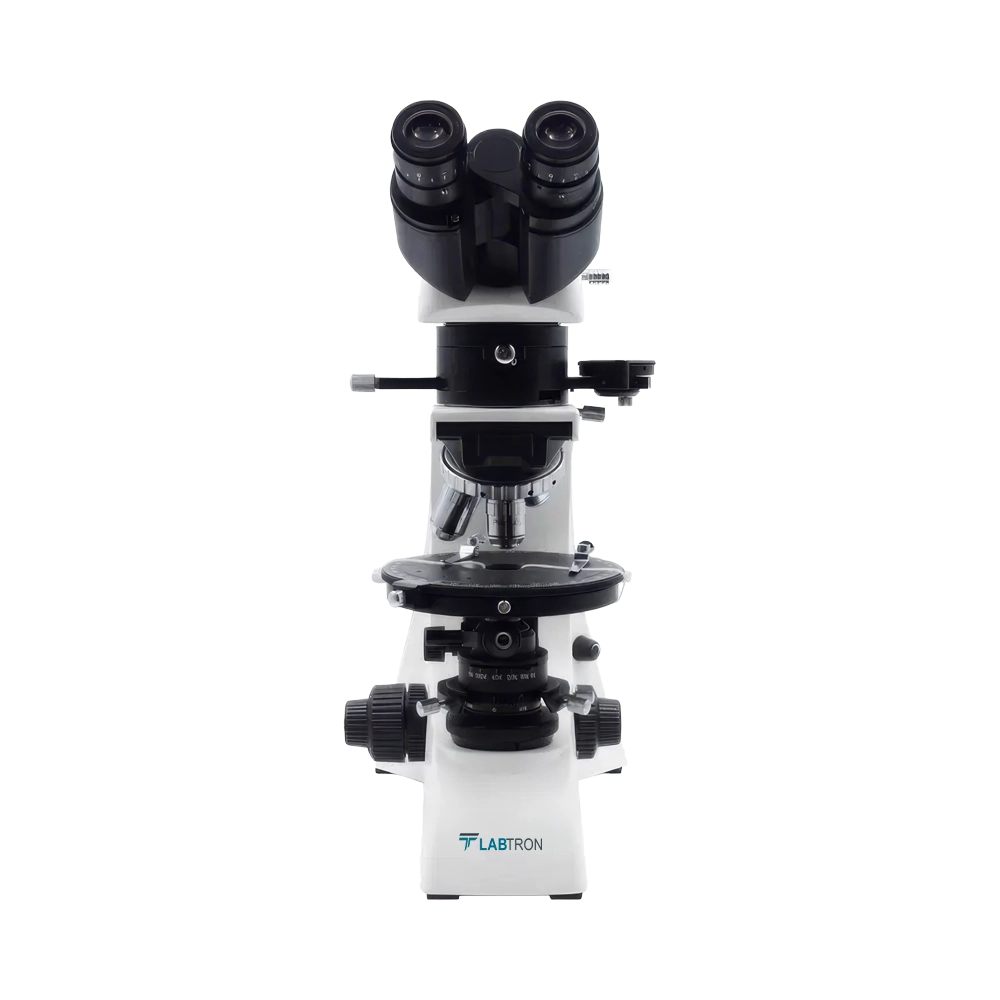

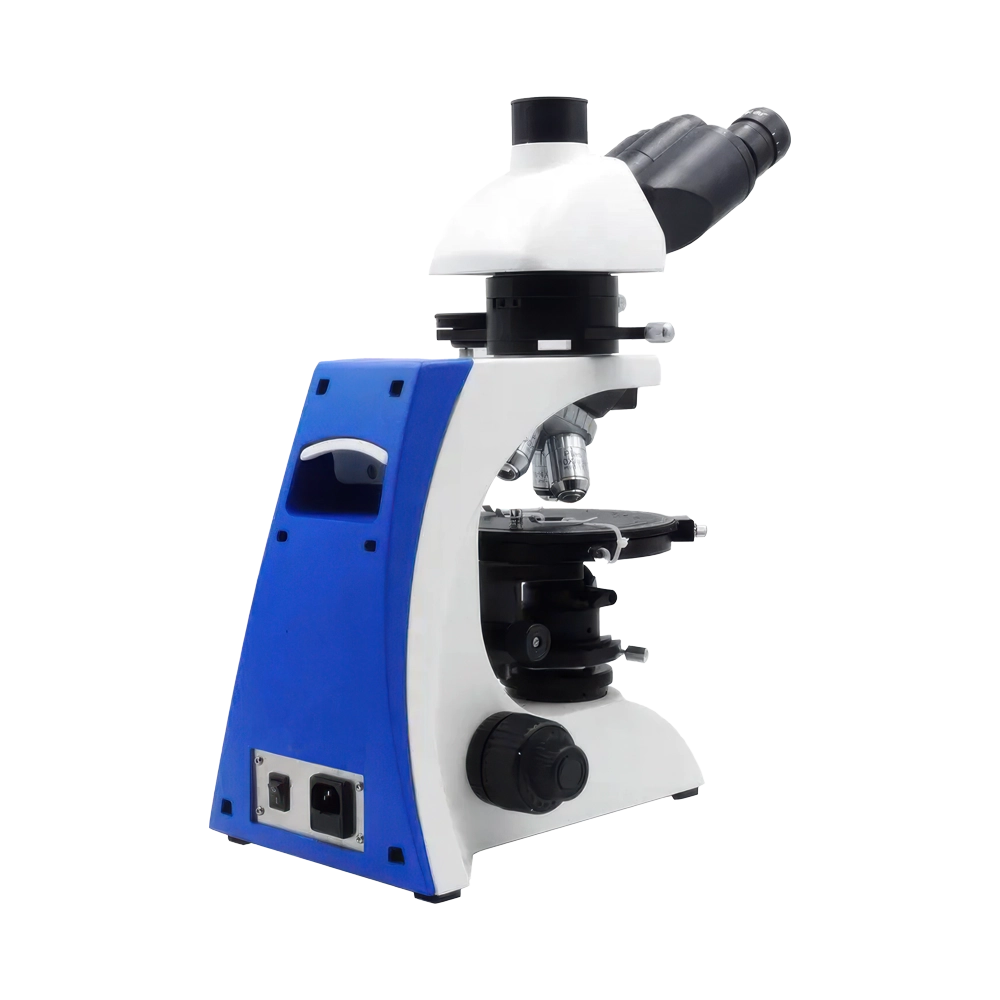

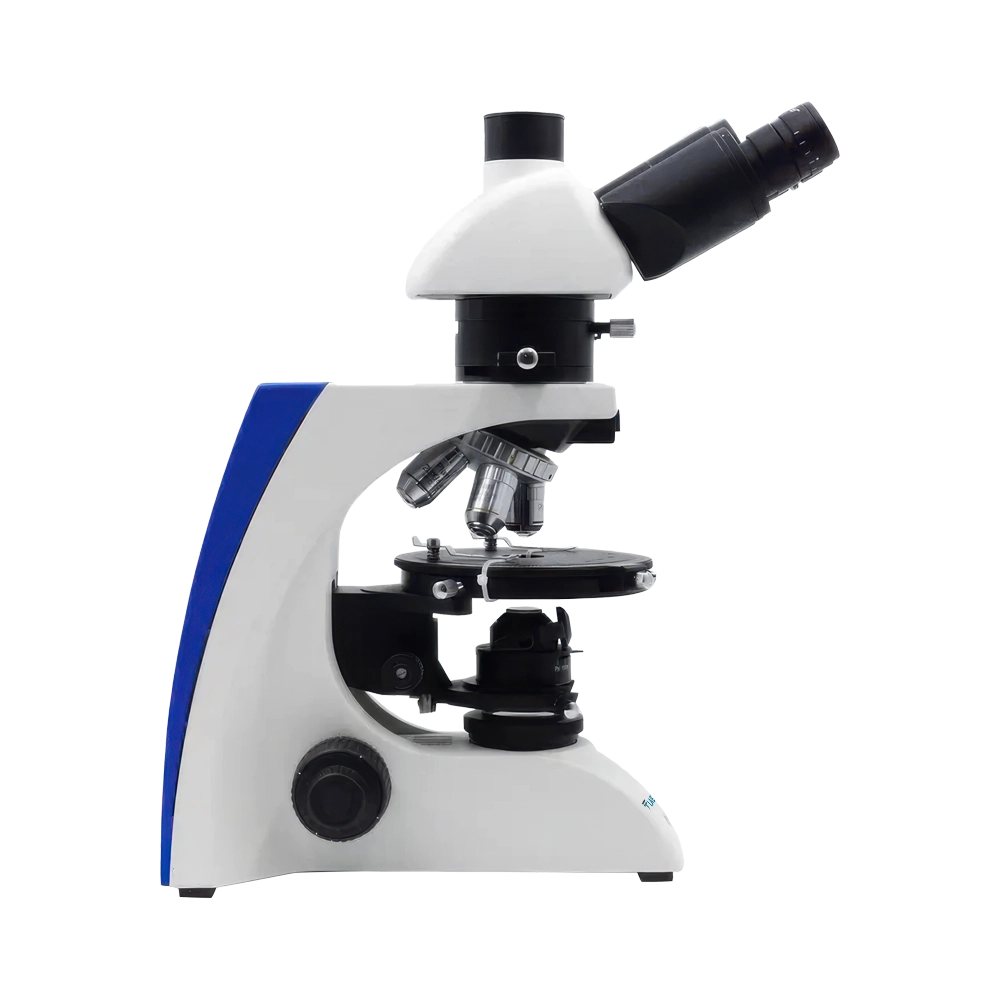

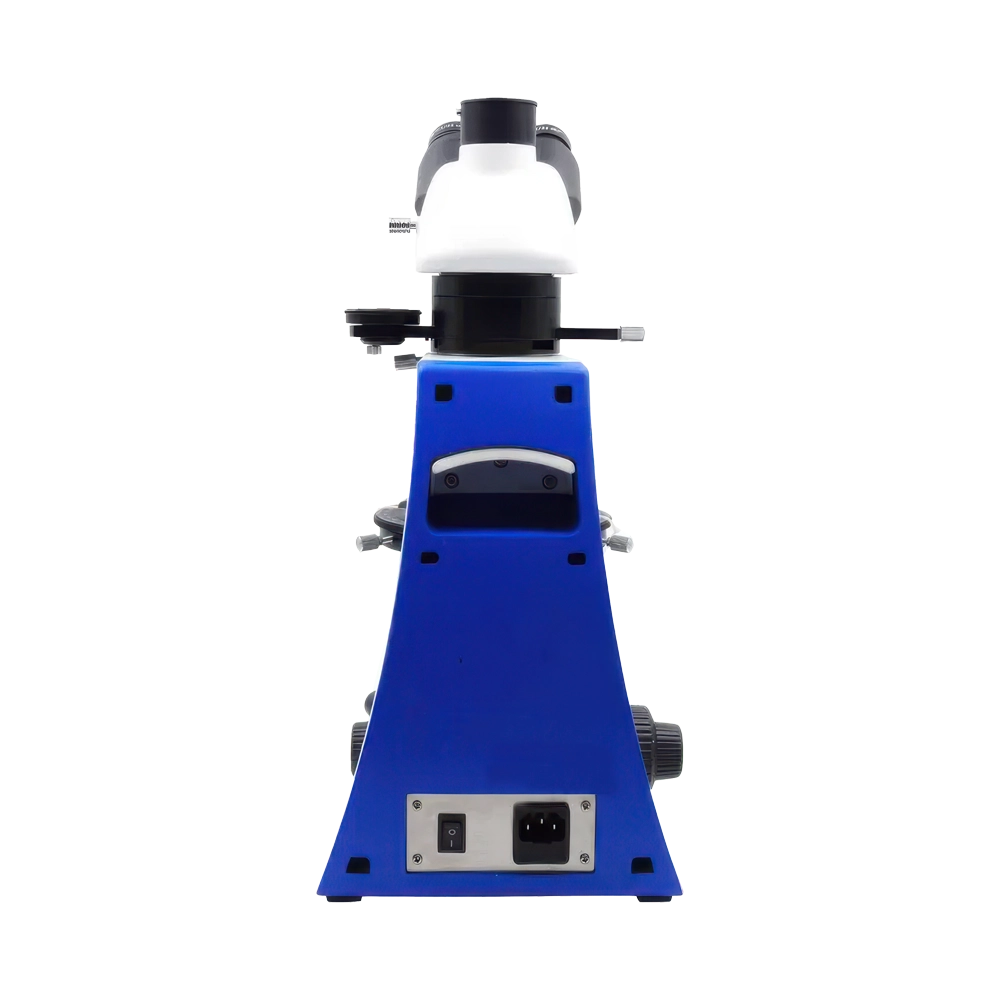

Polarizing Microscope LPM-A13 comes with a 360° rotatable Seidentopf trinocular head, offering an interpupillary distance of 48 to 76 mm. It is equipped with non-stress infinity plan objectives ranging from 4x to 40x for precise imaging in polarizing studies. The swing-out condenser, with an N.A. range of 0.9 to 0.13, provides excellent light control. Its 5W LED Koehler illumination system ensures bright, uniform lighting for clear observations. This microscope is perfect for geological research, crystal structure analysis, and advanced educational applications.
| Viewing Head | Seidentopf Trinocular Head, 30° inclined, 360° rotatable, interpupillary distance 48 to 76 mm |
| Eyepiece | SWF10x/22 mm, diopter adjustable, diameter 30 mm |
| Nosepiece | Quintuple, center adjustable |
| Non-stress infinity plan Objectives | PLAN 4x/0.10, W.D. = 12.1 mm PLAN 10x/0.25, W.D. = 4.64 mm PLAN 20x/0.40, W.D. = 2.41 mm PLAN 40x/0.66, W.D. = 0.65 mm |
| Stage | Round stage, 360° rotatable, diameter 174 mm |
| Condenser | Swing-out, N.A. 0.9 to 0.13, built-in polarizer, lockable |
| Illumination | 5W LED Koehler illumination, low voltage, 100 to 240V input, 5V1A output, power bank supported |
| Focusing | Coaxial coarse/fine focus, travel range 22 mm, fine division 0.002 mm |
| Filters | Blue (Φ34 mm), Green (Φ34 mm) |
| Analyzer | Rotatable 360°, lockable, Bertrand lens, compensator slide, quartz wedge slot |
| Polarizing Unit | Analyzer and polarizer modules integrated into condenser |
| C-Mount | 0.5x adapter with adjustable focus |
| Packaging Dimension | 520×470×285 mm |
| Net Weight | 10.0 kg |
| Gross Weight | 12.5 kg |
Built-in polarizer in condenser
Joint move design for alignment
Bertrand Lens with Compensator
Diopter adjustable super wide eyepiece
Rotatable trinocular head with light split
Compensator slide with quartz wedge
Our Polarizing Microscope LPM-A13 is ideal for analyzing birefringent structures in geological, biological, and material samples. It is widely used for examining minerals, crystals, and fibers in geology and forensic sciences.
5.1MPA Digital Camera (5.1MP, 1/2.5" CMOS, USB3.0, C-Mount)
Canon DSLR C-Frame, Built-in 1.7x Photo Eyepiece
Download catalog for
Polarizing Microscope LPM-A13 Catalog
Available Range :
Polarizing Microscope LPM-A11 : Polarizing siedentopf trinocular head 30° inclined, eyepiece rotation 360°
Labtron Polarizing Microscope is specialized to enhance contrast of transparent or translucent specimens. Their condenser improves luminescence focus, enhancing the clarity and quality of image. They feature light source that provides consistent illumination for optimal viewing of specimens. Their built-in camera systems allow for easy documentation and sharing of observations. Our Polarizing Microscope is suitable in forensics, art conservation, microelectronics, textiles, environmental science, and petrography.
