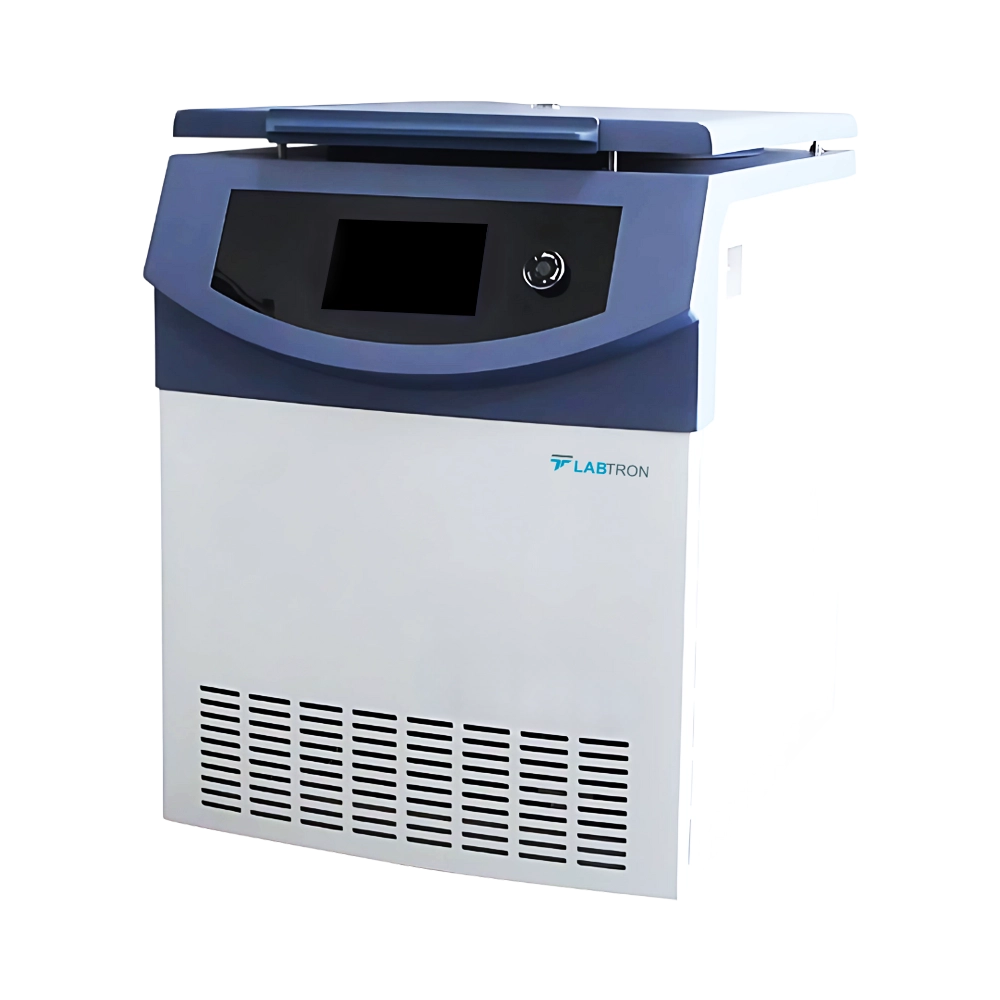

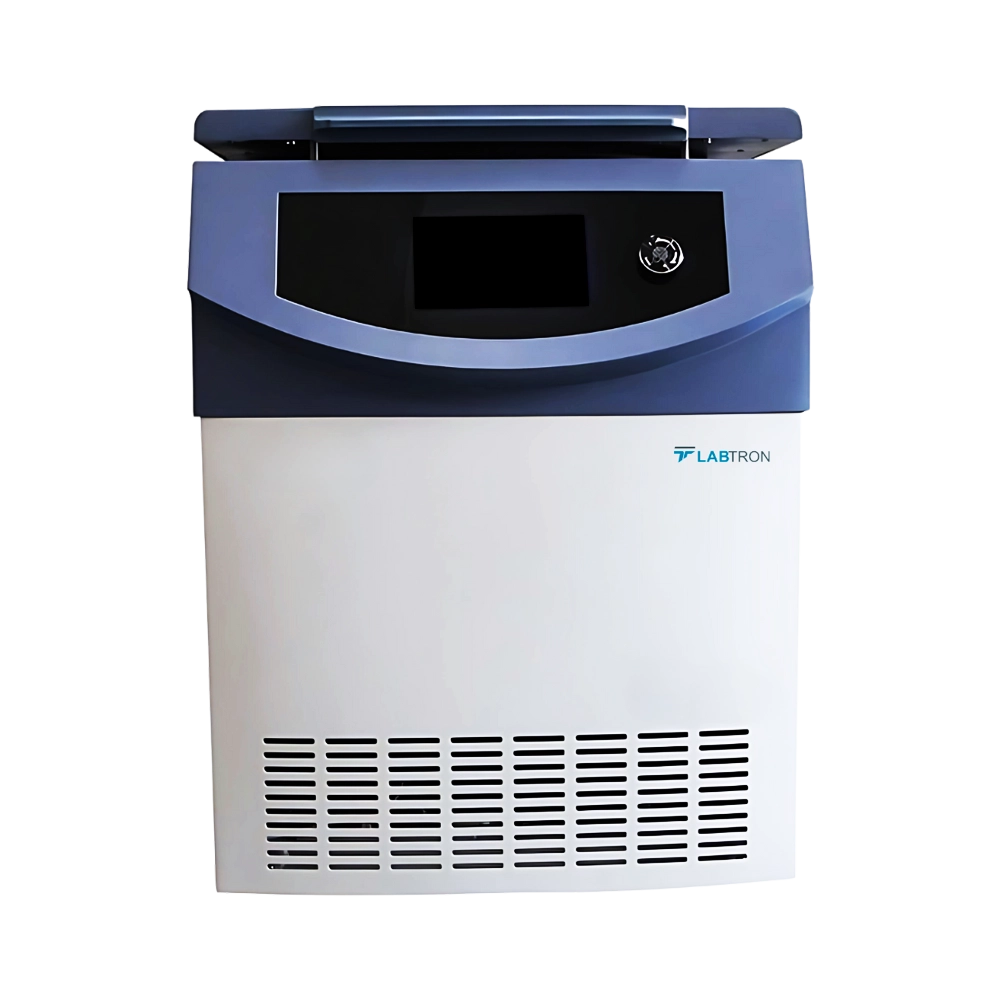

Refrigerated Centrifuge LRF-E16

Name: Refrigerated Centrifuge LRF-E16
Brand: Labtron
SKU: LRF-E16
Rating: 4.9 (884 reviews)

Refrigerated Centrifuge LRF-E16 has a maximum speed of 16000 rpm and a maximum RCF of 27762× for efficient separation. It offers two timing modes: started timing and reaching speed timing for flexible control. The full touch screen HD LCD with the multi-function knob and Home key ensures easy operation. This unit offers an electronic manual for enhanced user experience. Our Refrigerated Centrifuge includes over-speed, over-temperature, over-current, and over-voltage protections for added safety.

Request Quote

Max Speed	16000rpm
Max RCF	27762×g
Max Capacity	4×1000ml
Timer	1 s – 99 h 59 min 59 s
Revolutions/min	± 10 r/min
Temperature Range	-20°C to 40°C
Temperature Accuracy	± 1.0°C
Noise Level	Less than or equal to 65dB（A）
Power Consumption	2.3KW
Power Supply	AC 220 ± 22V 50Hz 20A
Dimensions (W × D × H)	585 × 765 × 820mm
Weight	155Kg

Integrated with noise reduction system
Features one key precooling system
Inbuilt password protection lock
Equipped with high torque motor
electronic self-priming door lock

Refrigerated Centrifuge LRF-E16 is used to separate components of samples at high speeds while maintaining a controlled, low temperature. It is mainly used in Biology and Biochemistry, Medical and Clinical Labs, Pharmaceutical Industry, Genetics and Molecular Biology, Environmental Science, and Food and Agriculture.

Rotor Model	Max Speed (rpm)	Capacity (ml)	Max. RCF (×g)
Angle rotor 01	16000rpm	48×1.5/2.0ml (Double row)	27762×g
Angle rotor 02	15500rpm	30×1.5/2.0ml (Single row)	26859×g
Angle rotor 03	15000rpm	18×5ml (Single row)	22010×g
Angle rotor 04	12000rpm	8×50ml (Conical/round bottom)	18160×g
Angle rotor 05	11000rpm	6×100ml	14745×g
Angle rotor 06	10000rpm	12×50ml (Conical/round bottom)	15383×g
Angle rotor 07	10000rpm	6×250ml	15093×g
Swing-out Rotor 01	4200rpm	4×1000ml	3940×g

Adapter 01	4×2×96 Micro-plate hole basket
Adapter 02	4×10×50ml (Conical/round bottom)
Adapter 03	4×24×15ml (Conical/round bottom)
Adapter 04	4×750ml Flat bottom
Adapter 05	4×500ml Flat bottom
Adapter 06	4×500ml Conical bottom
Adapter 07	4×250ml Conical bottom
Adapter 08	8×250ml Round bottom
Adapter 09	140×10ml (Blood collection tube）
Adapter 10	196×2-7ml (Blood collection tube）

Download catalog for
Refrigerated Centrifuge LRF-E16 Catalog

Available Range :

Refrigerated Centrifuge LRF-C33 : 10000r/min Refrigerated Centrifuge LRF-E15 : 10000rpm Refrigerated Centrifuge LRF-A19 : 16000rpm Refrigerated Centrifuge LRF-B27 : 16500 rpm Refrigerated Centrifuge LRF-A18 : 16500rpm Refrigerated Centrifuge LRF-B28 : 18000 rpm Refrigerated Centrifuge LRF-A13 : 20000 rpm Refrigerated Centrifuge LRF-A15 : 21000rpm Refrigerated Centrifuge LRF-E22 : 22000 rpm Refrigerated Centrifuge LRF-E21 : 22000rpm Refrigerated Centrifuge LRF-E12 : 23000 rpm Refrigerated Centrifuge LRF-A16 : 25000 rpm Refrigerated Centrifuge LRF-E14 : 25000rpm Refrigerated Centrifuge LRF-B25 : 30,000 rpm Refrigerated Centrifuge LRF-A17 : 30000rpm Refrigerated Centrifuge LRF-B41 : 5500 rpm Refrigerated Centrifuge LRF-B43 : 5500rpm Refrigerated Centrifuge LRF-B42 : 6500rpm Refrigerated Centrifuge LRF-E19 : 8000rpm

Models of Refrigerated Centrifuge

Labtron Refrigerated Centrifuge provide 5,000rpm to 50,000rpm speed to spin samples while maintaining controlled low temperature. They prevent heat buildup from affecting temperature-sensitive samples, such as biological materials, cells, proteins, nucleic acids, and blood. Their control panel includes programmable settings, enabling users to customize speed, time and thermal condition. They include various rotor options to accommodate different sample types and separation needs efficiently. Our Refrigerated Centrifuge is essential in molecular biology, clinical diagnostics, biochemistry, and microbiology.
