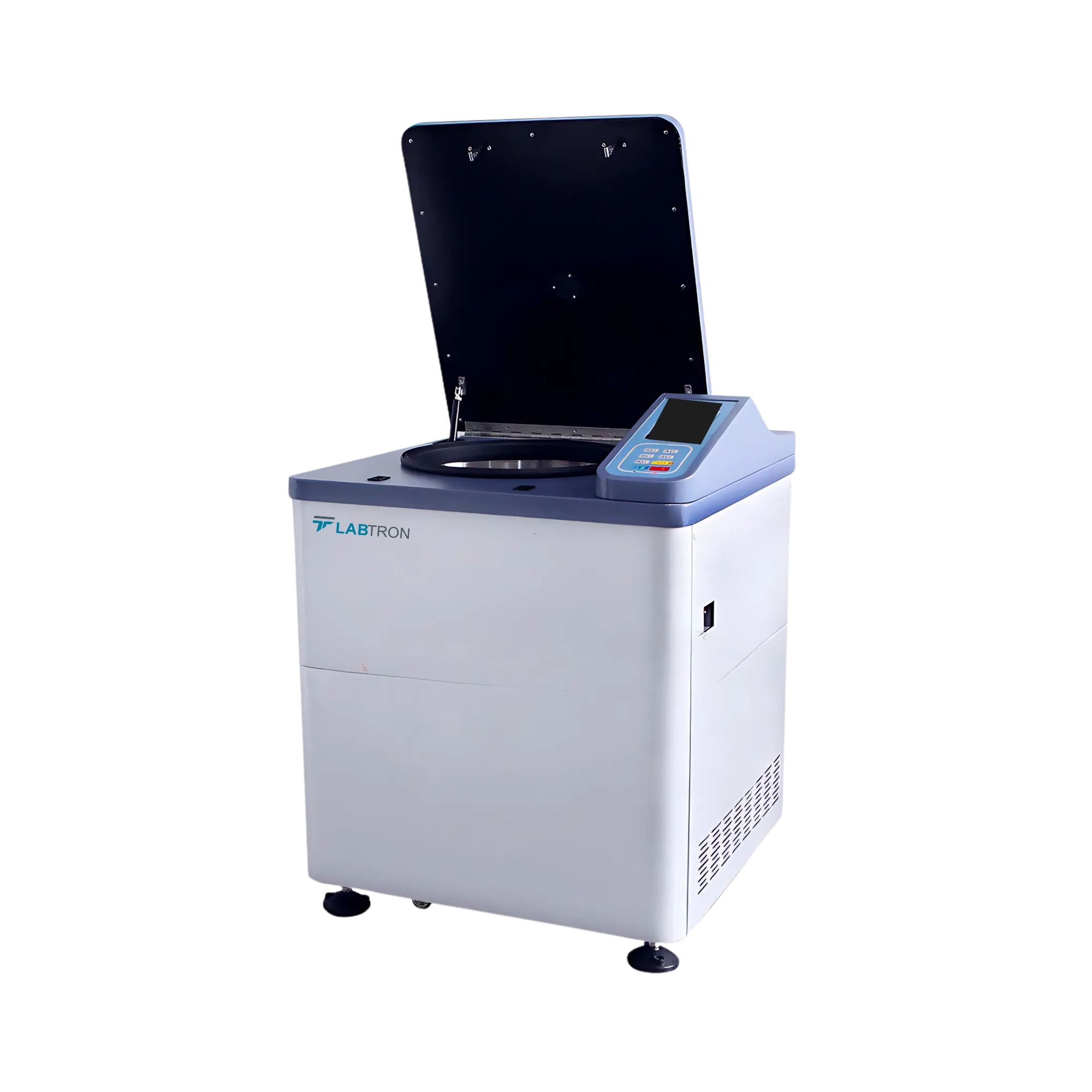

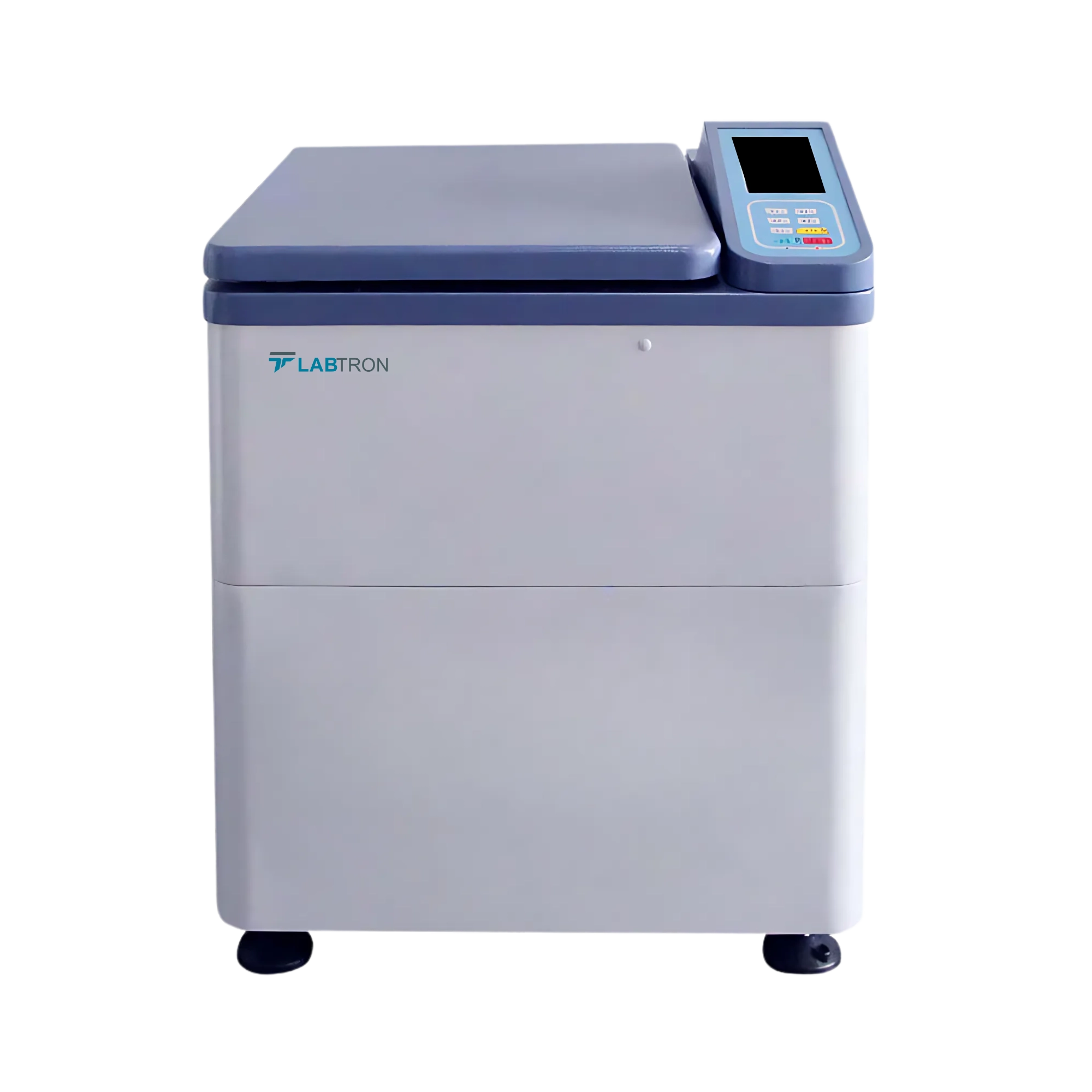

Refrigerated Centrifuge LRF-E14

Name: Refrigerated Centrifuge LRF-E14
Brand: Labtron
SKU: LRF-E14
Rating: 4.7 (605 reviews)

Refrigerated Centrifuge LRF-E14 comes with a maximum speed of 25000 rpm and a maximum RCF of 64800 ×g for high-performance sample separation. It offers high compatibility with multiple rotors, providing flexibility. The microcomputer control and AC frequency conversion brushless motor with fast speed ensures precise performance. Our Refrigerated Centrifuge is made of stainless steel, treated with an environmentally friendly anti-corrosion coating for enhanced durability.

Request Quote

Max Speed	25000rpm
Max RCF	64800×g
Max Capacity	4×1000ml
Timer	1 s – 99 h 59 min 59 s
Revolutions/min	± 10 r/min
Temperature Range	-20°C to 40°C
Temperature Accuracy	± 1.0°C
Noise Level	Less than or equal to 65dB（A）
Power Consumption	4.5KW
Power Supply	AC 220 ± 22V 50Hz 25A
Dimensions (W × D × H)	815 × 735 × 1060 (mm)
Weight	260 kg

Features automatic RCF calculation
Inbuilt electric door lock
Equipped with a refrigeration system
Integrated with auto lid lock
Ensures low opening height

Refrigerated Centrifuge LRF-E14 is used to separate different components of a sample based on their size, shape, and density. It is mainly used in Molecular Biology, Biochemistry, Clinical Laboratories, Pharmaceutical Industry, Research Laboratories, Environmental Testing, and the Food and Beverage Industry.

Rotor Model	Max Speed (rpm)	Capacity (ml)	Max. RCF (×g)
Angle rotor 01	25000rpm	24×1.5/2.0ml (titanium alloy)	64800×g
Angle rotor 02	23000rpm	18×10ml	60460×g
Angle rotor 03	21000rpm	8×50ml (round bottom) (titanium alloy)	52356×g
Angle rotor 04	20000rpm	8×50ml (Round bottom)/ Carbon Fiber 8×50ml (Conical/Round bottom) (optional)	46420×g
Angle rotor 05	18000rpm	6×50ml (Conical/Round bottom)/ Carbon Fiber 6×50ml (Conical/Round bottom) (optional)	33506×g
Angle rotor 06	16000rpm	12×15ml (Conical bottom)	29050×g
Angle rotor 07	14000rpm	6×250ml/ Carbon Fiber 6×250ml (optional)	30074×g
Angle rotor 08	13000rpm	8×100ml	19830×g
Angle rotor 09	12000rpm	12×50ml (Conical/round bottom)	22135×g
Angle rotor 10	10000rpm	6×500ml/ Carbon Fiber 6×500ml (optional)	17700×g
Angle rotor 11	8000rpm	4×1000ml/ Carbon Fiber 4×1000ml(optional)	12040×g

Download catalog for
Refrigerated Centrifuge LRF-E14 Catalog

Available Range :

Refrigerated Centrifuge LRF-C33 : 10000r/min Refrigerated Centrifuge LRF-E15 : 10000rpm Refrigerated Centrifuge LRF-A19 : 16000rpm Refrigerated Centrifuge LRF-B27 : 16500 rpm Refrigerated Centrifuge LRF-A18 : 16500rpm Refrigerated Centrifuge LRF-B28 : 18000 rpm Refrigerated Centrifuge LRF-A13 : 20000 rpm Refrigerated Centrifuge LRF-A15 : 21000rpm Refrigerated Centrifuge LRF-E22 : 22000 rpm Refrigerated Centrifuge LRF-E21 : 22000rpm Refrigerated Centrifuge LRF-E12 : 23000 rpm Refrigerated Centrifuge LRF-A16 : 25000 rpm Refrigerated Centrifuge LRF-E14 : 25000rpm Refrigerated Centrifuge LRF-B25 : 30,000 rpm Refrigerated Centrifuge LRF-A17 : 30000rpm Refrigerated Centrifuge LRF-B41 : 5500 rpm Refrigerated Centrifuge LRF-B43 : 5500rpm Refrigerated Centrifuge LRF-B42 : 6500rpm Refrigerated Centrifuge LRF-E19 : 8000rpm

Models of Refrigerated Centrifuge

Labtron Refrigerated Centrifuge provide 5,000rpm to 50,000rpm speed to spin samples while maintaining controlled low temperature. They prevent heat buildup from affecting temperature-sensitive samples, such as biological materials, cells, proteins, nucleic acids, and blood. Their control panel includes programmable settings, enabling users to customize speed, time and thermal condition. They include various rotor options to accommodate different sample types and separation needs efficiently. Our Refrigerated Centrifuge is essential in molecular biology, clinical diagnostics, biochemistry, and microbiology.
