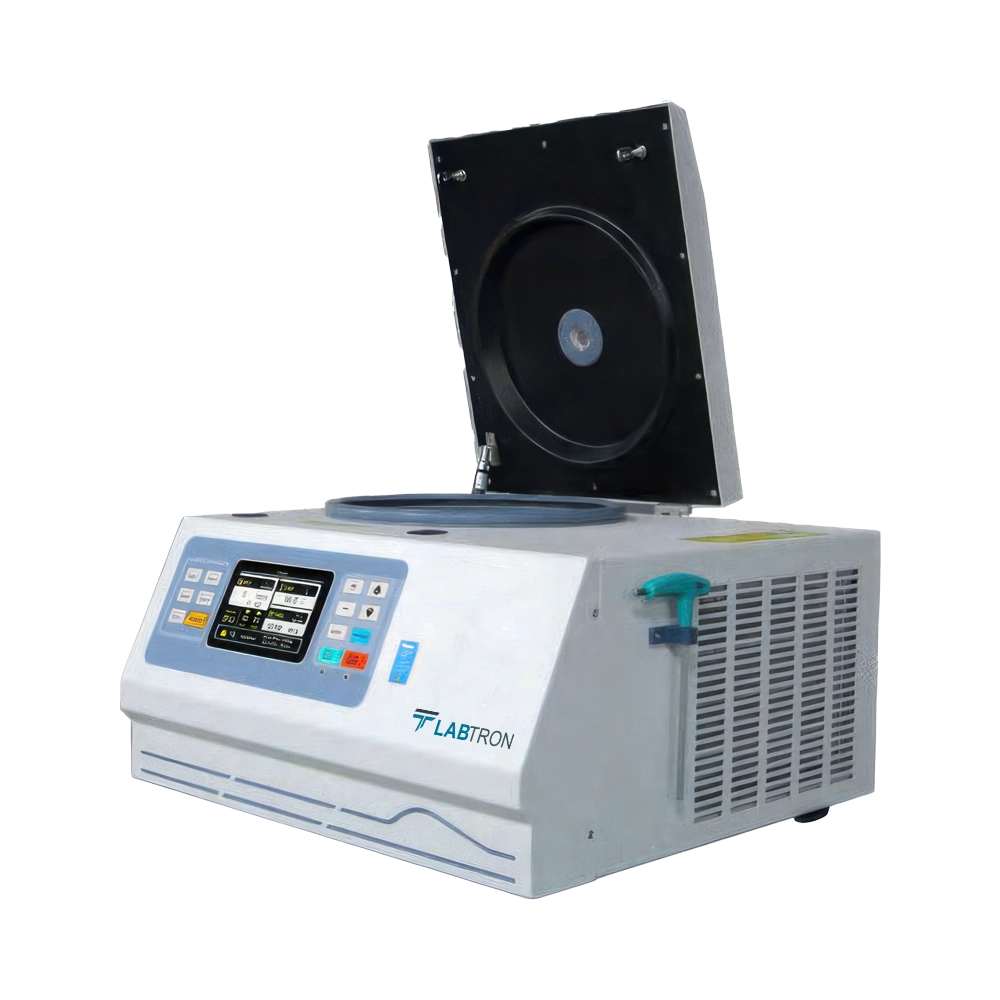

Refrigerated Centrifuge LRF-A13

Name: Refrigerated Centrifuge LRF-A13
Brand: Labtron
SKU: LRF-A13
Rating: 4.9 (681 reviews)

Refrigerated Centrifuge LRF-A13 has a maximum speed of 20000 rpm and a maximum RCF of 31115 × g for high-performance separation. It comes with special thermal insulation to maintain optimal temperature control. This unit can store up to 99 program groups and includes a convenient shortcut key for quick access. The front of the fuselage is incorporated with an operation SOP guide map for easier navigation. Our Refrigerated Centrifuge features a full steel inner cavity protective cover for enhanced durability and safety.

Request Quote

Max Speed	20000 rpm
Max RCF	31115 × g
Max Capacity	4 × 250 ml
Timer	1s to 99h 59min 59s
Speed Accuracy	±10 r/min
Temperature Range	-20℃ to 40℃
Temperature Accuracy	±1.0℃
Noise Level	≤ 60 dB (A)
Power Consumption	1.2 KW
Power Supply	AC 220V ±22V, 50Hz, 15A
Dimensions (L × W × H)	680 × 660 × 400 mm
Weight	108 kg

Integrated with refrigeration system
Equipped with a brushless motor
Automatic electric door lock
Ensures automatic rotor identification
Inbuilt noise reduction system

Refrigerated Centrifuge LRF-A13 is used to separate components of a mixture based on their size, shape, and density while maintaining a controlled, low temperature and is mainly used in Blood separation, DNA/RNA isolation, Protein purification, Cell culture, Subcellular fractionation, Pharmaceutical applications, Environmental studies, and Food and beverage analysis.

Rotor Model	Max Speed (rpm)	Capacity (ml)	Max. RCF (×g)
Angle Rotor 01	20000rpm	16×1.5/2.0ml	30677×g
Angle Rotor 02	18000rpm	24×1.5/2.0ml	31115×g
Angle Rotor 03	16000rpm	12×5ml	17344×g
Angle Rotor 04	16000rpm	12×10ml	23068×g
Angle Rotor 05	16000rpm	32×1.5/2.0ml	26044×g
Angle Rotor 06	16000rpm	48×1.5/2.0ml	27762×g
Angle Rotor 07	14000rpm	12×15ml (Conical bottom)	22241×g
Angle Rotor 08	13000rpm	6×50ml (Round bottom)	17146×g
Angle Rotor 09	12500rpm	6×50ml (Conical/round bottom)	17608×g
Angle Rotor 10	12000rpm	4×100ml	17016×g
Angle Rotor 11	12000rpm	6×100ml	17548×g
Angle Rotor 12	10000rpm	8×50ml (Conical/round bottom)	12611×g
Angle Rotor 13	15000rpm	60×1.5ml	18826×g
Angle Rotor 14	5000rpm	40×15ml(W)	4919×g
Swing-Out Rotor 01	5000rpm	4×100ml	3717×g
Swing-Out Rotor 02	4200rpm	4×250ml (Round bucket)	3352×g
Swing-Out Rotor 03	4200rpm	4×250ml (Square bucket)	3352×g
Swing-Out Rotor 04	4200rpm	Micro-plate 2×2×96 hole	2267×g

Download catalog for
Refrigerated Centrifuge LRF-A13 Catalog

Available Range :

Refrigerated Centrifuge LRF-C33 : 10000r/min Refrigerated Centrifuge LRF-E15 : 10000rpm Refrigerated Centrifuge LRF-A19 : 16000rpm Refrigerated Centrifuge LRF-B27 : 16500 rpm Refrigerated Centrifuge LRF-A18 : 16500rpm Refrigerated Centrifuge LRF-B28 : 18000 rpm Refrigerated Centrifuge LRF-A13 : 20000 rpm Refrigerated Centrifuge LRF-A15 : 21000rpm Refrigerated Centrifuge LRF-E22 : 22000 rpm Refrigerated Centrifuge LRF-E21 : 22000rpm Refrigerated Centrifuge LRF-E12 : 23000 rpm Refrigerated Centrifuge LRF-A16 : 25000 rpm Refrigerated Centrifuge LRF-E14 : 25000rpm Refrigerated Centrifuge LRF-B25 : 30,000 rpm Refrigerated Centrifuge LRF-A17 : 30000rpm Refrigerated Centrifuge LRF-B41 : 5500 rpm Refrigerated Centrifuge LRF-B43 : 5500rpm Refrigerated Centrifuge LRF-B42 : 6500rpm Refrigerated Centrifuge LRF-E19 : 8000rpm

Models of Refrigerated Centrifuge

Labtron Refrigerated Centrifuge provide 5,000rpm to 50,000rpm speed to spin samples while maintaining controlled low temperature. They prevent heat buildup from affecting temperature-sensitive samples, such as biological materials, cells, proteins, nucleic acids, and blood. Their control panel includes programmable settings, enabling users to customize speed, time and thermal condition. They include various rotor options to accommodate different sample types and separation needs efficiently. Our Refrigerated Centrifuge is essential in molecular biology, clinical diagnostics, biochemistry, and microbiology.
