| Max Speed | 6500rpm |
| Max RCF | 5952×g |
| Max Capacity | 4×750ml |
| Timer | 1s to 99h 59min 59s |
| Revolutions/min | ±10r/min |
| Temp Range | -20℃ to 40℃ |
| Temp Accuracy | ±1.0℃ |
| Noise Level | Less than 60 dB (A) |
| Power Consumption | 1.5KW |
| Power Supply | AC 220 ± 22V 50Hz 15A |
| Dimensions (W × D × H) | 730 × 660 × 400 (mm) |
| Weight | 118kg |
Automatic electronic door lock
Features adjustable timing modes
Incorporates rotor identification system
Constructed with stainless steel
Inbuilt noise reduction system

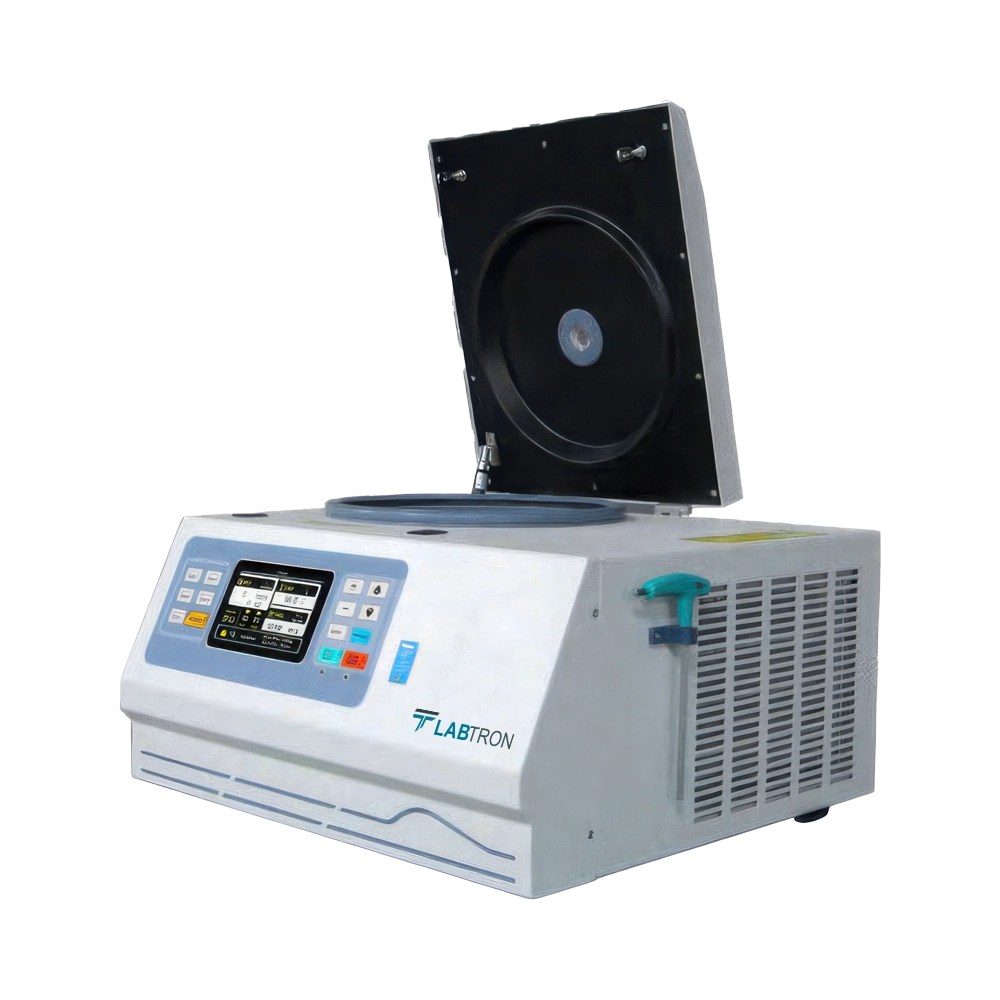

Refrigerated Centrifuge LRF-B44 is used to separate substances at lower temperatures and to prevent heat buildup during the centrifugation process. It is used primarily in Biotechnology and Molecular Biology, Clinical Laboratories, Pharmaceutical Research, Environmental Testing, and Forensic and Diagnostic Laboratories.
Rotor Model | Max Speed (rpm) | Capacity (ml) | Max. RCF (×g) |
Angle Rotor 01 | 5500rpm | 40×15ml(W) | 5952×g |
Angle Rotor 02 | 6500rpm | 6×50ml(W) | 5091×g |
Swing-out Rotor 01 | 4200rpm | Auto uncap 120×2 to 7ml (Blood collection tube) | 3648×g |
Swing-out Rotor 02 | 4200rpm | 4×750ml (Round bucket) | 3648×g |
Swing-out Rotor 03 | 4200rpm | 4×750ml (Round bucket) (with biosafety lid) | 3648×g |
Swing-out Rotor 04 | 4200rpm | 4×750ml (Square bucket) | 3648×g |
Swing-out Rotor 05 | 4200rpm | Auto uncap 104×2-7ml (blood collection tube) | 3510×g |
Swing-out Rotor 06 | 4200rpm | 4×500ml (Round bucket) | 3510×g |
Swing-out Rotor 07 | 4200rpm | 4×500ml (Round bucket) (with biosafety lid) | 3510×g |
Swing-out Rotor 08 | 4200rpm | 4×500ml (Square bucket) | 3510×g |
Swing-out Rotor 09 | 4200rpm | Auto uncap 64×2-7ml (blood collection tube) | 3352×g |
Swing-out Rotor 10 | 4200rpm | 4×250ml (Round bucket) | 3352×g |
Swing-out Rotor 11 | 4200rpm | 4×250ml (Round bucket) (with biosafety lid) | 3352×g |
Swing-out Rotor 12 | 4200rpm | 4×250ml (Square bucket) | 3352×g |
Swing-out Rotor 13 | 4200rpm | 4×250ml (Conical bottom) | 3352×g |
Swing-out Rotor 14 | 4200rpm | 6×250ml (Round bucket) | 3352×g |
Swing-out Rotor 15 | 4200rpm | 4×750ml (Round bucket) Adapter 4×14×15ml (Conical bottom) Adapter 4×7×50ml (Conical bottom) | 3648×g |
Swing-out Rotor 16 | 4200rpm | Micro-plate 4×2×96 hole | 3648×g |
Swing-out Rotor 17 | 4200rpm | Micro-plate 2×2×96 hole | 2267×g |
Download catalog for
Refrigerated Centrifuge LRF-B44 Catalog
Available Range :
Refrigerated Centrifuge LRF-C33 : 10000r/min Refrigerated Centrifuge LRF-E15 : 10000rpm Refrigerated Centrifuge LRF-A19 : 16000rpm Refrigerated Centrifuge LRF-B27 : 16500 rpm Refrigerated Centrifuge LRF-A18 : 16500rpm Refrigerated Centrifuge LRF-B28 : 18000 rpm Refrigerated Centrifuge LRF-A13 : 20000 rpm Refrigerated Centrifuge LRF-A15 : 21000rpm Refrigerated Centrifuge LRF-E22 : 22000 rpm Refrigerated Centrifuge LRF-E21 : 22000rpm Refrigerated Centrifuge LRF-E12 : 23000 rpm Refrigerated Centrifuge LRF-A16 : 25000 rpm Refrigerated Centrifuge LRF-E14 : 25000rpm Refrigerated Centrifuge LRF-B25 : 30,000 rpm Refrigerated Centrifuge LRF-A17 : 30000rpm Refrigerated Centrifuge LRF-B41 : 5500 rpm Refrigerated Centrifuge LRF-B43 : 5500rpm Refrigerated Centrifuge LRF-B42 : 6500rpm Refrigerated Centrifuge LRF-E19 : 8000rpm
Labtron Refrigerated Centrifuge provide 5,000rpm to 50,000rpm speed to spin samples while maintaining controlled low temperature. They prevent heat buildup from affecting temperature-sensitive samples, such as biological materials, cells, proteins, nucleic acids, and blood. Their control panel includes programmable settings, enabling users to customize speed, time and thermal condition. They include various rotor options to accommodate different sample types and separation needs efficiently. Our Refrigerated Centrifuge is essential in molecular biology, clinical diagnostics, biochemistry, and microbiology.
