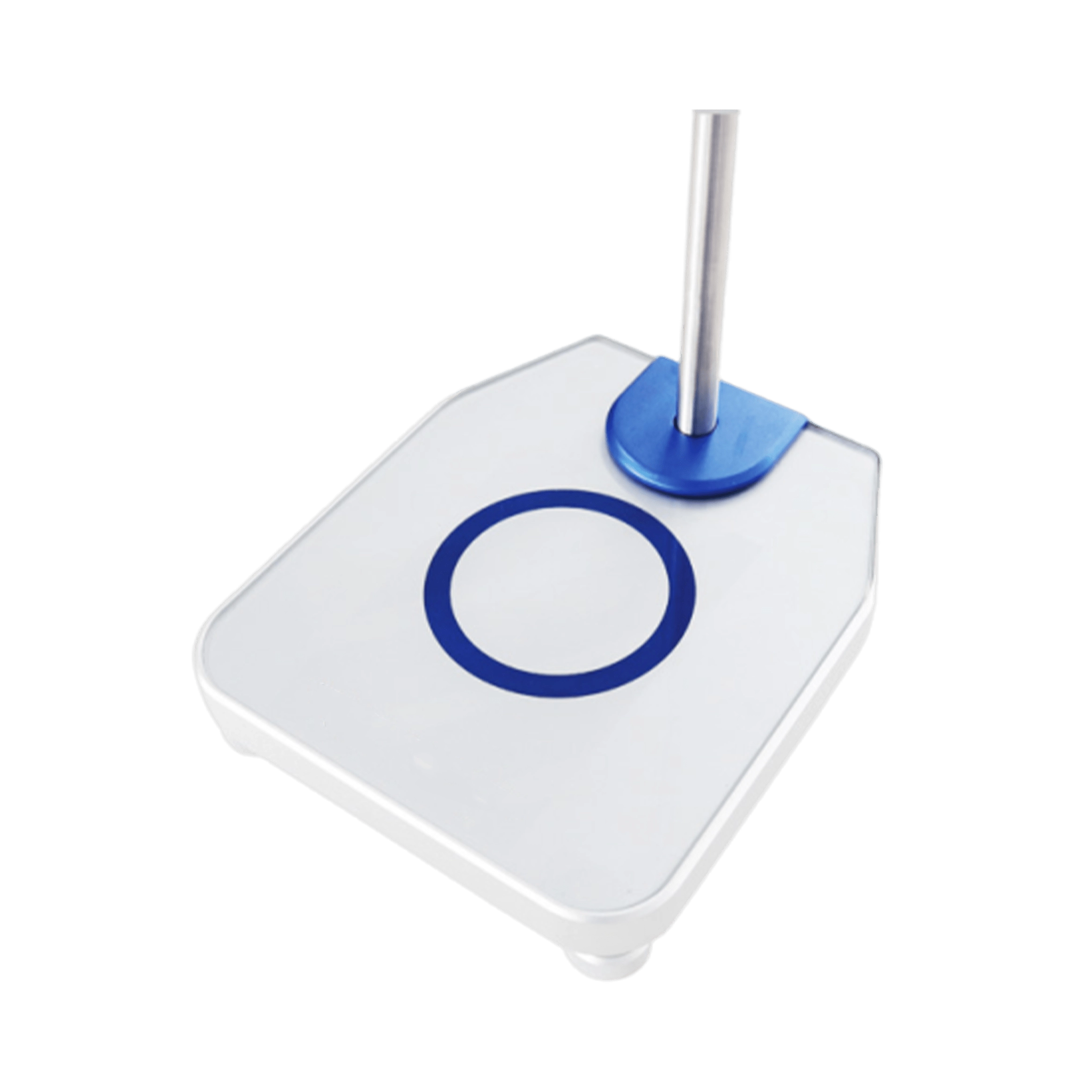

Rotational Viscometer LVM-B13

Rotational Viscometer LVM-B13

Rotational Viscometer LVM-B13 measures viscosity in the range of 10 to 2,000,000 Mpa. S with an accuracy of ±1.0% for Newtonian fluids. This viscometer features multi-speed settings for testing a wide range of materials. Its programmable test profiles simplify repetitive tasks for better efficiency. The strong calibration compatibility ensures consistent performance across various samples. Its continuous viscosity monitoring delivers real-time analysis. Our rotational viscometer is ideal for industries requiring precise viscosity control and quality assurance.

Rotational Viscometer LVM-B13
Rotational Viscometer LVM-B13
Rotational Viscometer LVM-B13
Request Quote
Measurement Range 10 to 2,000,000 (10⁶) mPa.s
Measurement Accuracy ± 1.0 % (Newtonian fluids）
Rotors No.1, No.2, No.3, No.4 (optional No.0)
Rotate Speed 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 r/min
Repeatability ± 0.5 % (Newtonian fluids）
Display 7 inch high definition colorful touch screen
Power Supply 110V/220V；50Hz/60Hz
Dimension (W×D×H) 200mm×240mm×620mm
Net Weight 7Kg

  • High-definition touch screen

  • Built-in electric gradient

  • Automatic temperature control

  • High-precision stepper motor

  • Magnetic rotor installation

Rotational Viscometer LVM-B13 is widely used in industries such as food, cosmetics, and pharmaceuticals for viscosity measurement. It ensures quality control in product formulation and production processes.

Download catalog for
Rotational Viscometer LVM-B13 Catalog

Available Range :

Rotational Viscometer LVM-A20 : 1 to 2,000,000 mPa.s Rotational Viscometer LVM-B12 : 10 to 100,000 mPa.s Rotational Viscometer LVM-B13 : 10 to 2,000,000 (10⁶) mPa.s Rotational Viscometer LVM-E10 : 10 to100,000 mPa.s (cP) Rotational Viscometer LVM-D11 : 100 mPa.s to 200000 mPa.s Rotational Viscometer LVM-D12 : 100 mPa.s to 2000000 mPa.s Rotational Viscometer LVM-A32 : 200 to 80,000,000 mPa.s Rotational Viscometer LVM-D30 : 25 mPa.s to 1 × 107 mPa.s Rotational Viscometer LVM-D10 : 25 mPa.s to 1×10000000 mPa.s Rotational Viscometer LVM-B15 : 5 to 1,000,000 mPa.s
25 to 10,000,000 mPa.s
50 to 20,000,000 mPa.s
200 to 80,000,000 mPa.s Rotational Viscometer LVM-B14 : 5 to 330k mPa.s
50 to 3.3M mPa.s
100 to 6.6M mPa.s
400 to 26.4M mPa.s Rotational Viscometer LVM-A33 : 800 to 320,000,000 mPa.s Rotational Viscometer LVM-F10 : Medium Viscosity Sample: 50 to 10M (mPa. s/cP)
Low Viscosity Sample: 5 to 1M (mPa. s/Cp)
Rotational Viscometer LVM-B13 | Rotors : No.1, No.2, No.3, No.4 | Rotating speed : 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 r/min
Rotational Viscometer LVM-B13 | High-definition touch screen | Built-in electric gradient

Models of Rotational Viscometers

Labtron Rotational Viscometer are engineered with a robust rotating spindle that interacts with the fluid. They come with multiple spindle options and variable speed settings to fit diverse testing requirements. These have simple calibration procedures and low maintenance needs. Their user-friendly controls guarantee ease of operation. Our rotational viscometer are enhanced by integrated temperature control, ensuring consistent sample conditions.

Rotational Viscometer LVM-B11

Rotational Viscometer LVM-B11
  • Measuring Range : 1 to 2,000,000 Mpa. S
  • Measuring Error : ±1% (Newtonian liquid)
  • Rotating Speed : 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 (r/min)
  • Rotor : Rotors 1-4; 0 rotor required for viscosity below 10 Mpa. S
Rotational Viscometer LVM-D12

Rotational Viscometer LVM-D12
  • Measurement range : 100 mPa.s to 2000000 mPa.s
  • Rotors : Rotor no. 21, 27, 28, 29 ( total 4 pieces of spindles)
  • Rotor speed : 5, 10, 20, 50 r/min
  • Temperature control range : 45 to 200°C
Rotational Viscometer LVM-C13

Rotational Viscometer LVM-C13
  • Measuring range : 1 to 600000 mPa.s
  • Rotating speed : 0.1/0.3/0.6/1.5/3/6/12/30/60 (r/min)
  • Rotor : 1 to 4 number rotors
  • Measuring Error (Newtonian liquid) : ±1%
Rotational Viscometer LVM-A32
Rotational Viscometer LVM-A32
  • Measurement Range : 200 to 80,000,000 mPa.s
  • Rotational Speed : 0.1 to 250 rpm per min
  • Rotors : No.2, No.3, No.4, No.5, No.6, No.7 (No.0 and No.1 is optional)
  • Measurement Accuracy : ± 1.0 % (of the full range)
Rotational Viscometer LVM-D31
Rotational Viscometer LVM-D31
  • Measuring Range : 100 to 2 × 10⁵ mPa.s
  • Rotor Size : 27 No. rotor (21, 28, 29 rotor is optional)
  • Rotor Speed : 5 r/ min, 10 r/ min, 20 r / min, 50 r/ min
  • Rotational Speed : 10 to 200 rpm
Rotational Viscometer LVM-D32

Rotational Viscometer LVM-D32
  • Cooling Bath Capacity : 8L
  • Temperature Range : Ambient to 50℃
  • Temperature Accuracy : ±0.1℃
  • Ambient Temperature : 5℃ to 40℃
Rotational Viscometer LVM-A22

Rotational Viscometer LVM-A22
  • Viscosity Range : HA: 200 to 26000000 mPa.s
  • Rotation speed range : 0.3 to 100 rpm (stepless)
  • Spindles : HA: (2#, 3#, 4#, 5#, 6#, 7#, 6 Spindles) (0#, 1# are optional)
  • Accuracy : ± 1.0 % (of full range)
Rotational Viscometer LVM-E10

Rotational Viscometer LVM-E10
  • Measurement Range : 10 to100,000 mPa.s (cP)
  • Rotor : No. 1, No. 2, No. 3, No. 4 (Four Rotors)
  • Rotor Speed : 6 r/min, 12 r/min, 30 r/min, 60 r/min
  • Measure : Newtonian fluids

Rotational Viscometers:
Rotational Viscometer LVM-B11, Rotational Viscometer LVM-D12, Rotational Viscometer LVM-C13, Rotational Viscometer LVM-A32, Rotational Viscometer LVM-D31, Rotational Viscometer LVM-D32, Rotational Viscometer LVM-A22, Rotational Viscometer LVM-E10, and more.
