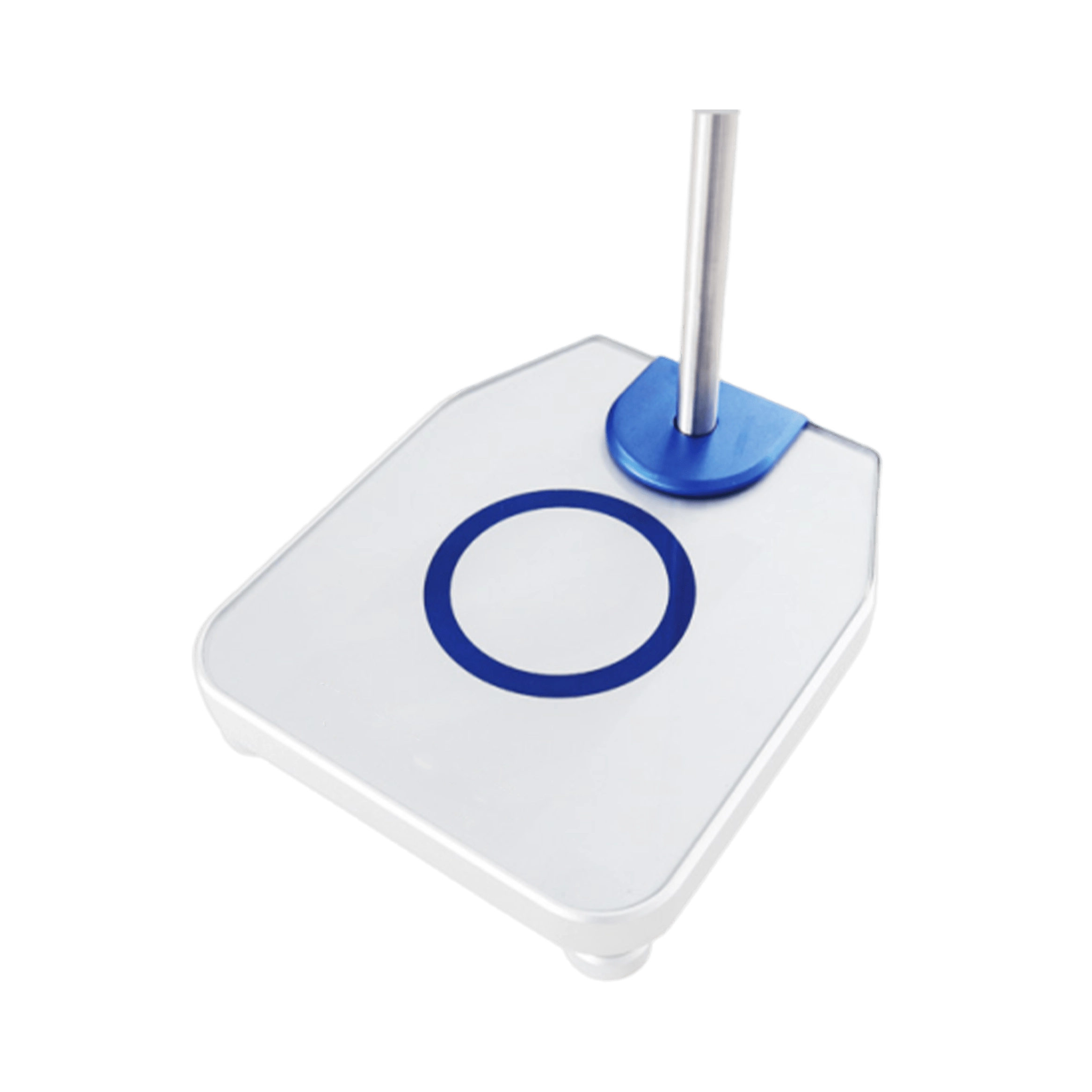

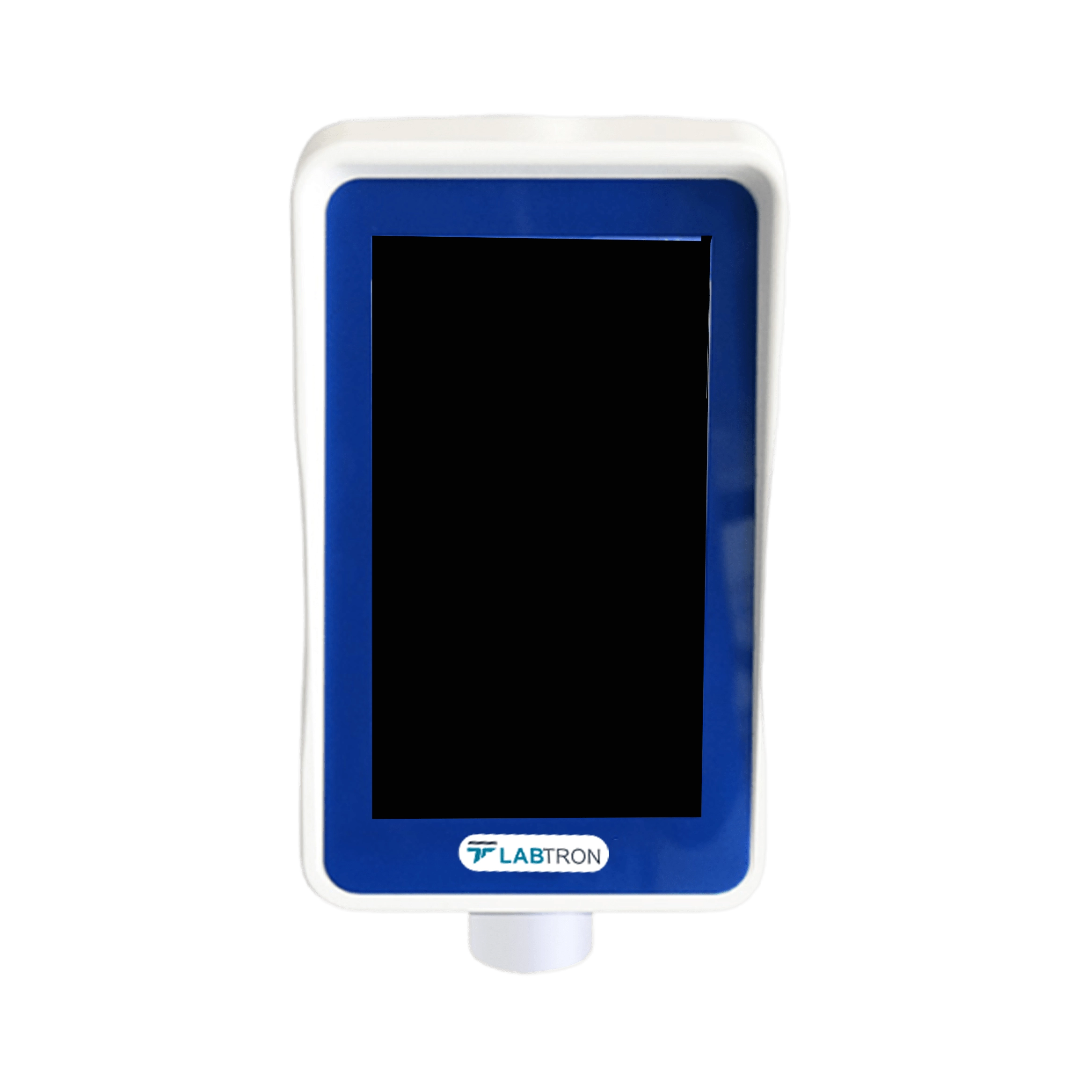

Rotational Viscometer LVM-B12

Name: Rotational Viscometer LVM-B12
Brand: Labtron
SKU: LVM-B12
Rating: 4.7 (968 reviews)

Rotational Viscometer LVM-B12 measures viscosity ranging from 10 to 100,000 Mpa. S with an accuracy of ±1.0%. It accommodates various viscosities with rotors that enhance testing accuracy. This requires a low sample volume, reducing waste and maximizing efficiency. The adjustable spindle speeds offer flexibility for precise fluid testing. It provides high-speed testing, improving throughput in production and research. Our rotational viscometer ensures reliable and accurate viscosity measurements.

Request Quote

Measurement Range	10 to 100,000 mPa.s
Measurement Accuracy	± 1.0 % (Newtonian fluids）
Rotors	No.1, No.2, No.3, No.4 (Optional No.0)
Rotate Speed	6 / 12 / 30 / 60 / (r/min)
Repeatability	± 0.5 % (Newtonian fluids）
Display	7 inch high definition colorful touch screen
Power Supply	110V/220V；50Hz/60Hz
Dimension (W×D×H)	200mm×240mm×620mm
Net Weight	7Kg

Reliable torque measuring system
Durable and compact design
User-friendly touch screen interface
Accurate fluid flow analysis
High-performance motor drive

Rotational Viscometer LVM-B12 is used for viscosity measurements in laboratories, research facilities, and production environments. It helps in analyzing fluid flow behavior in industries such as pharmaceuticals, chemicals, food processing, and petroleum.

Download catalog for
Rotational Viscometer LVM-B12 Catalog

Available Range :

Low Viscosity Sample: 5 to 1M (mPa. s/Cp)

Rotational Viscometer LVM-B12 | Rotors : No.1, No.2, No.3, No.4 | Rotate speed : 6 / 12 / 30 / 60 / (r/min)

Rotational Viscometer LVM-B12 | Reliable torque measuring system | Durable and compact design

Models of Rotational Viscometers

Labtron Rotational Viscometer are engineered with a robust rotating spindle that interacts with the fluid. They come with multiple spindle options and variable speed settings to fit diverse testing requirements. These have simple calibration procedures and low maintenance needs. Their user-friendly controls guarantee ease of operation. Our rotational viscometer are enhanced by integrated temperature control, ensuring consistent sample conditions.

Rotational Viscometer LVM-A41

Rotational Speed Range : 0.3 to 100 rpm
Measurement Error : ± 1 %
Repetitive Error : ± 0.5 %
Standard Rotor : Rotor R2 to R7 (6, Standard), R1 (Apolegamy)

Compare Remove

Rotational Viscometer LVM-A33

Measurement Range : 800 to 320,000,000 mPa.s
Rotational Speed : 0.1 to 250 rpm per min
Rotors : No.2, No.3, No.4, No.5, No.6, No.7 (No.0 and No.1 is optional)
Measurement Accuracy : ± 1.0 % (of the full range)

Compare Remove

Rotational Viscometer LVM-D12

Measurement range : 100 mPa.s to 2000000 mPa.s
Rotors : Rotor no. 21, 27, 28, 29 ( total 4 pieces of spindles)
Rotor speed : 5, 10, 20, 50 r/min
Temperature control range : 45 to 200°C

Compare Remove

Rotational Viscometer LVM-B15

Measurement Range : 5 to 1,000,000 mPa.s 25 to 10,000,000 mPa.s 50 to 20,000,000 mPa.s200 to 80,000,000 mPa.s
Rotational Speed : 0.1 to 200 rpm per min
Rotors : SC4-21#, 27#, 28#, 29# (14, 15, 116, 18, 25, 31, 34 is optional)
Measurement Accuracy : ± 1.0 % (of the full range)

Compare Remove

Rotational Viscometer LVM-D20

Viscosity Range : 40.2 KU to 141.0 KU32 g to 1099 g27 to 5250 CP
Rotation speed range : 200±0.1 rpm
Accuracy : ± 3 %
Repeatability : ±1.5 %

Compare Remove

Rotational Viscometer LVM-A40

Viscosity Range : 3 to 1600000 M (Mpa. S)
Rotation Speed Range : 0.3 / 0.6 / 1.5 / 3 / 6 / 10 / 12 / 15 / 20 / 25 / 30 / 40 / 50 / 60 / 70 / 80 / 90 / 100 Total 18 rpm
Spindles : 18# rotor：3 to 10 K 7 ml25# rotor：480 to 1.6 M 9 ml31# rotor：30 to 100 10.5 ml34# rotor：60 to 200 K 11 ml
Rotor : 18#，25#，31#，34# （standard configuration）
