| Chamber Dimensions | 600 × 450 × 420 mm |
| Thickness | 3 mm |
| Vacuum Degree | -0.1 M Pa |
| Pressure | ± 1000 PA |
| Antechamber | Φ 210 × L 260 |
| Side Door Dimensions | 300 × 260 mm |
| Window Material Thickness | Front of the main chamber has thickness of 10 mm made with tempered glass material |
| Ball valve | Stainless steel ball valve, quick plug or pagoda head interface, one inlet and one outlet respectively |
| Lighting | White light pre-installed (on the upper part of each glass window) |
| Chamber Power sockets | Multi-hole power sockets |
| Gloves | One pair of latex gloves with length 600mm |
| Reserved interface | Reserved interface for KF 25 ( can be upgraded as per requirement in the future) |
Wide window
Ball Valves
Reinforced ribs outer frame
O-ring sealing
User-friendly operation

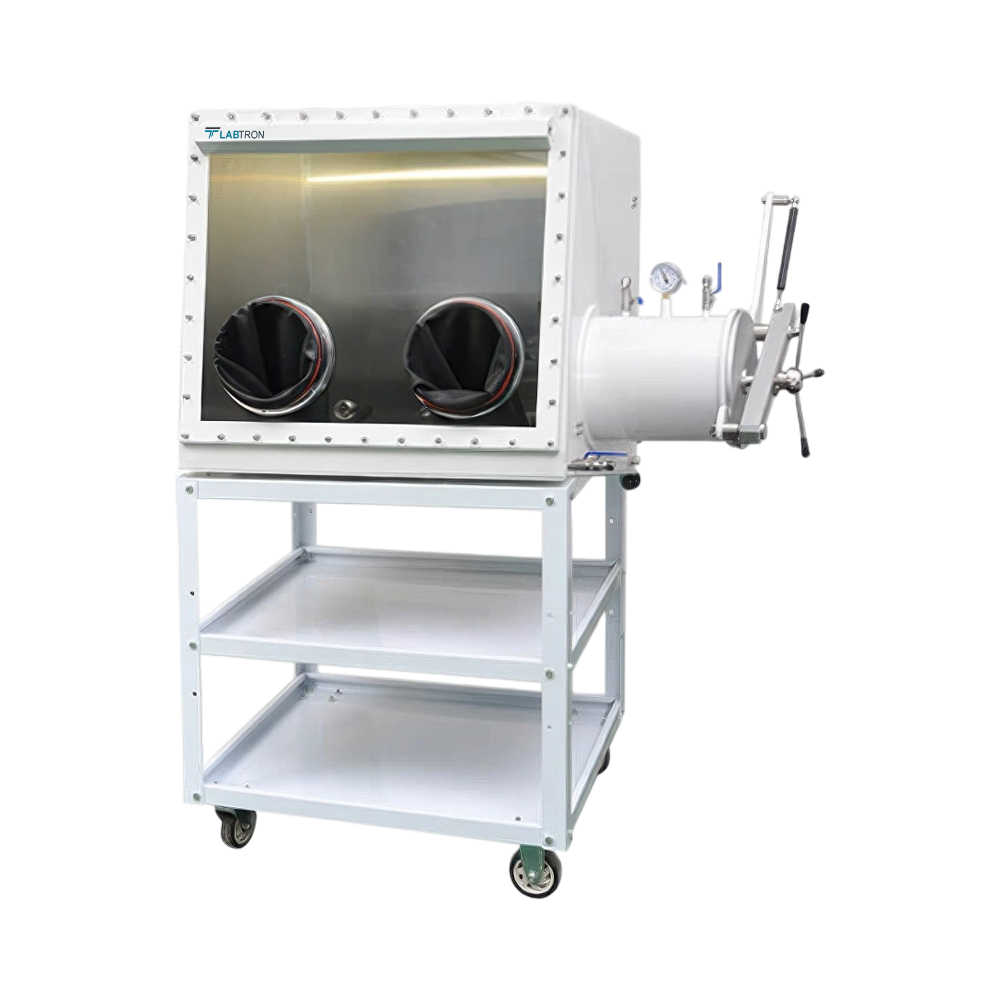

Our Stainless-Steel Glove Box LSSG-B10 is built from high-quality stainless-steel material with an antechamber ideal for scientific research experiments and electronic production. Our Glove box can be used for electronic component processing, solar assembly.
1 | 2 L Vacuum Pump |
2 | 4 L Vacuum Pump |
3 | Movable bracket |
4 | Fully automatic pressure controller |
5 | Imported moisture sensor |
6 | Imported oxygen sensor |
7 | Fully automatic moisture controller |
8 | Fully automatic oxygen controller |
9 | Foot pressure controller |
10 | UV sterilization lamp |
11 | Dust removal and cleaning system |
12 | Purification system H2O & O2 ≤ 0.1 PPM |
Stainless Steel Glove Boxes are laboratory equipment that can maintain a highly purified, anhydrous, and inert environment for research and experimentation. These use the mechanism of multiple vacuum extractions to replace the gases. The main chamber is non-corrosive stainless steel, which is of the thickness of 3 mm. Additionally, these boxes have reinforced ribs outer shell for better pressure tolerance. Our Glove box is mainly used for creating anaerobic and non-humid environments for organic metal chemistry, etc.
Labtron’s Stainless Steel Glove Box is designed to provide a sealed, controlled environment for handling sensitive or hazardous materials. It is ideal for research, pharmaceutical, and industrial applications requiring isolation from ambient air or contamination. Its robust stainless-steel body ensures chemical resistance, durability, and easy sterilization, making it suitable for operations involving inert gas purging, moisture-sensitive experiments, and sterile processes.

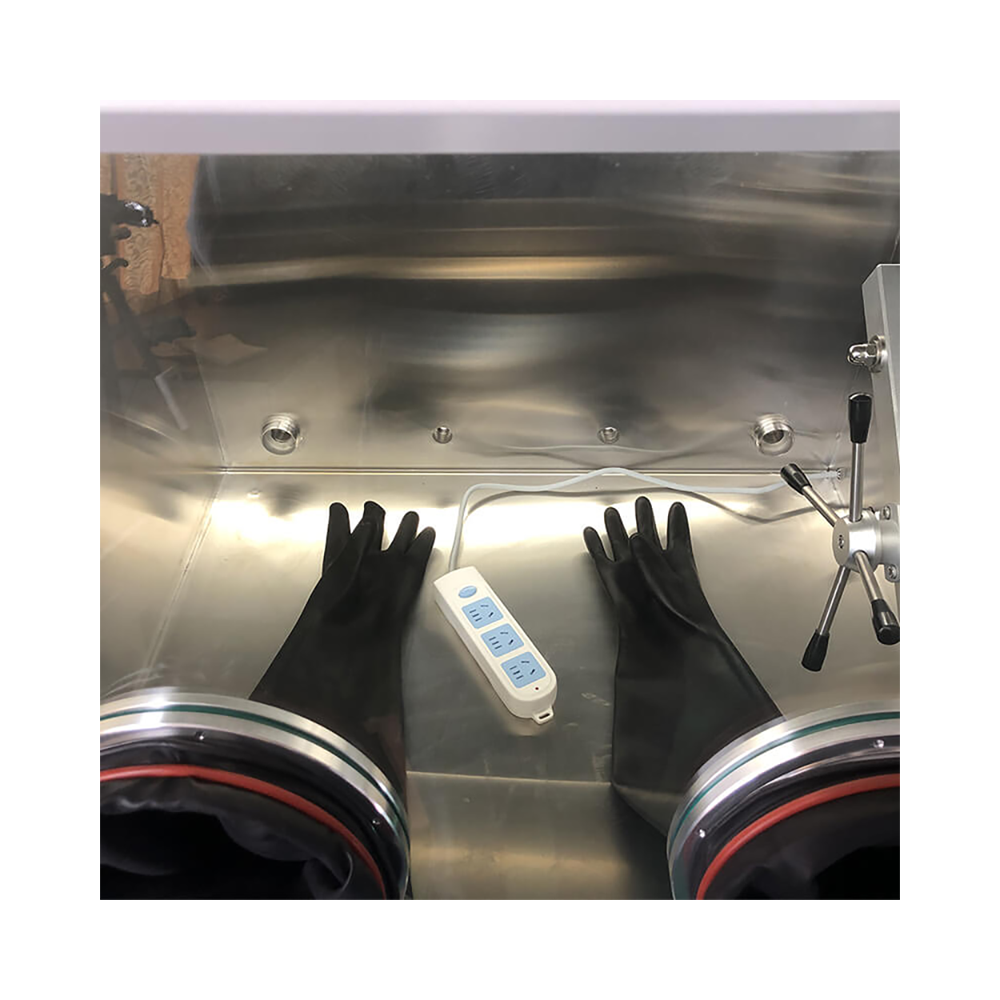

The Stainless Steel Glove Box is constructed primarily from high-grade stainless steel (typically SS304 or SS316), which offers excellent resistance to corrosion, chemical spills, and physical wear. The gloves are usually made from butyl rubber, neoprene, or latex, depending on the intended use, providing a balance of chemical resistance and dexterity. All viewing windows are made from durable polycarbonate or tempered safety glass for clear visibility and impact resistance.
Dimensions can vary slightly between models, but a typical Labtron’s Stainless Steel Glove Box has a main chamber size of approximately 900mm (W) x 600mm (D) x 600mm (H). It also includes antechambers and service ports. Custom sizes are often available depending on the user’s needs. The box is designed to fit on standard lab benches while offering adequate internal working space for complex tasks.
Yes, the Stainless Steel Glove Box is fully compatible with inert gases such as nitrogen or argon. It includes gas inlet and outlet ports with valves, pressure gauges, and purge controls. The tight-sealing construction allows for efficient purging and maintenance of a low-oxygen, low-moisture atmosphere inside the glove box, making it suitable for applications such as electronics assembly, chemical synthesis, and biological studies.
Yes, the Labtron’s Stainless Steel Glove Box can be used for handling hazardous materials, including chemicals, powders, or biological samples, provided it is configured correctly. It can be outfitted with HEPA filters, negative pressure control, and safety interlocks to ensure containment and prevent exposure to operators. For highly toxic substances, additional safety measures such as gas scrubbing or custom filtration systems may be necessary.
