| Chamber Dimensions | 780 × 650 × 700 mm |
| Thickness | 3 mm |
| Vacuum Degree | -0.1 M Pa |
| Pressure | ± 1000 PA |
| Antechamber | Φ 240 × L 260 |
| Side Door Dimensions | 350 × 300 mm |
| Window Material Thickness | Front of the main chamber has thickness of 10 mm made with tempered glass material |
| Ball valve | Stainless steel ball valve, quick plug or pagoda head interface, one inlet and one outlet respectively |
| Lighting | White light pre-installed (on the upper part of each glass window) |
| Chamber Power sockets | Multi-hole power sockets |
| Gloves | One pair of latex gloves with length 600mm |
| Reserved interface | Reserved interface for KF 25 ( can be upgraded as per requirement in the future) |
Industrial rubber gloves
Steel structure
Antechamber
Customizable light
User-friendly operation

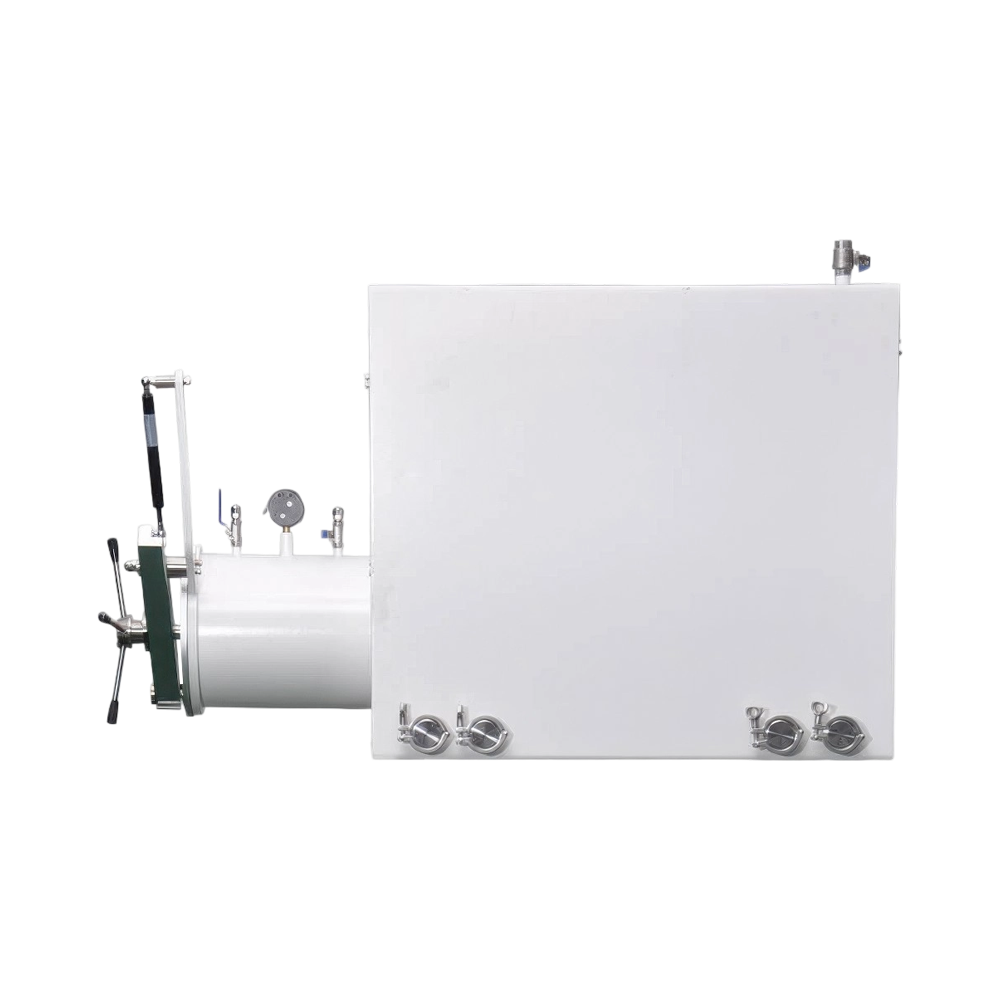

Our Stainless-Steel Glove Box LSSG-B11 is built from high-quality stainless-steel material, which is ideal for research and production, like scientific research experiments and electronic production. Our Glove box can be used in hydrophobic chemical treatment, biomedical experiments, etc.
1 | 2 L Vacuum Pump |
2 | 4 L Vacuum Pump |
3 | Movable bracket |
4 | Fully automatic pressure controller |
5 | Imported moisture sensor |
6 | Imported oxygen sensor |
7 | Fully automatic moisture controller |
8 | Fully automatic oxygen controller |
9 | Foot pressure controller |
10 | UV sterilization lamp |
11 | Dust removal and cleaning system |
12 | Purification system H2O & O2 ≤ 0.1 PPM |
Stainless Steel Glove Boxes are laboratory equipment that can maintain a highly purified, anhydrous, and inert environment for research and experimentation. These use the mechanism of multiple vacuum extractions to replace the gases. The main chamber is non-corrosive stainless steel, which is of the thickness of 3 mm. Additionally, these boxes have reinforced ribs outer shell for better pressure tolerance. Our Glove box is mainly used for creating anaerobic and non-humid environments for organic metal chemistry, etc.
Yes, Labtron’s Stainless Steel Glove Box is fully compatible with inert gases such as nitrogen or argon. It includes gas inlet and outlet ports with valves, pressure gauges, and purge controls. The tight-sealing construction allows for efficient purging and maintenance of a low-oxygen, low-moisture atmosphere inside the glove box, making it suitable for applications such as electronics assembly, chemical synthesis, and biological studies
Yes, a Stainless-Steel Glove Box can be used for handling hazardous materials, including chemicals, powders, or biological samples, provided it is configured correctly. It can be outfitted with HEPA filters, negative pressure control, and safety interlocks to ensure containment and prevent exposure to operators. For highly toxic substances, additional safety measures such as gas scrubbing or custom filtration systems may be necessary.
Many models of Labtron’s Stainless Steel Glove Box come with a side-mounted vacuum antechamber, which allows safe transfer of materials into and out of the main chamber without compromising the internal environment. The antechamber is equipped with vacuum and vent valves, and sometimes pressure gauges, allowing users to purge air and replace it with inert gas before opening to the main chamber.
The glove box includes analog or digital pressure gauges to monitor internal pressure. Labtron’s Stainless Steel Glove Box allows users to manually or automatically control pressure using inlet/outlet valves and regulators. Some versions offer electronic controllers to maintain a stable positive or negative pressure environment depending on the specific application requirements.
Yes, the stainless-steel interior and exterior are smooth, non-porous, and easy to clean using standard lab disinfectants or solvents. The detachable gloves and removable interior shelving facilitate thorough cleaning. Regular maintenance includes checking glove integrity, seals, filters (if equipped), and pressure systems to ensure continued safe operation.
