| Chamber Dimensions | 1120 × 740 × 900 mm |
| Thickness | 3 mm |
| Vacuum Degree | -0.1 M Pa |
| Pressure | ± 1000 PA |
| Antechamber | Φ 385 × 400 L |
| Side Door Dimensions | 350 × 300 mm |
| Window Material Thickness | Front of the main chamber has thickness of 10 mm made with tempered glass material |
| Ball valve | Stainless steel ball valve, quick plug or pagoda head interface, one inlet and one outlet respectively |
| Lights | White light pre-installed (on the upper part of each glass window) |
| Chamber Power sockets | Multi-hole power sockets |
| Gloves | One pair of latex gloves with length 600mm |
| Reserved interface | Reserved interface for KF 25 ( can be upgraded as per requirement in the future) |
Reinforced ribs outer frame
Thick stainless steel sheet
Low leakage rate
Customizable system settings
User-friendly operation

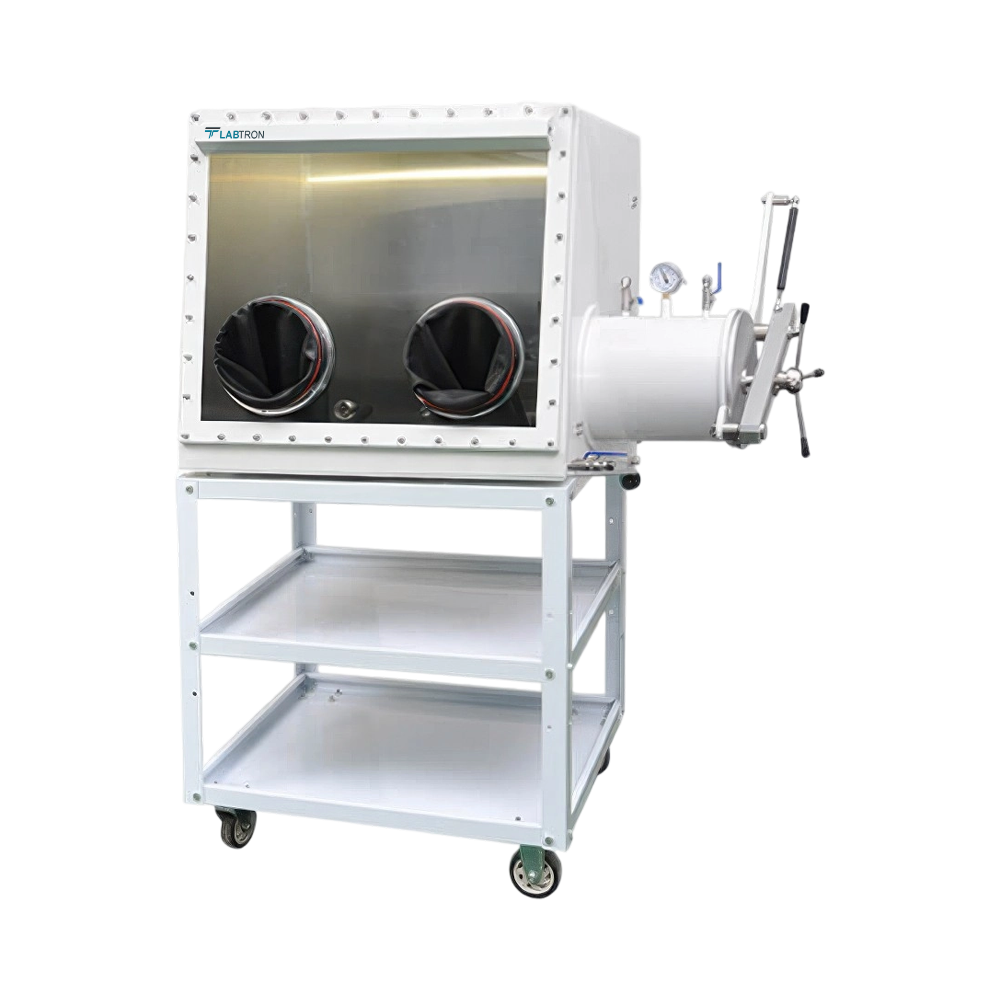

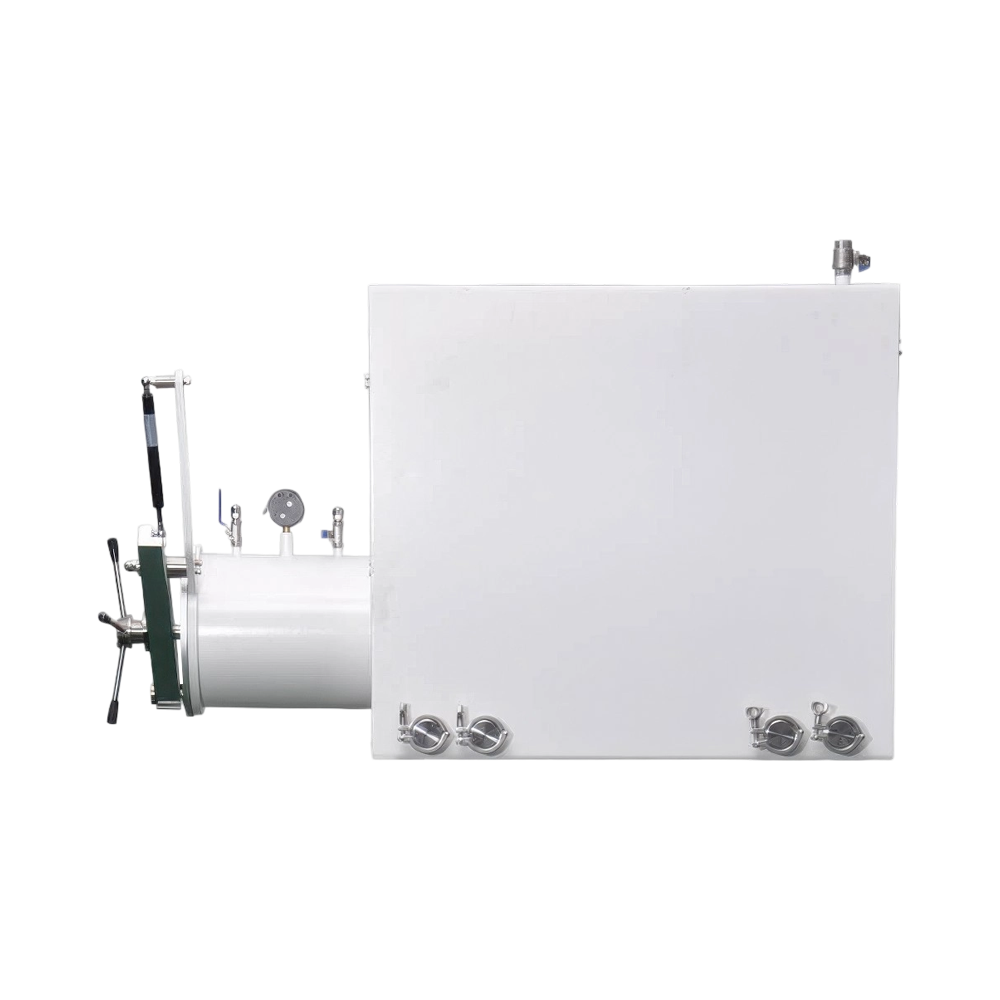

Our Stainless Steel Glove Box LSSG-B12 is built from high-quality stainless steel material, which is ideal for research and production, like scientific research experiments and electronic production. Our glove box is ideal for Our Glove box can be used for organic synthesis, 3D printing, etc.
1 | 2 L Vacuum Pump |
2 | 4 L Vacuum Pump |
3 | Movable bracket |
4 | Fully automatic pressure controller |
5 | Imported moisture sensor |
6 | Imported oxygen sensor |
7 | Fully automatic moisture controller |
8 | Fully automatic oxygen controller |
9 | Foot pressure controller |
10 | UV sterilization lamp |
11 | Dust removal and cleaning system |
12 | Purification system H2O & O2 ≤ 0.1 PPM |
Stainless Steel Glove Boxes are laboratory equipment that can maintain a highly purified, anhydrous, and inert environment for research and experimentation. These use the mechanism of multiple vacuum extractions to replace the gases. The main chamber is non-corrosive stainless steel, which is of the thickness of 3 mm. Additionally, these boxes have reinforced ribs outer shell for better pressure tolerance. Our Glove box is mainly used for creating anaerobic and non-humid environments for organic metal chemistry, etc.
Dimensions can vary slightly between models, but Labtron’s Stainless Steel Glove Box has a main chamber size of approximately 900mm (W) x 600mm (D) x 600mm (H). It also includes antechambers and service ports. Custom sizes are often available depending on the user’s needs. The box is designed to fit on standard lab benches while offering adequate internal working space for complex tasks.
Yes, Stainless Steel Glove Box is fully compatible with inert gases such as nitrogen or argon. It includes gas inlet and outlet ports with valves, pressure gauges, and purge controls. The tight-sealing construction allows for efficient purging and maintenance of a low-oxygen, low-moisture atmosphere inside the glove box, making it suitable for applications such as electronics assembly, chemical synthesis, and biological studies.
Yes, Labtron’s Stainless Steel Glove Box can be used for handling hazardous materials, including chemicals, powders, or biological samples, provided it is configured correctly. It can be outfitted with HEPA filters, negative pressure control, and safety interlocks to ensure containment and prevent exposure to operators. For highly toxic substances, additional safety measures such as gas scrubbing or custom filtration systems may be necessary.
Many models of the Stainless Steel Glove Box come with a side-mounted vacuum antechamber, which allows safe transfer of materials into and out of the main chamber without compromising the internal environment. The antechamber is equipped with vacuum and vent valves, and sometimes pressure gauges, allowing users to purge air and replace it with inert gas before opening to the main chamber.
The glove box includes analog or digital pressure gauges to monitor internal pressure. Most Labtron’s Stainless Steel Glove Box models allow users to manually or automatically control pressure using inlet/outlet valves and regulators. Some versions offer electronic controllers to maintain a stable positive or negative pressure environment depending on the specific application requirements.
