| Capacity | 80 L |
| Temperature Range | -20℃ to +150℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Uniformity | ≤2.0℃ |
| Temperature Deviation | ±2.0℃ |
| Heat-up Rate Non-linear | -20℃ to +100℃ 35 min |
| Cool-down Rate Non-linear | +20℃ to -20℃ |
| Humidity Range | 20% R.H to 98% R.H |
| Humidity Fluctuation | ±2.0 %RH |
| Humidity Uniformity | ±3.0 %RH |
| Humidity Deviation | ±3.0 %RH (>75%RH) |
| Noise Level | ≤68 dB |
| Power Consumption | 7 kW |
| Power Supply | AC 3ψ4 W 380 V 50 Hz |
| Dimensions (W × D × H) | 400 × 500 × 400 mm |
| External Dimensions (W × D × H) | 650 × 1665 × 1260 mm |
Wide testing range
Precise climate control
High humidity accuracy
Rapid temperature cycling
Energy-efficient operation

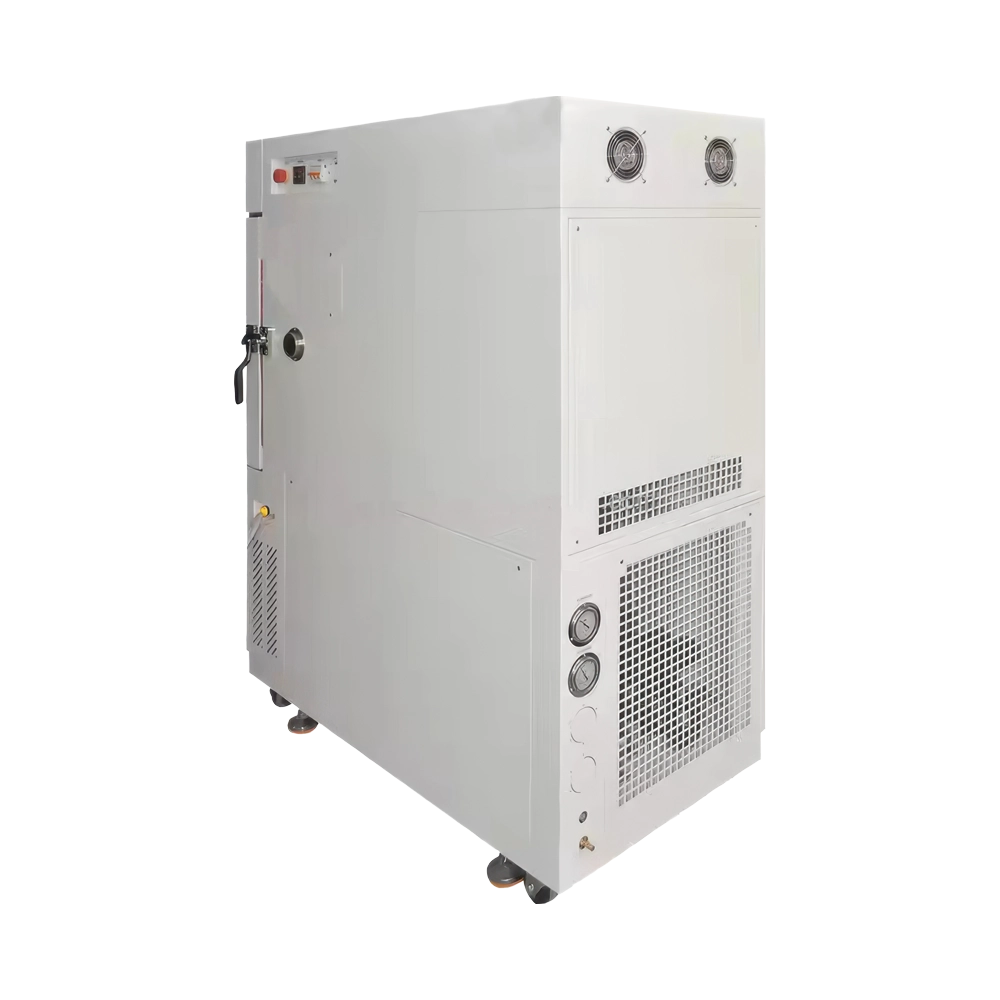

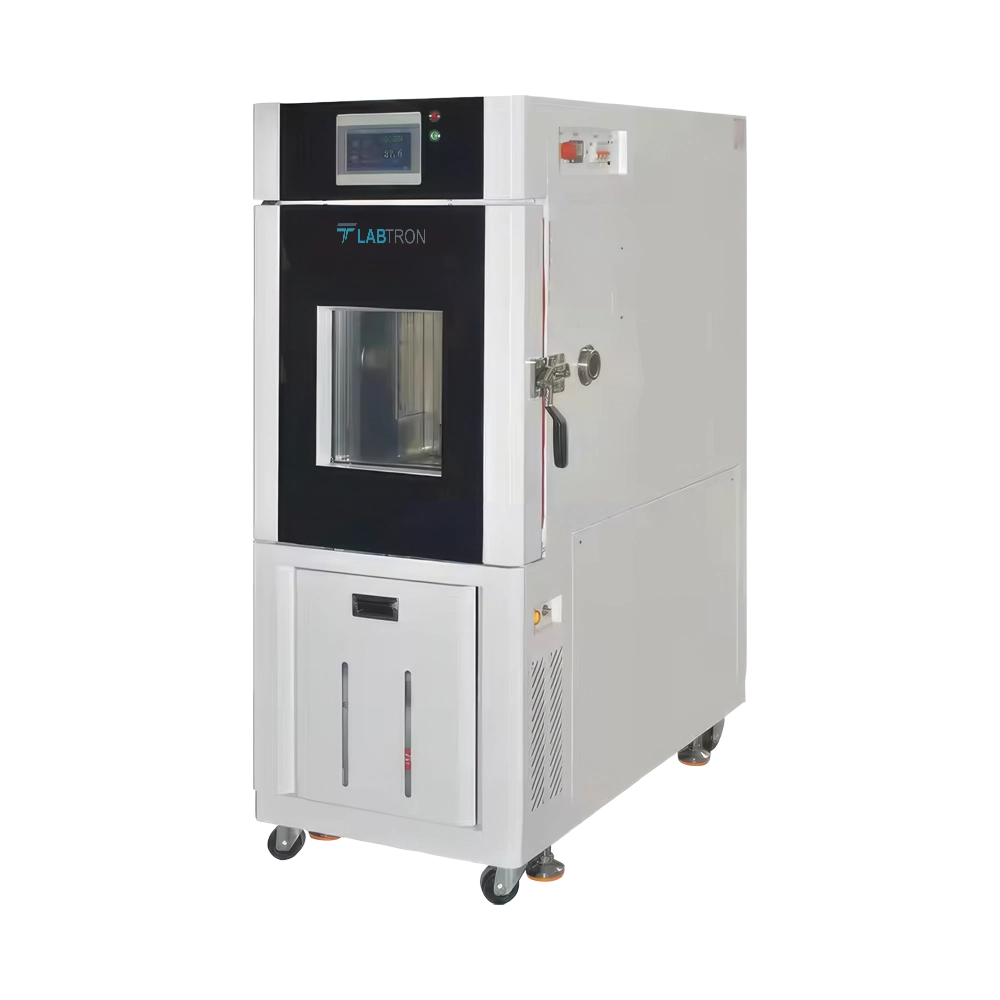

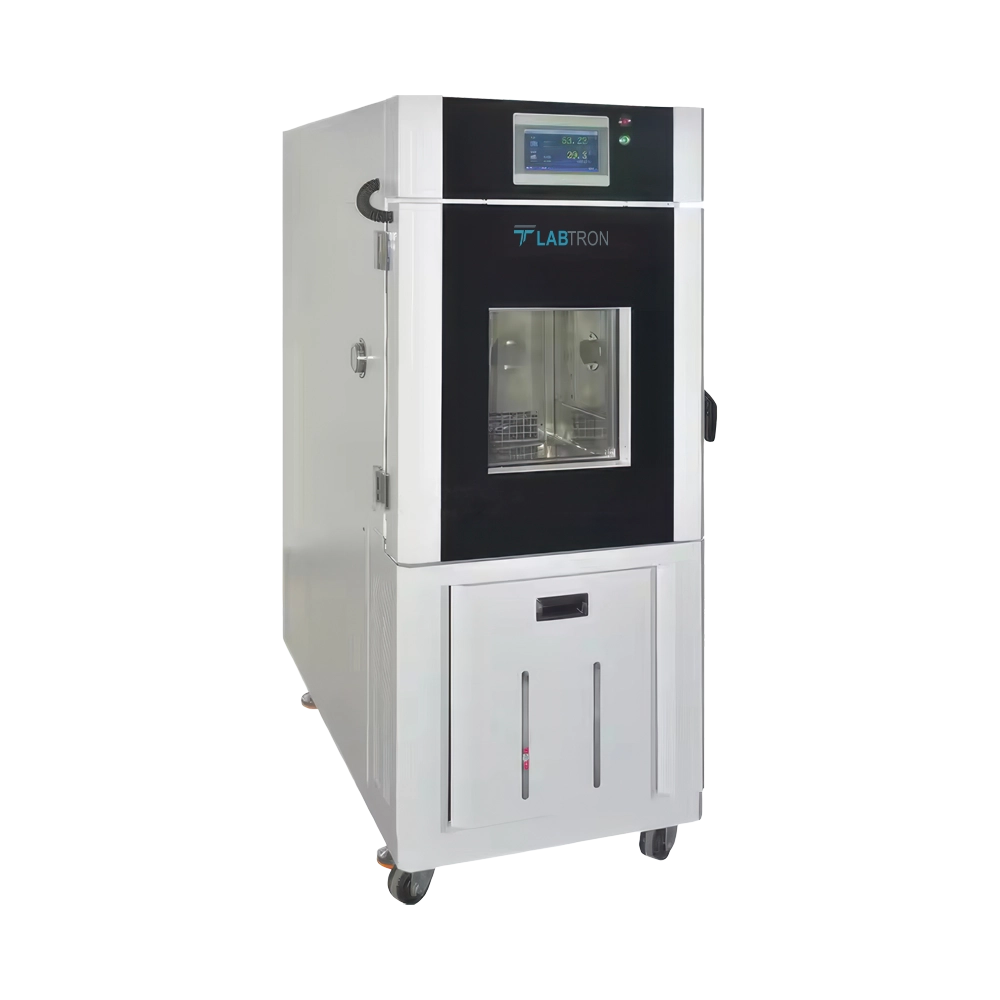

Temperature and Humidity Test Chamber LTHC-E10 is a testing device that simulates specific environmental conditions to evaluate product performance and durability. It is widely used in industries like electronics, automotive, and pharmaceuticals for quality control and research.
Download catalog for
Temperature And Humidity Test Chamber LTHC-E10 Catalog
Available Range :
Temperature and Humidity Test Chamber LTHC-B10 : 100 L Temperature and Humidity Test Chamber LTHC-B14 : 1000 L Temperature And Humidity Test Chamber LTHC-E11 : 105 L Temperature and Humidity Test Chamber LTHC-D11 : 1130L Temperature And Humidity Test Chamber LTHC-A14 : 120L Temperature and Humidity Test Chamber LTHC-C20 : 150 L Temperature and Humidity Test Chamber LTHC-B25 : 1500 L Temperature and Humidity Test Chamber LTHC-B11 : 225 L Temperature And Humidity Test Chamber LTHC-A15 : 225L Temperature and Humidity Test Chamber LTHC-A12 : 250 L Temperature And Humidity Test Chamber LTHC-J10 : 27L Temperature and Humidity Test Chamber LTHC-D10 : 300L Temperature and Humidity Test Chamber LTHC-B30 : 3150 L Temperature And Humidity Test Chamber LTHC-E13 : 408 L Temperature And Humidity Test Chamber LTHC-A10 : 50 L Temperature and Humidity Test Chamber LTHC-B12 : 500 L Temperature And Humidity Test Chamber LTHC-A16 : 504L Temperature and Humidity Test Chamber LTHC-C30 : 550L Temperature And Humidity Test Chamber LTHC-A13 : 64 L Temperature And Humidity Test Chamber LTHC-A11 : 80 L Temperature and Humidity Test Chamber LTHC-B13 : 800 L Temperature And Humidity Chamber LTHC-G10 : Total of 500L Temperature And Humidity Chamber LTHC-G11 : Total of 800LLabtron offers temperature and humidity test chambers with capacities ranging from 50 to 1130 L. They have a humidity controller and thermal-insulating material resistant to high temperatures. They feature an LCD touch screen with a corrosion-resistant interior chamber and a double-layered glass observation window. They include an independent R&D software and a compressor overload switch. Our temperature and humidity tester has built-in safety self-protection and overheating prevention.
.webp "Temperature and Humidity Test Chamber LTHC-B12")
Labtron Temperature and Humidity Test Chambers are used to simulate different environmental conditions by controlling temperature and humidity levels. They help industries assess the durability, stability, and performance of materials, components, and products under extreme conditions.
These chambers are widely used in automotive, aerospace, electronics, pharmaceuticals, packaging, and material testing industries to evaluate product reliability and compliance with quality standards.
Humidity is controlled through a steam generation system and dehumidification process, ensuring precise relative humidity levels ranging from 10% to 98% RH, as required for different test conditions.
Yes, Labtron Temperature and Humidity Test Chambers feature programmable temperature cycling to simulate sudden temperature fluctuations, crucial for thermal shock and stress testing.
These chambers are used to test electronics, batteries, medical devices, coatings, textiles, plastics, and aerospace materials to determine their resistance to environmental changes.
Labtron chambers use advanced airflow systems and precision sensors to maintain uniform temperature and humidity distribution throughout the test space, ensuring consistent test results.
The test duration depends on the material and industry standard requirements. Some tests last a few hours, while others can run for days or even weeks to evaluate long-term environmental effects.
Yes, Labtron chambers come with adjustable shelves and racks, allowing multiple samples to be tested simultaneously under the same conditions.
