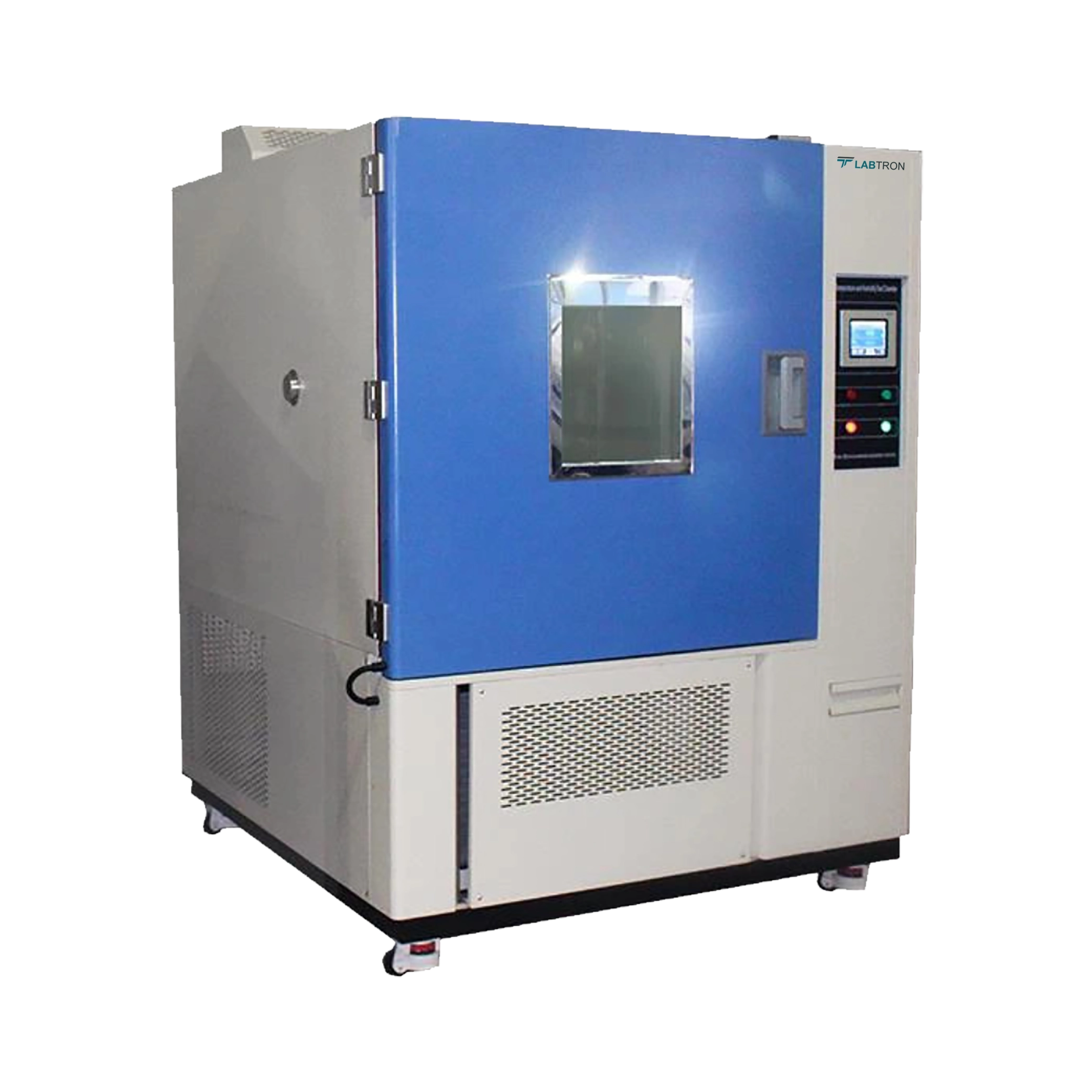

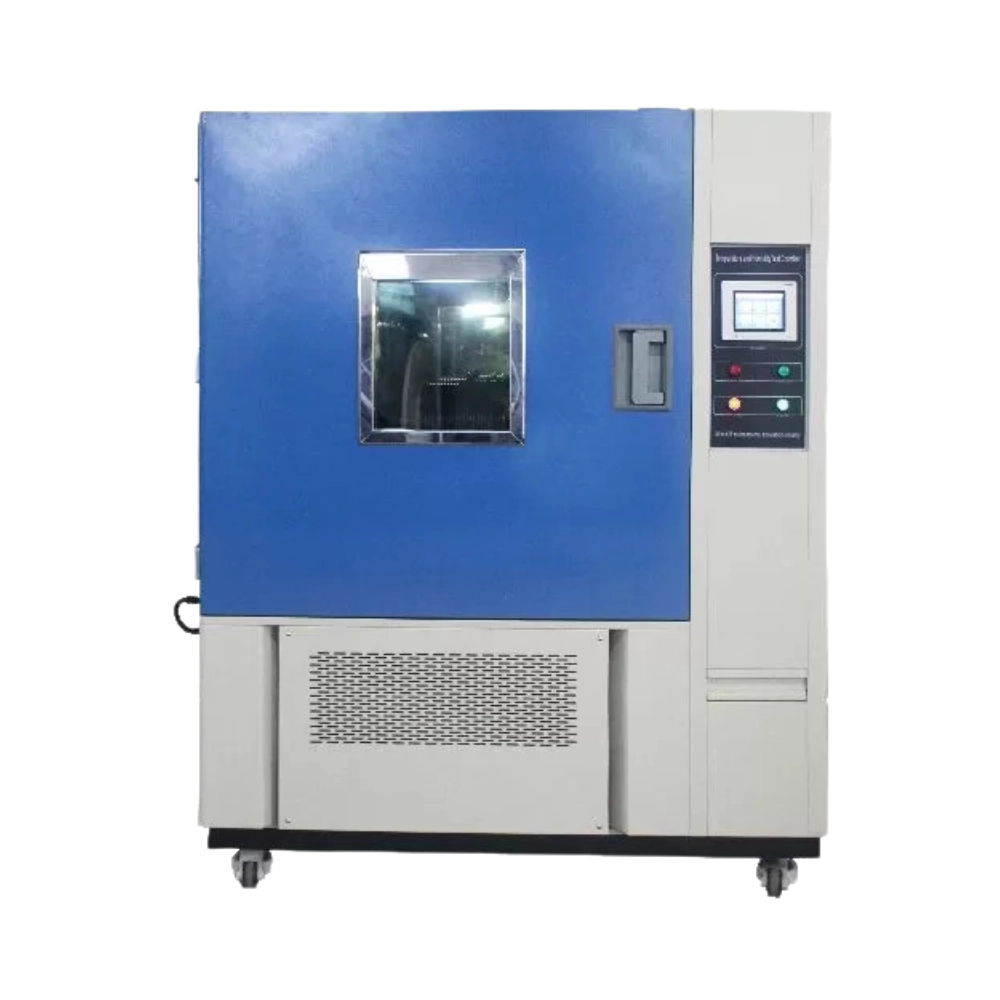

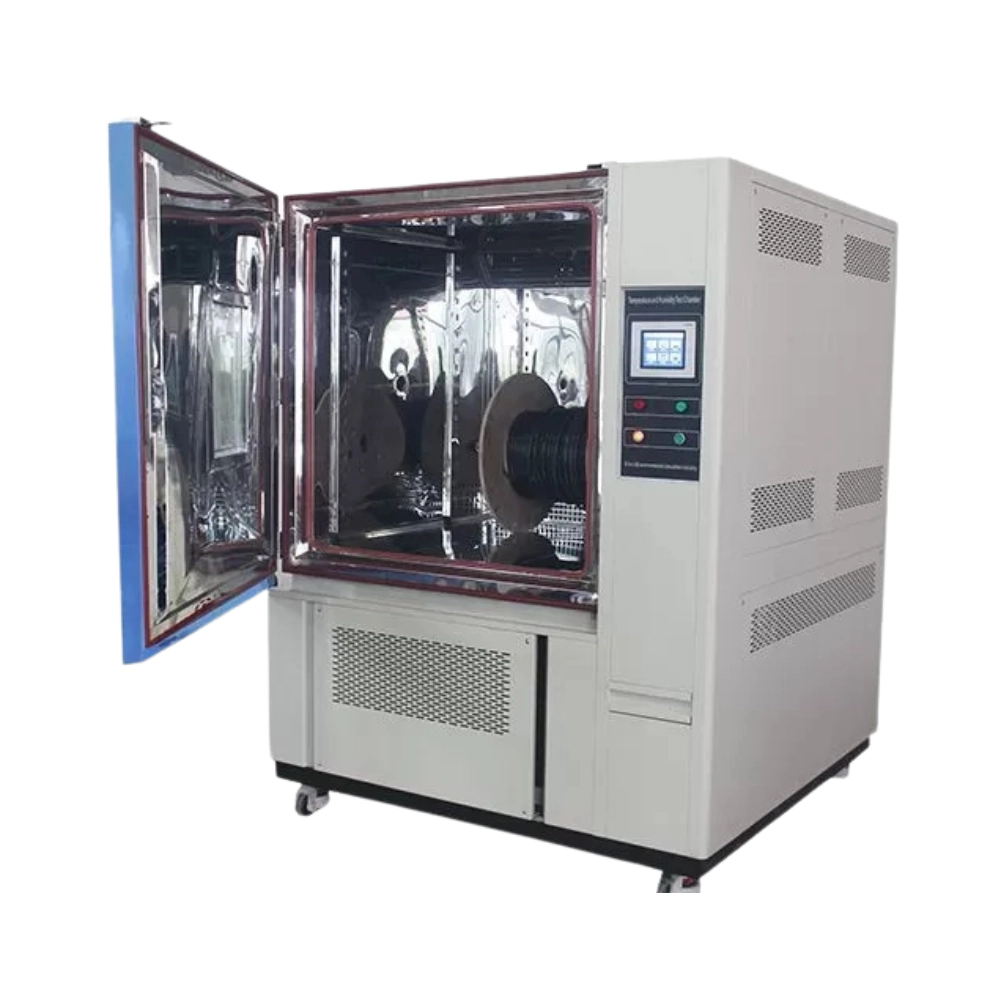

Temperature and Humidity Test Chamber LTHC-B13

Temperature and Humidity Test Chamber LTHC-B13

Temperature and Humidity Test Chamber LTHC-B13 is designed to simulate constant climatic conditions for testing a wide variety of products for their quality, performance, shelf life and stability. It's used to simulate constant temperature and humidity conditions, thereby creating a physiologically ideal environment for product testing. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field.

Request Quote
Capacity 800 L
Temperature range (-20)℃ to 150 ℃ ,(-40) ℃ to 150 ℃ , (-70 )℃ to 150 ℃
Temperature cooling rate 1 ℃ / min
Overall dimension (D x W x H) 1280 x 1550 x 2110 mm
Temperature heating rate 3 ℃ / min
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Humidity range 20 % ~ 98 % R.H
Humidity deviation ± 2.5 % RH
High temperature 180 ℃
Lowest humidity 10 % RH
Internal dimension (D x W x H) 800 x 1000 x 1000 mm
  • Ideal for high and low temperature testing
  • Easy to use LCD touch screen controller and a graphic display to allow monitoring of the set and actual working parameters
  • Humidity controller
  • Corrosion resistant interior chamber
  • Observation window: Built-in toughened double layered glass
  • Independent R and D software
  • Humidity regulation with capacitive humidity sensor
  • Inner chamber material : Stainless steel plate
  • Thermal-insulating material resistant to high temperature and density
  • Compressor overload switch
  • Unit shuts down after alarm for over heating
  • Safety self-protection function includes short circuit, over temperature, motor overheating, compressor pressure, fuse failure
  • Windows with anti - sweat heater device to prevent water from vapor condensation and water droplets

Extensively used in basic and advanced research, pharmaceutical industries, chemical industries, food and beverage industry.

Compare Models

Model Capacity Temperature range Temperature cooling rate Overall dimension (D x W x H) Temperature heating rate Temperature fluctuations Temperature deviation Humidity range Humidity deviation High temperature Lowest humidity Internal dimension (D x W x H)
LTHC-A10 50 L (- 20 °C) to 150 °C - - - - ± 2 °C 20 % - 98 % RH ± 2.5 % RH - - -
LTHC-A11 80 L (- 20 °C) to 150 °C - - - - ± 2 °C 20 % - 98 % RH ± 2.5 % RH - - -
LTHC-B10 100 L (-20)℃ to 150 ℃ ,(-40) ℃ to 150 ℃ , (-70 )℃ to 150 ℃ 1 ℃ / min 860 x 1050 x 1620 mm 3 ℃ / min ± 0.5 ℃ ± 2.0 ℃ 20 % ~ 98 % R.H ± 2.5 % RH 180 ℃ 10 % RH 400 x 500 x 500 mm
LTHC-B11 225 L (-20)℃ to 150 ℃ ,(-40) ℃ to 150 ℃ , (-70 )℃ to 150 ℃ 1 ℃ / min 960 x 1150 x 1860 mm 3 ℃ / min ± 0.5 ℃ ± 2.0 ℃ 20 % ~ 98 % R.H ± 2.5 % RH 180 ℃ 10 % RH 500 x 600 x 750 mm
LTHC-B12 500 L (-20)℃ to 150 ℃ ,(-40) ℃ to 150 ℃ , (-70 )℃ to 150 ℃ 1 ℃ / min 1180 x 1350 x 2010 mm 3 ℃ / min ± 0.5 ℃ ± 2.0 ℃ 20 % ~ 98 % R.H ± 2.5 % RH 180 ℃ 10 % RH 700 x 800 x 900 mm
LTHC-B13 800 L (-20)℃ to 150 ℃ ,(-40) ℃ to 150 ℃ , (-70 )℃ to 150 ℃ 1 ℃ / min 1280 x 1550 x 2110 mm 3 ℃ / min ± 0.5 ℃ ± 2.0 ℃ 20 % ~ 98 % R.H ± 2.5 % RH 180 ℃ 10 % RH 800 x 1000 x 1000 mm
LTHC-B14 1000 L (-20)℃ to 150 ℃ ,(-40) ℃ to 150 ℃ , (-70 )℃ to 150 ℃ 1 ℃ / min 1500 x 1550 x 2110 mm 3 ℃ / min ± 0.5 ℃ ± 2.0 ℃ 20 % ~ 98 % R.H ± 2.5 % RH 180 ℃ 10 % RH 1000 x 1000 x 1000 mm
LTHC-B20 100 L (-70 )℃ to 150 ℃ 5 ℃ / min 860 x 1050 x 1620 mm 3 ℃ / min ± 0.5 ℃ ± 2.0 ℃ 20 % ~ 98 % R.H ± 2.5 % RH 180 ℃ 10 % RH 400 x 500 x 500 mm
LTHC-B21 225 L (-70 )℃ to 150 ℃ 5 ℃ / min 960 x 1150 x 1860 mm 3 ℃ / min ± 0.5 ℃ ± 2.0 ℃ 20 % ~ 98 % R.H ± 2.5 % RH 180 ℃ 10 % RH 500 x 600 x 750 mm
LTHC-B22 500 L (-70 )℃ to 150 ℃ 5 ℃ / min 1180 x 1350 x 2010 mm 3 ℃ / min ± 0.5 ℃ ± 2.0 ℃ 20 % ~ 98 % R.H ± 2.5 % RH 180 ℃ 10 % RH 700 x 800 x 900 mm
LTHC-B23 800 L (-70 )℃ to 150 ℃ 5 ℃ / min 1280 x 1550 x 2110 mm 3 ℃ / min ± 0.5 ℃ ± 2.0 ℃ 20 % ~ 98 % R.H ± 2.5 % RH 180 ℃ 10 % RH 800 x 1000 x 1000 mm
LTHC-B24 1000 L (-70 )℃ to 150 ℃ 5 ℃ / min 1500 x 1550 x 2110 mm 3 ℃ / min ± 0.5 ℃ ± 2.0 ℃ 20 % ~ 98 % R.H ± 2.5 % RH 180 ℃ 10 % RH 1000 x 1000 x 1000 mm
LTHC-B30 3150 L -40℃ to 150℃ 1℃ / min - 1℃ / min ± 0.5℃ ± 2.0℃ 10% to 98% RH ± 2.5 % RH - - -
LTHC-C10 - - - - - - - - - - - -
LTHC-C20 150 L 10 to 70°C - - - - - 40 to 95% - - - -
LTHC-B25 1500 L (-60) ℃ to +150 ℃ 3 ℃ / min - 3 ℃ / min - ± 1.0 ℃ 10% to 98% RH ± 2.5 % RH - - -
