| Capacity | 80 L |
| Temperature Range | -40℃ to +150℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Uniformity | ≤2.0℃ |
| Temperature Deviation | ±2.0℃ |
| Heat-up Rate Non-linear | -40℃ to +100℃ 45 min |
| Cool-down Rate Non-linear | +20℃ to -40℃ 60 min |
| Humidity Range | 20% R.H to 98% R.H |
| Humidity Fluctuation | ±2.0 %RH |
| Humidity Uniformity | ±3.0 %RH |
| Humidity Deviation | ±3.0 %RH (>75%RH) |
| Noise Level | ≤68 dB |
| Power Consumption | 7 kW |
| Power Supply | AC 3ψ4 W 380 V 50 Hz |
| Dimensions (W × D × H) | 400 × 500 × 400 mm |
| External Dimensions (W × D × H) | 650 × 1665 × 1260 mm |
Quick heat transfer
Uniform air circulation
Smart touch screen controls
Corrosion-resistant interiors
Temperature range flexibility

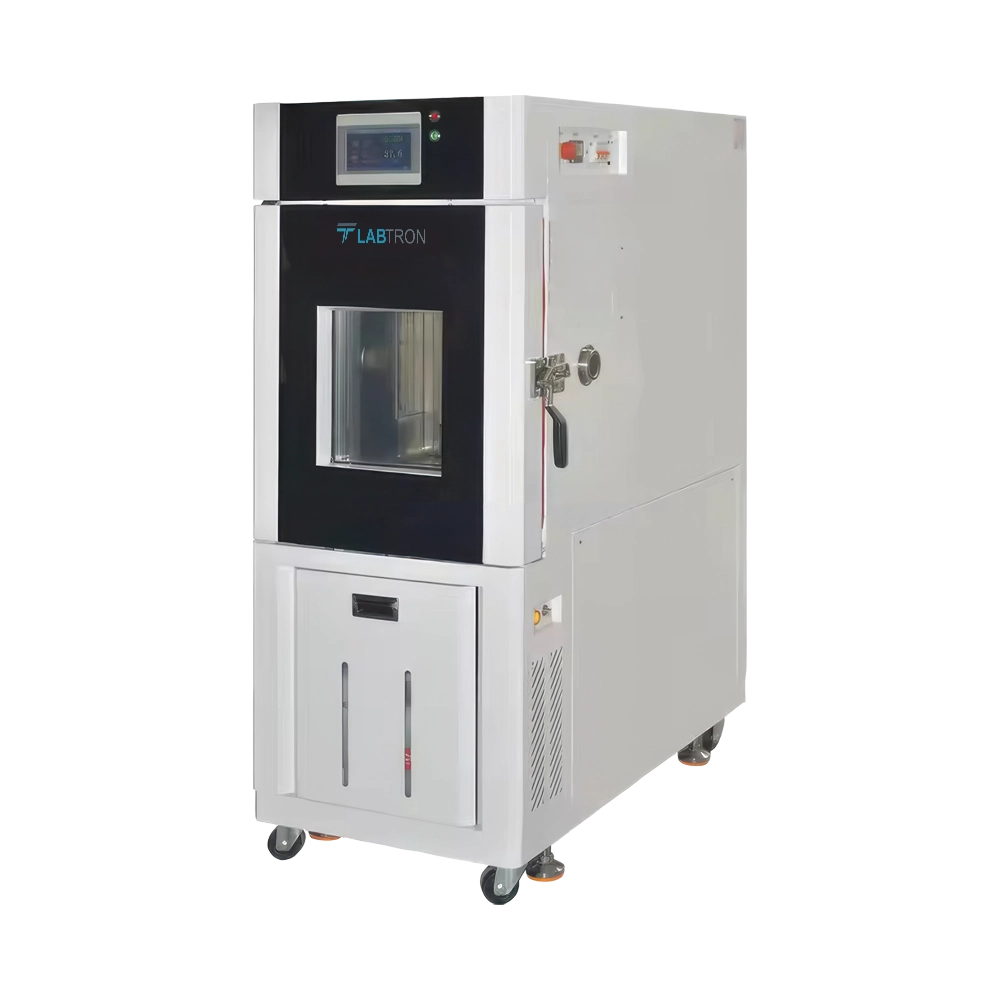

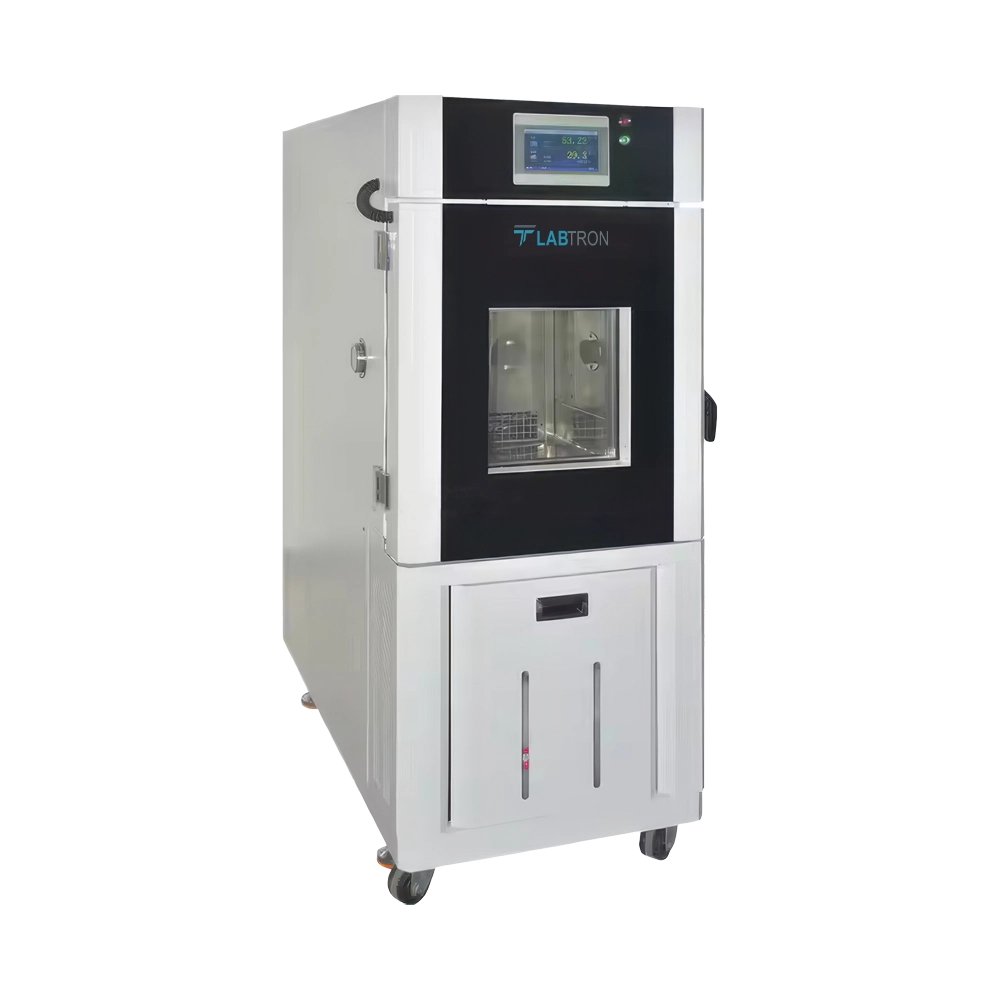

Temperature and Humidity Test Chamber LTHC-E16 is a testing device that simulates specific environmental conditions to evaluate product performance and durability. It is widely used in industries like electronics, automotive, and pharmaceuticals for quality control and research.
Ethernet Interface
Download catalog for
Temperature And Humidity Test Chamber LTHC-E16 Catalog
Available Range :
Temperature and Humidity Test Chamber LTHC-B10 : 100 L Temperature and Humidity Test Chamber LTHC-B14 : 1000 L Temperature And Humidity Test Chamber LTHC-E11 : 105 L Temperature and Humidity Test Chamber LTHC-D11 : 1130L Temperature And Humidity Test Chamber LTHC-A14 : 120L Temperature and Humidity Test Chamber LTHC-C20 : 150 L Temperature and Humidity Test Chamber LTHC-B25 : 1500 L Temperature and Humidity Test Chamber LTHC-B11 : 225 L Temperature And Humidity Test Chamber LTHC-A15 : 225L Temperature and Humidity Test Chamber LTHC-A12 : 250 L Temperature And Humidity Test Chamber LTHC-J10 : 27L Temperature and Humidity Test Chamber LTHC-D10 : 300L Temperature and Humidity Test Chamber LTHC-B30 : 3150 L Temperature And Humidity Test Chamber LTHC-E13 : 408 L Temperature And Humidity Test Chamber LTHC-A10 : 50 L Temperature and Humidity Test Chamber LTHC-B12 : 500 L Temperature And Humidity Test Chamber LTHC-A16 : 504L Temperature and Humidity Test Chamber LTHC-C30 : 550L Temperature And Humidity Test Chamber LTHC-A13 : 64 L Temperature And Humidity Test Chamber LTHC-A11 : 80 L Temperature and Humidity Test Chamber LTHC-B13 : 800 L Temperature And Humidity Chamber LTHC-G10 : Total of 500L Temperature And Humidity Chamber LTHC-G11 : Total of 800LLabtron offers temperature and humidity test chambers with capacities ranging from 50 to 1130 L. They have a humidity controller and thermal-insulating material resistant to high temperatures. They feature an LCD touch screen with a corrosion-resistant interior chamber and a double-layered glass observation window. They include an independent R&D software and a compressor overload switch. Our temperature and humidity tester has built-in safety self-protection and overheating prevention.
.webp "Temperature and Humidity Test Chamber LTHC-B14")
Labtron chambers play a crucial role in quality control by exposing products to varied environmental conditions to assess their durability, stability, and performance. Industries such as electronics, pharmaceuticals, and automotive use these tests to ensure compliance with international quality standards before launching products.
Yes, Labtron chambers can perform thermal cycling tests, where the temperature shifts rapidly between extreme hot and cold conditions within a controlled timeframe. This is essential for stress testing materials and components in industries like aerospace and electronics.
A humidity soak test exposes materials to prolonged high humidity conditions to assess moisture absorption, corrosion resistance, and material degradation. This is particularly useful in coatings, polymers, and electrical component testing.
In pharmaceuticals, these chambers are used for stability testing, ensuring that medicines, vaccines, and biologics remain effective under different environmental conditions. Tests help determine shelf life and storage requirements.
Yes, Labtron chambers allow live testing of electronic components and devices under controlled conditions. Special power feedthroughs and monitoring ports enable real-time performance assessment of circuit boards, batteries, and sensors.
Labtron chambers use desiccant drying, mechanical cooling, or heated regeneration systems to remove excess moisture, maintaining precise low-humidity conditions for sensitive materials like optical lenses, semiconductors, and aerospace components.
Proper sample placement is crucial. Labtron chambers use uniform airflow systems, adjustable shelving, and optimized spacing to ensure that all test samples receive consistent temperature and humidity exposure without localized variations.
Yes, these chambers help analyze food packaging integrity, microbial growth, and product degradation under various storage conditions. They assist in determining expiration dates and ideal storage environments for perishable goods.
