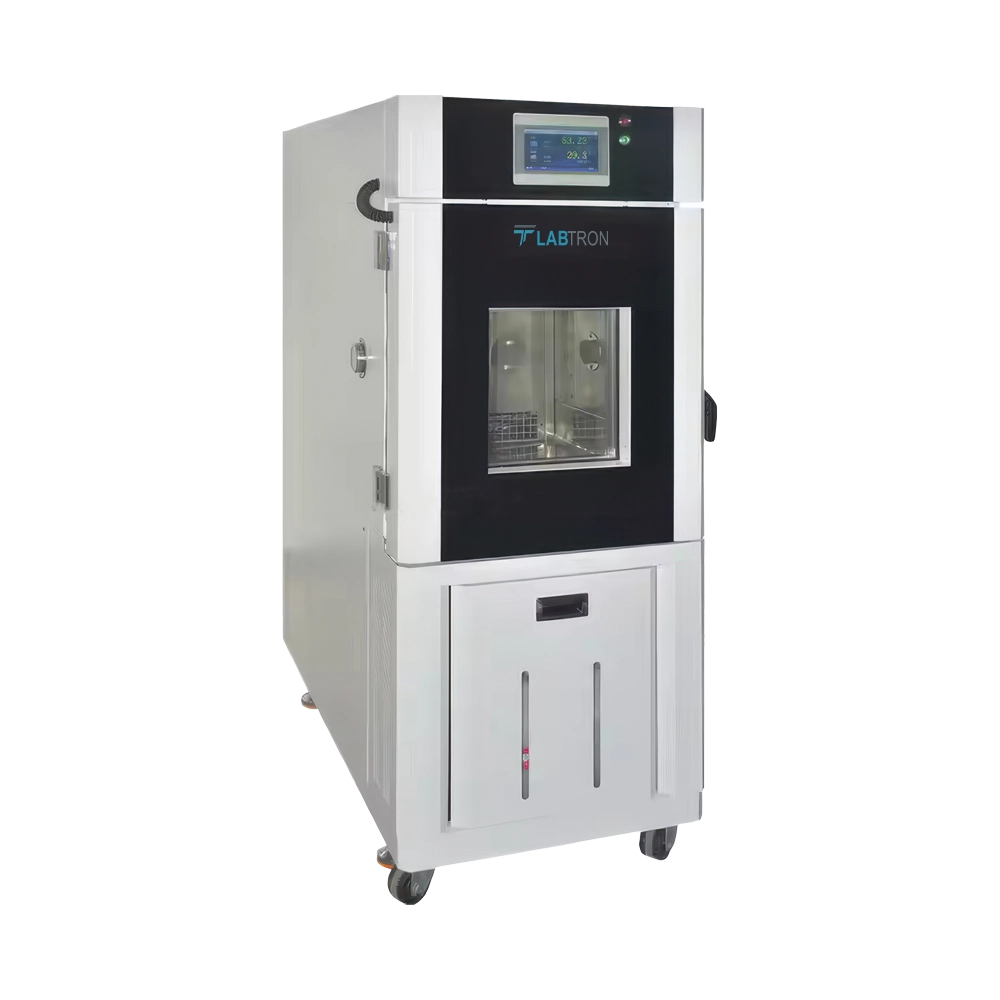

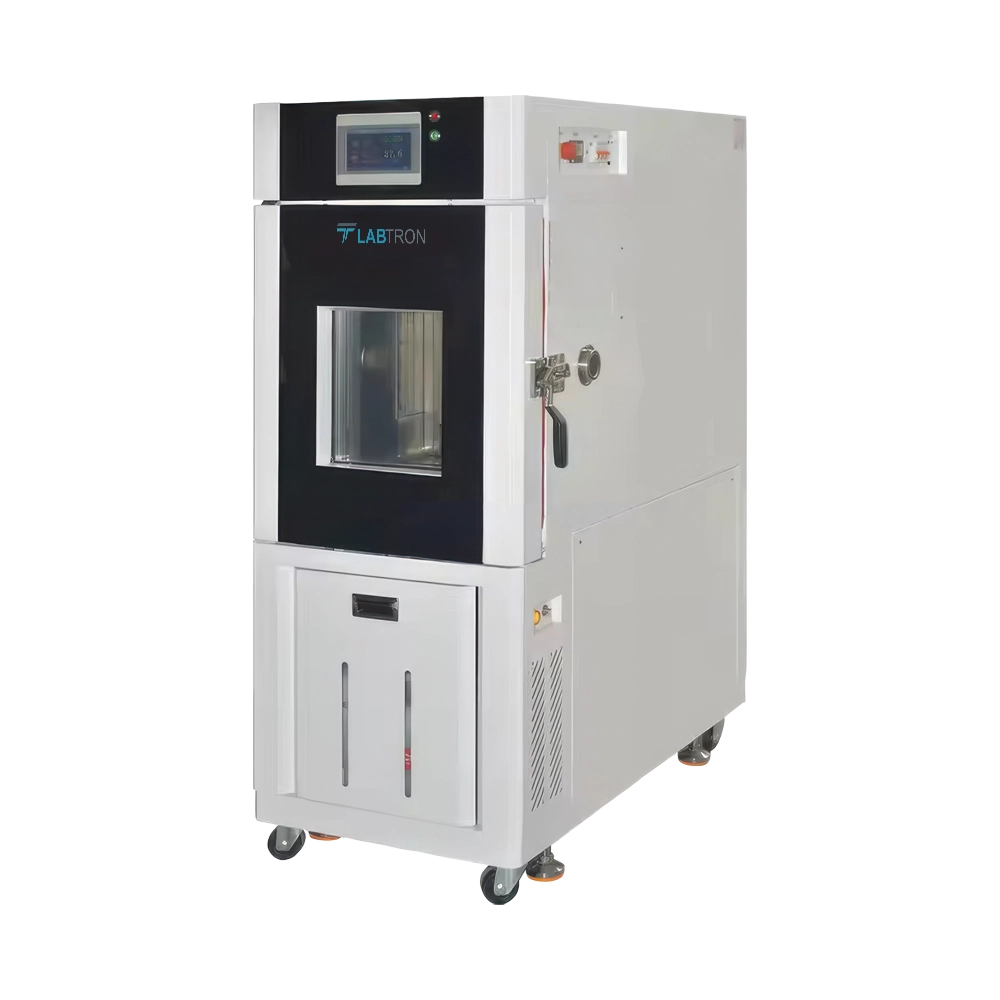

Temperature And Humidity Test Chamber LTHC-E15

Temperature And Humidity Test Chamber LTHC-E15

Temperature and Humidity Test Chamber LTHC-E15 with a 1000 L capacity provides sufficient space for accommodating various materials. It quickly transfers heat, allowing for faster and more efficient thermal processing while maintaining energy efficiency. The uniform air circulation guarantees even heat distribution, preventing temperature fluctuations. It features smart touchscreen controls and an intuitive interface for precise adjustments and settings monitoring. Our chamber has corrosion-resistant interiors that enhance durability, making them suitable for long-term use in harsh environments.

Temperature And Humidity Test Chamber LTHC-E15
Temperature And Humidity Test Chamber LTHC-E15
Temperature And Humidity Test Chamber LTHC-E15
Temperature And Humidity Test Chamber LTHC-E15
Request Quote
Capacity 1000 L
Temperature Range -20℃ to +150℃
Temperature Fluctuation ±0.5℃
Temperature Uniformity ≤2.0℃
Temperature Deviation ±2.0℃
Heat-up Rate Non-linear -20℃ to +100℃ 35 min
Cool-down Rate Non-linear +20℃ to -20℃ 45 min
Humidity Range 20% R.H to 98% R.H
Humidity Fluctuation ±2.0 %RH
Humidity Uniformity ±3.0 %RH
Humidity Deviation ±3.0 %RH (>75%RH)
Noise Level ≤68 dB
Power Consumption 7 kW
Power Supply AC 3ψ4 W 380 V 50 Hz
Dimensions (W × D × H) 1000 × 1000 × 1000 mm
External Dimensions (W × D × H) 1200 × 1980 × 2025 mm
  • Vibration-free testing

  • Easy maintenance access

  • Programmable test cycles

  • Real-time performance tracking

  • High-performance cooling system

Temperature and Humidity Test Chamber LTHC-E15 is a testing device that simulates specific environmental conditions to evaluate product performance and durability. It is widely used in industries like electronics, automotive, and pharmaceuticals for quality control and research.

Models of Temperature and Humidity Test Chamber

Labtron offers temperature and humidity test chambers with capacities ranging from 50 to 1130 L. They have a humidity controller and thermal-insulating material resistant to high temperatures. They feature an LCD touch screen with a corrosion-resistant interior chamber and a double-layered glass observation window. They include an independent R&D software and a compressor overload switch. Our temperature and humidity tester has built-in safety self-protection and overheating prevention.

Temperature And Humidity Test Chamber LTHC-E12

Temperature And Humidity Test Chamber LTHC-E12

  • Capacity : 225 L
  • Temperature Range : -20℃ to +150℃
  • Temperature Fluctuation : ±0.5℃
  • Temperature Uniformity : ≤2.0℃
Temperature And Humidity Test Chamber LTHC-H14

Temperature And Humidity Test Chamber LTHC-H14

  • Capacity : 1000 L
  • Temperature Range : - 20 ℃ to + 150 ℃ (Optional + 180 ℃)
  • Temperature Uniformity : ≦ 2.0 °C
  • Temperature Fluctuation : ± 0.5 ℃
Temperature And Humidity Test Chamber LTHC-E27

Temperature And Humidity Test Chamber LTHC-E27

  • Capacity : 1000 L
  • Temperature Range : -70℃ to +150℃
  • Temperature Fluctuation : ±0.5℃
  • Temperature Uniformity : ≤2.0℃
Temperature And Humidity Test Chamber LTHC-I13
Temperature And Humidity Test Chamber LTHC-I13
  • Capacity : 408 L
  • Temperature Range : -40℃ to +150℃ or -70℃ to +150℃
  • Humidity Range : 20% to 98% RH
  • Temperature Fluctuation : ±0.5℃
Temperature And Humidity Test Chamber LTHC-H12
Temperature And Humidity Test Chamber LTHC-H12
  • Capacity : 225 L
  • Temperature Range : - 20 ℃ to + 150 ℃ (Optional + 180 ℃)
  • Temperature Uniformity : ≦ 2.0 °C
  • Temperature Fluctuation : ± 0.5 ℃
Temperature And Humidity Test Chamber LTHC-H11

Temperature And Humidity Test Chamber LTHC-H11

  • Capacity : 150 L
  • Temperature Range : - 20 ℃ to + 150 ℃ (Optional + 180 ℃)
  • Temperature Uniformity : ≦ 2.0 °C
  • Temperature Fluctuation : ± 0.5 ℃
Temperature and Humidity Test Chamber LTHC-C10

Temperature and Humidity Test Chamber LTHC-C10

  • Interior Volume : 700 L
  • Heat load : 1000 W
  • Temperature Range : 10℃ to +50 ℃
  • Temperature Deviation in time : ± 0.1 to 0.3 ℃
Temperature And Humidity Test Chamber LTHC-I10

Temperature And Humidity Test Chamber LTHC-I10

  • Capacity : 100 L
  • Temperature Range : -40℃ to +150℃ or -70℃ to +150℃
  • Humidity Range : 20% to 98% RH
  • Temperature Fluctuation : ±0.5℃
Temperature And Humidity Test Chamber LTHC-E15 FAQ's
  • Labtron chambers use a high-efficiency refrigeration system with CFC-free refrigerants to provide precise temperature control. The system includes compressors, condensers, and evaporators designed for stable and uniform cooling performance.

  • To minimize frost formation, Labtron chambers feature automatic defrost cycles, optimized airflow distribution, and dehumidification systems. Using proper sample placement and door seals also helps reduce ice accumulation inside the chamber.

  • Labtron chambers provide uniform environmental conditions, but for specific tests requiring temperature gradients, multi-zone or custom chambers can be designed with separate temperature-controlled sections.

  • Labtron chambers are equipped with overheat protection, humidity overload alarms, automatic shutdown features, and emergency stop buttons to ensure user safety and protect test samples from extreme deviations.

  • Labtron chambers include built-in data logging, USB and Ethernet connectivity, and cloud-based monitoring options. Users can export test reports and analyze historical data for quality control and research purposes.

  • Walk-in chambers are larger units designed for bulk sample testing or large product evaluation, while benchtop chambers are compact, space-saving solutions for small-scale testing in laboratories and research facilities.

  • Yes, Labtron Temperature and Humidity Test Chambers are built for continuous operation and can run long-duration stability, aging, and environmental tests. Advanced cooling and humidity control systems ensure reliable performance even in extended testing cycles.

  • Yes, Labtron chambers can simulate extreme hot and cold temperatures, high humidity, and rapid temperature fluctuations, allowing users to test how materials and products respond to harsh environmental conditions.
