| Capacity | 408 L |
| Temperature Range | -70℃ to +150℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Uniformity | ≤2.0℃ |
| Temperature Deviation | ±2.0℃ |
| Heat-up Rate Non-linear | -70℃ to +100℃ 60 min |
| Cool-down Rate Non-linear | +20℃ to -70℃ 80 min |
| Humidity Range | 20% R.H to 98% R.H |
| Humidity Fluctuation | ±2.0 %RH |
| Humidity Uniformity | ±3.0 %RH |
| Humidity Deviation | ±3.0 %RH (>75%RH) |
| Noise Level | ≤68 dB |
| Power Consumption | 7 kW |
| Power Supply | AC 3ψ4 W 380 V 50 Hz |
| Dimensions (W × D × H) | 800 × 850 × 600 mm |
| External Dimensions (W × D × H) | 1000 × 1820 × 1625 mm |
Minimal noise output
High-resolution sensors
Advanced safety alarms
Consistent airflow system
Adjustable test conditions

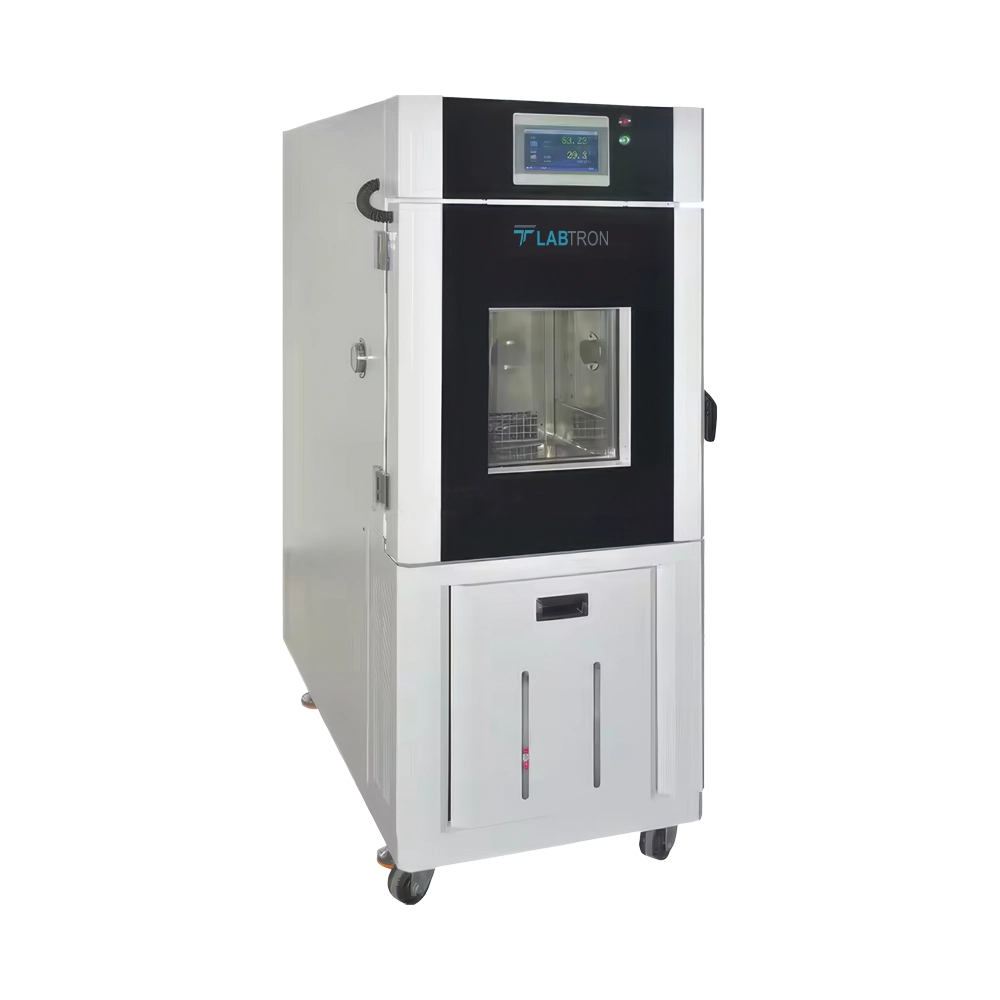

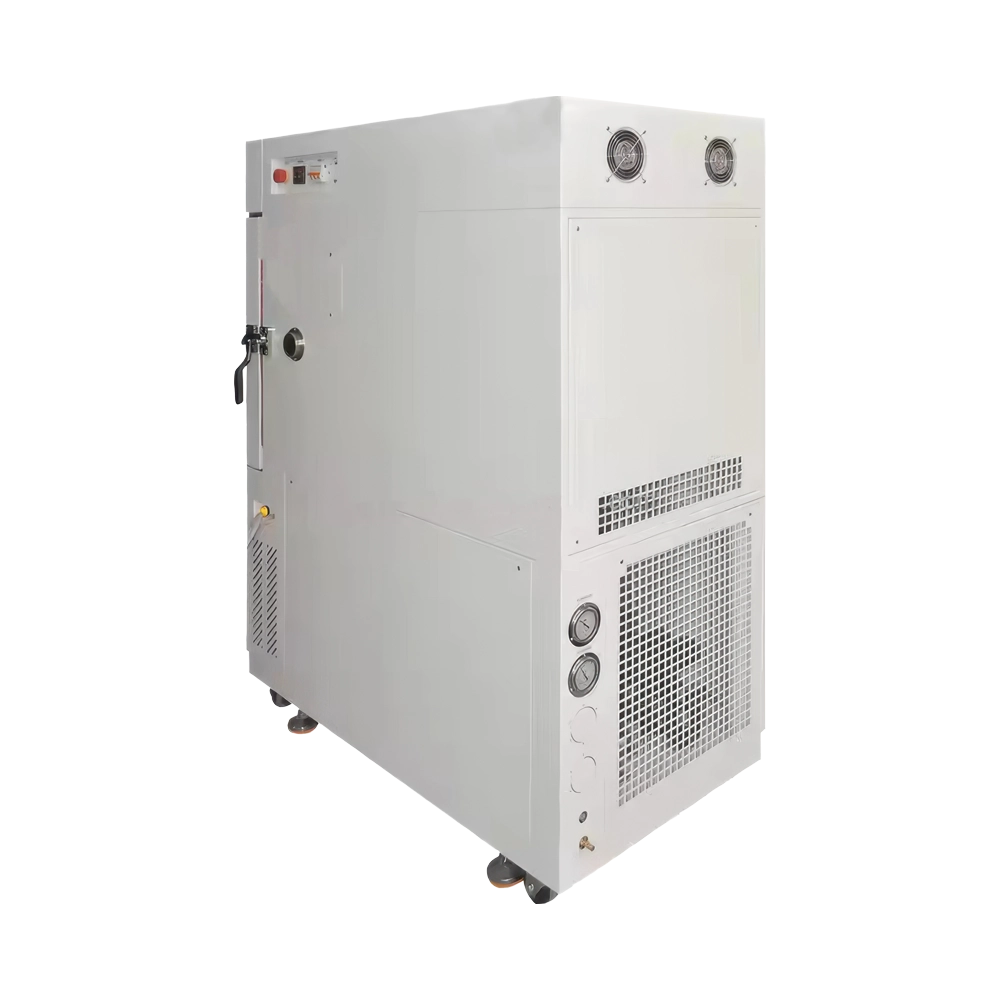

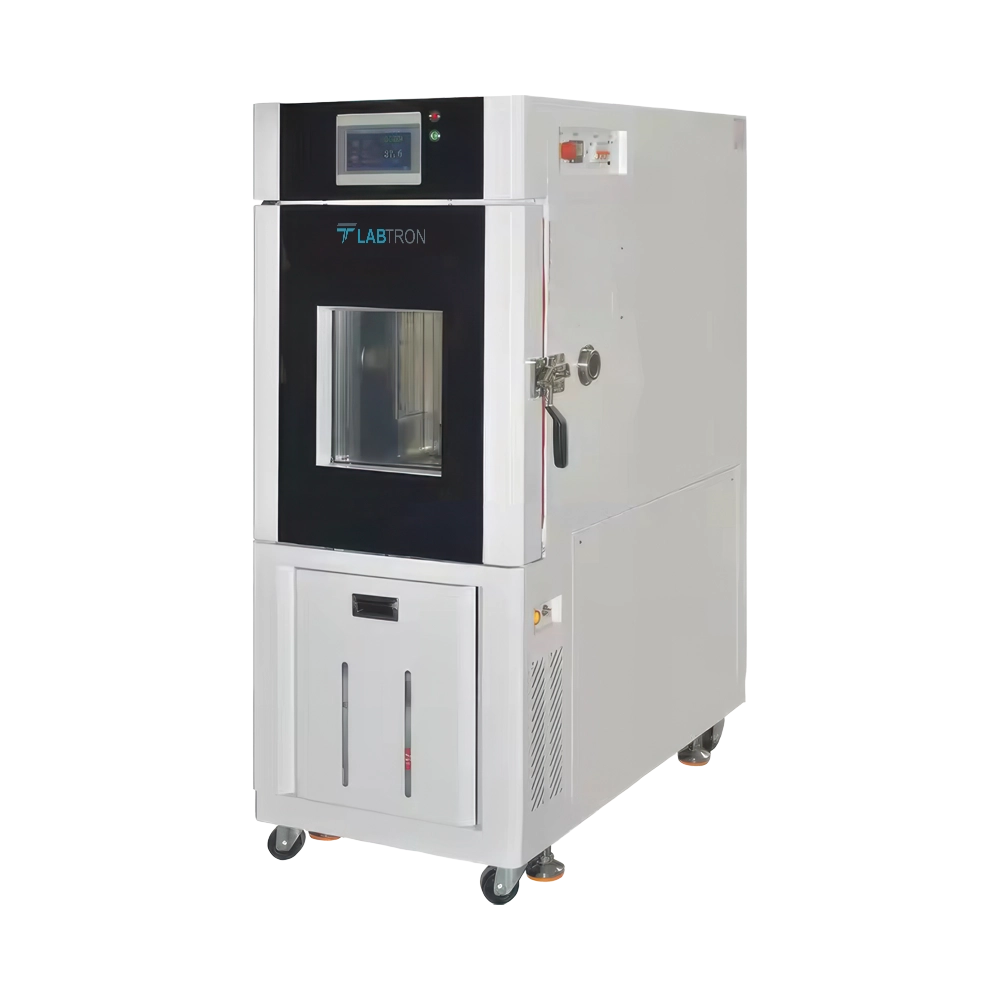

Temperature and Humidity Test Chamber LTHC-E25 is a testing device that simulates specific environmental conditions to evaluate product performance and durability. It is widely used in industries like electronics, automotive, and pharmaceuticals for quality control and research.
Download catalog for
Temperature And Humidity Test Chamber LTHC-E25 Catalog
Available Range :
Temperature and Humidity Test Chamber LTHC-B10 : 100 L Temperature and Humidity Test Chamber LTHC-B14 : 1000 L Temperature And Humidity Test Chamber LTHC-E11 : 105 L Temperature and Humidity Test Chamber LTHC-D11 : 1130L Temperature And Humidity Test Chamber LTHC-A14 : 120L Temperature and Humidity Test Chamber LTHC-C20 : 150 L Temperature and Humidity Test Chamber LTHC-B25 : 1500 L Temperature and Humidity Test Chamber LTHC-B11 : 225 L Temperature And Humidity Test Chamber LTHC-A15 : 225L Temperature and Humidity Test Chamber LTHC-A12 : 250 L Temperature And Humidity Test Chamber LTHC-J10 : 27L Temperature and Humidity Test Chamber LTHC-D10 : 300L Temperature and Humidity Test Chamber LTHC-B30 : 3150 L Temperature And Humidity Test Chamber LTHC-E13 : 408 L Temperature And Humidity Test Chamber LTHC-A10 : 50 L Temperature and Humidity Test Chamber LTHC-B12 : 500 L Temperature And Humidity Test Chamber LTHC-A16 : 504L Temperature and Humidity Test Chamber LTHC-C30 : 550L Temperature And Humidity Test Chamber LTHC-A13 : 64 L Temperature And Humidity Test Chamber LTHC-A11 : 80 L Temperature and Humidity Test Chamber LTHC-B13 : 800 L Temperature And Humidity Chamber LTHC-G10 : Total of 500L Temperature And Humidity Chamber LTHC-G11 : Total of 800LLabtron offers temperature and humidity test chambers with capacities ranging from 50 to 1130 L. They have a humidity controller and thermal-insulating material resistant to high temperatures. They feature an LCD touch screen with a corrosion-resistant interior chamber and a double-layered glass observation window. They include an independent R&D software and a compressor overload switch. Our temperature and humidity tester has built-in safety self-protection and overheating prevention.
.webp "Temperature and Humidity Test Chamber LTHC-B23")
Labtron chambers use precision sensors, advanced controllers, and automated feedback systems to regulate temperature and humidity continuously. Their airtight construction, efficient airflow design, and humidity stabilization mechanisms prevent fluctuations, ensuring accurate and repeatable results.
Yes, Labtron chambers are equipped to simulate rapid thermal cycling, transitioning between hot and cold conditions quickly. This capability is crucial for testing product endurance, thermal stress resistance, and performance under extreme environmental changes.
Labtron chambers feature high-precision platinum resistance temperature detectors (RTDs) and capacitive humidity sensors, ensuring accurate and real-time monitoring of test conditions. These sensors are designed to provide fast response times and minimal drift, ensuring consistent performance over extended testing periods.
To prevent excessive moisture accumulation, Labtron chambers use efficient dehumidification systems, strategically placed drainage channels, and automated humidity control mechanisms. This design helps protect test samples from water damage and maintains accurate humidity levels.
Labtron chambers come with intuitive touchscreen interfaces and remote monitoring capabilities via Wi-Fi, Ethernet, or cloud-based platforms. Users can program test parameters, track real-time data, receive alerts, and generate reports for analysis and documentation.
Extended exposure to high humidity can cause metal corrosion, electronic component failure, material swelling, and microbial growth. Labtron chambers help manufacturers evaluate these risks, allowing them to improve product designs and select more suitable materials.
Regular cleaning, calibration, sensor checks, lubrication of moving parts, and inspection of seals and insulation are essential for optimal performance. Labtron recommends scheduled maintenance and software updates to ensure prolonged chamber lifespan and reliable test results.
Yes, Labtron offers customizable chamber sizes, adjustable shelving, and specialized sample holders to accommodate large, oversized, or uniquely shaped products. This flexibility allows manufacturers to conduct realistic environmental simulations for a wide range of applications.
