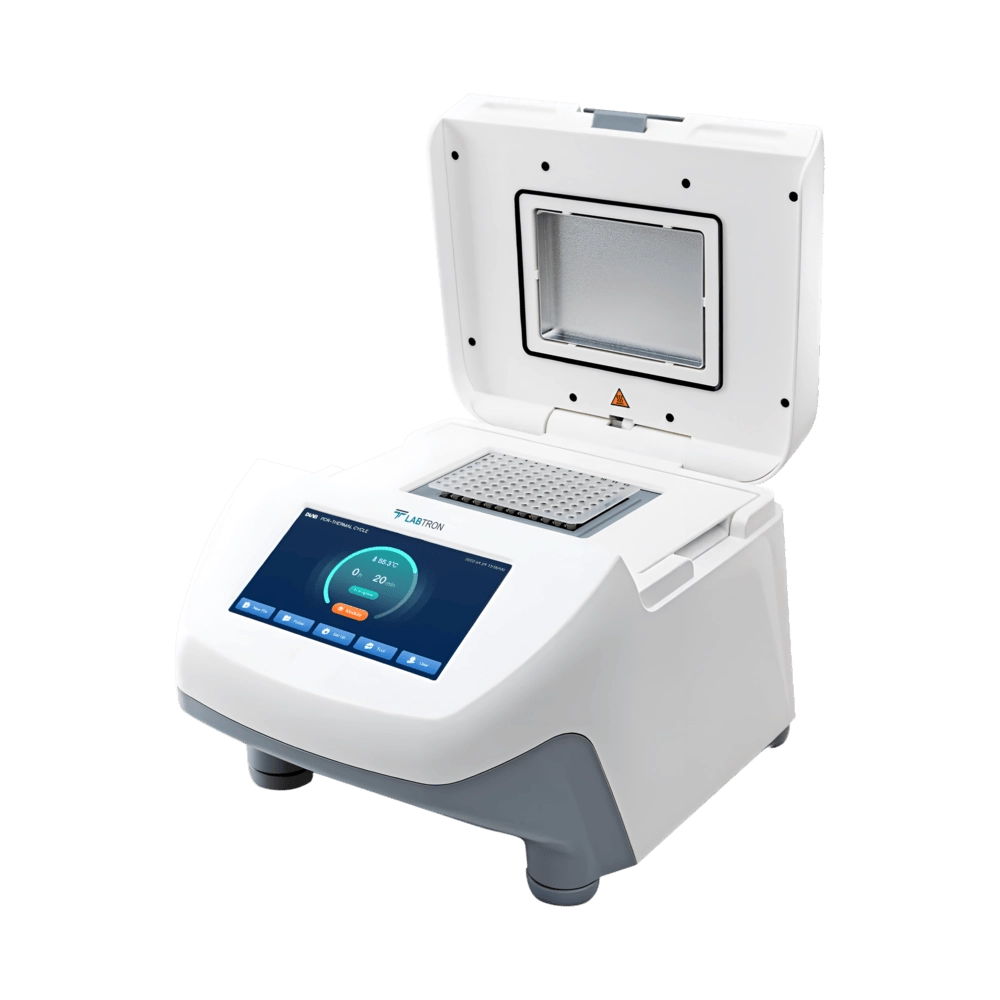

Touch Thermal Cycler (Gradient) LTCG-A14

Name: Touch Thermal Cycler (Gradient) LTCG-A14
Brand: Labtron
SKU: LTCG-A14
Rating: 4.9 (939 reviews)

Touch Thermal Cycler (Gradient) LTCG-A14 offers gradient range of 1℃ to 42℃ enabling precise optimization of annealing temperatures. Its advanced Peltier technology assures uniform and stable thermal conditions for efficient processing. The auto-adjusting heated lid accommodates different tube and plate heights. Includes intuitive touchscreen interface that enables user-friendly operation with quick programming and easy parameter adjustments. Offer fast ramp rates enhance reaction efficiency, reducing cycling time for rapid sample processing.

Request Quote

Sample Capacity	96×0.2ml, PCR tube 12×0.2ml,PCR-8 strips 0.2ml,96 PCR Microplate
Gradient Temperature Setting Range	30℃ to 99℃
Gradient Range	1℃ to 42℃
Heating Temperature	4℃ to 105℃
Lid Temperature	30℃ to 110℃
Temperature Display Accuracy	± 0.1℃ at 55℃ is ± 0.3℃
Temperature Uniformity	At 55℃ is less than 0.3
Maximum Heating or Cooling Rate	5℃ per second
User Defined System	Max. 30 segments 99 cycles, and storage for over 200 files
Display	7 inch LCD 800mm×480mm
Power Supply	100 to 120V /200 to 250V,50/60HZ
Dimension (L×W×H)	280mm×370mm×250mm
Weight	11Kg

Supports Long PCR
Adjustable Hot Lid
Quick Incubation Function
User-Friendly Menu Navigation
Safe Cycle Completion
Customizable Experiment Settings
High-Precision Temperature Control

Our Touch Thermal Cycler (Gradient) LTCG-A14 enables precise DNA amplification with optimized temperature control, gradient heating, and rapid cycling, ideal for molecular biology, genetic research, and diagnostic PCR applications.

Download catalog for
Touch Thermal Cycler (Gradient) LTCG-A14 Catalog

Available Range :

Touch Thermal Cycler (Gradient) LTCG-A13 : 96 × 0.2mL PCR tubes
12 × 0.2mL PCR-8 strips
0.2mL 96 PCR Microplate Touch Thermal Cycler (Basic) LTCB-A14 : 96×0.2ml, PCR tube
12×0.2ml,PCR-8 strips
0.2ml,96 PCR Microplate

Models of Touch Thermal Cycler

Labtron Touch Thermal Cycler comes with the basic and gradient temperature functionality model. These cycler deliver rapid thermal cycling with high heating and cooling rates. They are equipped with stepless adjustable hot lids featuring pressure protection. The thermal cycler can accommodate various tube heights while preventing sample evaporation. For software updates and data transfer, they support USB and LAN connectivity. The email alert feature notifies users as soon as their experiment is finished. It can run single or dual independent programs simultaneously. They are built with safety features such as auto data protection and GLP-compliant report generation. Our Touch Thermal Cycler’s robust construction and corrosion-resistant materials ensure durability and long service life.

Touch Thermal Cycler (Gradient) LTCG-A13

Sample Capacity : 96 × 0.2mL PCR tubes 12 × 0.2mL PCR-8 strips 0.2mL 96 PCR Microplate
Heating Temperature Range : 0 ℃ to 105 ℃
Lid Temperature Range : 30 ℃ to 115 ℃
Temperature Display Accuracy : 0.1 ℃

Compare Remove

Touch Thermal Cycler (Gradient) LTCG-A20

Capacity : Double (each block with) 48×0.2ml
Block Temperature Range : 0 to 100℃
Temperature Control Accuracy : ≤ ± 0.1 ℃
Ramping Rate Adjustable : 0.1 to 5℃

Compare Remove

Touch Thermal Cycler (Gradient) LTCG-A24

Capacity : 96 × 0.2 mL
Temperature Range : 4°C to 99°C
Maximum Heating Rate : 4.5℃/s
Maximum Cooling Rate : 4℃/s

Compare Remove

Touch Thermal Cycler (Basic) LTCB-A11

Capacity : 60 × 0.5 ml
Block Temperature Range : 0 to 100℃
Temperature Control Accuracy : ≤ ± 0.1 ℃
Ramping Rate Adjustable : 0.1 - 5 ℃

Compare Remove

Touch Thermal Cycler (Gradient) LTCG-A25

Capacity : 96 × 0.2 mL
Temperature Range : 4°C to 99°C
Maximum Heating Rate : 4.5℃/s
Maximum Cooling Rate : 4℃/s

Compare Remove

Touch Thermal Cycler (Basic) LTCB-A14

Sample Capacity : 96×0.2ml, PCR tube12×0.2ml,PCR-8 strips0.2ml,96 PCR Microplate
Heating Temperature : 4℃ to 105℃
Lid Temperature : 30℃ to 110℃
Temperature Display Accuracy : ± 0.1℃at 55℃ is ± 0.3℃
