Vacuum Oven LVO-A12

Vacuum Oven LVO-A12

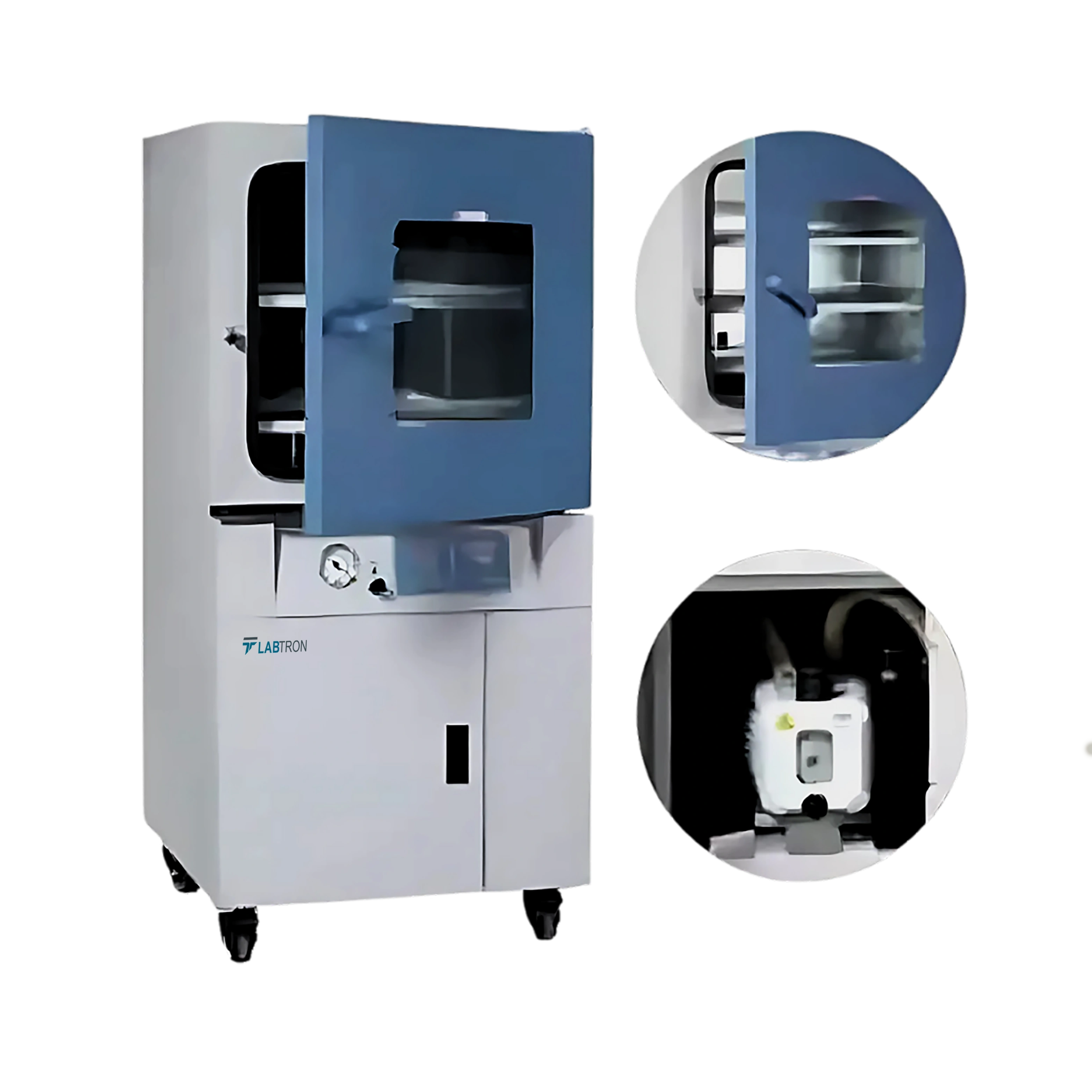

Vacuum oven LVO-A12 comes with 10 L chamber capacity and dual layer tempered glass door for clear observation of the sample during process. Designed with vacuum pump as optional accessory and LED display to observe temperature. The outer of the oven is made using stainless steel sheets that are enamel and painted to prevent from corrosion. Designed for drying of materials that are heat sensitive, reactive with oxidation reactions, prone to contamination due to excess water level. For the rapid drying of the materials, the controlled atmosphere can be created using the inert gases.

Available Range :

Chamber volume : 10 L Chamber volume : 90 L Chamber volume : 50 L Chamber volume : 125 L Chamber volume : 91 L Chamber volume : 24 L
Chamber volume 10 L
Temperature range RT+10 to 200°C
Temperature resolution 0.1°C
 Temperature stability ±1°C
Display LED Display
Vacuum Pump No, offered as Optional Accessory
Vacuum Degree 133 Pa
Observation window Dual layered tempered glass
 Chamber material Stainless Steel 304
Shelves  2 pcs
Shelves material Aluminum tray
Ambient temperature 5 to 40°C
Power 400 W
Power supply AC 220 V, 50 Hz
Interior dimension (W × D × H) 220 × 210 × 220 mm
Exterior dimension (W × D × H) 500 × 375 × 410 mm
 Packing dimension (W × D × H) 600 × 530 × 590 mm
Gross weight 40 kg
  • Designed with vacuum pump as optional accessory
  • Independent temperature controlling shelves
  • PID controller system with over temperature alarm and timing function ensures precise and reliable Control
  • Microprocessor controller with timing function
  • Designed with LED Display
  • Dual layer tempered glass door for clear observation
  • Chamber is made up of Stainless steel material
  • Minimum heating time 40 % less than traditional vacuum oven
  • Equipped Door adjustment system with silicon door gasket ensures better vacuity
  • Monitoring and timing are more accurate and stable

Vacuum Oven used for drying of thermo-sensitive, oxidative materials easily. It can be filled with inert gases for a rapid drying of some compound material.

Accessories no.Name
1KF25 Vacuum Port
2LED lights on the door
3Inert gas valve
