Vacuum Oven LVO-B15

Name: Vacuum Oven LVO-B15
Brand: Labtron
SKU: LVO-B15
Rating: 4.8 (798 reviews)

Vacuum oven LVO-B15 comes with 64 L chamber capacity and dual layer tempered glass door for clear observation of the sample during process. The vacuum degree controlled by full-automatic electromagnetism valve which make the degree control more exact. Designed with vacuum pump as standard accessory and LCD digital display to observe temperature. The outer of the oven is made using stainless steel sheets that are enamel and painted to prevent from corrosion. Designed for drying of materials that are heat sensitive, reactive with oxidation reactions, prone to contamination due to excess water level. For the rapid drying of the materials, the controlled atmosphere can be created using the inert gases.

Request Quote

Chamber volume	64 L
Temperature range	RT+10 to 200°C
Temperature resolution	0.1°C
Temperature stability	±1°C
Display	LED Digital Display
Vacuum Pump	Yes, Standard Accessory
Vacuum Degree	133 Pa
Vacuum Sensor	Resistance silicon tube pressure sensor
Vacuum Control Range	10 to 10⁶Pa
Observation window	Dual layered tempered glass
Chamber material	Stainless Steel 304 (1Cr18Ni9Ti)
Shelves	3 pcs
Shelves material	Aluminum tray
Ambient temperature	5 to 40°C
Power	1800 W
Power supply	AC 220 V, 50 Hz
Interior dimension (W × D × H)	400×400×400 mm
Exterior dimension (W × D × H)	600 × 570 × 1390 mm
Packing dimension (W × D × H)	670 × 730 × 1450 mm
Gross weight	179 kg

Designed with vacuum pump as standard accessory
Vacuum control ranges from 20 Pa to 9999 Pa
Vacuum display ranges from 1 Pa to 9999 Pa
Vacuum accuracy is 1Pa
Independent temperature controlling shelves
Microprocessor controller with timing function
Designed with LCD vacuum degree window and Programmable vacuum cycle
Adopts the digital technique of simulated engineering to control vacuum degree

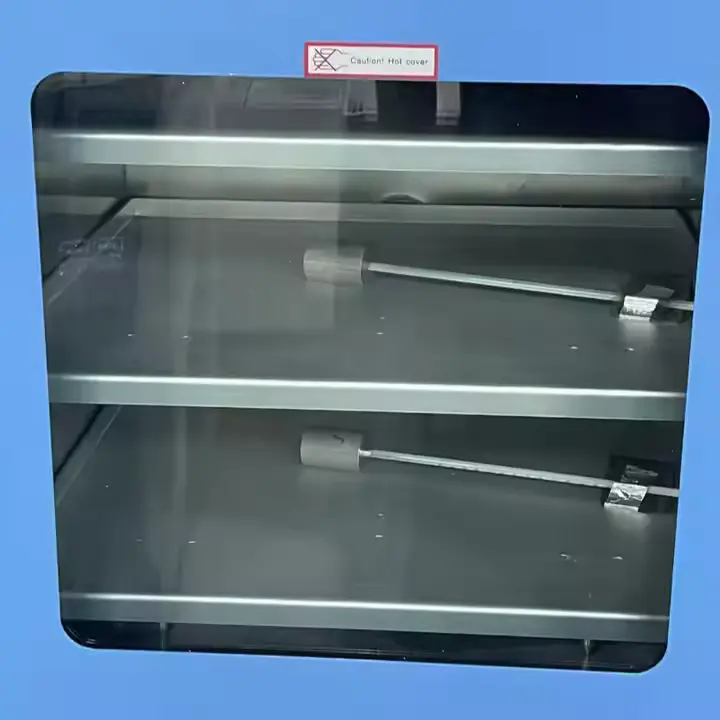

Dual layer tempered glass door for clear observation
Chamber is made up of Stainless steel material
Minimum heating time 50 % less than traditional vacuum oven
Equipped with Fully automatic electromagnetism controlled vacuum
Monitoring and timing are more accurate and stable

Vacuum Oven used for drying of thermo-sensitive, oxidative materials easily. It can be filled with inert gases for a rapid drying of some compound material.

Download catalog for
Vacuum Oven LVO-B15 Catalog

Available Range :

Vacuum Oven LVO-A12 : 10 L Vacuum Oven LVO-B13 : 125 L Vacuum Oven LVO-A10 : 215 L Vacuum Oven LVO-A15 : 24 L Vacuum Oven LVO-A16 : 30 L Vacuum Oven LVO-B16 : 32 L Vacuum Oven LVO-B11 : 431 L Vacuum Oven LVO-A13 : 50 L Vacuum Oven LVO-B15 : 64 L Vacuum Oven LVO-A11 : 90 L Vacuum Oven LVO-B14 : 91 L Vacuum Oven LVO-B10 : 913 L
