What is the chamber capacity of the Vertical Autoclave LVA-P10, and how does it benefit laboratory operations?

The Vertical Autoclave LVA-P10 has a chamber capacity of 35 liters, making it suitable for medium-scale sterilization tasks in laboratories, hospitals, and research centers. This size allows users to efficiently sterilize a range of items such as surgical tools, glassware, and culture media without taking up excessive space, ensuring higher throughput while maintaining a compact footprint.

How does the PID control system in the Vertical Autoclave LVA-P10 improve sterilization accuracy?

The advanced PID processor in the Vertical Autoclave LVA-P10 ensures highly accurate temperature regulation during the sterilization cycle. It maintains a temperature precision of ±0.1°C, allowing for consistent and reliable performance. This precision is crucial for sensitive laboratory materials where even minor temperature deviations can impact results or damage the items being sterilized.

Can I adjust the sterilization and drying cycles on the Vertical Autoclave LVA-P10 to fit different sterilization needs?

Yes, the Vertical Autoclave LVA-P10 offers customizable sterilization and drying time ranges from 0 to 999 minutes. This flexibility allows users to tailor the cycle duration depending on the type of materials being sterilized. Additionally, it features an optional drying function, which helps ensure that instruments come out dry and ready for immediate use or storage.

What materials are used in the construction of the Vertical Autoclave LVA-P10, and how do they contribute to its durability?

The Vertical Autoclave LVA-P10 is constructed entirely from high-grade stainless steel 304, including the chamber and steam generator. This material is known for its excellent corrosion resistance, high temperature tolerance, and easy maintenance. The robust build ensures long-term durability, even under continuous use in demanding environments like hospitals and pharmaceutical labs.

Is the Vertical Autoclave LVA-P10 portable or fixed, and what mobility features does it include?

The Vertical Autoclave LVA-P10 is designed with casters equipped with brakes, offering excellent mobility without compromising stability. This design enables users to easily move the unit within the facility and securely lock it into place when in use, providing both flexibility and safety in operation.

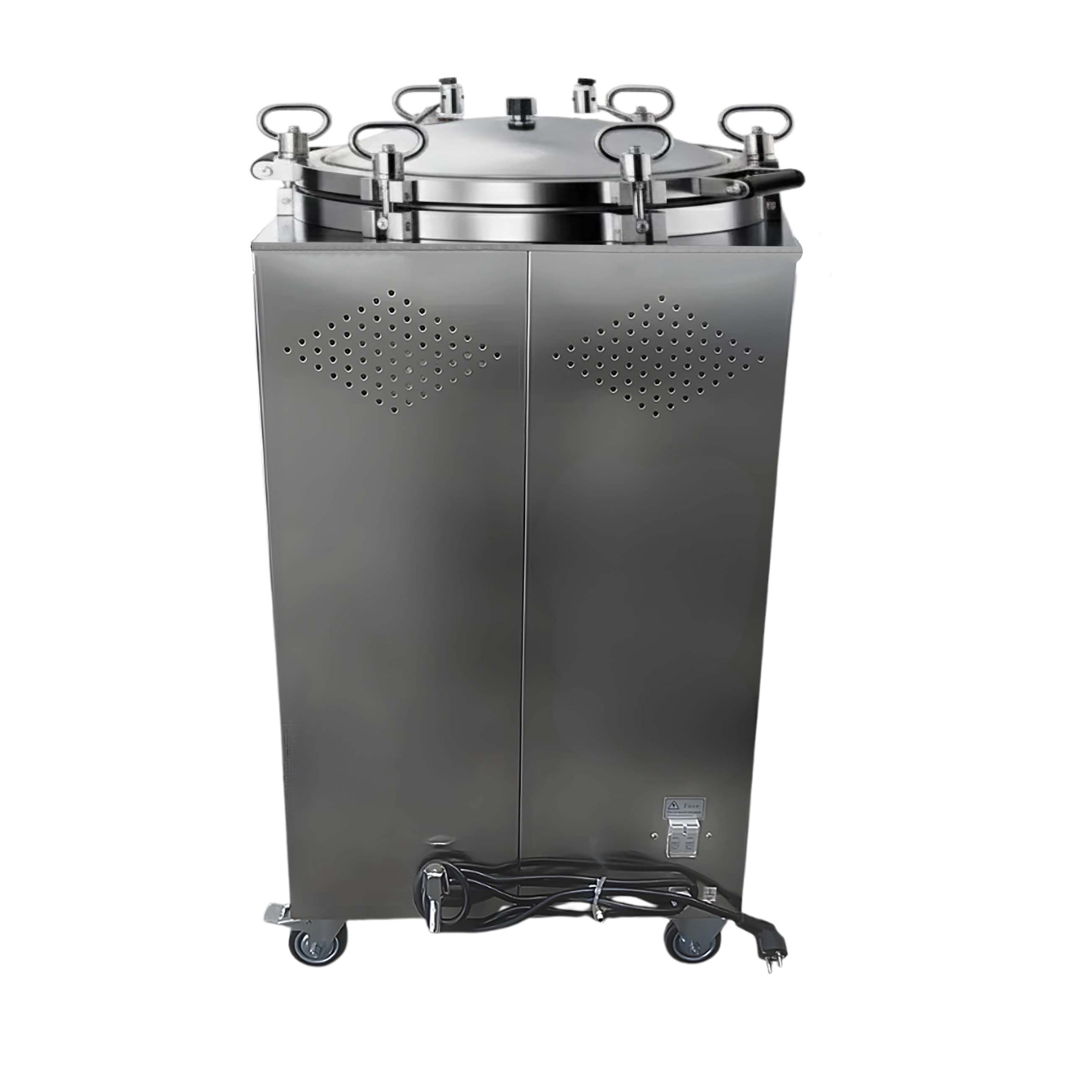

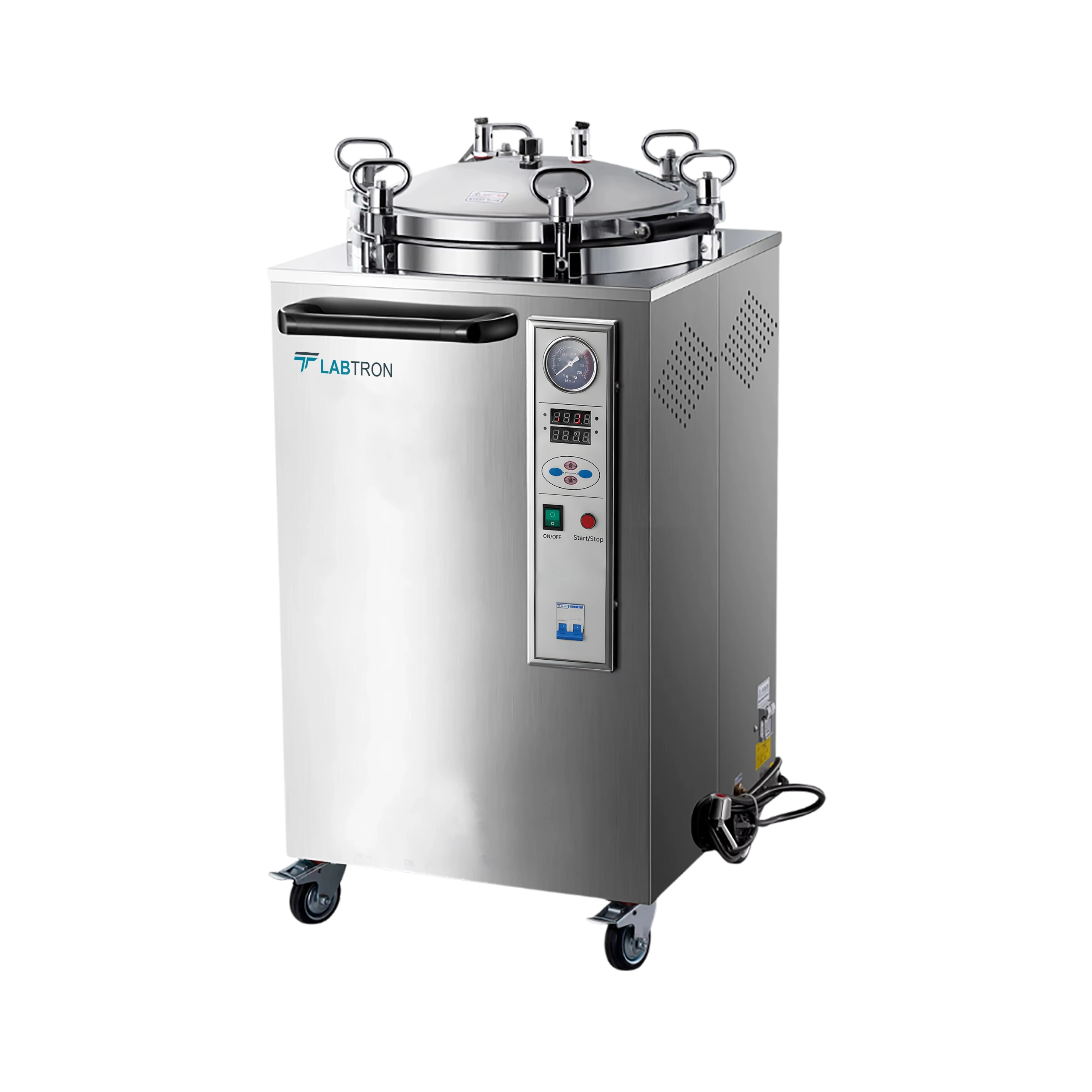

Vertical Autoclave LVA-P10

Name: Vertical Autoclave LVA-P10
Brand: Labtron
SKU: LVA-P10
Rating: 4.9 (608 reviews)

Vertical Autoclave LVA-P10 offers a chamber capacity of 35 liters, supporting medium-scale sterilization needs. Operating at a working pressure of 0.22 Mpa, it provides a wide sterilization range, suitable for a variety of materials. This unit is equipped with a precise PID processor and a digital display for easy monitoring and control. It offers flexible sterilization and drying cycles, ensuring complete decontamination. It’s compact in design yet powerful in performance, offering a dependable solution for all sterilization demands.

Request Quote

Chamber Capacity	35L
Control	PID Processor
Display	Digital Display
Material	Fully Stainless Steel 304
Working Pressure	0.22 MPa
Working Temperature	134°C
Temperature Range	100 to 134°C
Sterilization Time Range	0 to 999 min
Drying Time Range	0 to 999 min (optional)
Temperature Accuracy	±0.1°C
Heat Distribution	≤1°C
Steam Generator	Stainless Steel 304

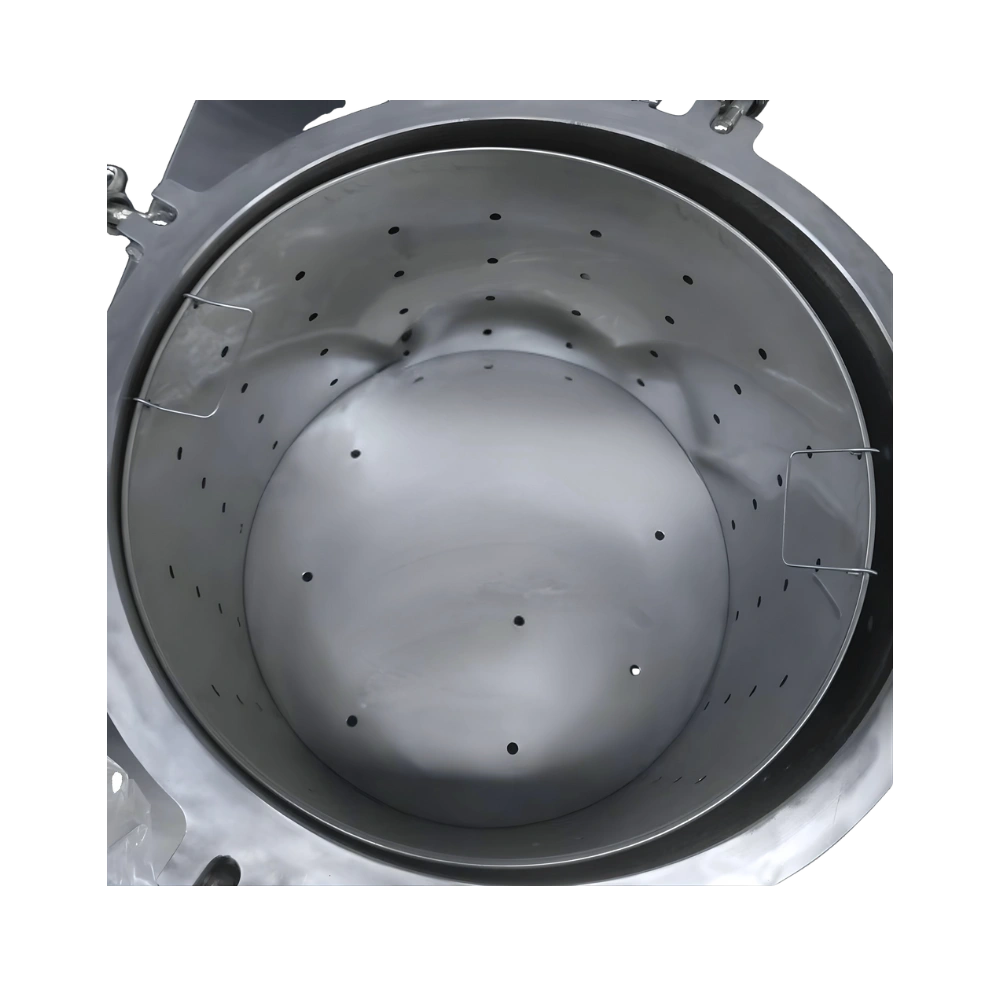

Loading Capacity	1 pc Drum & 1 pc Basket
Casters	With Brakes
Voltage	110 to 240V, 50/60Hz
Power Consumption	2.5 KW
Chamber Size	35L / Ø300 × 485 mm
Outer Dimensions	510 × 510 × 900 mm
Packing Dimensions	550 × 540 × 1000 mm
Net Weight	45 kg
Gross Weight	65 kg

Intelligent PID Control
Digital Display Panel
Durable Stainless-Steel Construction
Wide Temperature Range
Programmable Time Settings
High Temperature Accuracy
Even Heat Distribution
Easy Mobility with Casters
Universal Power Compatibility
Built-in Steam Generator

Our Vertical Autoclave LVA-P10 is ideal for sterilization tasks in laboratories, hospitals, research institutions, and pharmaceutical settings. It effectively sterilizes surgical instruments, glassware, culture media, and other laboratory materials requiring high-pressure steam.

Drying

Download catalog for
Vertical Autoclave LVA-P10 Catalog

Available Range :

Vertical Autoclave LVA-P13 : 100L Vertical Autoclave LVA-P14 : 120L Vertical Autoclave LVA-H14 : 150 L Vertical Autoclave LVA-P15 : 150L Vertical Autoclave LVA-H15 : 200 L Vertical Autoclave LVA-P10 : 35L Vertical Autoclave LVA-P11 : 50L Vertical Autoclave LVA-P12 : 75L
