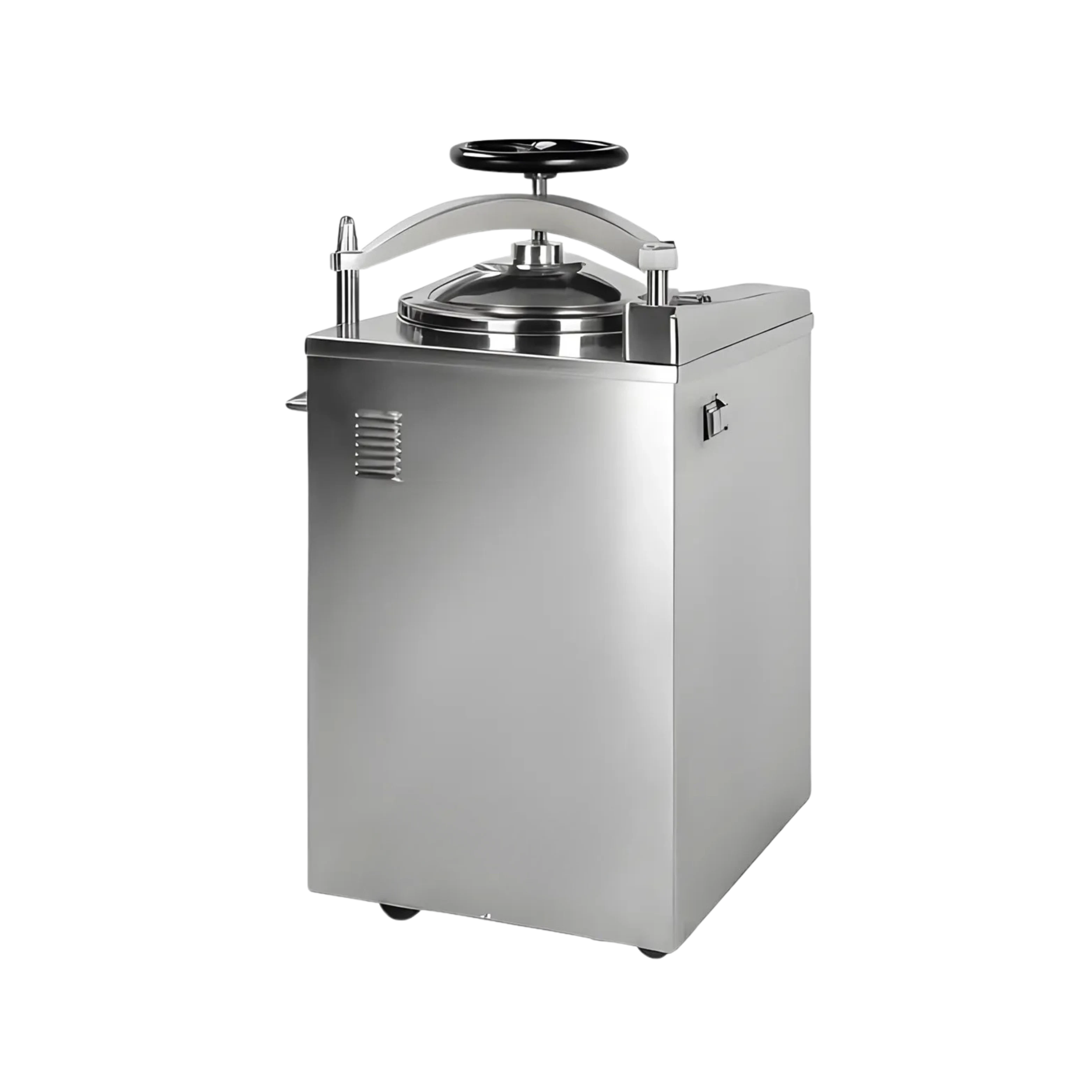

Vertical Autoclave LVA-F20

Name: Vertical Autoclave LVA-F20
Brand: Labtron
SKU: LVA-F20
Rating: 5 (901 reviews)

Vertical Autoclave LVA-F20 has a capacity of 50 litre. It maintains a sterilization temperature of 134℃ and a sterilization pressure of 0.22 Mpa. Our autoclave has a stainless steel body with a hand wheel-type structure and a safety lock system. Features a steam-water inner circulation system, ensuring a clean and dry sterilization environment without steam discharge.

Request Quote

Capacity	50 L
Sterilization Temperature	134℃
Sterilization Pressure	0.22 Mpa
Time Range	0 to 99 min or 0 to 99 h 59 min
Sterilization Temperature Range	0 to 134℃
Maximum Working Pressure	0.23 Mpa
Heat Average	≤± 1℃
Power	3 kW
Power Supply	AC 220 V, 50 Hz
Chamber Volume	340×550 mm
Overall Dimension	650×410×1140 mm
Packing Dimension	730×500×1290 mm
Net Weight	83 kg
Gross Weight	102 kg

Includes a digital display and a touch keypad
Automatic protection over temperature and pressure
Controlled by a microcomputer system
After the sterilization process it automatically turns off
Integrated with a self-inflating type seal
Two stainless steel as a standard accessory
Ensures safe protection in case of water shortage
Incorporate a drying system

Vertical Autoclave is used in pharmaceutical, medicine, Biotechnology, Microbiology industry for effective sterilization of glass ware, biological materials, culture media.

Stainless Steel Basket: 2pcs

Download catalog for
Vertical Autoclave LVA-F20 Catalog

Available Range :

Vertical Laboratory Autoclave LVA-C13 : 100 L Vertical Laboratory Autoclave LVA-G13 : 100L Vertical Autoclave LVA-L12 : 110 L Vertical Laboratory Autoclave LVA-C14 : 120 L Vertical Autoclave LVA-C15 : 150 L Vertical Autoclave LVA-N13 : 200 L Vertical Autoclave LVA-N10 : 200L Vertical Autoclave LVA-E10 : 30 L Vertical Laboratory Autoclave LVA-C10 : 35 L Vertical Laboratory Autoclave LVA-G10 : 35L Vertical Laboratory Autoclave LVA-K14 : 40 L Vertical Laboratory Autoclave LVA-C11 : 50 L Vertical Laboratory Autoclave LVA-G11 : 50L Vertical Autoclave LVA-L21 : 54 L Vertical Laboratory Autoclave LVA-K10 : 60 L Vertical Laboratory Autoclave LVA-C12 : 75 L Vertical Laboratory Autoclave LVA-G12 : 75L Vertical Laboratory Autoclave LVA-K11 : 80 L Vertical Autoclave LVA-L11 : 85 L

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.
