What makes the Vertical Autoclave LVA-M11 ideal for laboratory and healthcare sterilization needs?

Labtron’s Vertical Autoclave LVA-M11 offers a 60-liter capacity, precise microcontroller control, and eight dedicated sterilization programs. Its 304 stainless steel construction, drying function, and real-time data logging make it an excellent choice for sterilizing a wide range of materials in medical, research, and industrial settings.

How does the drying function benefit the sterilization process in the Vertical Autoclave LVA-M11?

The built-in drying function of Vertical Autoclave LVA-M11 ensures that sterilized instruments and materials are free of residual moisture. This is essential for maintaining sterility, particularly for wrapped or porous items, and helps reduce preparation time by allowing immediate storage or use post-sterilization.

What materials can be sterilized using the Vertical Autoclave LVA-M11?

Our Vertical Autoclave LVA-M11 can effectively sterilize rubber materials, surgical dressings, unwrapped and wrapped instruments, liquids, culture media, hollow items, and porous loads. Its wide compatibility makes it suitable for hospitals, laboratories, and pharmaceutical production environments.

How user-friendly is the control system of the Vertical Autoclave LVA-M11?

Vertical Autoclave LVA-M11 features a 5-inch color capacitive touchscreen and a microcontroller-based system. This allows operators to easily select from pre-set programs, monitor live sterilization data, and print cycle records, ensuring accurate and effortless operation.

What safety and compliance features does the Vertical Autoclave LVA-M11 include?

Our Vertical Autoclave LVA-M11 is equipped with a pressure gauge, high-accuracy temperature control (±0.1°C), and automated safety cutoffs to prevent overheating or overpressure. Its compliance with operational standards and use of corrosion-resistant materials ensure long-term safety and reliability.

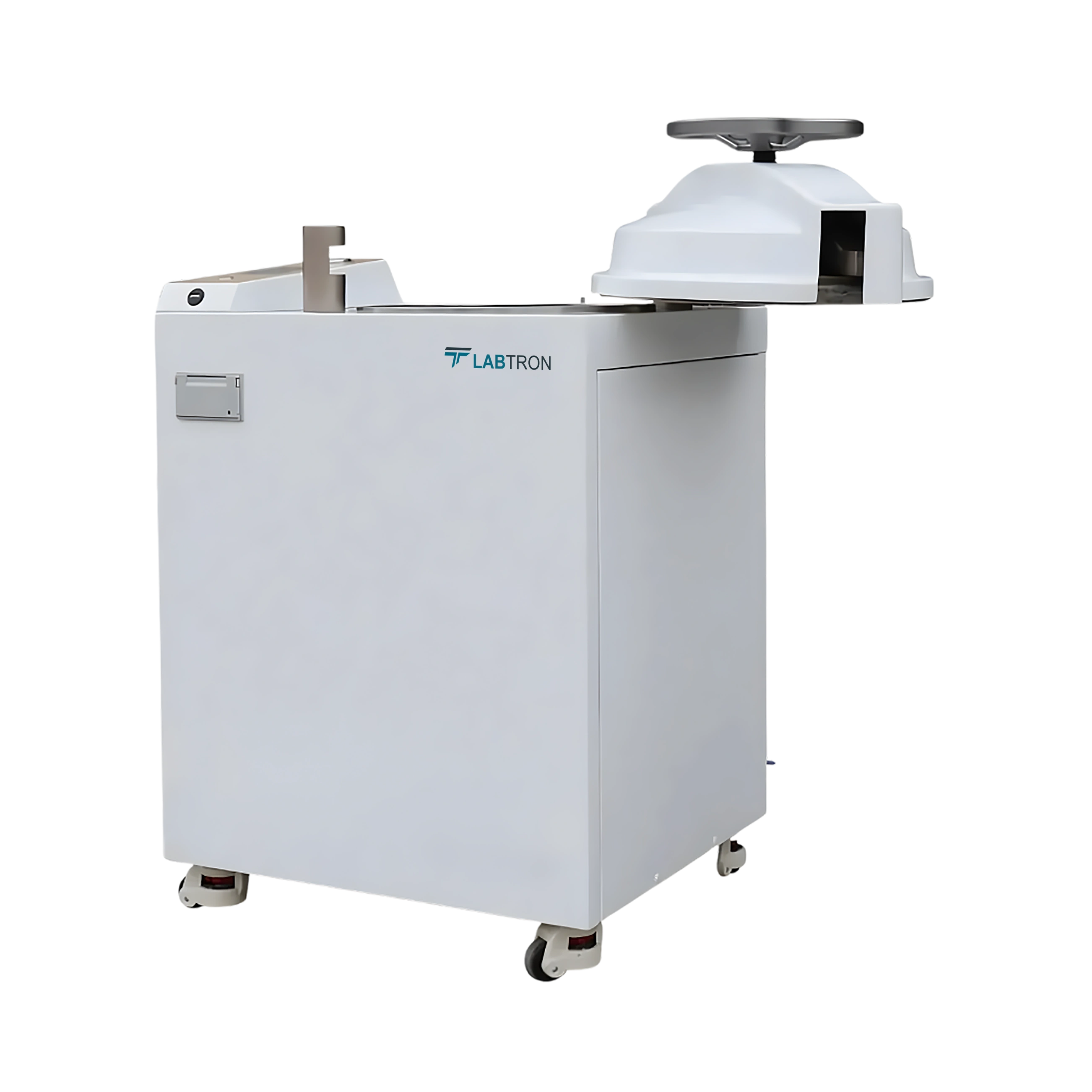

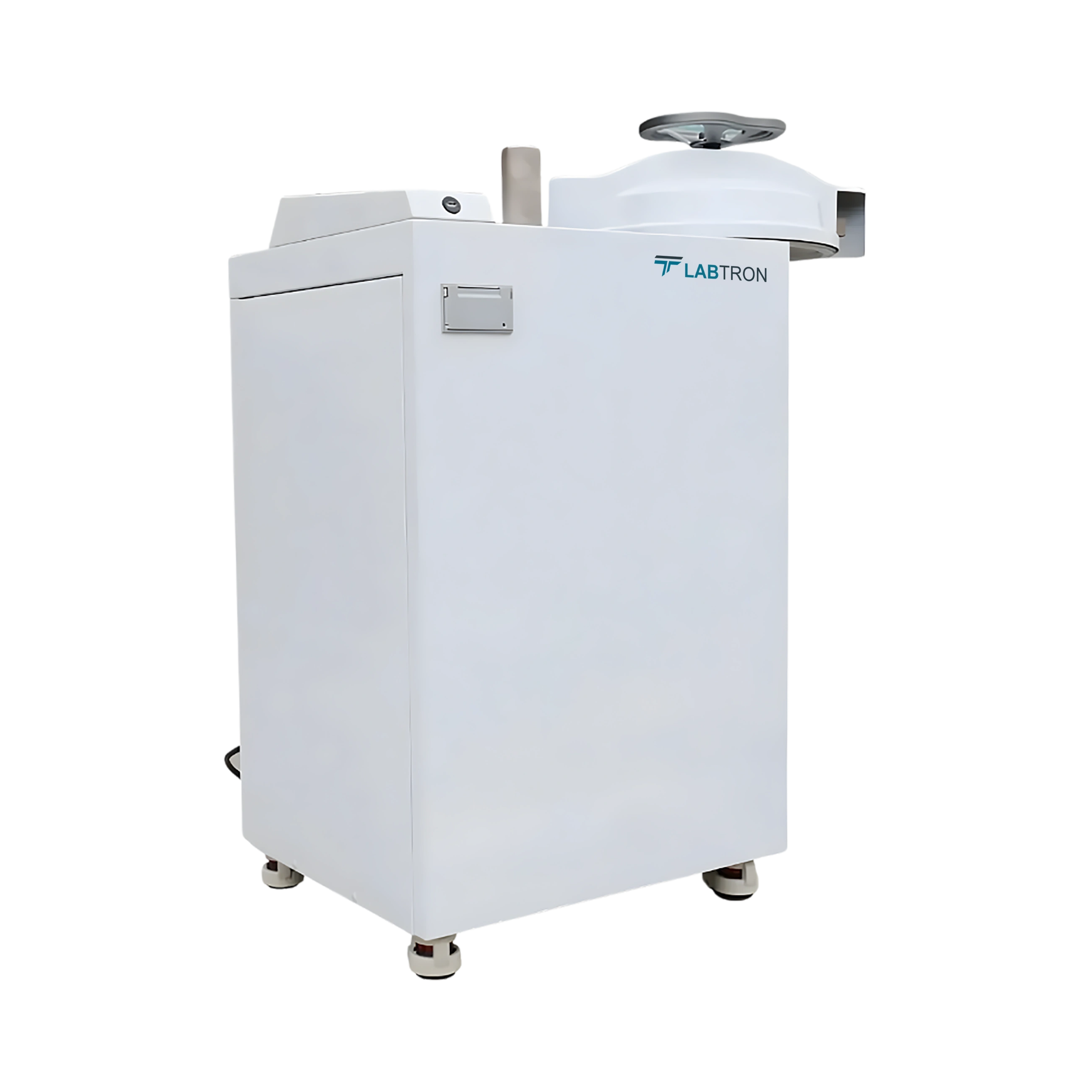

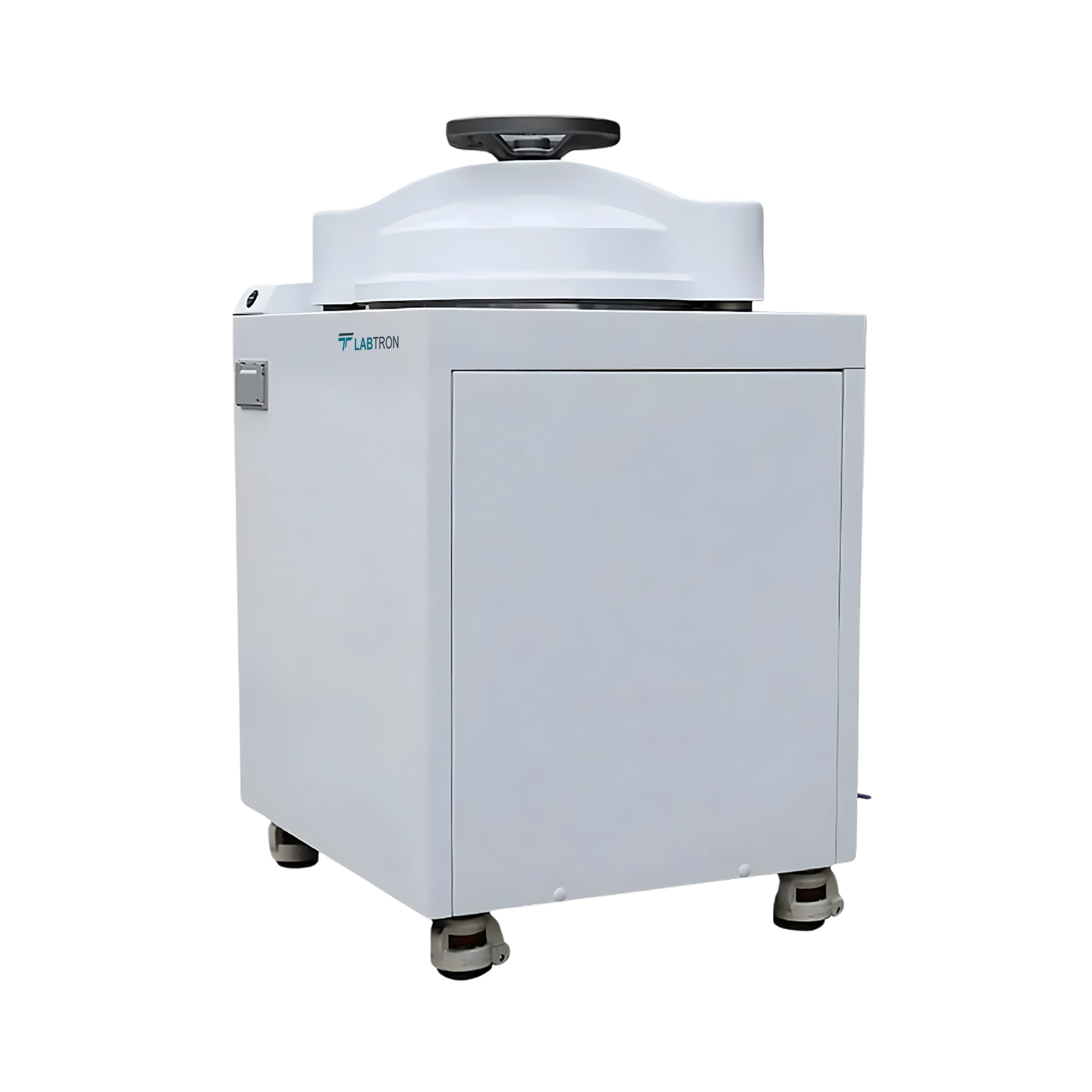

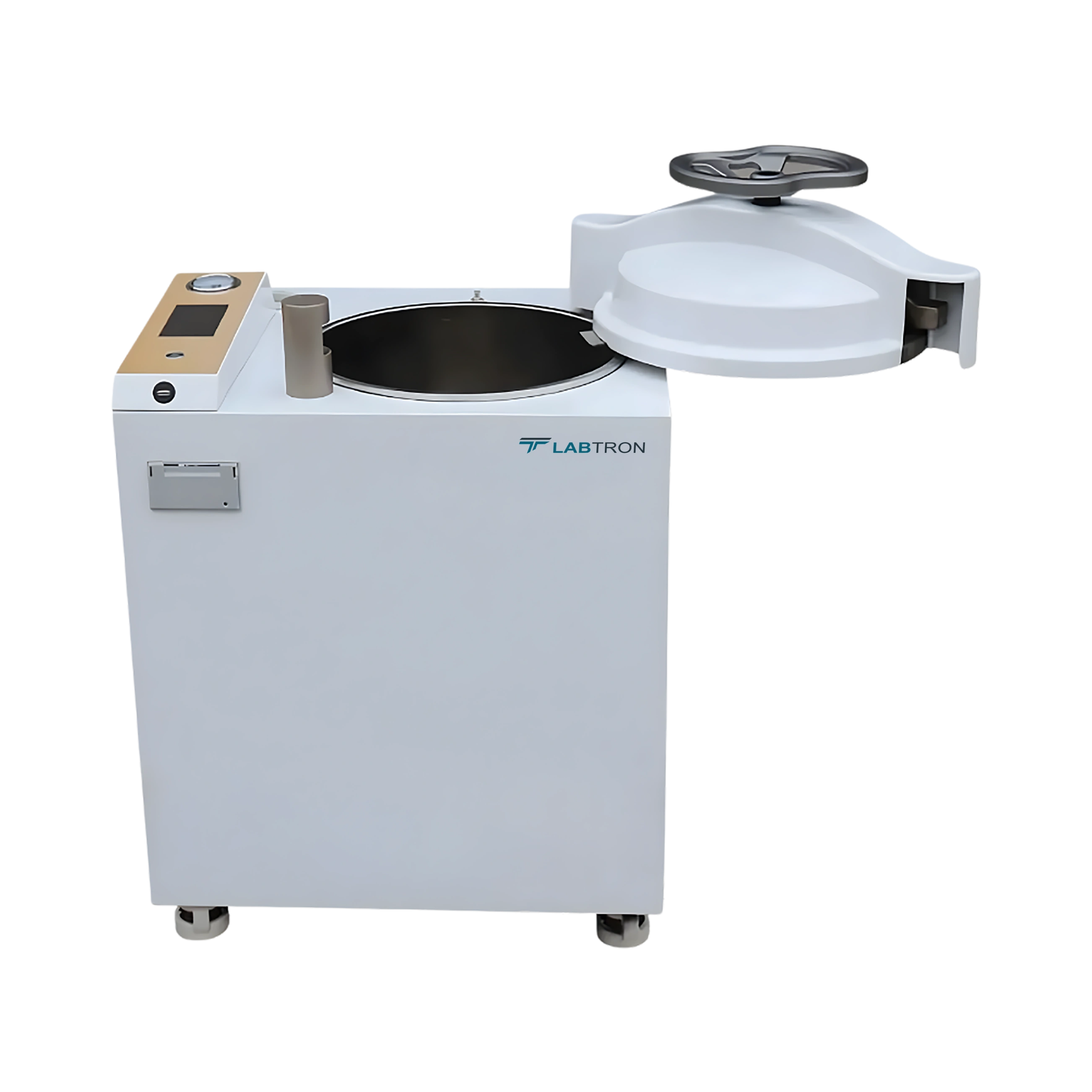

Vertical Autoclave LVA-M11

Name: Vertical Autoclave LVA-M11
Brand: Labtron
SKU: LVA-M11
Rating: 4.7 (739 reviews)

Vertical Autoclave LVA-M11 has a capacity of 60 L and features drying function. Its control system uses a microcontroller, operated via a 5-inch color capacitive touch screen. The main tank body is made of 304 stainless-steel, enhancing its durability. It features eight sterilization programs tailored for different applications such as instruments, liquids, and culture media. Our autoclave is suitable for various laboratories ensuring proper sterilization of rubber, wrapped and unwrapped instruments.

Request Quote

Capacity	60 L
Drying Function	Yes
Working Temperature Range	121°C to 134°C
Design Temperature	150℃
Working Pressure	0.22 MPa
Time for Sterilization	20 min at 121℃ 4 min at 134℃
Display	5-inch color touchscreen
Permissible Temperature	5 to 40℃
Permissible Humidity	Up to 80%
Atmospheric Pressure	70 kPa to 106 kPa
Power Consumption	4.6 kW
Power Supply	220 V 50 Hz
Chamber Dimension	Փ 386 × 515 mm
Overall Dimension	560 × 640 × 990 mm

Drainage system
Built-in water injection motor
Exhaust system
Built-in printer
Flexible hose pipeline
Pressure gauge

Our Vertical Autoclave LVA-M11 is used in hospitals, laboratories, pharmaceutical, and food industries for sterilizing medical instruments, dressings, rubber, liquids, implants, porous, and hollow instruments resistant to high temperatures.

Download catalog for
Vertical Autoclave LVA-M11 Catalog

Available Range :

Vertical Autoclave LVA-C13 : 100 L Vertical Laboratory Autoclave LVA-G13 : 100L Vertical Autoclave LVA-L12 : 110 L Vertical Autoclave LVA-C14 : 120 L Vertical Autoclave LVA-C15 : 150 L Vertical Autoclave LVA-N13 : 200 L Vertical Autoclave LVA-N10 : 200L Vertical Autoclave LVA-E10 : 30 L Vertical Autoclave LVA-C10 : 35 L Vertical Laboratory Autoclave LVA-G10 : 35L Vertical Laboratory Autoclave LVA-K14 : 40 L Vertical Autoclave LVA-C11 : 50 L Vertical Laboratory Autoclave LVA-G11 : 50L Vertical Autoclave LVA-L21 : 54 L Vertical Laboratory Autoclave LVA-K10 : 60 L Vertical Autoclave LVA-C12 : 75 L Vertical Laboratory Autoclave LVA-G12 : 75L Vertical Laboratory Autoclave LVA-K11 : 80 L Vertical Autoclave LVA-L11 : 85 L

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.

Vertical Autoclave LVA-H15

Chamber Capacity : 200 L
Working Pressure : 0 to 0.22 MPa
Working Temperature Range : 105 to 134℃
Sterilization Time : 0 to 99 min or 0 to 99 hr 59 min

Compare Remove

Vertical Autoclave LVA-B13

Capacity : 100 L
Working Pressure : 0.22 MPa
Working Temperature : 134°C
Temperature Range : 105 to 134°C

Compare Remove

Vertical Autoclave LVA-H10

Capacity : 35 L
Working Pressure : 0 to 0.22 MPa
Working Temperature Range : 105 to 134°C
Sterilization Time : 0 to 99 min or 0 to 99 hour 59 min

Compare Remove

Vertical Autoclave LVA-F22

Capacity : 100 L
Sterilization Temperature : 134℃
Sterilization Pressure : 0.22 Mpa
Time Range : 0 to 99 min or 0 to 99 h 59 min

Compare Remove

Vertical Autoclave LVA-C10

Capacity : 35 L
Sterilization Temperature : 134 °C
Sterilization Pressure : 0.22 Mpa
Chamber Dimension ( Φ × D ) : 318 × 450 mm

Compare Remove

Vertical Autoclave LVA-Q10

Capacity : 35 L
Working Pressure : 0.22 MPa
Working Temperature : 100 to 134℃
Sterilization Time : 0 to 9999 minutes

Compare Remove

Vertical Autoclave LVA-A15

Capacity : 150 L
Maximum Working Pressure : 0.23 MPa
Working Pressure : 0.22 MPa
Working Temperature : 134°C

Compare Remove

Vertical Autoclave LVA-N11

Capacity : 100 L
Chamber Volume : Φ500 × 550 mm
Chamber Thickness : 3.0 mm
Temperature Range : 50 °C to 134 °C

Compare Remove

Vertical Autoclave LVA-M11 FAQ's

Labtron’s Vertical Autoclave LVA-M11 offers a 60-liter capacity, precise microcontroller control, and eight dedicated sterilization programs. Its 304 stainless steel construction, drying function, and real-time data logging make it an excellent choice for sterilizing a wide range of materials in medical, research, and industrial settings.
The built-in drying function of Vertical Autoclave LVA-M11 ensures that sterilized instruments and materials are free of residual moisture. This is essential for maintaining sterility, particularly for wrapped or porous items, and helps reduce preparation time by allowing immediate storage or use post-sterilization.
Our Vertical Autoclave LVA-M11 can effectively sterilize rubber materials, surgical dressings, unwrapped and wrapped instruments, liquids, culture media, hollow items, and porous loads. Its wide compatibility makes it suitable for hospitals, laboratories, and pharmaceutical production environments.
Vertical Autoclave LVA-M11 features a 5-inch color capacitive touchscreen and a microcontroller-based system. This allows operators to easily select from pre-set programs, monitor live sterilization data, and print cycle records, ensuring accurate and effortless operation.
Our Vertical Autoclave LVA-M11 is equipped with a pressure gauge, high-accuracy temperature control (±0.1°C), and automated safety cutoffs to prevent overheating or overpressure. Its compliance with operational standards and use of corrosion-resistant materials ensure long-term safety and reliability.
