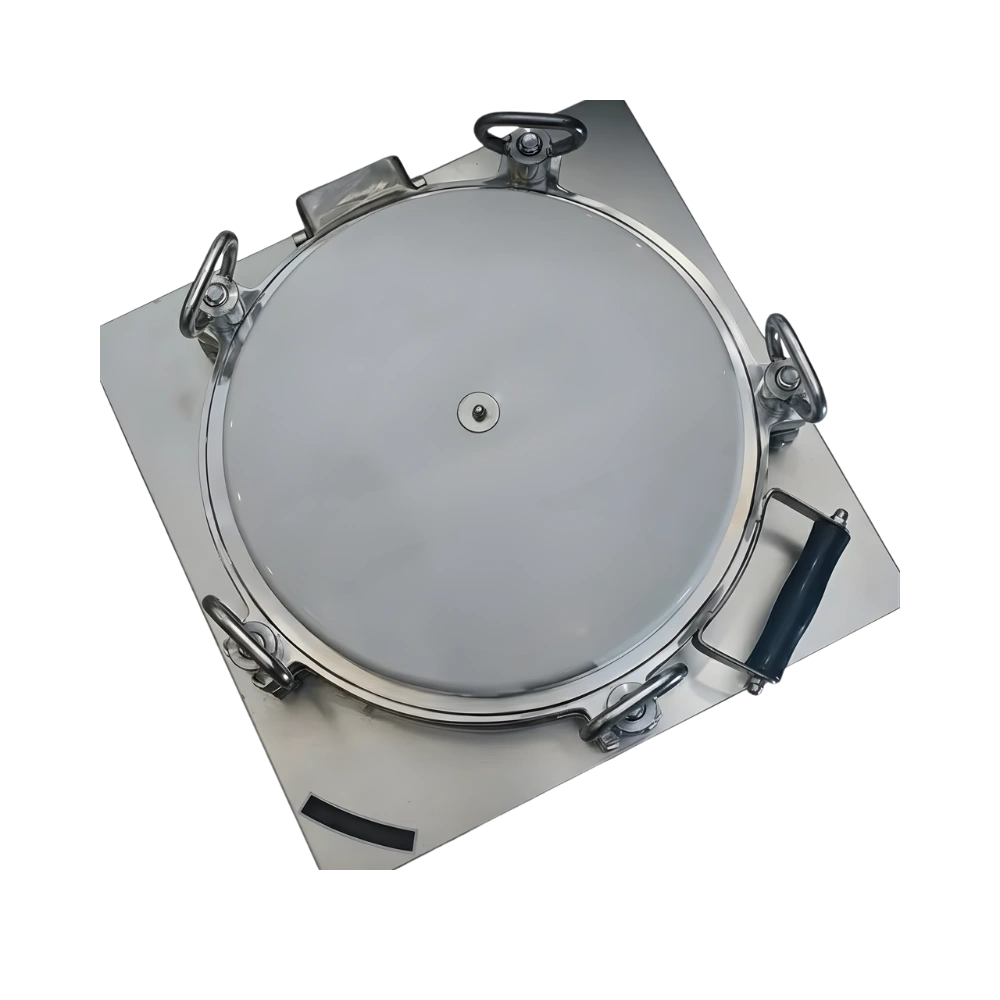

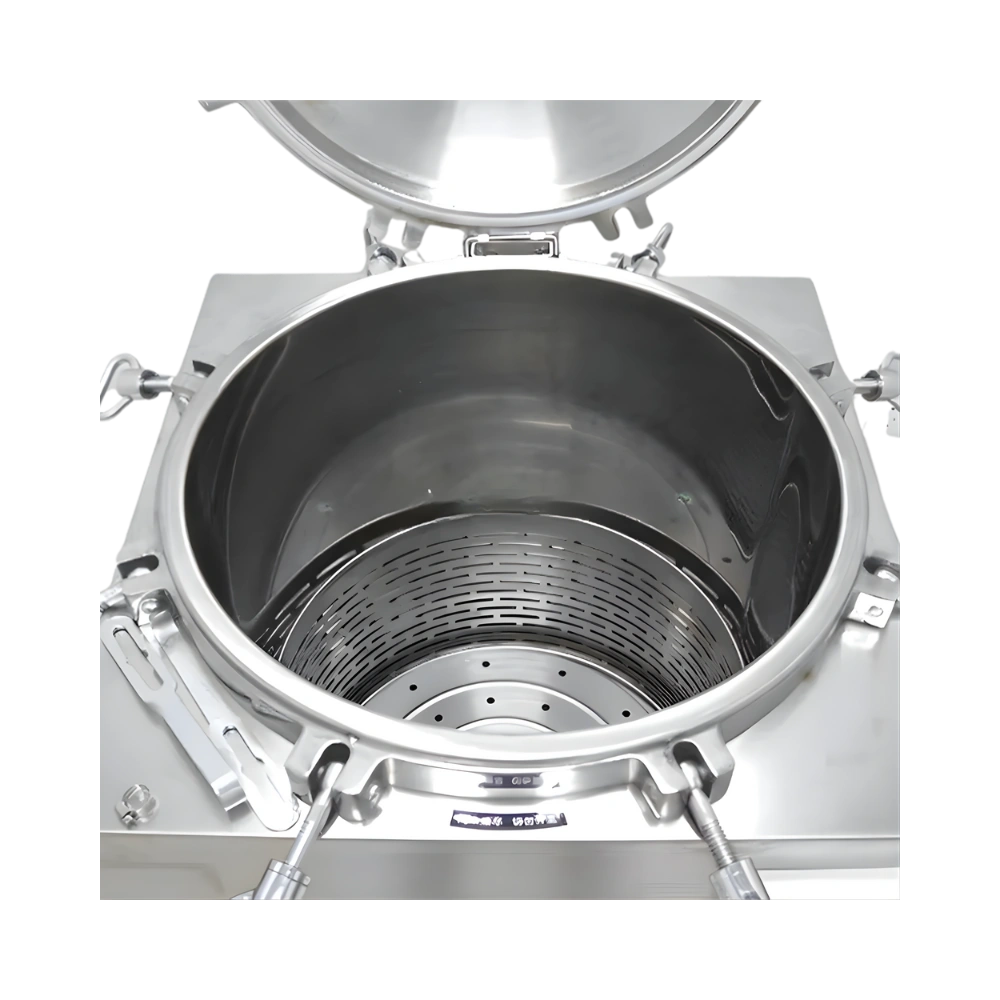

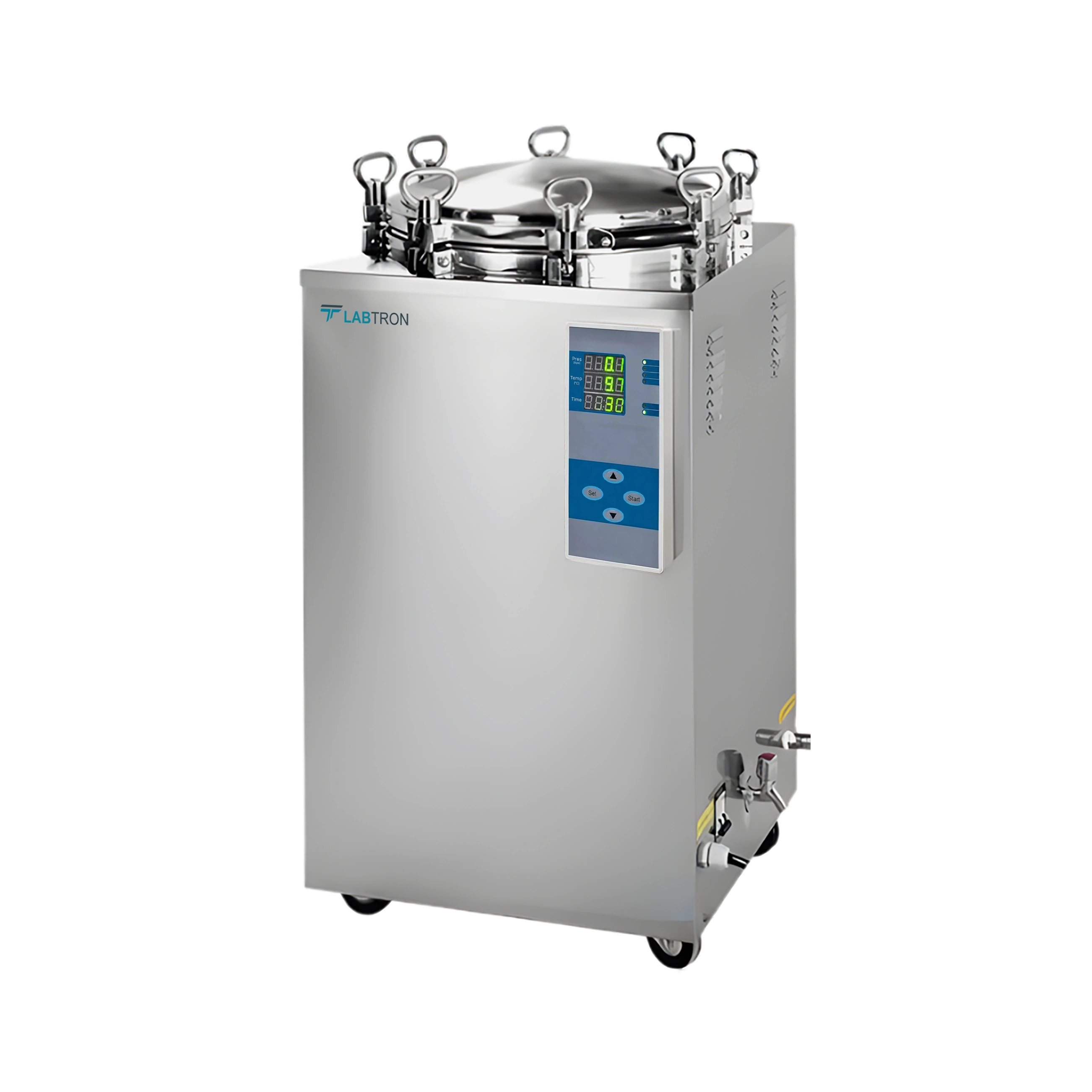

Vertical Autoclave LVA-B15

Vertical Autoclave LVA-B15

Vertical Autoclave LVA-B15 operates at a working pressure of 0.22 MPa and a consistent temperature of 134°C. Its sterilization time can be set from 0 to 99 hours and 59 minutes, ensuring reliable performance across loads. Additionally, its microprocessor-based control system and an easy-to-read digital display streamlines operation and monitoring. Its built-in steam generator and fully stainless-steel chamber enhance hygiene and longevity. This autoclave features a space-efficient design that makes it ideal for high-throughput environments.

Vertical Autoclave LVA-B15
Vertical Autoclave LVA-B15
Vertical Autoclave LVA-B15
Request Quote
Capacity 150 L
Working Pressure 0.22 MPa
Working Temperature 134°C
Temperature Range 105 to 134°C
Sterilization Time 0 to 99 hours 59 minutes
Temperature Accuracy ±0.1°C
Heat Uniformity ≤1°C
Control System Microprocessor-based
Display Digital Display

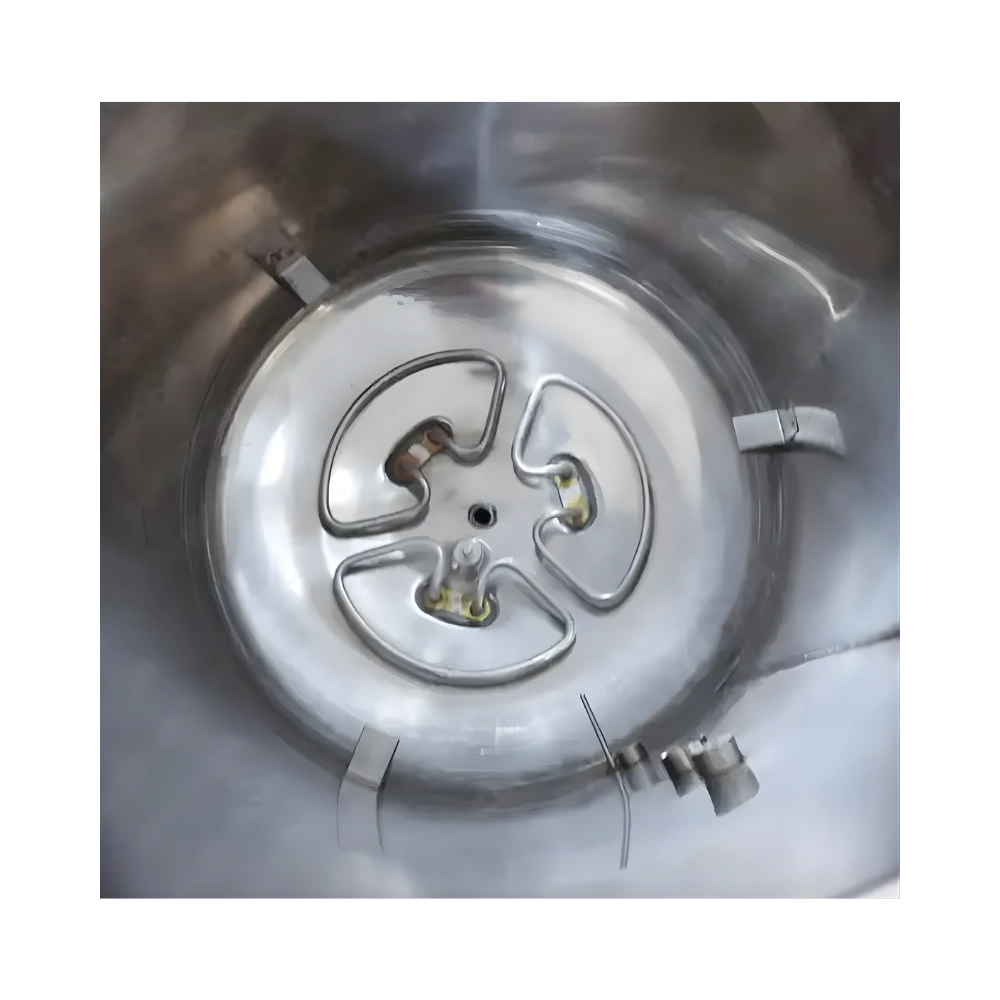

Steam Generator Built-in, Stainless Steel 304
Chamber Material Fully Stainless Steel 304
Power Supply 110 to 220V, 50/60Hz
Power Consumption 6.0 kW
Chamber Volume 150L / Ø510 × 740 mm
Product Dimensions 670 × 690 × 1330 mm
Package Dimensions 760 × 760 × 1370 mm
Net Weight 110 kg
Gross Weight 140 kg
  • High-Capacity Chamber
  • Built-in Steam Generator
  • Wide Temperature Range
  • Microprocessor-Based Control System
  • Excellent Temperature Accuracy & Uniformity
  • Programmable Sterilization Time
  • Versatile Power Compatibility
  • Fully Stainless-Steel Chamber
  • User-Friendly Digital Display
  • Compact Footprint

Our Vertical Autoclave LVA-B15 is ideal for sterilizing laboratory glassware, instruments, media, and waste in research facilities, pharmaceutical units, microbiology labs, and diagnostic centers.

Accessories no.NameMaterialQuantity

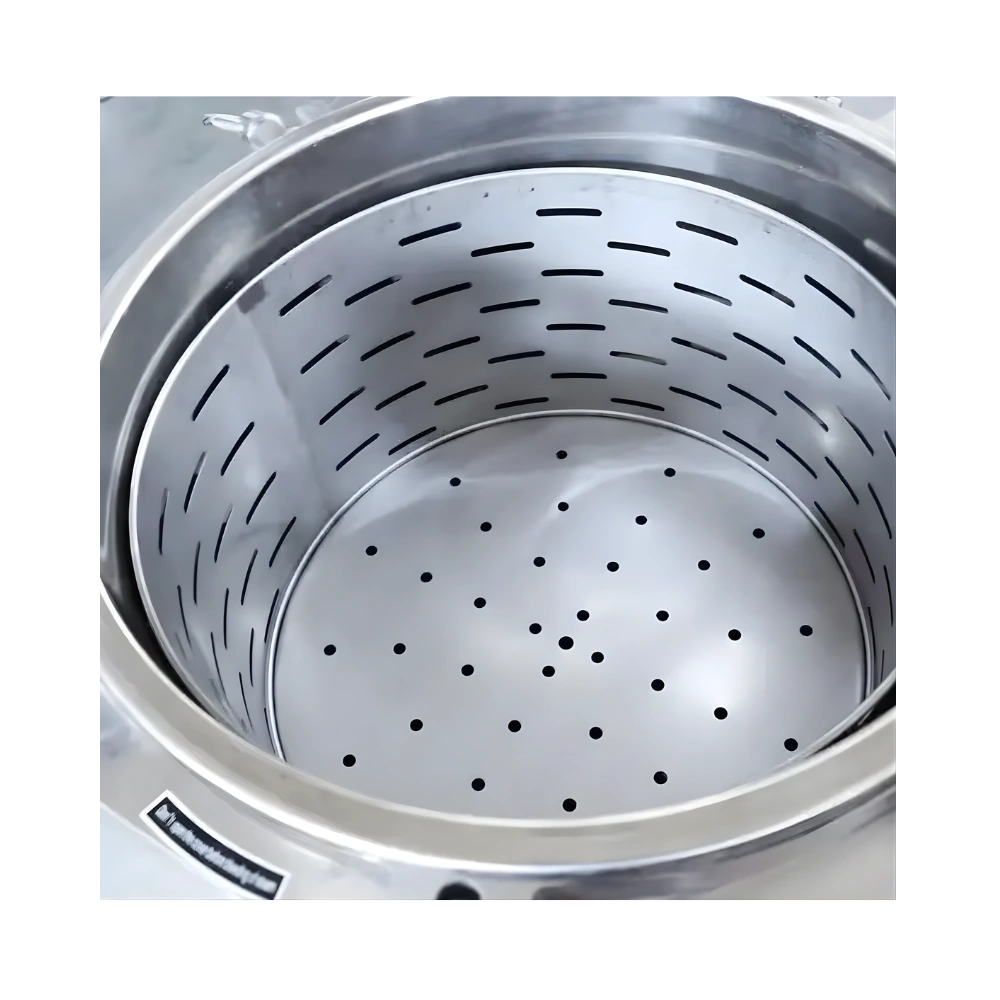

1BasketStainless steel02 pcs
  • Drying System

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.

Vertical Autoclave LVA-E12

Vertical Autoclave LVA-E12

  • Volume of Chamber : 50 L
  • Chamber thickness : 2 mm
  • Working temperature : 50 °C to 134 °C
  • Working pressure : 0.217 MPa
Vertical Autoclave LVA-N12

Vertical Autoclave LVA-N12

  • Capacity : 150 L
  • Chamber Volume : Φ500 × 760 mm
  • Chamber Thickness : 3.0 mm
  • Temperature Range : 50 °C to 134 °C
Vertical Autoclave LVA-L11

Vertical Autoclave LVA-L11

  • Capacity : 85 L
  • Number of baskets : 2
  • Sterilization temperature : 105 °C to 138 °C
  • Working environment temperature : 5 °C to 45 °C
Vertical Autoclave LVA-D11
Vertical Autoclave LVA-D11
  • Capacity : 50 L
  • Chamber Volume : 340×550 mm
  • Working Sterilization Temperature : 134°C
  • Working Sterilization Pressure : 0.22 MPa
Vertical Autoclave LVA-N10
Vertical Autoclave LVA-N10
  • Capacity : 200L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 134°C
  • Working Temperature Range : 50℃ to 134℃
Vertical Laboratory Autoclave LVA-C15

Vertical Laboratory Autoclave LVA-C15

  • Capacity : 150 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 Mpa
  • Chamber Dimension ( Φ × D ) : 510 × 740 mm
Vertical Laboratory Autoclave LVA-I14

Vertical Laboratory Autoclave LVA-I14

  • Capacity : 120 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 Mpa
  • Chamber Dimension ( Φ × D ) : 460 × 670 mm
Vertical Autoclave LVA-Q12

Vertical Autoclave LVA-Q12

  • Capacity : 75 L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 100 to 134℃
  • Sterilization Time : 0 to 9999 minutes

Vertical Autoclave LVA-B15 FAQ's
  • The Vertical Autoclave LVA-B15 is designed with a large 150L chamber, making it ideal for sterilizing bulky loads in laboratories, hospitals, and research facilities. It features a microprocessor-based control system for precise temperature and pressure regulation, with a working temperature of 134°C and a programmable temperature range from 105 to 134°C. Its temperature accuracy of ±0.1°C and heat uniformity within less than equal to 1°C ensure reliable sterilization of sensitive materials. The built-in stainless steel 304 steam generator and fully stainless-steel chamber add durability and efficiency, making it a robust choice for high-demand environments.

  • The Vertical Autoclave LVA-B15 offers superior accuracy and safety features to maintain consistent sterilization quality. It is equipped with a microprocessor-based control system that closely monitors and controls sterilization parameters. The temperature accuracy of ±0.1°C and heat uniformity of less than equal to 1°C help avoid overheating or cold spots. The unit also comes with a digital display for easy monitoring and programming of cycles, while the stainless-steel chamber resists corrosion and ensures long-term operational safety. These features collectively protect both the user and the load during every sterilization cycle.

  • The Vertical Autoclave LVA-B15 is ideal for a range of applications across laboratories, hospitals, and pharmaceutical industries. Its spacious chamber and powerful steam sterilization capabilities make it suitable for sterilizing surgical instruments, laboratory glassware, culture media, gowns, and biohazard waste. Its precise controls and high reliability make it especially valuable in microbiology labs, diagnostic centers, and research institutes that require thorough and frequent sterilization of large or sensitive items.

  • Although it offers a large 150L chamber, the Vertical Autoclave LVA-B15 is compact in its external design, which helps save valuable floor space in crowded laboratory or hospital environments. Its vertical structure allows it to fit in tight corners while still accommodating large volumes for sterilization. The inclusion of built-in systems like the steam generator also reduces the need for external components, streamlining the setup and making the unit more space-efficient and user-friendly.

  • The LVA-B15 is a Class N autoclave designed for sterilizing unwrapped, solid, and non-porous instruments. It is equipped with a digital display for precise cycle monitoring and a programmable drying system that allows users to adjust drying times according to the load. These features enhance control, improve drying efficiency, and ensure instruments are ready for immediate use or storage. The unit combines user-friendly operation with reliable sterilization performance.
