Vertical Autoclave LVA-L21

Name: Vertical Autoclave LVA-L21
Brand: Labtron
SKU: LVA-L21
Rating: 4.9 (1000 reviews)

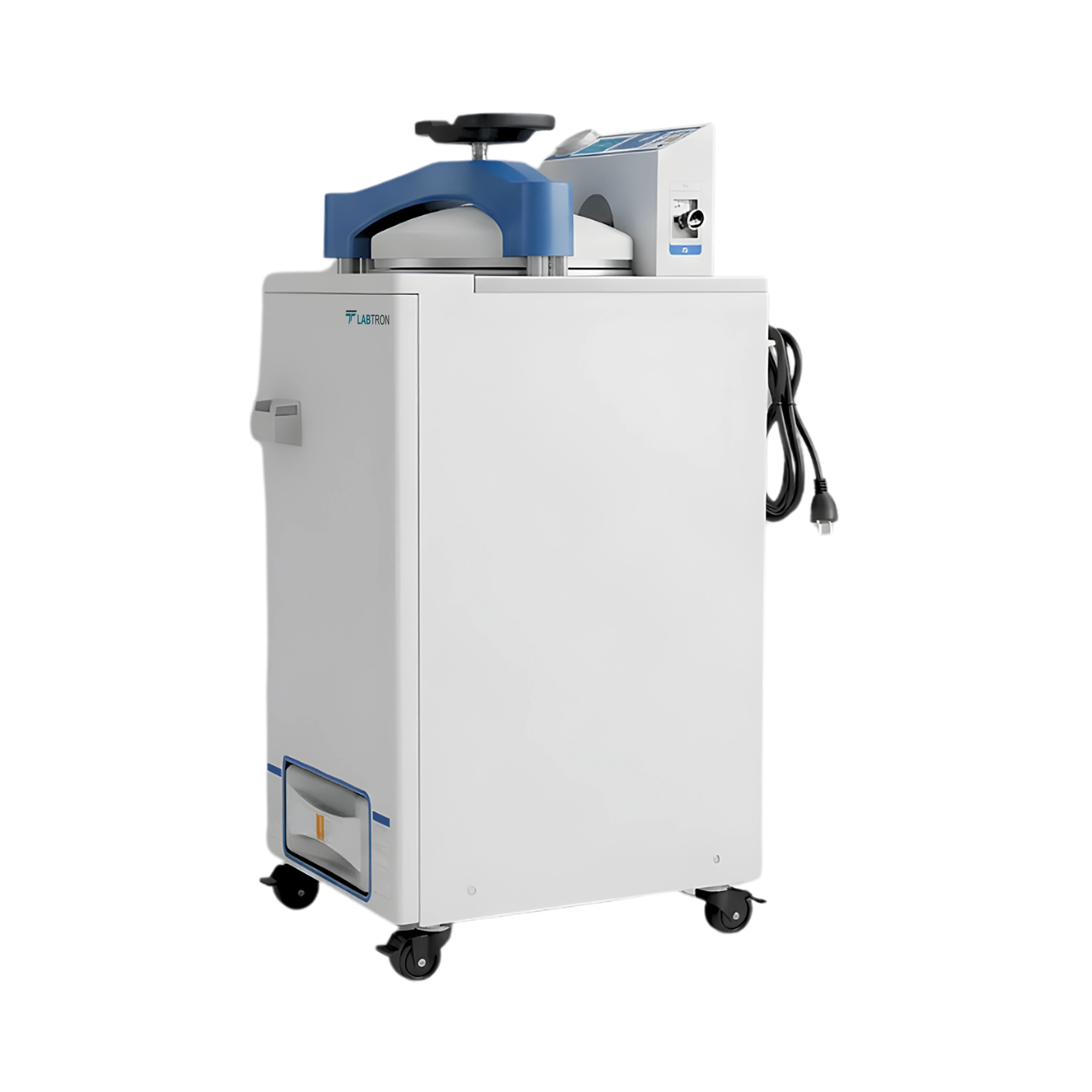

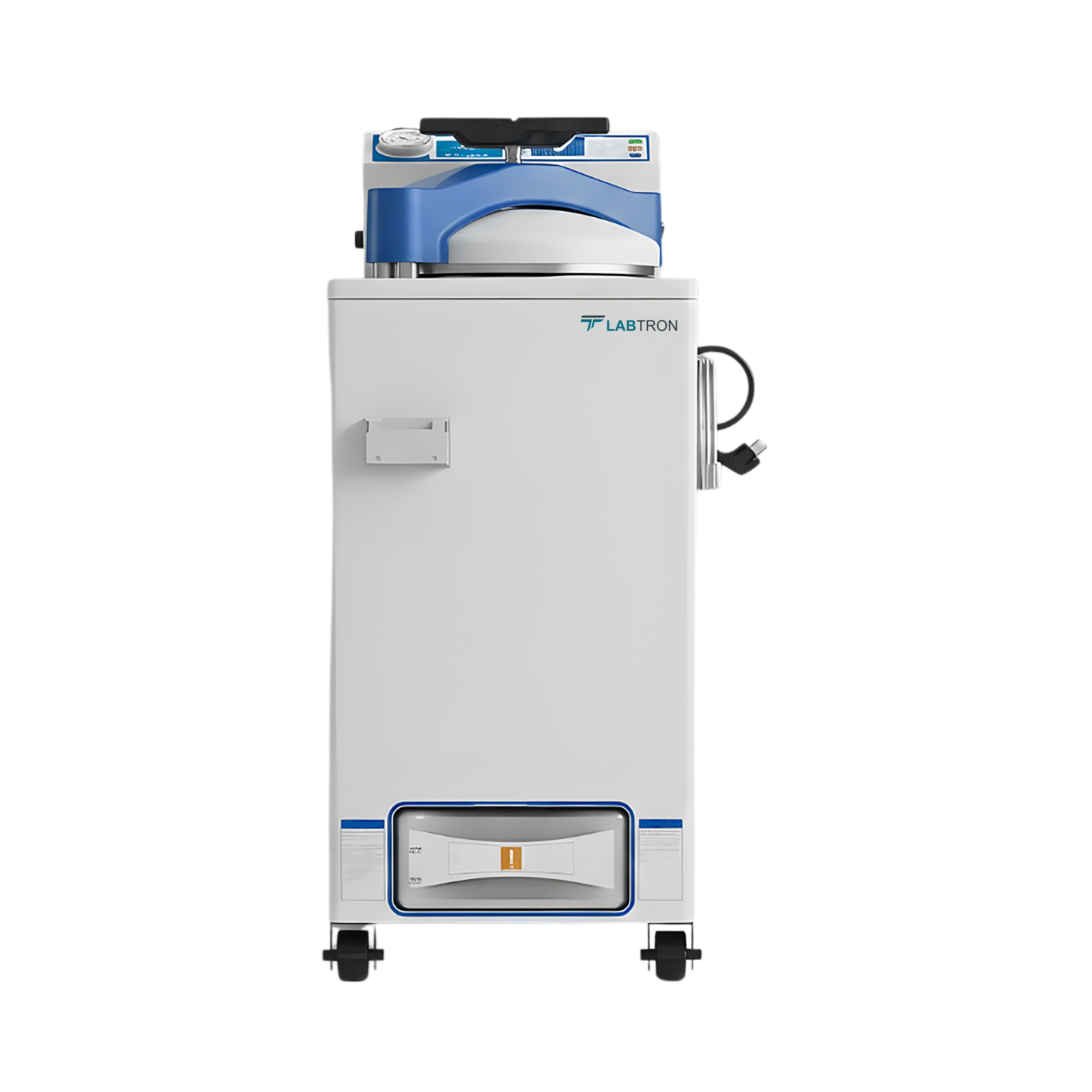

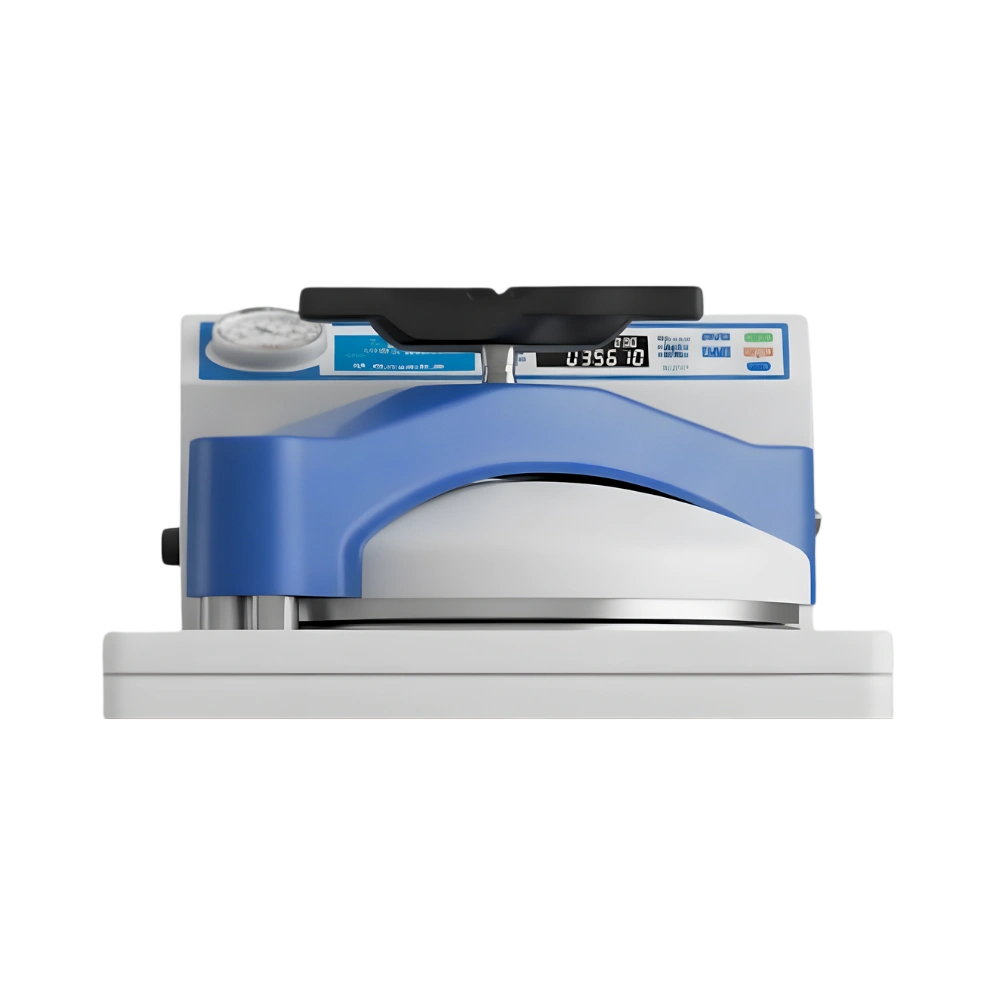

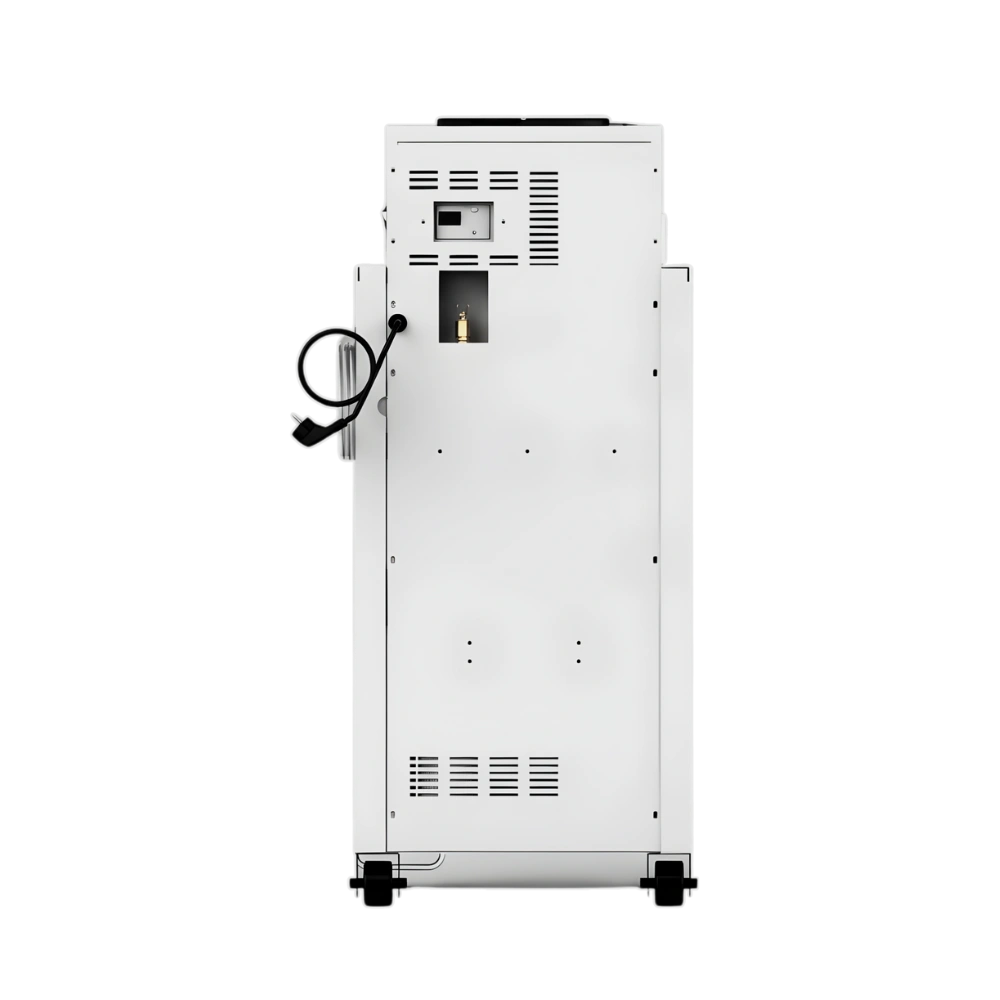

Vertical Autoclave LVA-L21 is fully automatic top loading vertical pressure steam sterilizer with chamber capacity of 54 L, working sterilization temperature ranges from 105 to 135˚C and 0.25 MPa maximum working pressure respectively. Designed with four wheels (castors) at base for easy movement of the unit. The standard (Diameter 300 × 200) × 3 of stainless steel baskets to keep the sterilization material load. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property. It is designed with microcomputer control system and big LCD screen to show all sterilization data.

Request Quote

Capacity	54 L
Chamber dimension	Diameter 325 × 460 mm
Chamber material	SUS 304
Stainless steel basket	(Diameter 300 × 200) × 3
Temperature accuracy	0.1˚C
Temperature	5 to 45˚C
Humidity	10 % to 85 %
Display system	LCD displayer
Sterilization temperature	105 to 135˚C
Sterilization time range	1 to 6000 minutes
Melting temperature	60 to 100˚C
Melting time	1 to 6000 minutes
Warming temperature	45 to 60˚C
Warming time range	1 to 9999 minutes
Pressure gauge	-0.1 to -0.5 Mpa
Dimension	460×542×1070 mm
Packing dimension	690 × 610 × 125 mm
Power consumption	2600 W
Power supply	220 V, 32 A, 50/60 Hz
Weight	124 kg

Designed with microcomputer control system
Multilayered pressure protection system
Unique anti scaled design
Sterilization temperature ranges from 105 to 135˚C
Equipped with multiple sterilization cycles and memory system
Designed with big LCD screen to show all sterilization data
Over temperature protection system
Automatic troubleshooting system
Automatic internal discharging with steam collecting bottle inside
Exhaust speed is selected by 6 levels

Vertical autoclave used in pharmaceutical industry, medicine and health care industry, Biotechnology, Microbiology for effective sterilization of glassware’s, biological materials, culture media and others.

Accessories no.	Name	Material	Quantity
1	Basket	Stainless steel	03 pcs

Download catalog for
Vertical Autoclave LVA-L21 Catalog

Available Range :

Vertical Laboratory Autoclave LVA-C13 : 100 L Vertical Laboratory Autoclave LVA-G13 : 100L Vertical Autoclave LVA-L12 : 110 L Vertical Laboratory Autoclave LVA-C14 : 120 L Vertical Laboratory Autoclave LVA-C15 : 150 L Vertical Autoclave LVA-N13 : 200 L Vertical Autoclave LVA-N10 : 200L Vertical Autoclave LVA-E10 : 30 L Vertical Laboratory Autoclave LVA-C10 : 35 L Vertical Laboratory Autoclave LVA-G10 : 35L Vertical Laboratory Autoclave LVA-K14 : 40 L Vertical Laboratory Autoclave LVA-C11 : 50 L Vertical Laboratory Autoclave LVA-G11 : 50L Vertical Autoclave LVA-L21 : 54 L Vertical Laboratory Autoclave LVA-K10 : 60 L Vertical Laboratory Autoclave LVA-C12 : 75 L Vertical Laboratory Autoclave LVA-G12 : 75L Vertical Laboratory Autoclave LVA-K11 : 80 L Vertical Autoclave LVA-L11 : 85 L

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.
