What makes the Vertical Autoclave LVA-M13 ideal for laboratory and healthcare sterilization needs?

Labtron’s Vertical Autoclave LVA-M13 offers a 100-liter capacity, precise microcontroller control, and eight dedicated sterilization programs. Its 304 stainless steel construction, drying function, and real-time data logging make it an excellent choice for sterilizing a wide range of materials in medical, research, and industrial settings.

How does the drying function benefit the sterilization process in the Vertical Autoclave LVA-M13?

The built-in drying function of Vertical Autoclave LVA-M13 ensures that sterilized instruments and materials are free of residual moisture. This is essential for maintaining sterility, particularly for wrapped or porous items, and helps reduce preparation time by allowing immediate storage or use post-sterilization.

How does the Vertical Autoclave LVA-M13 ensure operator safety during operation?

Vertical Autoclave LVA-M13 features a temperature protection sensor that cuts off the system if temperatures exceed safe limits. It also includes a pressure gauge for real-time monitoring and a door switch that prevents accidental opening during the sterilization cycle, ensuring safe and reliable usage.

How user-friendly is the control system of the Vertical Autoclave LVA-M13?

Vertical Autoclave LVA-M13 features a 5-inch color capacitive touchscreen and a microcontroller-based system. This allows operators to easily select from pre-set programs, monitor live sterilization data, and print cycle records, ensuring accurate and effortless operation.

What makes the construction of the Vertical Autoclave LVA-M13 durable and long-lasting?

Vertical Autoclave LVA-M13 comes with two corrosion-resistant stainless-steel baskets that ensure longevity and ease of cleaning. The autoclave’s exterior and internal components are designed to withstand high pressure and temperature, making it a reliable choice for daily sterilization tasks.

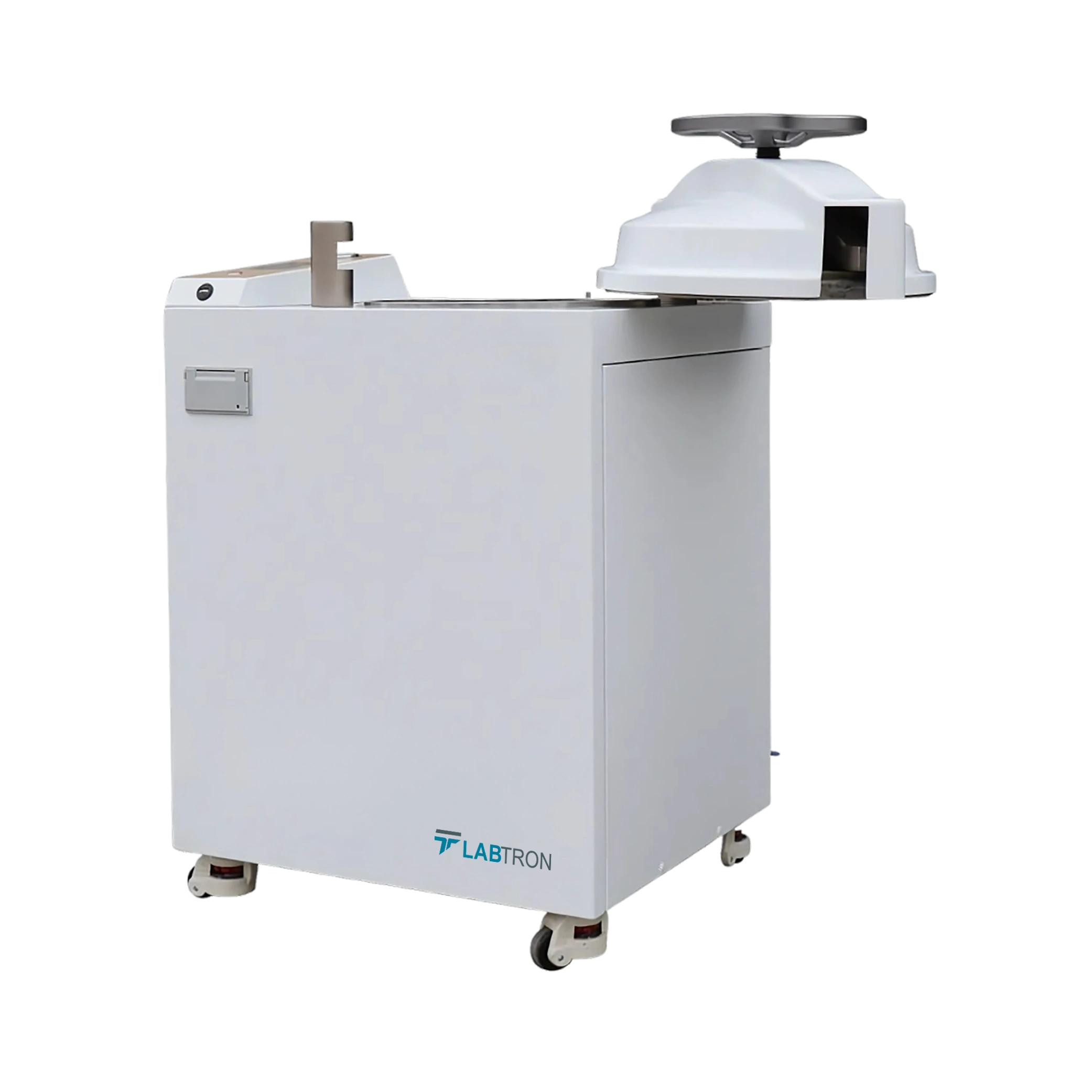

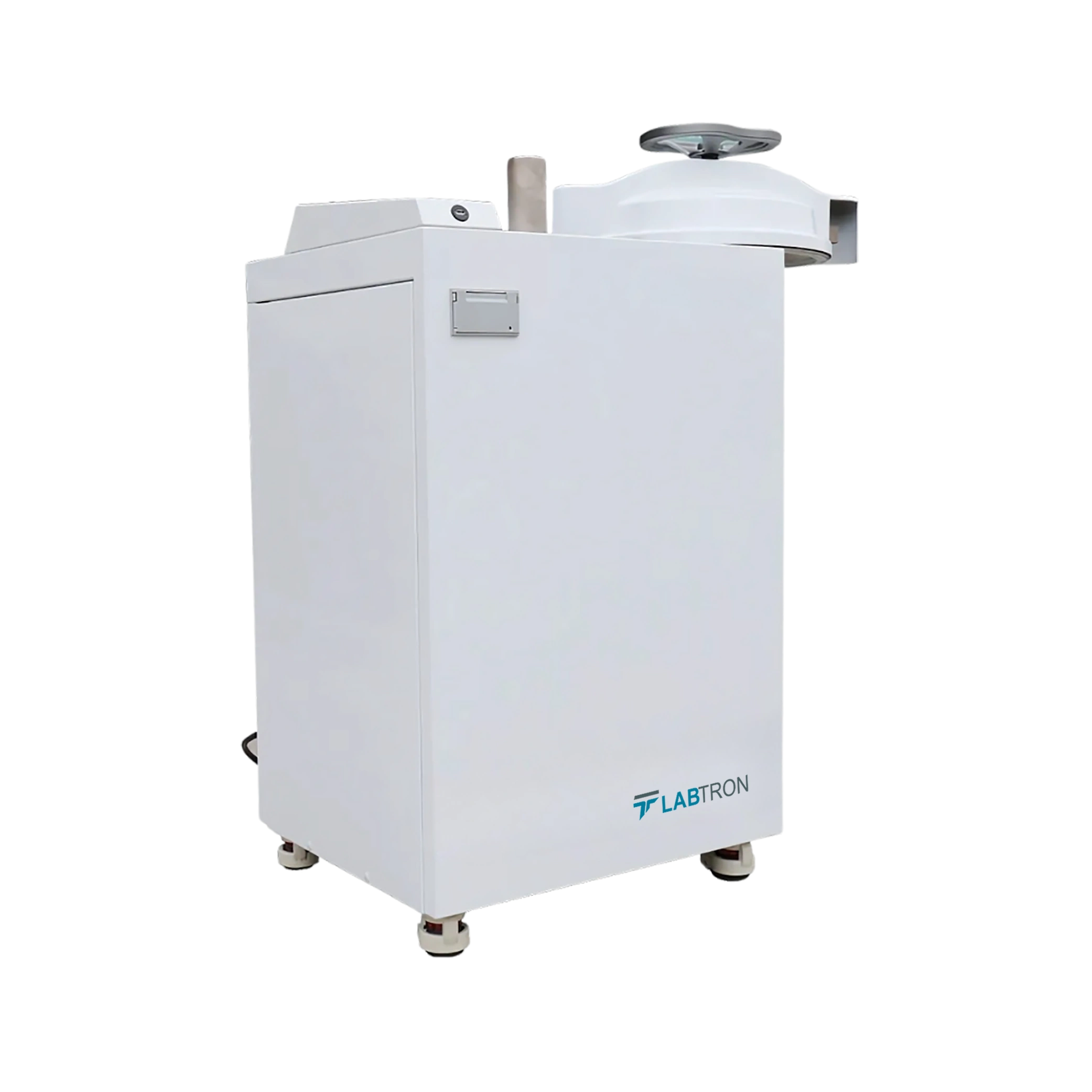

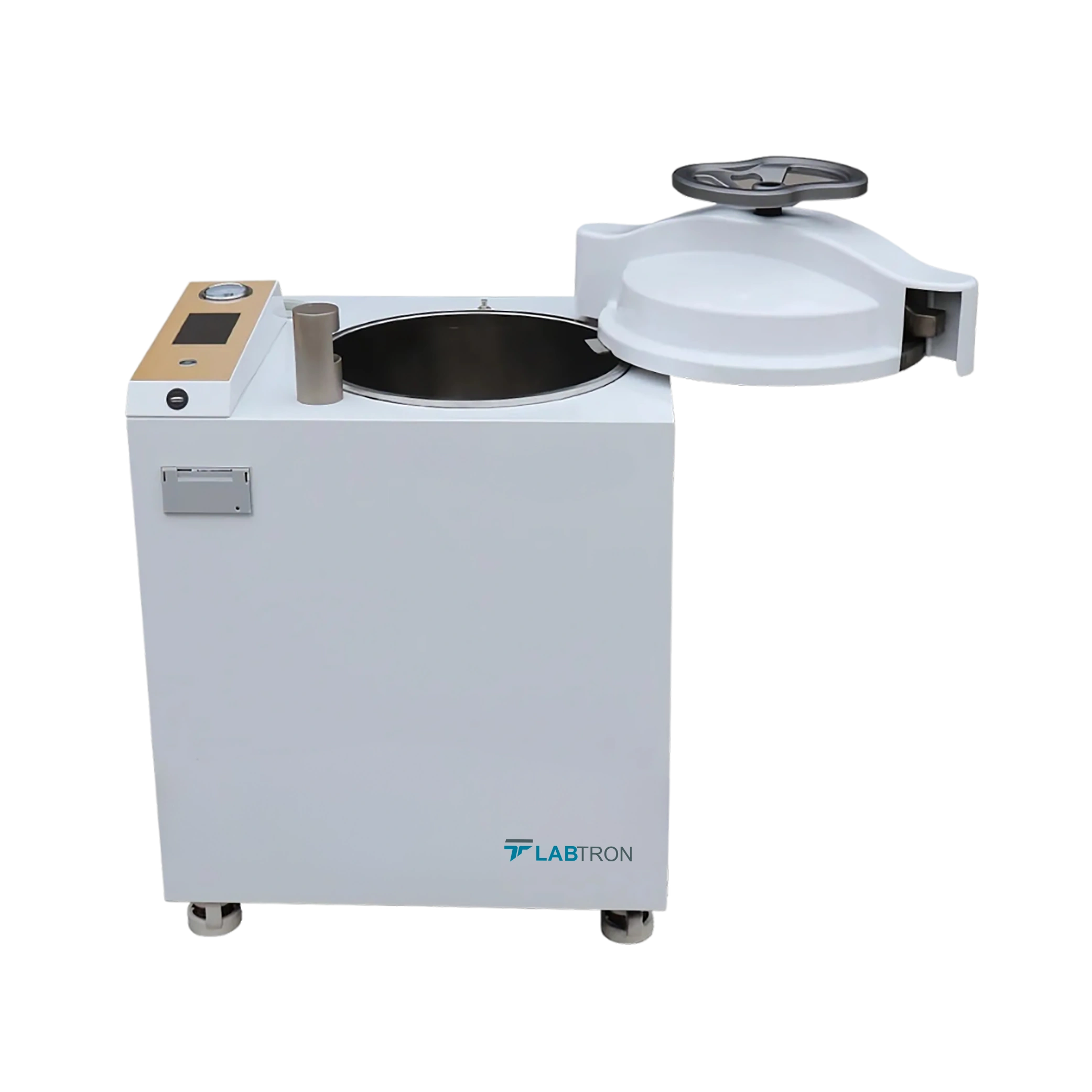

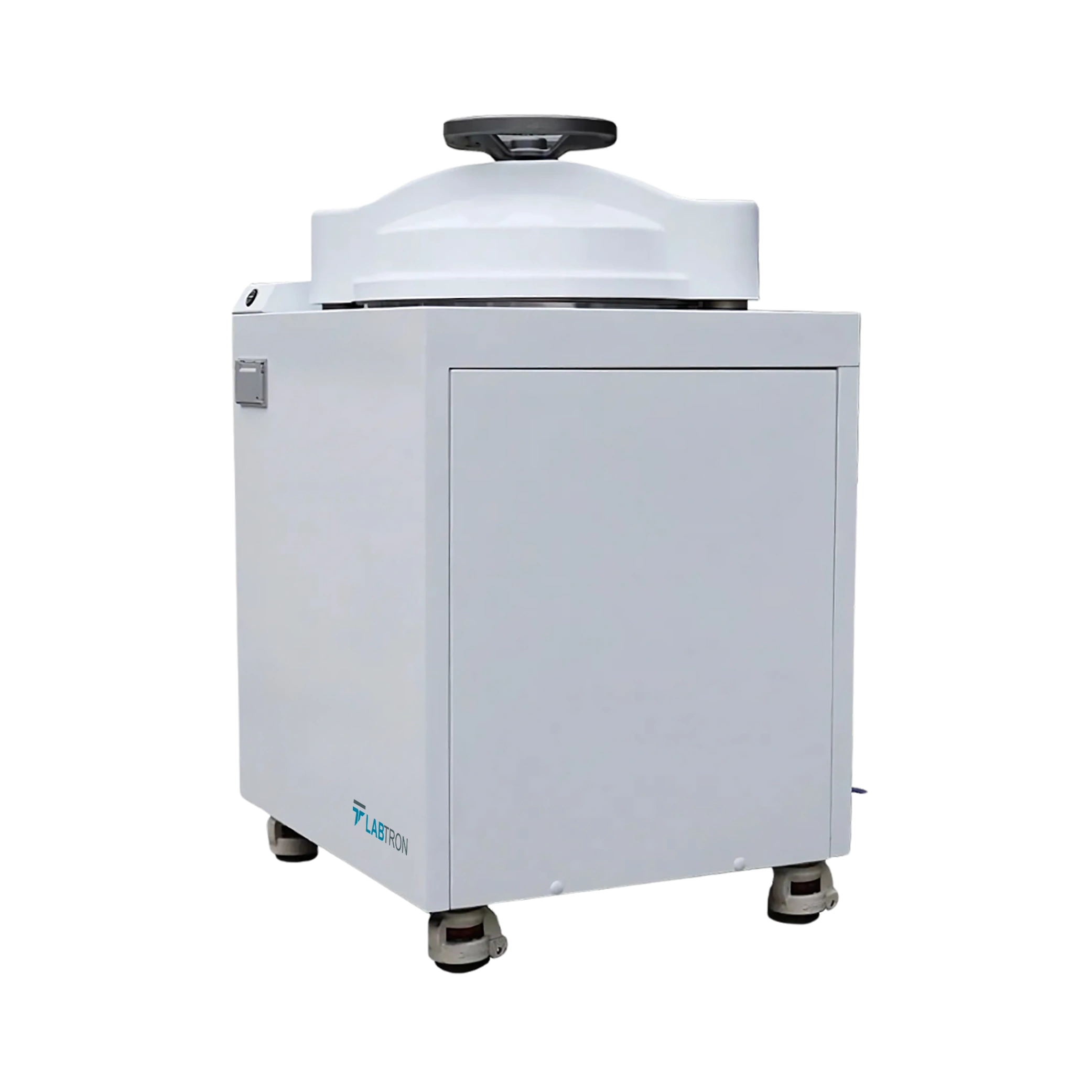

Vertical Autoclave LVA-M13

Name: Vertical Autoclave LVA-M13
Brand: Labtron
SKU: LVA-M13
Rating: 4.9 (835 reviews)

Vertical Autoclave LVA-M13 has a capacity of 100 L and features a drying function. Its internal pipeline system utilizes PTFE hoses and high-quality solenoid valves. The control system is microcontroller-based, operated through a 5-inch color capacitive touch screen. Its additional features include pure water injection via a built-in motor and filtration system. Our autoclave is suitable for sterilizing a wide range of items, including medical instruments (both exposed and packaged).

Request Quote

Capacity	100 L
Drying Function	Yes
Working Temperature Range	121°C to 134°C
Design Temperature	150℃
Working Pressure	0.22 MPa
Time for Sterilization	20 min at 121℃
Display	5-inch color touchscreen
Permissible Temperature	5 to 40℃
Permissible Humidity	Up to 80%
Atmospheric Pressure	70 kPa to 106 kPa
Power Consumption	6.6 kW
Power Supply	220 V 50 Hz
Chamber Dimension	φ 450 × 725 mm
Outer Dimension	790 × 570 × 1265 mm
Packaging Dimension	870 × 650 ×1380 mm
Net Weight	146 kg
Gross Weight	180 kg

Clean exhaust treatment
Automatic heating control
High sterilization efficiency
Pressure gauge
Durable construction
Pressure gauge

Our Vertical Autoclave LVA-M13 is used in hospitals, laboratories, pharmaceutical, and food industries for sterilizing medical instruments, dressings, rubber, liquids, implants, porous, and hollow instruments resistant to high temperatures.
