| Volume of Chamber | 75 L |
| Chamber thickness | 2 mm |
| Working temperature | 50 °C to 134 °C |
| Working pressure | 0.217 MPa |
| Working environment | 5 °C to 45°C |
| Relative Humidity | 10% to 85% |
| Time setting range | 0 to 99h |
| Rated power | 3500W |
| Power supply | 220V, 50/60Hz |
| Dimension | 550 × 620 × 1070 |
| Net weight | 107 Kg |
| Gross weight | 111 Kg |
Reliable and dependable performance
Fault Alarm System
Customizable Sterilization Programs
Durable Construction
Safety Closure Mechanism
Our autoclave operates within a temperature range of 50°C to 134°C, it is ideal for sterilizing large volumes of instruments, glassware, materials in hospitals, laboratories, and biotechnology industries.

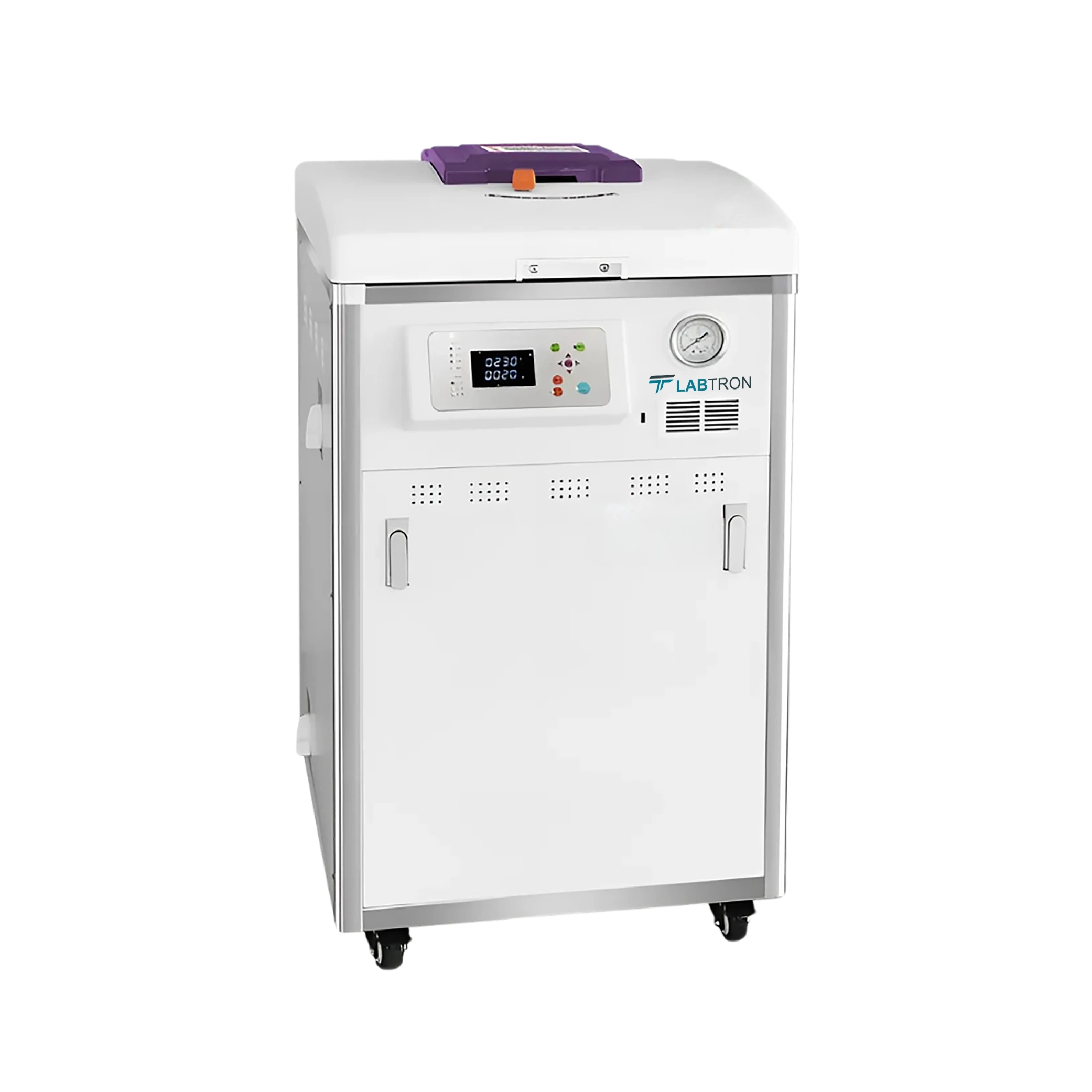

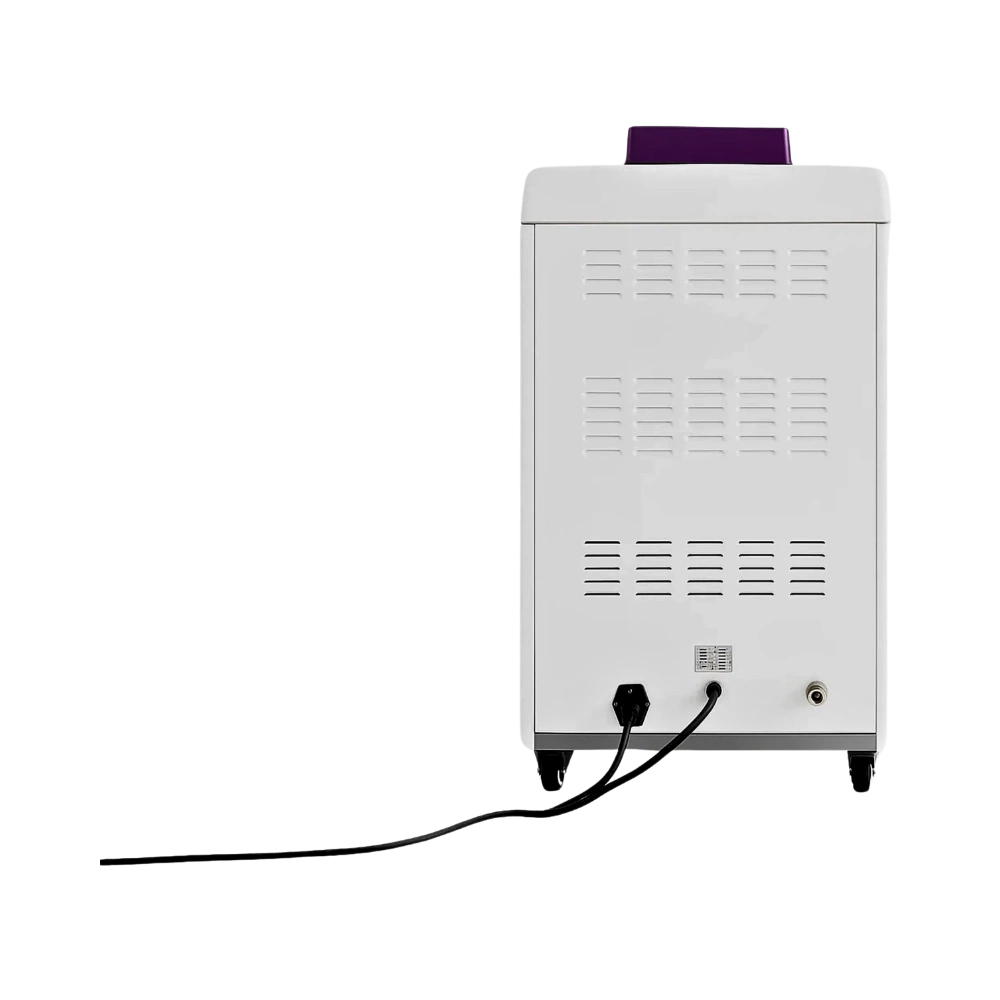

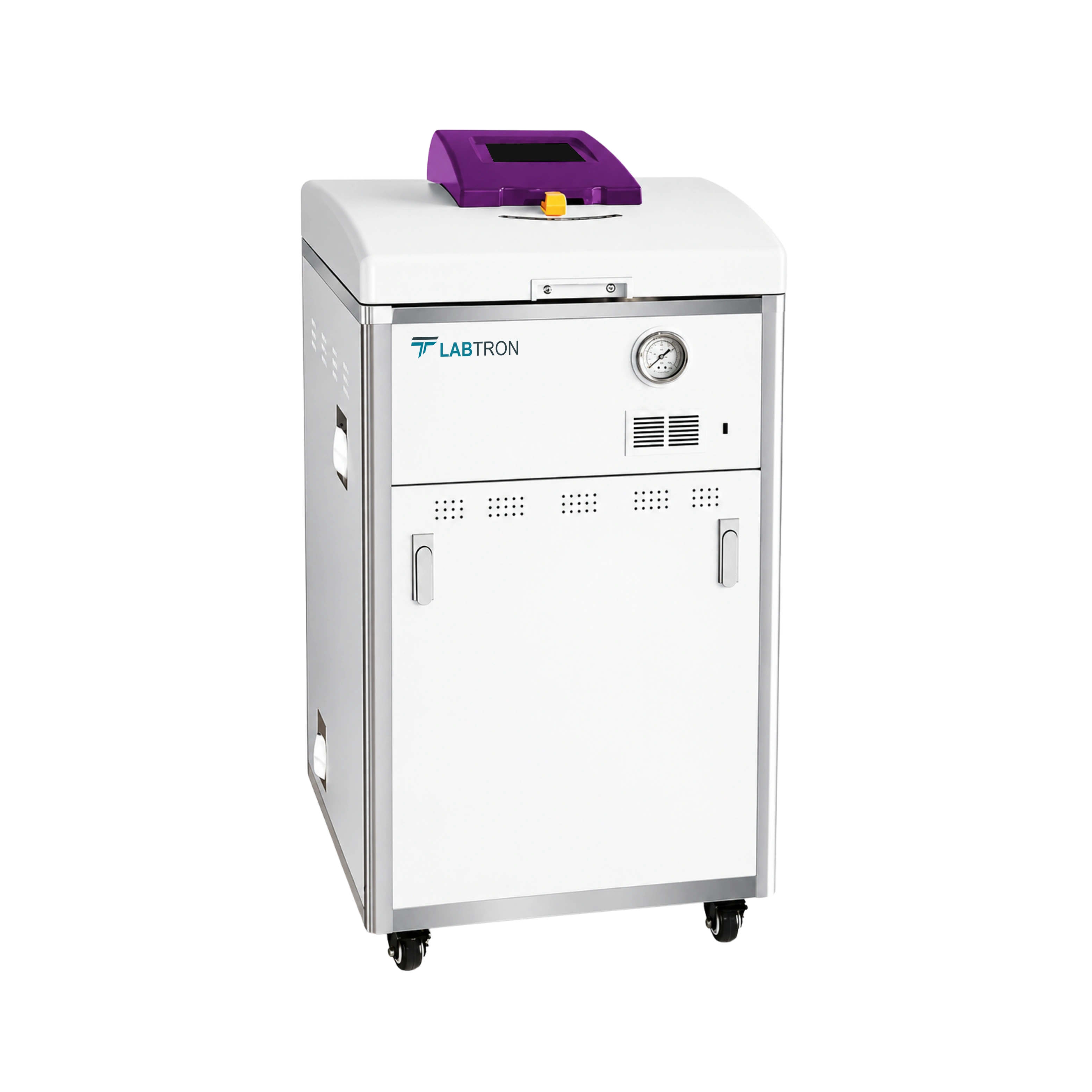

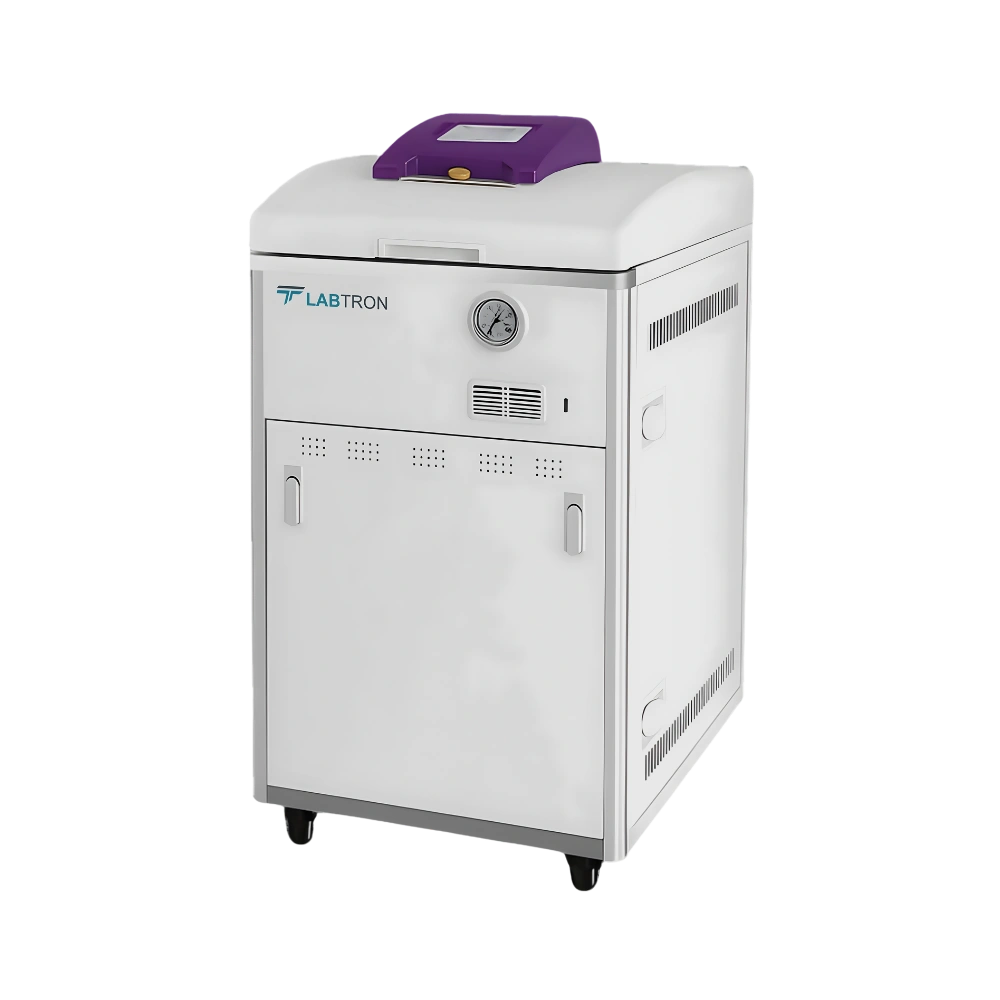

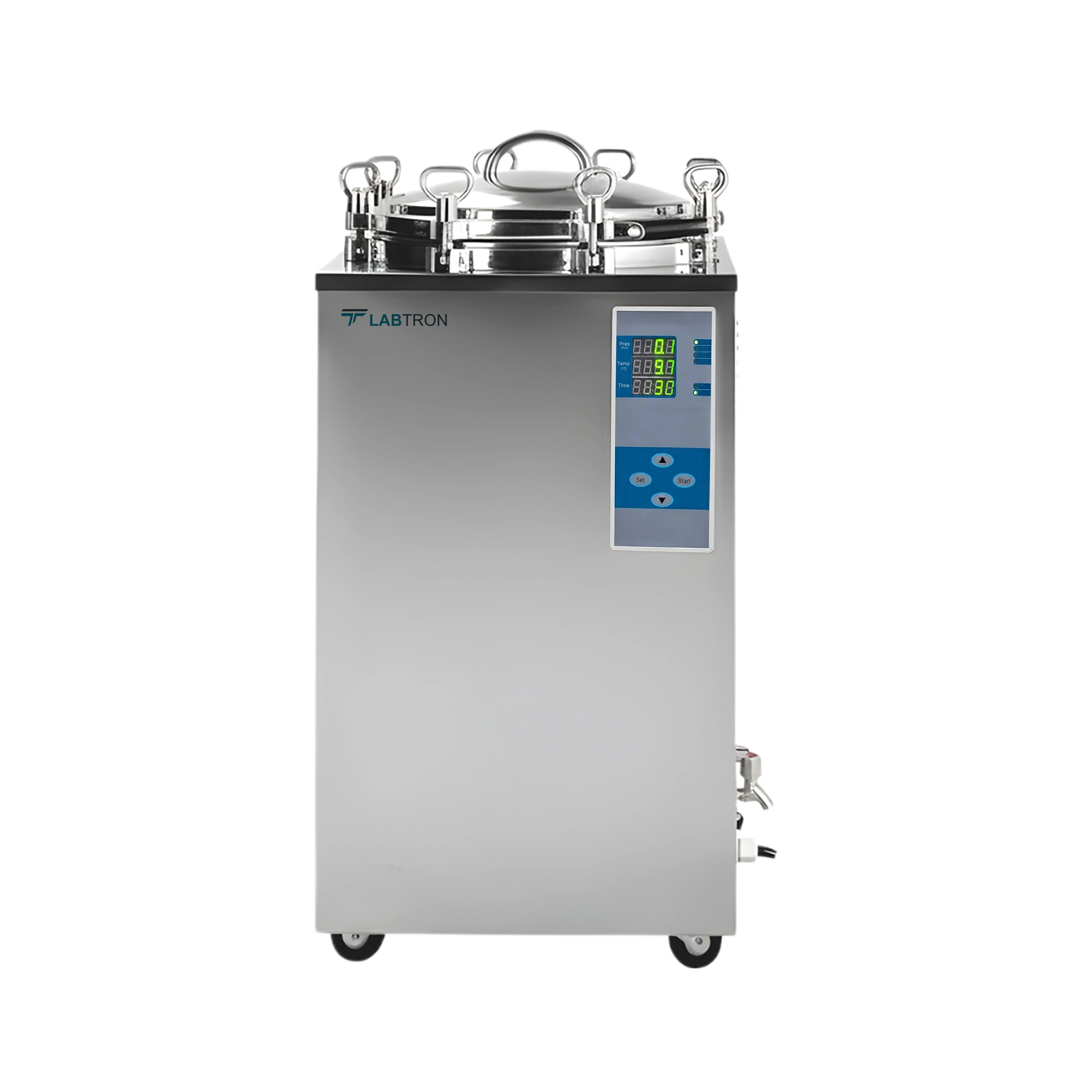

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.
Vertical Autoclave is equipped with a microcomputer control system featuring a user-friendly graphic display. This advanced control system allows for precise temperature and pressure regulation throughout the sterilization process. It automates the entire cycle, reducing the chances of human error, and allows users to program sterilization times and monitor the process in real-time. This results in consistent sterilization outcomes, increased efficiency, and ease of use.
Yes, the vertical autoclave 75 is versatile and designed to sterilize a wide range of items including surgical instruments, glassware, laboratory tools, and various materials used in pharmaceutical and biotech production. The programmable timer and precise temperature control allow it to accommodate different sterilization cycles tailored to the specific type of load, whether liquids, solids, or biohazardous waste, making it a highly adaptable sterilization solution.
Vertical autoclave includes an air-cooled chilling device designed to quickly cool down the chamber after the sterilization cycle ends. This significantly reduces the cooling time, allowing for faster opening of the autoclave lid and increasing the overall throughput of sterilized instruments and materials. The rapid cooling also helps maintain the integrity of heat-sensitive items by preventing prolonged exposure to high temperatures.
The vertical autoclave features multiple alarms including over-temperature, over-pressure, door open, and cycle completion alerts to ensure safe operation. Audible and visual alarms notify operators immediately of any deviations from set parameters. The system also alerts users if maintenance is required, helping prevent unexpected breakdowns. These notifications contribute to user safety and process reliability. By keeping operators informed, the unit minimizes risks and supports efficient workflow management.
Safety is a key focus of vertical autoclave. It features a dual protection system comprising a mechanical safety relief valve and an electronically controlled overpressure protection device. Additionally, the autoclave uses a safety interlock mechanism that prevents the lid from being opened while there is pressure inside the chamber, thereby avoiding accidents. The autoclave also includes heater anti-drying protection to prevent overheating and a leakage protection system for electrical safety.
