| Volume of Chamber | 40 L |
| Chamber thickness | 2 mm |
| Working temperature | 50 °C to 134 °C |
| Working pressure | 0.217 MPa |
| Working environment | 5 °C to 45°C |
| Relative humidity | 10% to 85% |
| Time setting range | 0 to 99h |
| Rated power | 3500W |
| Power supply | 220V, 50/60Hz |
| Dimension | 570 × 690 × 1020 mm |
| Net weight | 94 Kg |
| Gross weight | 97 Kg |
Stainless Steel Chamber
Compact Vertical Design
Energy-Efficient Design
Dual Exhaust Modes
Ergonomic Control Layout
Our autoclave is widely used for sterilizing instruments, media, and glassware in laboratories, medical, healthcare facilities, pharmaceutical production, biotechnology, food testing, veterinary clinics, educational institutions, and industrial quality control environments.

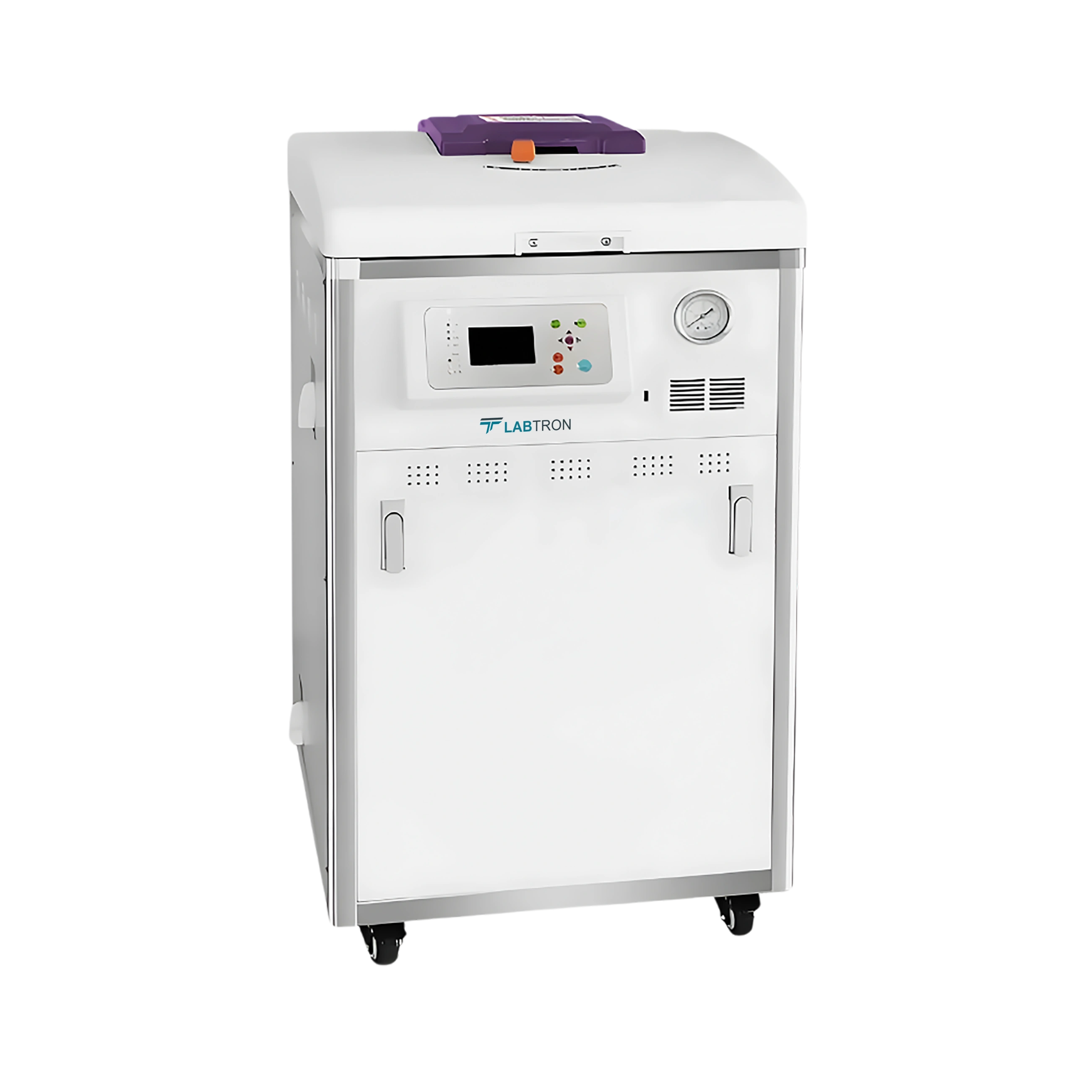

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.
Vertical Autoclave is a top-loading vertical autoclave designed for the efficient sterilization of laboratory instruments, media, glassware, and medical tools. It is widely used in laboratories, hospitals, pharmaceutical production units, and veterinary clinics. Its pressurized steam sterilization method effectively eliminates bacteria, viruses, fungi, and spores. This ensures that tools and materials remain contamination-free and safe for repeated use. The unit is ideal for settings where both performance and space efficiency are crucial.
Vertical Autoclave uses saturated steam under pressure to sterilize items at high temperatures, typically ranging from 121°C to 134°C. Its vertical chamber design allows for optimal space usage and easy top-loading of items. The autoclave features a durable stainless-steel chamber, safety interlocks, and precise control systems. These features ensure uniform heat distribution and complete microbial elimination. As a result, it delivers consistent and reliable sterilization performance.
Vertical Autoclave can sterilize a wide range of items including laboratory glassware, surgical instruments, culture media, textiles, and heat-resistant plasticware. It is important to ensure that all materials are steam-autoclavable and can withstand high temperatures and pressure. Items like oils, powders, and non-autoclavable plastics should not be used. Proper load arrangement also helps in achieving effective steam penetration. Always follow manufacturer guidelines for the best results.
Vertical Autoclave is equipped with multiple safety features to ensure safe operation. These include a pressure-release valve, a locking lid mechanism, automatic shutoff on temperature or pressure anomalies, and insulated outer surfaces. The locking system prevents the lid from opening while the chamber is pressurized. Audible alarms and indicator lights provide clear feedback to the operator. These features help protect both the user and the equipment during each cycle.
Yes, the Vertical Autoclave is capable of sterilizing liquids such as culture media and laboratory reagents. It includes specialized cycles with slow exhaust settings to prevent boil-over or splashing. Users must take care to use heat-resistant containers and allow sufficient cooling time before removing the sterilized liquids. Proper handling during and after the cycle ensures safe and effective results. This makes the unit highly versatile for both solid and liquid sterilization needs.
