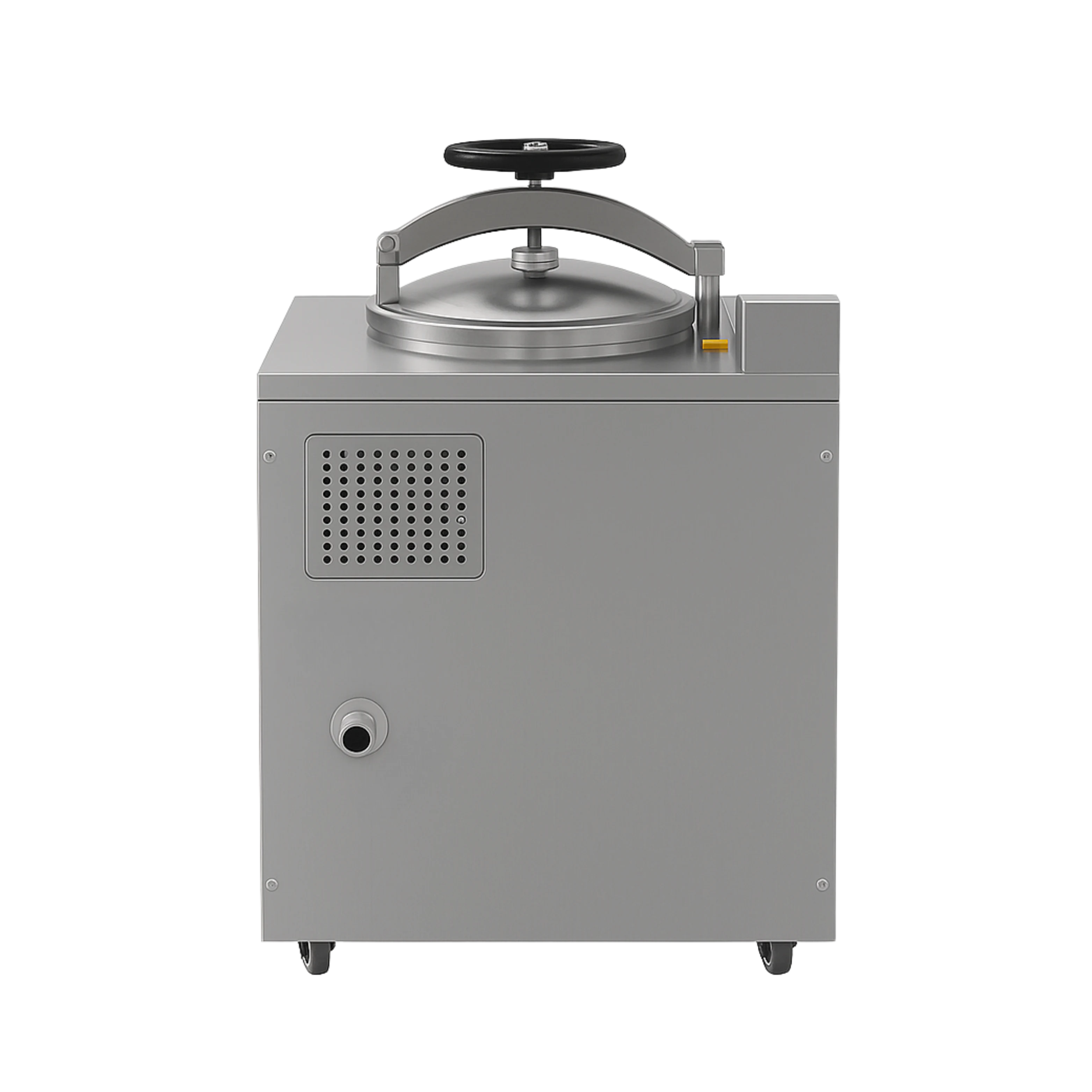

Vertical Autoclave LVA-F13

Vertical Autoclave LVA-F13

Vertical Autoclave LVA-F13 accommodated with a capacity of 100 litre. Our autoclave maintains sterilization temperature of 134℃ and a sterilization working pressure of 0.22 Mpa. Equipped with the PT/TT testing connector that makes the testing to run easy. Incorporating a bacteria filter assurances sterile air entry into the inner vacuum environment, preventing the possibility of secondary contamination.

Request Quote
Capacity 100 L
Sterilization Temperature 134℃
Sterilization Pressure 0.22 Mpa
Time Range 0 to 99 min
Sterilization Temperature Range 105 to 134℃
Heat Average ≤± 1℃
Power 4.5 kW
Power Supply AC 220 V, 50 Hz
Chamber Volume 440×650 mm
Overall Dimension 750×550×13050 mm
Packing Dimension 840×640×1410 mm
Net Weight 128 kg
Gross Weight 160 kg
  • After sterilization, multiple pulse vacuum drying
  • Initiates a beep alarm and automatically turns off
  • Two stainless steel baskets
  • Equipped with bacteria filter
  • Consist of water inlet, pulse vacuum, sterilization, drainage, exhaust
  • System prevents steam discharge, ensuring a clean and dry sterilization environment
  • Initiated with the automatic protection against temperature and pressure
  • Hand wheel for fast door opening and a safety lock system
  • Includes a touch keypad and LCD
  • Includes preset programs for appliances, medical dressing, rubbers, and fluids

Vertical Autoclave employed in pharmaceuticals, medicine, health care, Biotechnology, Microbiology industry for ensuring sterilization of glass wares, biological materials, culture media.

Stainless Steel Basket: 2pcs

Related Models :

Compare Models

Model Capacity Sterilization Temperature Sterilization Pressure Time Range Sterilization Temperature Range Heat Average Power Power Supply Chamber Volume Overall Dimension Packing Dimension Net Weight Gross Weight
LVA-C10 35 L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-C11 50 L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-C12 75 L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-C13 100 L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-C14 120 L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-C15 150 L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-G10 35L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-G11 50L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-G12 75L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-G13 100L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-I10 35 L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-I11 50 L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-I12 75 L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-I13 100 L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-I14 120 L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-I15 150 L 134 °C 0.22 Mpa - - ≤ ± 1 ℃ - - - - - - -
LVA-J10 35 L 115 to 129 °C 0.165 MPa - - ≤ ± 1 ℃ - - - - - - -
LVA-J11 50 L 115 to 129 °C 0.165 MPa - - ≤ ± 1 ℃ - - - - - - -
LVA-J12 75 L 115 to 129 °C 0.165 MPa - - ≤ ± 1 ℃ - - - - - - -
LVA-K10 60 L 134 °C 0.22 MPa - - ≤ ± 1 ℃ - - - - - - -
LVA-K11 80 L 134 °C 0.22 MPa - - ≤ ± 1 ℃ - - - - - - -
LVA-K12 100 L 134 °C 0.22 MPa - - ≤ ± 1 ℃ - - - - - - -
LVA-K13 120 L 134 °C 0.22 MPa - - ≤ ± 1 ℃ - - - - - - -
LVA-A10 35 L - - 0 to 60 mins 105 to 134°C ≤ ± 1°C - - 318×450 mm 480×460×850 mm 570×550×970 mm - -
LVA-A11 50 L - - 0 to 60 mins 105 to 134°C ≤ ± 1°C - - 340×550 mm 520×520×980 mm 590×590×1110 mm - -
LVA-A12 75 L - - 0 to 60 mins 105 to 134°C ≤ ± 1°C - - 400×600 mm 560×560×980 mm 650×630×1150 mm - -
LVA-A13 100 L - - 0 to 60 mins 105 to 134°C ≤ ± 1°C - - 440×650 mm 590×590×1080 mm 680×650×1220 mm - -
LVA-A14 120 L - - 0 to 60 mins 105 to 134°C ≤ ± 1°C - - 480×660 mm 600×640×1140 mm 730×730×1270 mm - -
LVA-A15 150 L - - 1 to 60 mins 106 to 134°C ≤ ± 1°C - - 510×740 mm 670×690×1130 mm 760×760×1270 mm - -
LVA-B10 35 L - - 0 to 99 min or 0 to 99 hour 59 min 105 to 134℃ ≤± 1℃ - AC 220 V, 50 Hz - 480 × 460 × 850 mm 570 × 550 × 970 mm - -
LVA-B11 50 L - - 0 to 99 min or 0 to 99 hour 59 min 105 to 134℃ ≤± 1℃ - AC 220 V, 50 Hz - 520 × 520 × 980 mm 590 × 590 × 1110 mm - -
LVA-B12 75 L - - 0 to 99 min or 0 to 99 hour 59 min 105 to 134℃ ≤± 1℃ - AC 220 V, 50 Hz - 560 × 560 × 980 mm 650 × 630 × 1150 mm - -
LVA-B13 100 L - - 0 to 99 min or 0 to 99 hour 59 min 105 to 134℃ ≤± 1℃ - AC 220 V, 50 Hz - 590 × 590 × 1080 mm 680 × 650 × 1220 mm - -
LVA-B14 120 L - - 0 to 99 min 105 to 134℃ ≤± 1℃ - AC 220 V, 50 Hz - 600 × 640 × 1140 mm 730 × 730 × 1270 mm - -
LVA-B15 150 L - - 0 to 99 min 105 to 134℃ ≤± 1℃ - AC 220 V, 50 Hz - 670 × 690 × 1130 mm 760 × 760 × 1270 mm - -
LVA-D10 35 L - - 0 to 99 mins 105 to 134°C ≤ ± 1°C - - 318×450 mm 480×450×1010 mm 570×550×1150 mm - -
LVA-D11 50 L - - 0 to 99 mins 105 to 134°C ≤ ± 1°C - - 340×550 mm 510×470×1130 mm 590×590×1280 mm - -
LVA-D12 75 L - - 0 to 99 mins 105 to 134°C ≤ ± 1°C - - 400×600 mm 560×560×1120 mm 650×630×1280 mm - -
LVA-D13 100 L - - 0 to 99 mins 105 to 134°C ≤ ± 1°C - - 440×650 mm 540×560×1250 mm 680×630×1370 mm - -
LVA-L10 60 L - - - - - - - - - - - 157 kg
LVA-L11 85 L - - - - - - - - - - - 162 kg
LVA-L12 110 L - - - - - - - - - - - 182 kg
LVA-L20 36 L - - - - - - - - - - - -
LVA-L21 54 L - - - - - - - - - - - -
LVA-H10 35 L 134°C 0.22 Mpa - - - 2.5 kW AC 220 V 50 Hz - - - 56 kg 72 kg
LVA-H11 50 L 134°C 0.22 Mpa - - - 3 kW AC 220 V 50 Hz - - - 68 kg 88 kg
LVA-H12 75 L 134°C 0.22 Mpa - - - 4.5 kW AC 220 V 50 Hz - - - 80 kg 100 kg
LVA-H13 100 L 134°C 0.22 Mpa - - - 4.5 kW AC 220 V 50 Hz - - - 85 kg 110 kg
LVA-F10 50 L 134℃ 0.22 Mpa 0 to 99 min 105 to 134℃ ≤± 1℃ 3 kW AC 220 V, 50 Hz 340×650 mm 690×470×1140 mm 760×550×1290 mm 100 kg 120 kg
LVA-F11 75 L 134℃ 0.22 Mpa 0 to 99 min 105 to 134℃ ≤± 1℃ 4.5 kW AC 220 V, 50 Hz 400×600 mm 730×510×1270 mm 820×600×1380 mm 118 kg 140 kg
LVA-F13 100 L 134℃ 0.22 Mpa 0 to 99 min 105 to 134℃ ≤± 1℃ 4.5 kW AC 220 V, 50 Hz 440×650 mm 750×550×13050 mm 840×640×1410 mm 128 kg 160 kg
LVA-F20 50 L 134℃ 0.22 Mpa 0 to 99 min or 0 to 99 h 59 min 0 to 134℃ ≤± 1℃ 3 kW AC 220 V, 50 Hz 340×550 mm 650×410×1140 mm 730×500×1290 mm 83 kg 102 kg
LVA-F21 75 L 134℃ 0.22 Mpa 0 to 99 min or 0 to 99 h 59 min 0 to 134℃ ≤± 1℃ 4.5 kW AC 220 V, 50 Hz 400×600 mm 690×470×1140 mm 760×550×1290 mm 98 kg 120 kg
LVA-F22 100 L 134℃ 0.22 Mpa 0 to 99 min or 0 to 99 h 59 min 0 to 134℃ ≤± 1℃ 4.5 kW AC 220 V, 50 Hz 440×650 mm 730×510×1270 mm 820×600×1380 mm 110 kg 135 kg
LVA-F23 35 L 134℃ 0.22 Mpa 0 to 99 min or 0 to 99 h 59 min 0 to 134℃ ≤± 1℃ 2.5 kW AC 220 V, 50 Hz 318×450 mm 600×410×1030 mm 730×500×1170 mm 77 kg 96 kg
