Vertical Autoclave LVA-A11

Vertical Autoclave LVA-A11

Vertical Autoclave LVA-A11 is top loading vertical pressure steam sterilizer with chamber capacity of 50 L, working sterilization temperature and pressure of 134°C and 0.22 MPa respectively. Designed with four wheels (castors) at base for easy movement of the unit. The standard 02 pcs of stainless steel baskets to keep the sterilization material load. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property. The vertical autoclave units is equipped with dual scale numerical pressure gauge to indicate temperature and pressure of the system. It works on electric heating or direct heating by immersing copper tubes of heating elements.

Available Range :

Capacity : 35 L Capacity : 50 L Capacity : 150 L Capacity : 50 L Capacity : 150 L Capacity : 120 L
Capacity 50 L
Chamber Volume 340×550 mm
Working Sterilization Temperature 134°C
Working Sterilization Pressure 0.22 MPa
Time Range 0 to 60 mins
Maximum Working Pressure 0.23 MPa
Sterilization Temperature Range 105 to 134°C
Heat Average ≤ ± 1°C
Power Consumption 3 kW
Power supply AC 220 V, 50 Hz
Overall Dimension 520×520×980 mm
Packing Dimension 590×590×1110 mm
Net weight 50 kg
Gross weight 68 kg
  • Top loading sterilizing unit, whole body constructed of Stainless steel
  • Door design (with lock) adopted with silicone rubber seal to prevent steam leakage
  • Automatically shut off with beep alarm after sterilization
  • Manual water loading system
  • Casters for easy movement of whole unit
  • Double scale indication pressure gauge
  • Provision to set sterilization time and temperature with the help of knobs
  • Indicator light to indicate working status of the sterilization process, provide auto protection against over temperature, over pressure
  • Safe, reliable and user-friendly operation mode

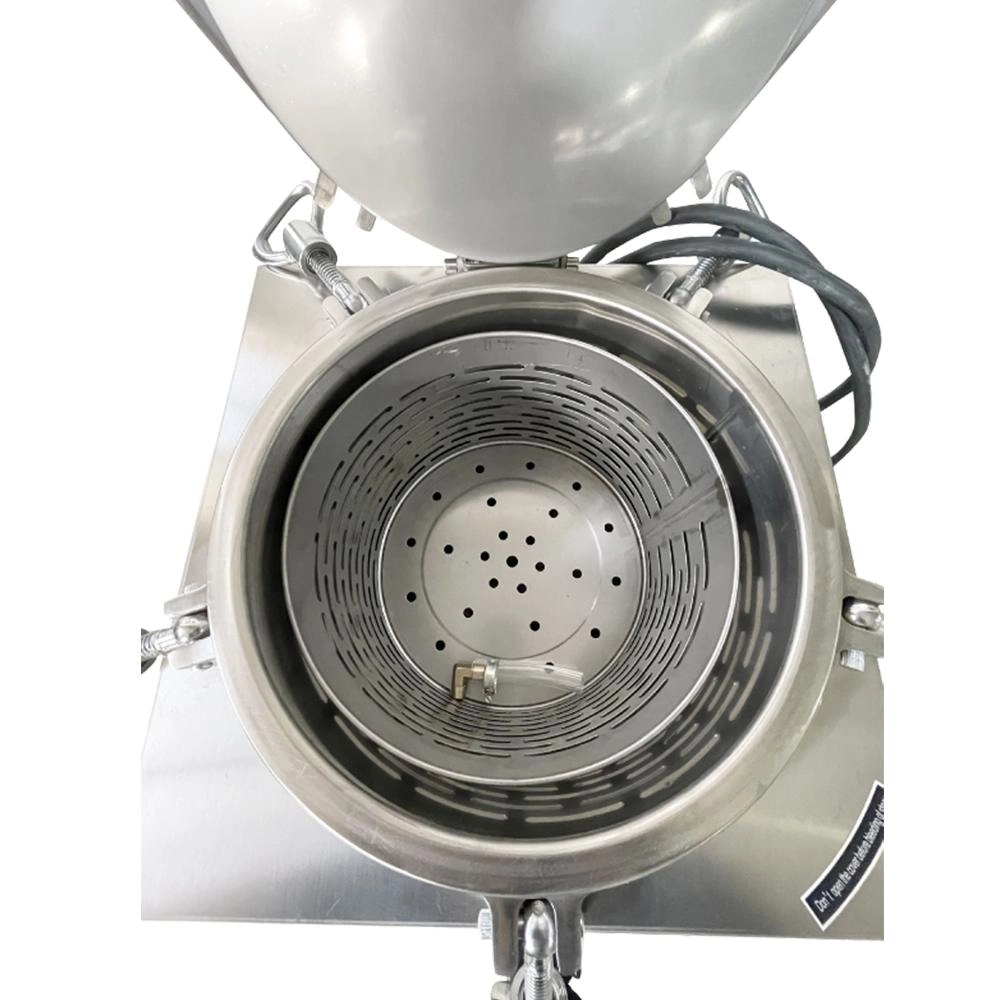

  • Two stainless steel sterilizing baskets for loading material for sterilization
  • Equipped with safety valve, electronic circuit safety system, emergency exhaust switch
  • Complies with international standards

Vertical autoclave used in pharmaceutical industry, medicine and health care industry, Biotechnology, Microbiology for effective sterilization of glassware’s, biological materials, culture media and others.

Accessory no. Name Material Quantity
1 Basket Stainless steel 02 pcs
