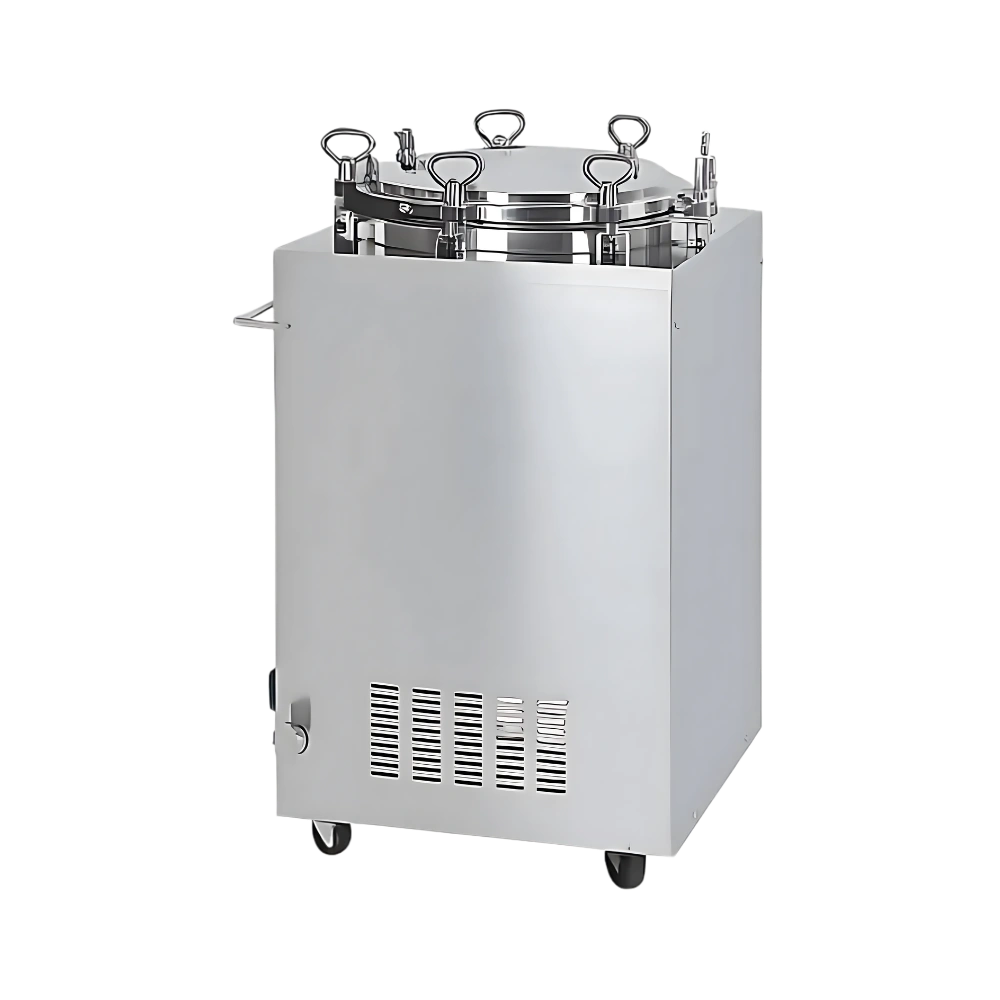

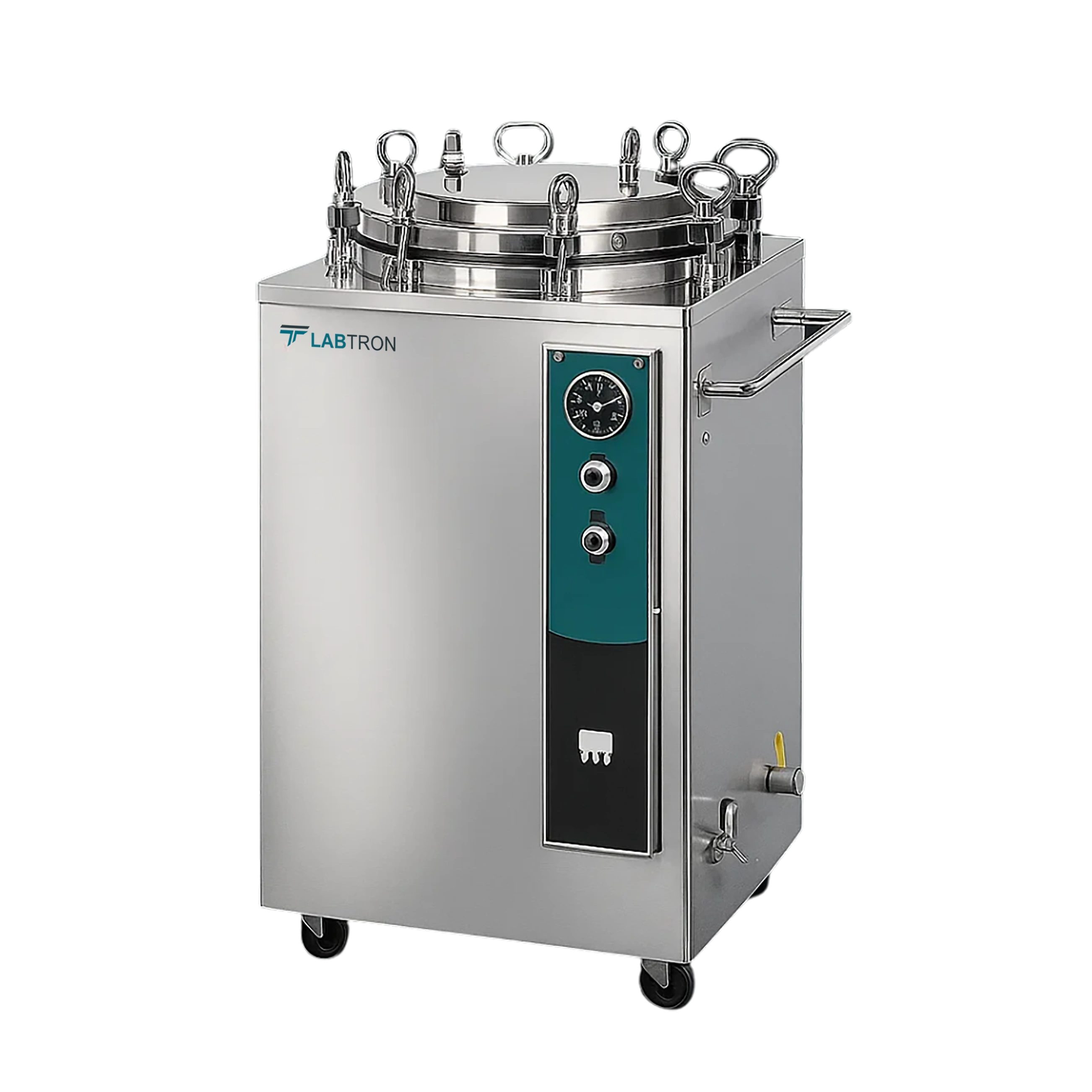

Vertical Laboratory Autoclave LVA-C11

Name: Vertical Laboratory Autoclave LVA-C11
Brand: Labtron
SKU: LVA-C11
Rating: 4.7 (767 reviews)

Vertical Autoclave LVA-C11 is a top loading sterilizer, composed of high quality stainless steel with two stainless steel sterilizing baskets. It is equipped with light indicator to display working status of sterilization process. It works on electric heating or direct heating by immersing copper tubes of heating elements. It gives auto protection against over temperature & over pressure. This vertical autoclave is used for sterilization of surgical instruments, glass wares, biological materials, culture media, dressing etc.

Request Quote

Capacity	50 L
Sterilization Temperature	134 °C
Sterilization Pressure	0.22 Mpa
Chamber Dimension ( Φ × D )	340 × 550 mm
Timer Range	0 to 60 min
Number of sterilizing baskets	2
Heat Average	≤ ± 1 ℃
Temperature	105 to 134℃
Power	3KW/AC220V.50Hz
Dimension	520×520×980 mm
Packaging Dimension	590×590×110 mm
Net weight	68 kg
Gross weight	50 kg

Composed of stainless steel body with two stainless steel sterilizing baskets
Equipped with light indicator to display working status
Double scale indication pressure gauge
Safe door lock system
Auto power cut in case of water shortage
Automatic shutdown with beep sound as sterilization completes
Uses electric heating or direct heating by immersing copper tubes of heating elements
Auto protection against over temperature and pressure

Vertical autoclave for its effective sterilization has applications in medicine and health care industry, clinical and scientific research institutes, pharmaceutical industry, food industry aquaculture industry etc.

Download catalog for
Vertical Laboratory Autoclave LVA-C11 Catalog

Download manual for
Vertical Laboratory Autoclave LVA-C11 Manual

Available Range :

Vertical Laboratory Autoclave LVA-C13 : 100 L Vertical Laboratory Autoclave LVA-G13 : 100L Vertical Autoclave LVA-L12 : 110 L Vertical Laboratory Autoclave LVA-C14 : 120 L Vertical Laboratory Autoclave LVA-C15 : 150 L Vertical Autoclave LVA-N13 : 200 L Vertical Autoclave LVA-N10 : 200L Vertical Autoclave LVA-E10 : 30 L Vertical Laboratory Autoclave LVA-C10 : 35 L Vertical Laboratory Autoclave LVA-G10 : 35L Vertical Laboratory Autoclave LVA-K14 : 40 L Vertical Laboratory Autoclave LVA-C11 : 50 L Vertical Laboratory Autoclave LVA-G11 : 50L Vertical Autoclave LVA-L21 : 54 L Vertical Laboratory Autoclave LVA-K10 : 60 L Vertical Laboratory Autoclave LVA-C12 : 75 L Vertical Laboratory Autoclave LVA-G12 : 75L Vertical Laboratory Autoclave LVA-K11 : 80 L Vertical Autoclave LVA-L11 : 85 L

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.
