| Capacity | 200L |
| Working Pressure | 0.22 MPa |
| Working Temperature | 134°C |
| Working Temperature Range | 50℃ to 134℃ |
| Time for Sterilization | 0 to 9999 min |
| Temperature Accuracy | 0.1℃ |
| Heat Average | Less than equal to 1℃ |
| Display | LED |
| Safety Protection | Automatic shutdown Buzzer alarm upon cycle completion Over-temperature & over-pressure protection Overcurrent protection Mechanical safety interlock Auto-release safety valve |

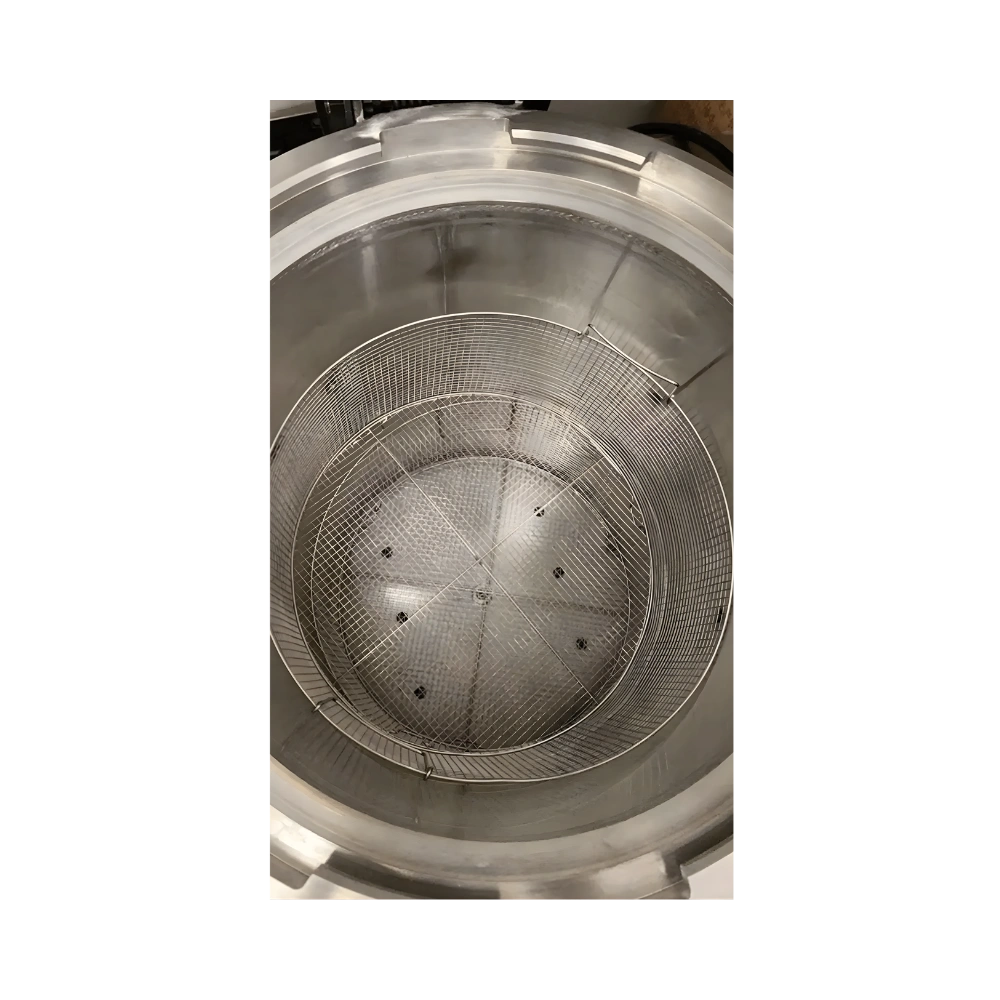

| Baskets | 4 Pcs |
| Control | Microprocessor |
| Power | 6.0 KW |
| Voltage | 220/380V.50/60Hz |
| Dimension | 650 × 650 × 1600 mm |
| Package Dimension | 760 × 800 × 1720 mm |
| Net Weight | 200 Kg |
| Gross Weight | 230 Kg |
Quick-open handwheel door

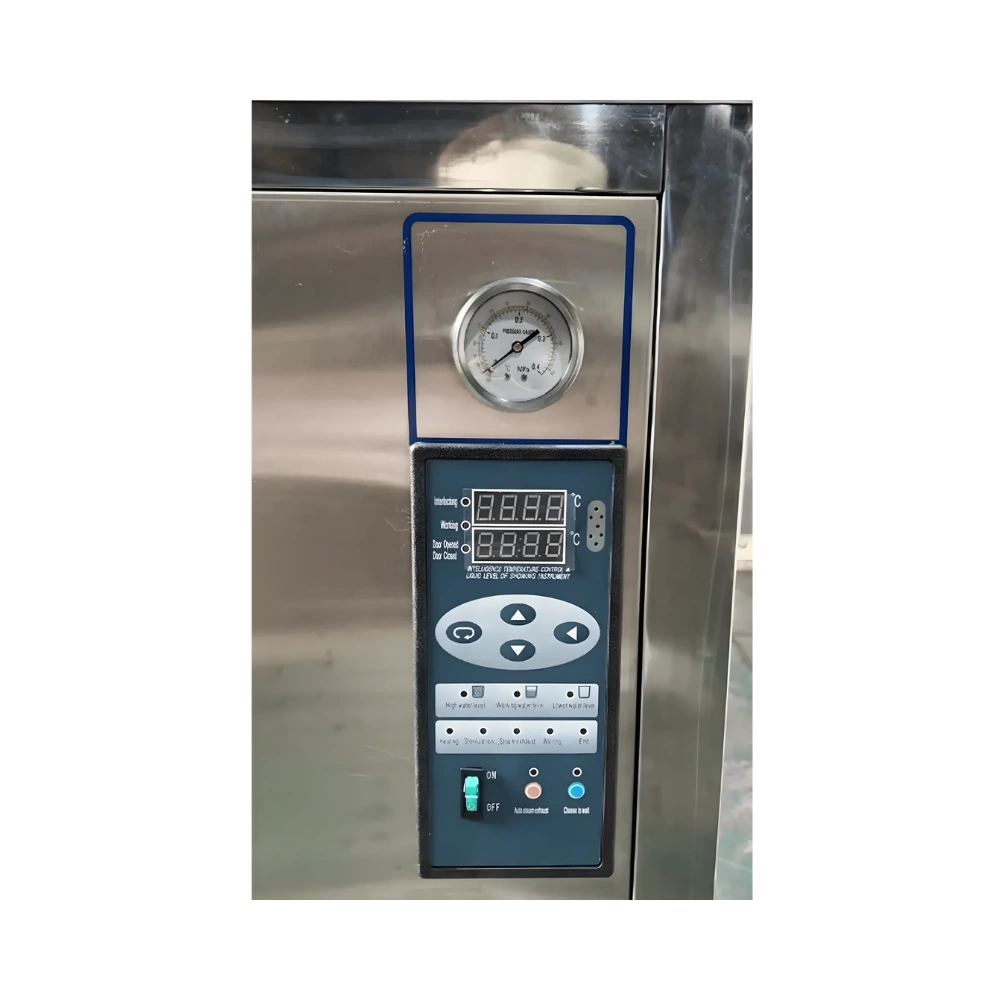

LED screen
Automatic air and steam discharge
Auto shutdown
Built-in testing interface
Fully stainless steel

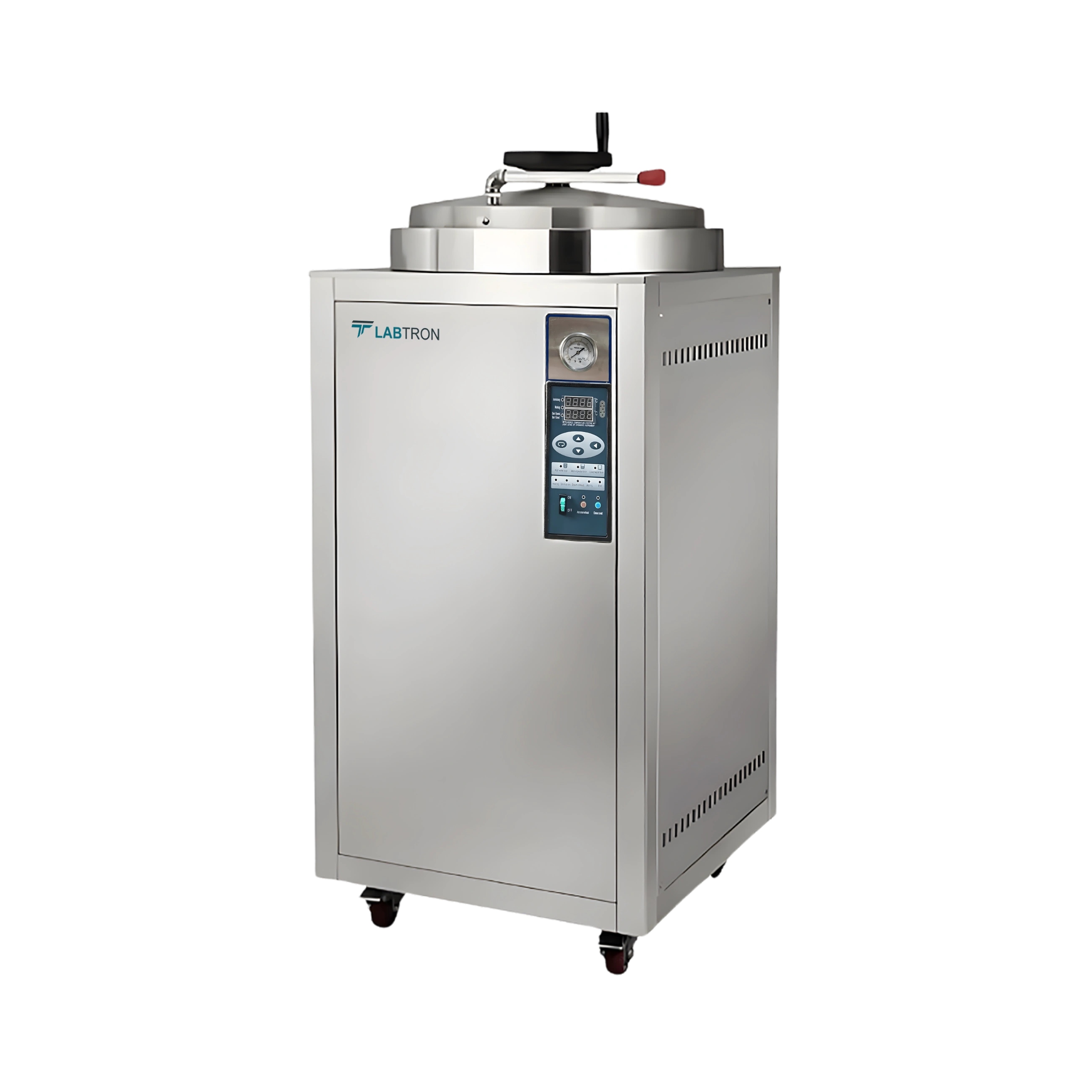

The Vertical Autoclave LVA-N10 is widely used in CSSD, labs, research, pharma, and the food industry for sterilizing heat and pressure-resistant items like instruments, dressings, rubber, liquids, implants, and porous or hollow materials.
Download catalog for
Vertical Autoclave LVA-N10 Catalog
Available Range :
Vertical Laboratory Autoclave LVA-C13 : 100 L Vertical Laboratory Autoclave LVA-G13 : 100L Vertical Autoclave LVA-L12 : 110 L Vertical Laboratory Autoclave LVA-C14 : 120 L Vertical Laboratory Autoclave LVA-C15 : 150 L Vertical Autoclave LVA-N13 : 200 L Vertical Autoclave LVA-N10 : 200L Vertical Autoclave LVA-E10 : 30 L Vertical Laboratory Autoclave LVA-C10 : 35 L Vertical Laboratory Autoclave LVA-G10 : 35L Vertical Laboratory Autoclave LVA-K14 : 40 L Vertical Laboratory Autoclave LVA-C11 : 50 L Vertical Laboratory Autoclave LVA-G11 : 50L Vertical Autoclave LVA-L21 : 54 L Vertical Laboratory Autoclave LVA-K10 : 60 L Vertical Laboratory Autoclave LVA-C12 : 75 L Vertical Laboratory Autoclave LVA-G12 : 75L Vertical Laboratory Autoclave LVA-K11 : 80 L Vertical Autoclave LVA-L11 : 85 L
Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.
.webp "Vertical Autoclave LVA-B14")
Yes, the Vertical Autoclave LVA-N10 is equipped with a programmable drying system that allows users to set drying time and temperature parameters according to their specific load type and application requirements. The system ensures efficient removal of moisture after sterilization, helping to maintain sterility and prevent contamination. Users can select from pre-set programs or customize cycles for delicate or heat-sensitive instruments. The programmable interface is user-friendly, enabling quick adjustments and reliable performance. This feature makes it suitable for laboratories, research institutes, and medical facilities that require consistent and thorough drying.
The Vertical Autoclave LVA-N10 is a Class N autoclave, designed primarily for sterilizing solid, unwrapped instruments and materials. It uses steam under pressure to achieve effective sterilization but does not include a pre-vacuum stage, making it unsuitable for porous loads or hollow instruments. Class N autoclaves are ideal for routine laboratory use, microbiology work, and general sterilization tasks where wrapped or complex instruments are not required. This model is widely used in research labs, educational institutions, and small-scale medical or industrial settings. Its straightforward design ensures ease of operation, reliable performance, and low maintenance requirements.
Labtron offers vertical autoclaves in various capacities, including 150L and 200L, with multiple basket options for efficient sterilization.
The autoclave is equipped with a mechanical safety interlock, self-inflating seal, automatic shutdown with a beep alert, and dual-scale pressure gauge for safe operation.
It is designed to sterilize instruments, dressings, rubber, liquids, implants, porous materials, and other heat and pressure-resistant items used in CSSD, labs, pharma, and food industries.
It features an intelligent microprocessor control system, automatic air and steam discharge, real-time LED display, and a memory storage system to optimize the sterilization process.
Yes, Labtron’s vertical autoclave includes a dedicated testing interface for monitoring temperature and pressure during operation.
