Vertical Autoclave LVA-N13

Vertical Autoclave LVA-N13

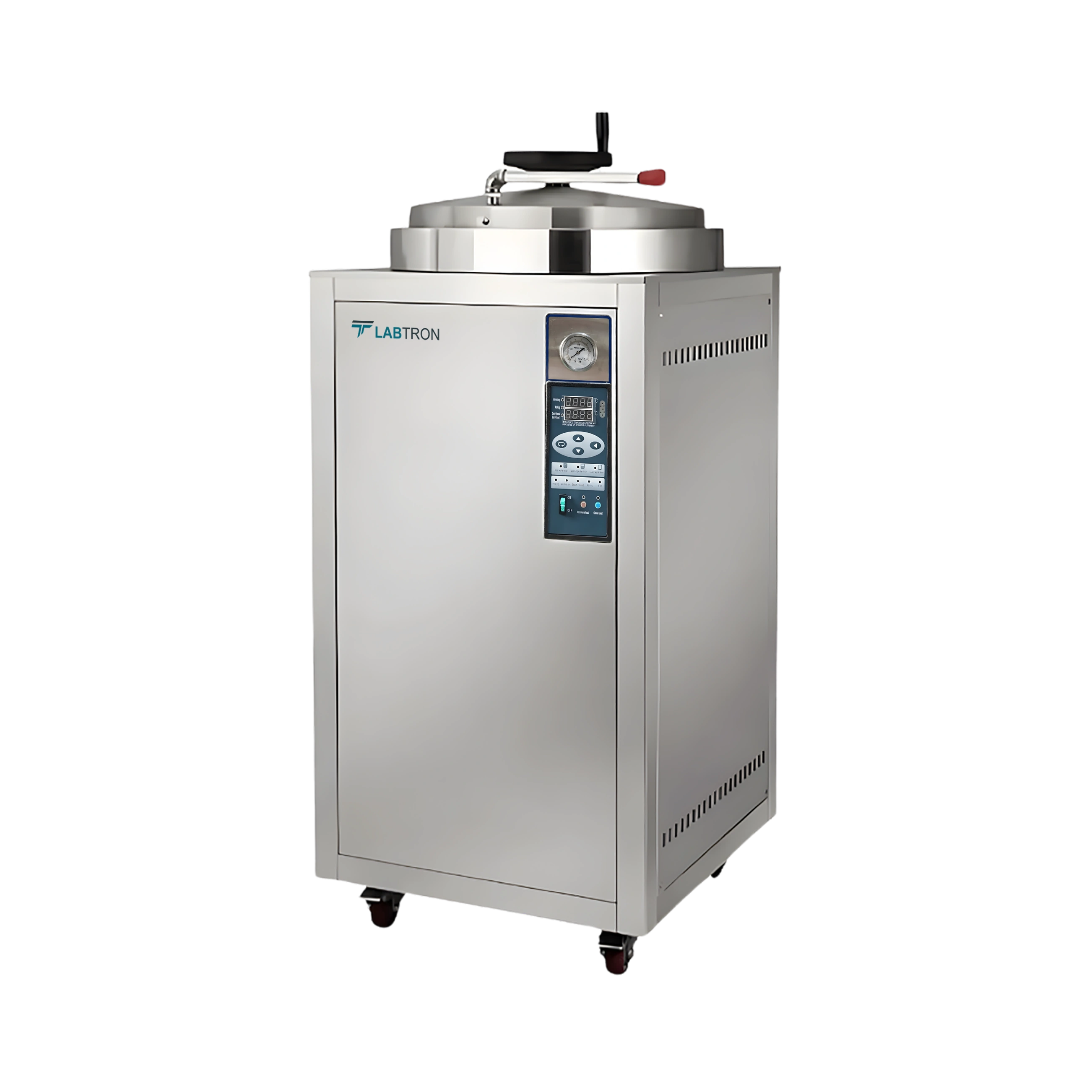

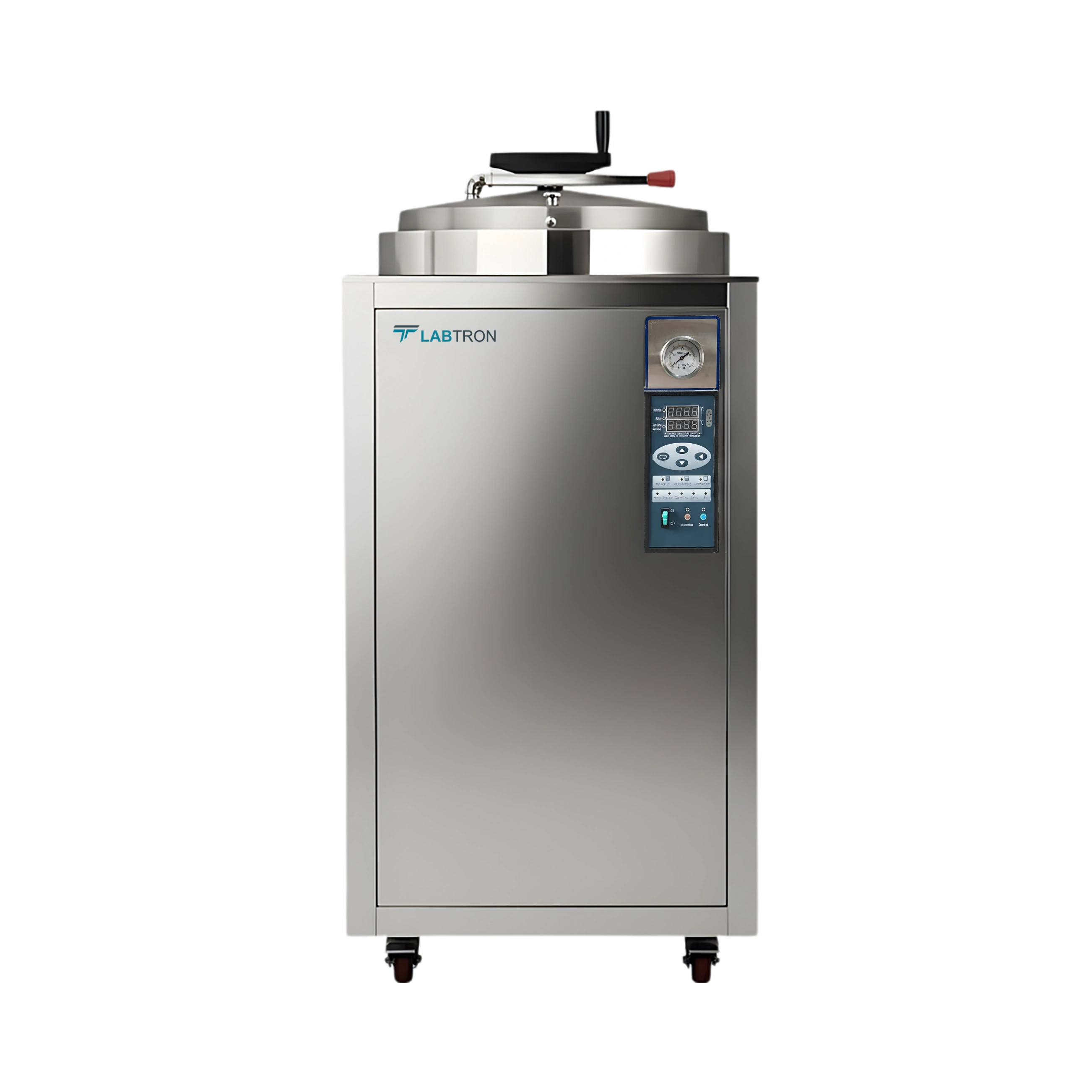

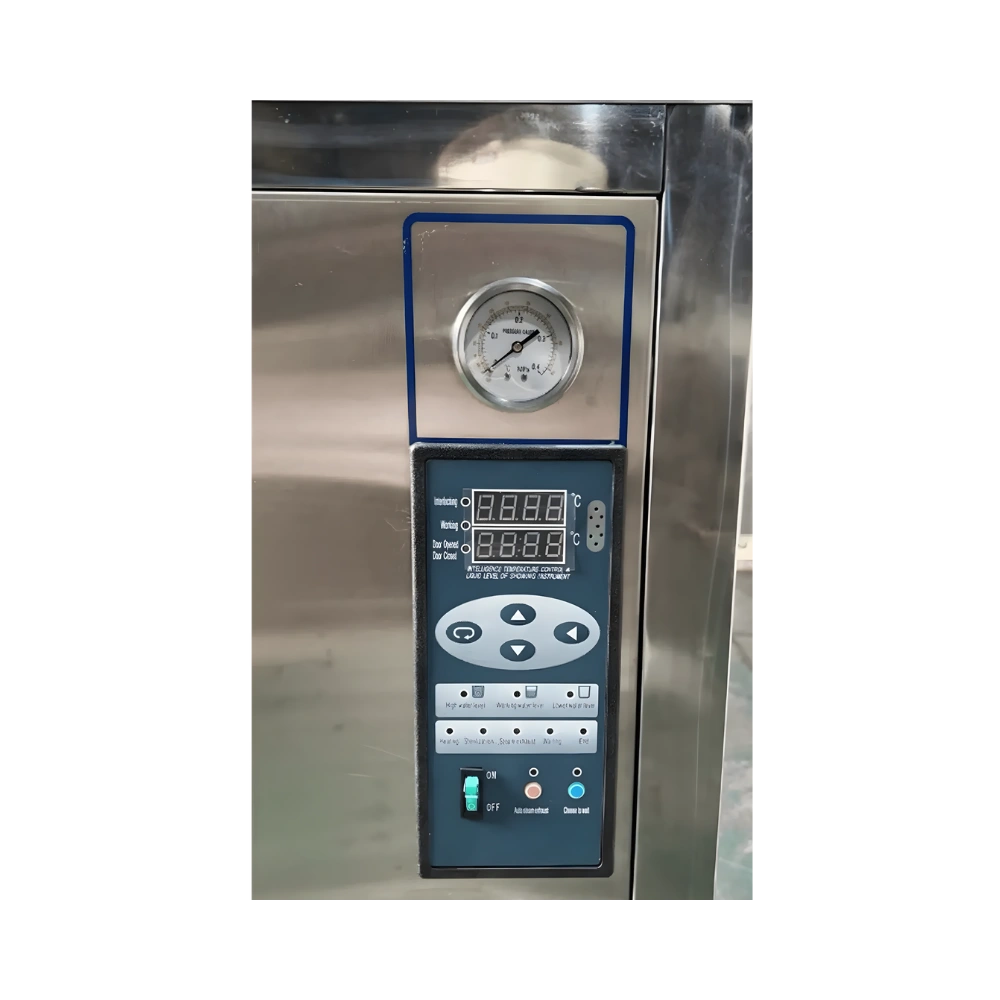

Vertical Autoclave LVA-N13 is constructed from durable SUS304 stainless steel for long-lasting performance and corrosion resistance. It features an LED display and a microcomputer-based control system for precise sterilization management. The hand wheel rotary-type cover enhances sealing and ensures improved safety during operation. An optional USB interface can be added to facilitate sterilization process tracking and data collection. Our autoclave is extensively utilized in the pharmaceutical, biotechnology, microbiology, and healthcare sectors for reliable sterilization of glassware, culture media, biological samples, and various laboratory materials.

Request Quote
Capacity 200 L

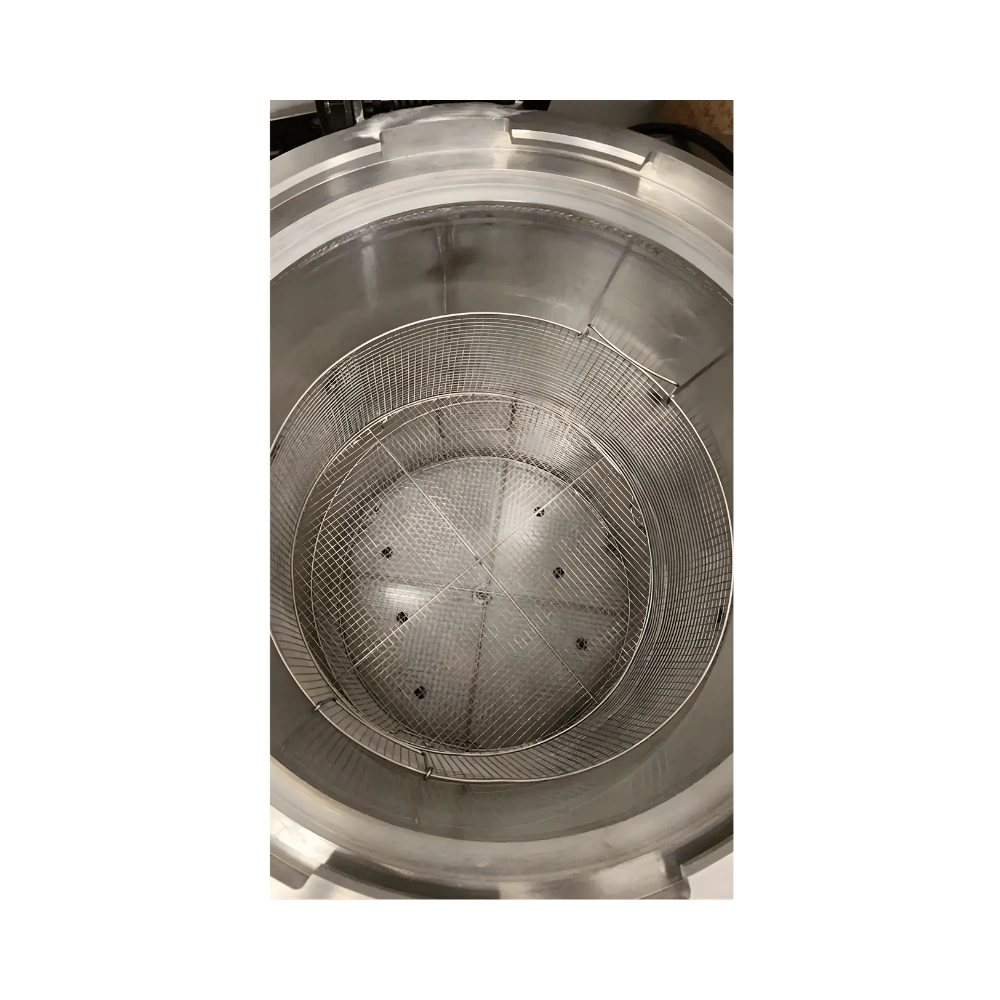

Chamber Volume Φ500 × 1000 mm
Chamber Thickness 3.0 mm
Temperature Range 50 °C to 134 °C
Working Environment 5 °C to 45°C
Relative Humidity 10% to 85%
Rated Working Pressure 0.217 MPa
Sterilization Time Range 0 to 99 h
Power Supply 380 V
Rated Power 6000 W
Packing Size 760 × 800 × 1720 mm
Dimension 630 × 700 × 1600 mm
Gross Weight 238 Kg
  • Mobile Base Design

  • Enhanced Chamber Volume

  • Multi-Layered Heat Barrier Structure

  • Cycle Stage Indicators

  • Temperature Calibration Port

Our autoclave is used for sterilizing and decontaminating surgical instruments, culture media, biohazardous waste, diagnostic equipment, plant materials, veterinary tools, tissue engineering materials across healthcare, research, biotech, agricultural, veterinary settings.

Vertical Autoclave LVA-N13 | Capacity: 200 L | Temperature Range: 50 °C to 134 °C
Vertical Autoclave LVA-N13 | Mobile Base Design | Enhanced Chamber Volume

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.

Vertical Laboratory Autoclave LVA-I11

Vertical Laboratory Autoclave LVA-I11

  • Capacity : 50 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 Mpa
  • Chamber Dimension ( Φ × D ) : 320 × 610 mm
Vertical Autoclave LVA-P12

Vertical Autoclave LVA-P12

  • Chamber Capacity : 75L
  • Control : PID Processor
  • Display : Digital Display
  • Material : Fully Stainless Steel 304
Vertical Autoclave LVA-C15

Vertical Autoclave LVA-C15

  • Capacity : 150 L
  • Sterilization Temperature : 134 °C
  • Temperature range : 105 to 134 °C
  • Sterilization Pressure : 0.22 Mpa
Vertical Autoclave LVA-Q12
Vertical Autoclave LVA-Q12
  • Capacity : 75 L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 100 to 134℃
  • Sterilization Time : 0 to 9999 minutes
Vertical Autoclave LVA-B10
Vertical Autoclave LVA-B10
  • Capacity : 35 L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 134°C
  • Temperature Range : 105 to 134°C
Vertical Autoclave LVA-O21

Vertical Autoclave LVA-O21

  • Capacity : 30 L
  • Chamber Volume : Φ350 × 400 mm
  • Chamber Thickness : 2.0 mm
  • Temperature Range : 50 °C to 126 °C
Vertical Autoclave LVA-E22

Vertical Autoclave LVA-E22

  • Volume of Chamber : 60 L
  • Chamber thickness : 2 mm
  • Working temperature : 50 °C to 134 °C
  • Working pressure : 0.217 MPa
Vertical Autoclave LVA-F20

Vertical Autoclave LVA-F20

  • Capacity : 50 L
  • Sterilization Temperature : 134℃
  • Sterilization Pressure : 0.22 Mpa
  • Time Range : 0 to 99 min or 0 to 99 h 59 min

Vertical Autoclave LVA-N13 FAQ's
  • The Vertical Autoclave LVA-N13 is equipped with an intelligent power recovery system that automatically resumes the sterilization cycle after a power interruption, minimizing disruption. It ensures that sterilization processes are completed without manual restarting, preserving the integrity of the load. The system also prevents overheating or unsafe pressure buildup during outages. Operators receive alerts when power is restored, allowing them to monitor progress. This makes the Vertical Autoclave LVA-N13 reliable even in areas with unstable power supply.

  • Yes, the Vertical Autoclave LVA-N13 supports the use of chemical, biological, and mechanical indicators to verify sterilization effectiveness. Chemical indicators change color based on exposure to steam and temperature, while biological indicators use spores to confirm microbial kill. Mechanical indicators monitor cycle parameters such as pressure and time. Employing these indicators helps laboratories comply with regulatory standards and ensures the autoclave is functioning properly. Regular use of indicators is recommended for quality assurance in all sterilization processes. The Vertical Autoclave LVA-N13’s cycle programmability also facilitates the integration of these monitoring tools.

  • The Vertical Autoclave LVA-N13 employs advanced steam circulation technology that evenly distributes saturated steam throughout the chamber, ensuring consistent sterilization of all load surfaces. The autoclave’s internal sensors monitor temperature and pressure at multiple points to maintain uniform conditions. This helps prevent cold spots or incomplete sterilization, which can compromise safety. The chamber’s smooth stainless-steel surface also aids in steam penetration and cleaning. This feature is critical for sterilizing complex or densely packed loads reliably.

  • Operators should receive comprehensive training covering proper loading techniques, cycle selection, safety protocols, and routine maintenance to maximize the Vertical Autoclave LVA-N13’s efficiency and safety. Training programs are similar to those for the LVA-N11 but include additional modules on handling larger volumes and complex sterilization cycles. Users must also understand emergency procedures, such as dealing with power failures or abnormal pressure. Practical demonstrations and hands-on practice are recommended for proficiency. Well-trained staff reduce the risk of errors and extend the autoclave’s operational life. Refresher training sessions are advised periodically to keep skills up to date.

  • Yes, the Vertical Autoclave LVA-N13 is designed to safely sterilize biohazardous waste materials by exposing them to high-pressure saturated steam, effectively neutralizing pathogens. It supports waste bags and containers that are compatible with autoclaving standards. The cycle parameters can be adjusted to ensure complete sterilization while minimizing residual moisture. This capability helps laboratories and healthcare facilities manage infectious waste safely before disposal. The robust chamber construction ensures containment of hazardous material during treatment.

Post your question?

Our experts are here to help!

Vertical Autoclave:
Vertical Laboratory Autoclave LVA-I11, Vertical Autoclave LVA-P12, Vertical Autoclave LVA-C15, Vertical Autoclave LVA-Q12, Vertical Autoclave LVA-B10, Vertical Autoclave LVA-O21, Vertical Autoclave LVA-E22, Vertical Autoclave LVA-F20, and more.
