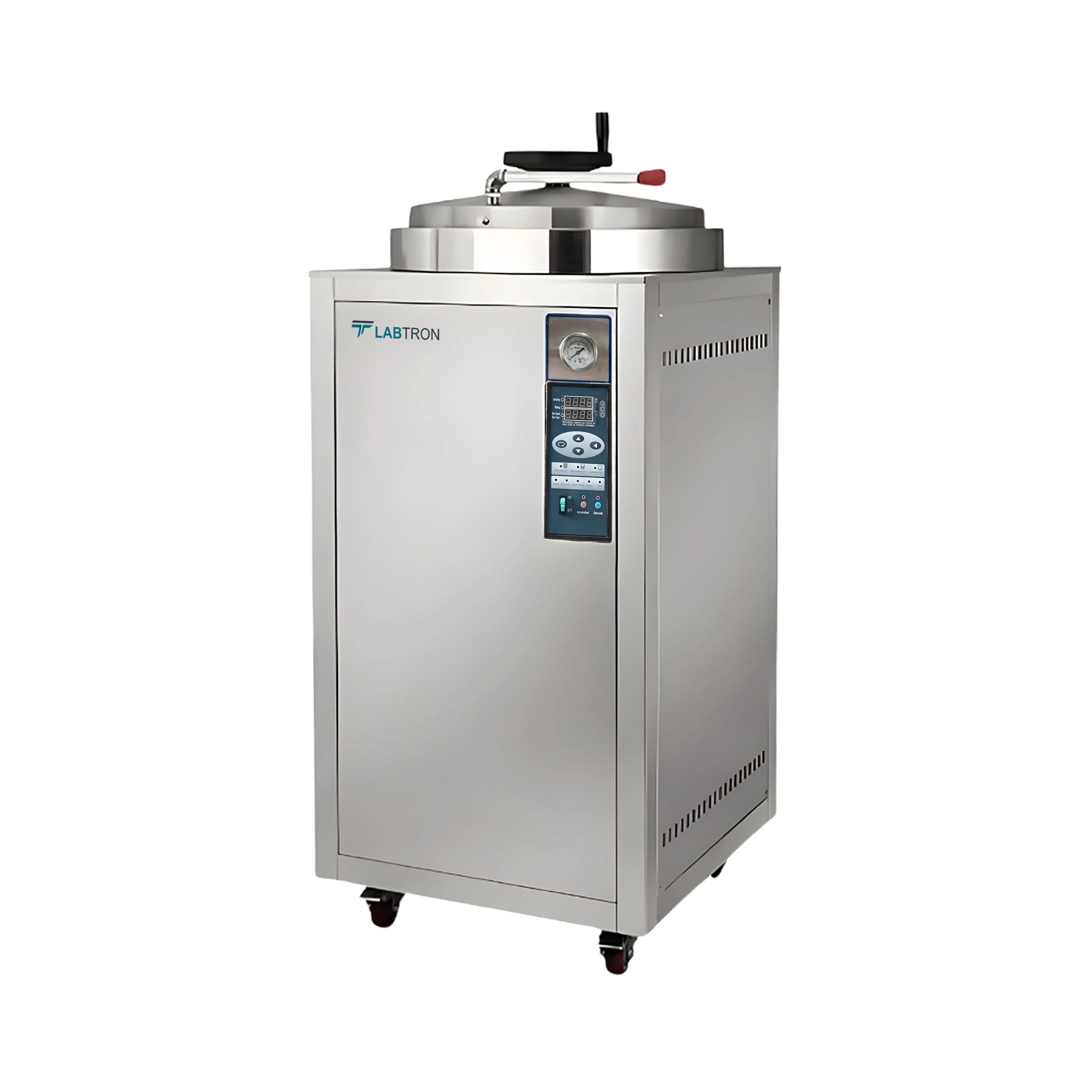

Vertical Autoclave LVA-N12

Vertical Autoclave LVA-N12

Vertical Autoclave LVA-N12 is a semi-automatic vertical sterilizer that operates within a temperature range of 50°C to 134°C. It features three baskets to ensure efficient load distribution during sterilization. The unit is equipped with a shift-type quick-open lid mechanism. It conveniently stores the last operation program, making the next cycle setup faster and more efficient. Our autoclave is ideal for sterilizing diagnostic containers, soil samples, fermenter components, and medical waste across various laboratory and clinical settings.

Request Quote
Capacity 150 L
Chamber Volume Φ500 × 760 mm
Chamber Thickness 3.0 mm
Temperature Range 50 °C to 134 °C
Working Environment 5 °C to 45°C
Relative Humidity 10% to 85%
Rated Working Pressure 0.217 MPa
Sterilization Time Range 0 to 99 h
Power Supply 380 V
Rated Power 6000 W
Packing Size 760 × 800 × 1530 mm
Dimension 630 × 700 × 1400 mm
Gross Weight 213 Kg
  • Advanced Heat Distribution System

  • Non-Volatile Memory Retention

  • Built-In Error Code Diagnostics

  • Pre-Configured User Modes

  • Illuminated Internal Chamber

Our autoclave efficiently sterilizes surgical linens, glassware, cosmetic packaging, dental instruments, and sterile water equipment, making it ideal for use in healthcare, research, biotech, cosmetic, and environmental laboratories.

Vertical Autoclave LVA-N12 | Capacity: 150 L | Working Environment: 5 °C to 45°C
Vertical Autoclave LVA-N13 | Advanced Heat Distribution System | Non-Volatile Memory Retention

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.

Vertical Autoclave LVA-E12

Vertical Autoclave LVA-E12

  • Volume of Chamber : 50 L
  • Chamber thickness : 2 mm
  • Working temperature : 50 °C to 134 °C
  • Working pressure : 0.217 MPa
Vertical Autoclave LVA-O22

Vertical Autoclave LVA-O22

  • Capacity : 50 L
  • Chamber Volume : Φ350 × 550 mm
  • Chamber Thickness : 2.0 mm
  • Temperature Range : 50 °C to 126 °C
Vertical Autoclave LVA-Q11

Vertical Autoclave LVA-Q11

  • Capacity : 50 L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 100 to 134℃
  • Sterilization Time : 0 to 9999 minutes
Vertical Autoclave LVA-F11
Vertical Autoclave LVA-F11
  • Capacity : 75 L
  • Maximum Pressure : 0.23 MPa
  • Working Pressure : 0.22 MPa
  • Maximum Temperature : 136°C
Vertical Autoclave LVA-A15
Vertical Autoclave LVA-A15
  • Capacity : 150 L
  • Maximum Working Pressure : 0.23 MPa
  • Working Pressure : 0.22 MPa
  • Working Temperature : 134°C
Vertical Autoclave LVA-E23

Vertical Autoclave LVA-E23

  • Volume of Chamber : 60 L
  • Chamber thickness : 2 mm
  • Working temperature : 50 °C to 134 °C
  • Working pressure : 0.217 MPa
Vertical Autoclave LVA-F20

Vertical Autoclave LVA-F20

  • Capacity : 50 L
  • Sterilization Temperature : 134℃
  • Sterilization Pressure : 0.22 Mpa
  • Time Range : 0 to 99 min or 0 to 99 h 59 min
Vertical Autoclave LVA-H13

Vertical Autoclave LVA-H13

  • Capacity : 100 L
  • Working Pressure : 0 to 0.22 MPa
  • Working Temperature Range : 105 to 134°C
  • Sterilization Time : 0 to 99 min or 0 to 99 hour 59 min

Vertical Autoclave LVA-N12 FAQ's
  • The Vertical Autoclave LVA-N12 is compatible with a wide range of sterilizable materials. These include glassware, stainless steel instruments, culture media, textile wraps, and certain plastics labelled “autoclave safe.” It’s important to avoid loading items made of PVC, polystyrene, or any material not rated for high pressure and temperature. The autoclave delivers high-temperature saturated steam, which can deform or damage sensitive materials. Always check for the autoclave-safe symbol or manufacturer’s specifications on the item. Items should be spaced out in the basket to allow even steam contact. Avoid overloading the chamber to ensure consistent sterilization.

  • Yes, with proper setup, the Vertical Autoclave LVA-N12 can be used in mobile or temporary lab environments. Its compact, vertical design saves space and makes it suitable for portable installations. However, it requires a stable power supply and appropriate drainage system for safe operation. Field labs in agriculture, veterinary, or emergency medical use can benefit from its fast sterilization and user-friendly controls. Its semi-automatic nature makes it easier to use even in basic infrastructure conditions. Users should ensure vibration-free placement and secure wiring. A voltage stabilizer is also recommended in mobile setups.

  • The Vertical Autoclave LVA-N12 is primarily designed for high-temperature steam sterilization and is not suitable for materials that degrade under heat and moisture. However, users can customize time and temperature settings to accommodate fewer sensitive items that require milder sterilization. It is advisable to consult the material's tolerance before loading. The autoclave does not support vacuum drying or low-temperature plasma modes. For highly heat-sensitive items, alternate sterilization methods such as ethylene oxide may be required. Always perform a material compatibility check before operation.

  • The Vertical Autoclave LVA-N12 features multiple safety mechanisms for long cycles, including an automatic pressure release valve and thermal cutoff. Its auto-shutoff function activates if abnormal temperature or pressure levels are detected. Additionally, audible alarms notify the user when the cycle is complete or interrupted. For overnight operations, its robust build and secure lid lock ensure chamber integrity is maintained throughout. A cycle memory log helps track progress in the event of power failure. Always check water levels and seals before unattended runs.
