What is the chamber capacity and construction material of the Vertical Autoclave LVA-H14?

The Vertical Autoclave LVA-H14 features a spacious 150-liter chamber with dimensions Ø500 × 760 mm, making it ideal for sterilizing large loads or bulky instruments. The chamber and outer body are constructed entirely from high-quality stainless steel 304, which ensures excellent corrosion resistance, durability, and easy maintenance in demanding laboratory or hospital environments.

How does the Vertical Autoclave LVA-H14 ensure precise sterilization cycles?

The Vertical Autoclave LVA-H14 is equipped with a microprocessor-based control system that allows for precise monitoring and customization of sterilization parameters. It offers programmable sterilization and drying times ranging from 0 to 99 minutes or up to 99 hours and 59 minutes. This, combined with a temperature accuracy of ±0.1? and uniform heat distribution (less than equal to 1?), guarantees reliable and consistent sterilization for various types of materials.

What safety features are integrated into the Vertical Autoclave LVA-H14?

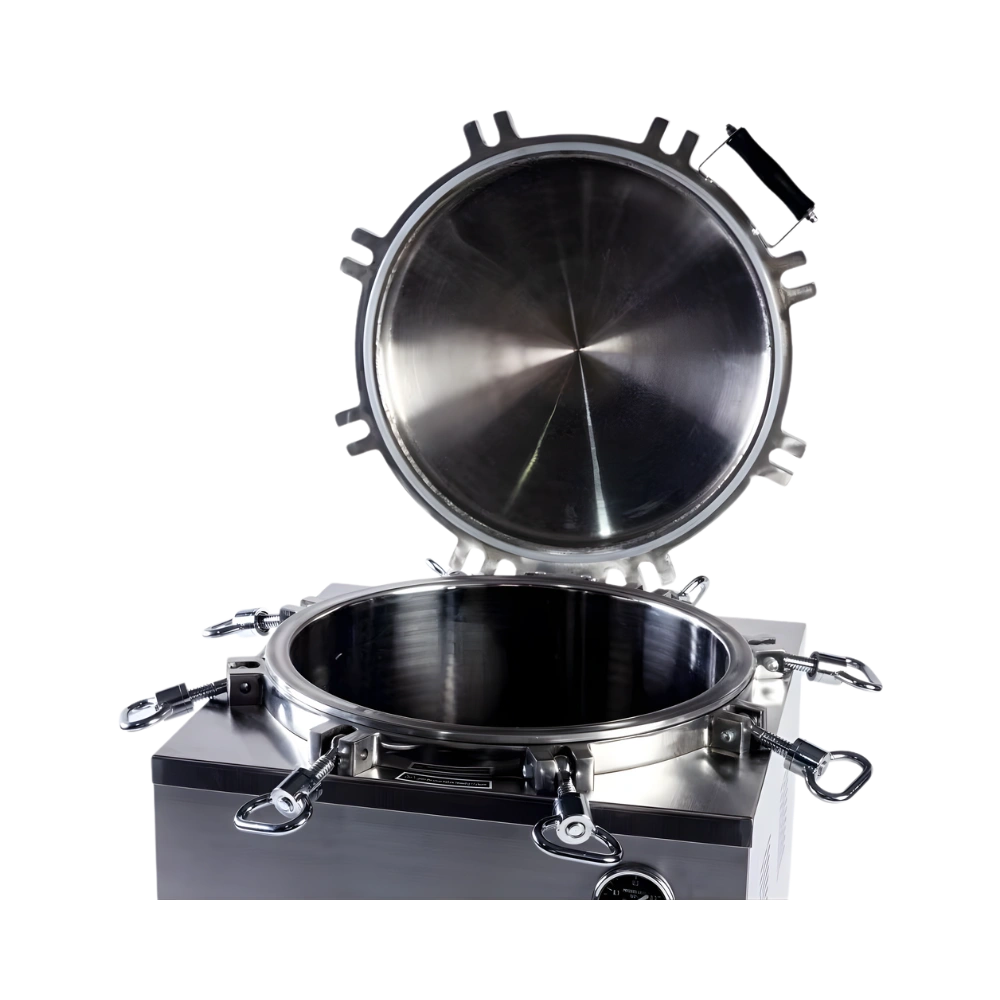

Safety is a key consideration in the Vertical Autoclave LVA-H14. It comes with a hand wheel type safety interlock door that prevents the chamber from opening during operation under pressure. Additionally, the built-in microprocessor ensures safe operation by regulating pressure and temperature levels automatically, reducing the risk of operator error and enhancing overall safety during sterilization.

Which class is the LVA-H14 Vertical Autoclave, and what is its speciality?

The LVA-H14 is a Class N autoclave designed for sterilizing unwrapped, solid, and non-porous items using high-pressure saturated steam. Its speciality lies in its door type, which is engineered for secure sealing, easy manual operation, and long-term durability. This design ensures reliable performance while maintaining straightforward loading and unloading. The door mechanism also contributes to consistent chamber pressure during cycles. This makes the LVA-H14 suitable for routine sterilization tasks in laboratories and small medical facilities.

What are the typical applications of the Vertical Autoclave LVA-H14?

The Vertical Autoclave LVA-H14 is widely used in medical, research, pharmaceutical, and industrial environments. It is ideal for sterilizing surgical instruments, lab glassware, media, waste, textiles, and other heat-resistant materials. Its high capacity and advanced features make it especially valuable in microbiology labs, hospitals, biotech firms, and universities where efficient and reliable sterilization is essential.

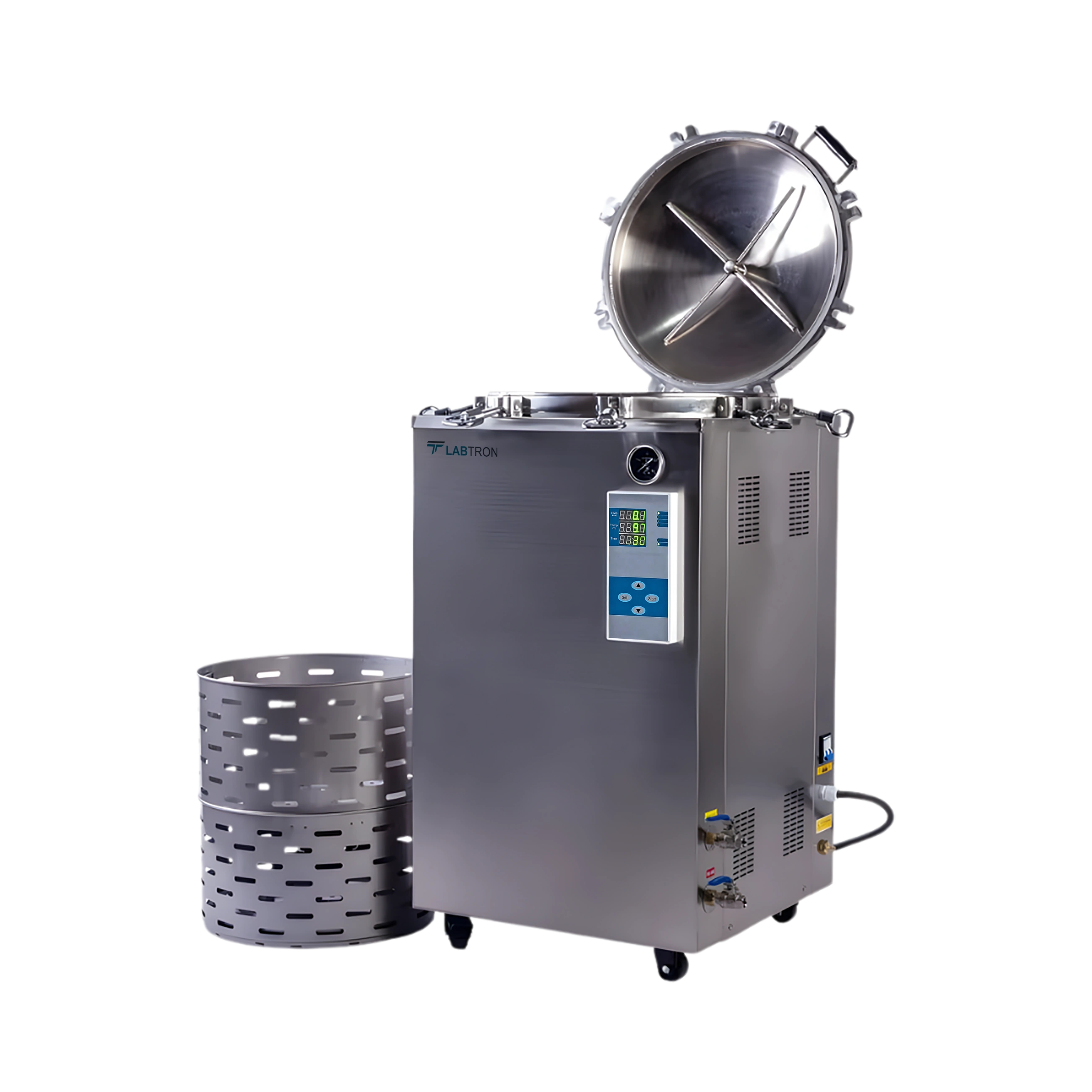

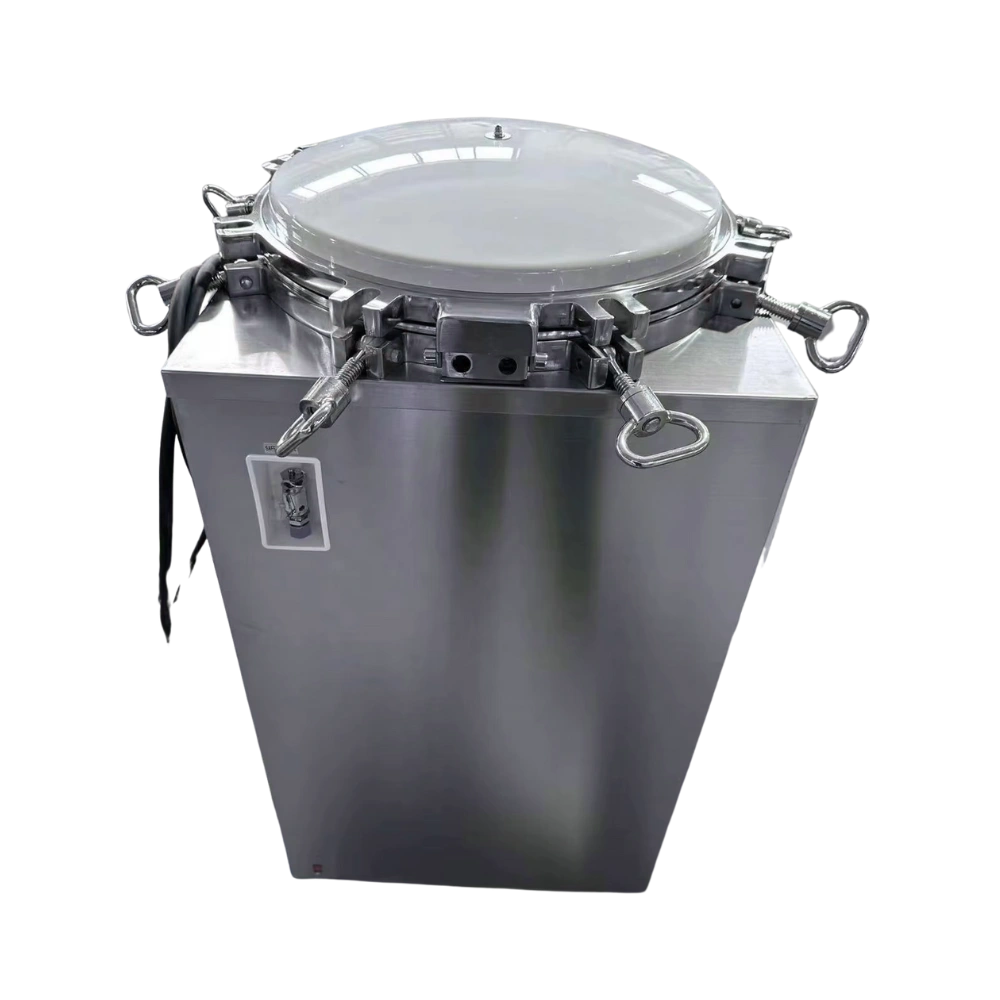

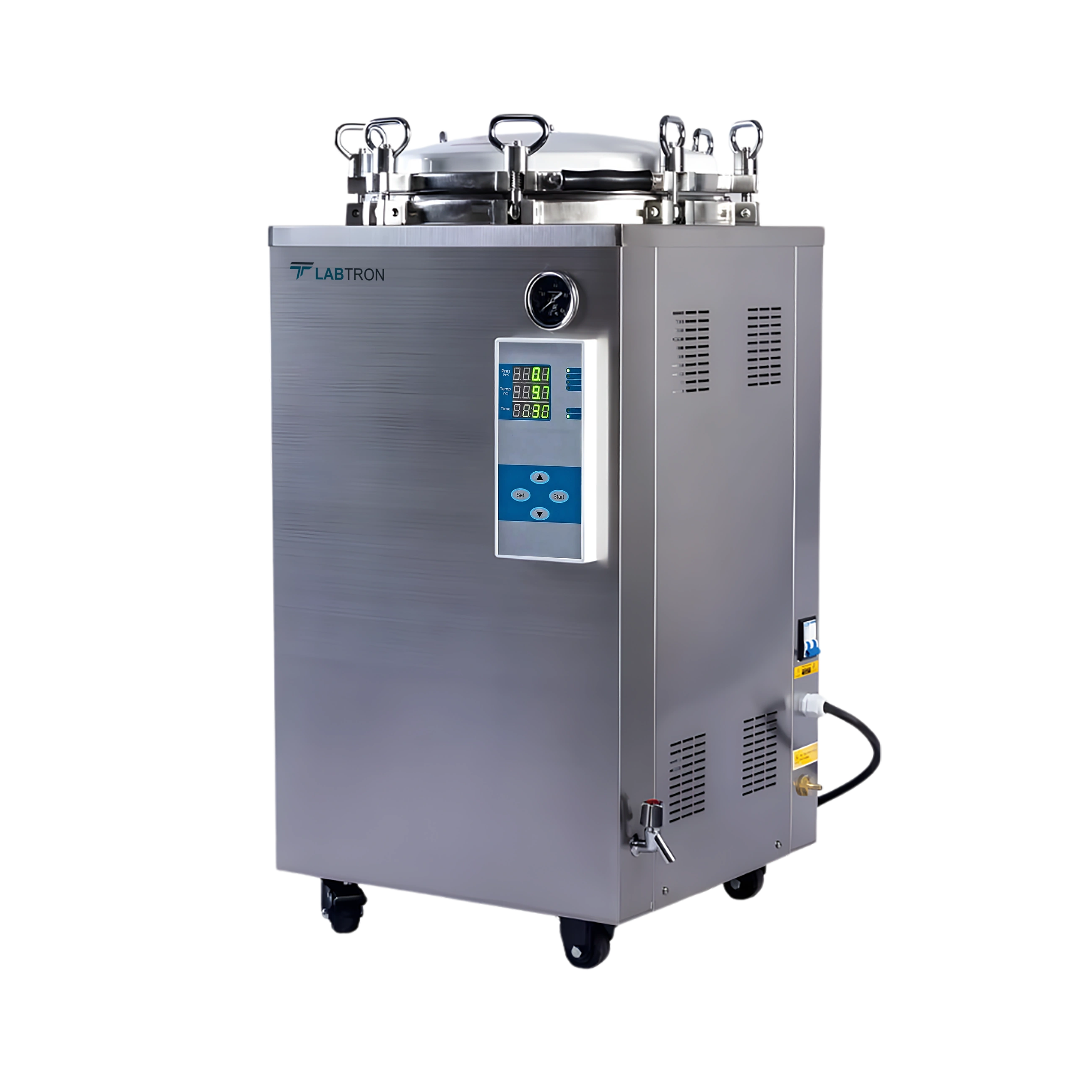

Vertical Autoclave LVA-H14

Name: Vertical Autoclave LVA-H14
Brand: Labtron
SKU: LVA-H14
Rating: 4.7 (786 reviews)

Vertical Autoclave LVA-H14 features a spacious 150-liter chamber, ideal for bulk sterilization tasks. This unit operates within a working pressure range of 0 to 0.22 MPa and a temperature range of 105 to 134℃, offering flexibility for various sterilization needs. Its sterilization and drying durations are fully programmable. Its safety interlock door ensures operational protection. With its compact dimensions and weight, it combines capacity with convenience for demanding sterilization environments.

Request Quote

Chamber Capacity	150 L
Working Pressure	0 to 0.22 MPa
Working Temperature Range	105 to 134℃
Sterilization Time	0 to 99 min or 0 to 99 hr 59 min
Drying Time	0 to 99 min or 0 to 99 hr 59 min
Temperature Accuracy	±0.1℃
Heat Distribution Uniformity	≤1℃
No. of baskets	2 pcs baskets
Control System	Microprocessor control
Display	LCD Display
Door Type	Safety interlock door
Steam Generator	Built-in, Stainless Steel 304
Power supply	100 to 240V, 50/60Hz
Chamber Size	150L / Ø500 × 760 mm
Packaging Dimensions	760 × 800 × 1500 mm
Net weight	150 kg
Gross Weight	190 kg

Spacious Chamber
Wide Sterilization Range
Precise Control System
High Temperature Accuracy
Flexible Timing Options
User-Friendly Interface
Safety Interlock Door
Built-in Steam Generator
Robust Construction
Universal Power Compatibility

Our Vertical Autoclave LVA-H14 is ideal for sterilization tasks in medical, laboratory, pharmaceutical, and research settings. Its stainless-steel construction and programmable features make it a preferred choice for environments requiring consistent and contamination-free sterilization cycles.

Download catalog for
Vertical Autoclave LVA-H14 Catalog

Available Range :

Vertical Autoclave LVA-P13 : 100L Vertical Autoclave LVA-P14 : 120L Vertical Autoclave LVA-H14 : 150 L Vertical Autoclave LVA-P15 : 150L Vertical Autoclave LVA-H15 : 200 L Vertical Autoclave LVA-P10 : 35L Vertical Autoclave LVA-P11 : 50L Vertical Autoclave LVA-P12 : 75L

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.

Vertical Autoclave LVA-B15

Capacity : 150 L
Working Pressure : 0.22 MPa
Working Temperature : 134°C
Temperature Range : 105 to 134°C

Compare Remove

Vertical Autoclave LVA-P14

Chamber Capacity : 120L
Control : PID Processor
Display : Digital Display
Material : Fully Stainless Steel 304

Compare Remove

Vertical Laboratory Autoclave LVA-J13

Capacity : 100 L
Chamber Dimension : φ440 × 650 mm
Temperature Range : 105 to 134℃
Sterilization Temperature : 134 °C

Compare Remove

Vertical Laboratory Autoclave LVA-K10

Capacity : 60 L
Working Temperature : 134℃
Working Pressure : 0.22 MPa
Design Pressure : -0.1 / 0.3 MPa

Compare Remove

Vertical Autoclave LVA-N13

Capacity : 200 L
Chamber Volume : Φ500 × 1000 mm
Chamber Thickness : 3.0 mm
Temperature Range : 50 °C to 134 °C

Compare Remove

Vertical Autoclave LVA-P11

Chamber Capacity : 50L
Control : PID Processor
Display : Digital Display
Material : Fully Stainless Steel 304

Compare Remove

Vertical Autoclave LVA-D10

Capacity : 35 L
Chamber Volume : 318×450 mm
Working Sterilization Temperature : 134°C
Working Sterilization Pressure : 0.22 MPa

Compare Remove

Vertical Autoclave LVA-E10

Capacity : 30 L
Working Temperature : 50 °C to 134 °C
Working pressure : 0.217 MPa
Working environment : 5 °C to 45 °C

Compare Remove

Vertical Autoclave LVA-H14 FAQ's

The Vertical Autoclave LVA-H14 features a spacious 150-liter chamber with dimensions Ø500 × 760 mm, making it ideal for sterilizing large loads or bulky instruments. The chamber and outer body are constructed entirely from high-quality stainless steel 304, which ensures excellent corrosion resistance, durability, and easy maintenance in demanding laboratory or hospital environments.
The Vertical Autoclave LVA-H14 is equipped with a microprocessor-based control system that allows for precise monitoring and customization of sterilization parameters. It offers programmable sterilization and drying times ranging from 0 to 99 minutes or up to 99 hours and 59 minutes. This, combined with a temperature accuracy of ±0.1? and uniform heat distribution (less than equal to 1?), guarantees reliable and consistent sterilization for various types of materials.
Safety is a key consideration in the Vertical Autoclave LVA-H14. It comes with a hand wheel type safety interlock door that prevents the chamber from opening during operation under pressure. Additionally, the built-in microprocessor ensures safe operation by regulating pressure and temperature levels automatically, reducing the risk of operator error and enhancing overall safety during sterilization.
The LVA-H14 is a Class N autoclave designed for sterilizing unwrapped, solid, and non-porous items using high-pressure saturated steam. Its speciality lies in its door type, which is engineered for secure sealing, easy manual operation, and long-term durability. This design ensures reliable performance while maintaining straightforward loading and unloading. The door mechanism also contributes to consistent chamber pressure during cycles. This makes the LVA-H14 suitable for routine sterilization tasks in laboratories and small medical facilities.
The Vertical Autoclave LVA-H14 is widely used in medical, research, pharmaceutical, and industrial environments. It is ideal for sterilizing surgical instruments, lab glassware, media, waste, textiles, and other heat-resistant materials. Its high capacity and advanced features make it especially valuable in microbiology labs, hospitals, biotech firms, and universities where efficient and reliable sterilization is essential.
