| Chamber Capacity | 50L |
| Control | PID Processor |
| Display | Digital Display |
| Material | Fully Stainless Steel 304 |
| Working Pressure | 0.22 MPa |
| Working Temperature | 134°C |
| Temperature Range | 100 to 134°C |
| Sterilization Time Range | 0 to 999 min |
| Drying Time Range | 0 to 999 min (optional) |
| Temperature Accuracy | ±0.1°C |
| Heat Distribution | ≤1°C |
| Steam Generator | Stainless Steel 304 |
| Loading Capacity | 1 pc Drum & 1 pc Basket |
| Casters | With Brakes |
| Voltage | 110 to 240V, 50/60Hz |
| Power Consumption | 2.5 KW |
| Chamber Size | 50L / Ø320 × 545 mm |
| Outer Dimensions | 520 × 520 × 1000 mm |
| Packing Dimensions | 570 × 570 × 1090 mm |
| Net Weight | 55 kg |
| Gross Weight | 75 kg |
Our Vertical Autoclave LVA-P11 is ideal for sterilizing a wide range of instruments and materials in laboratories, hospitals, research centers, and pharmaceutical settings.
Download catalog for
Vertical Autoclave LVA-P11 Catalog

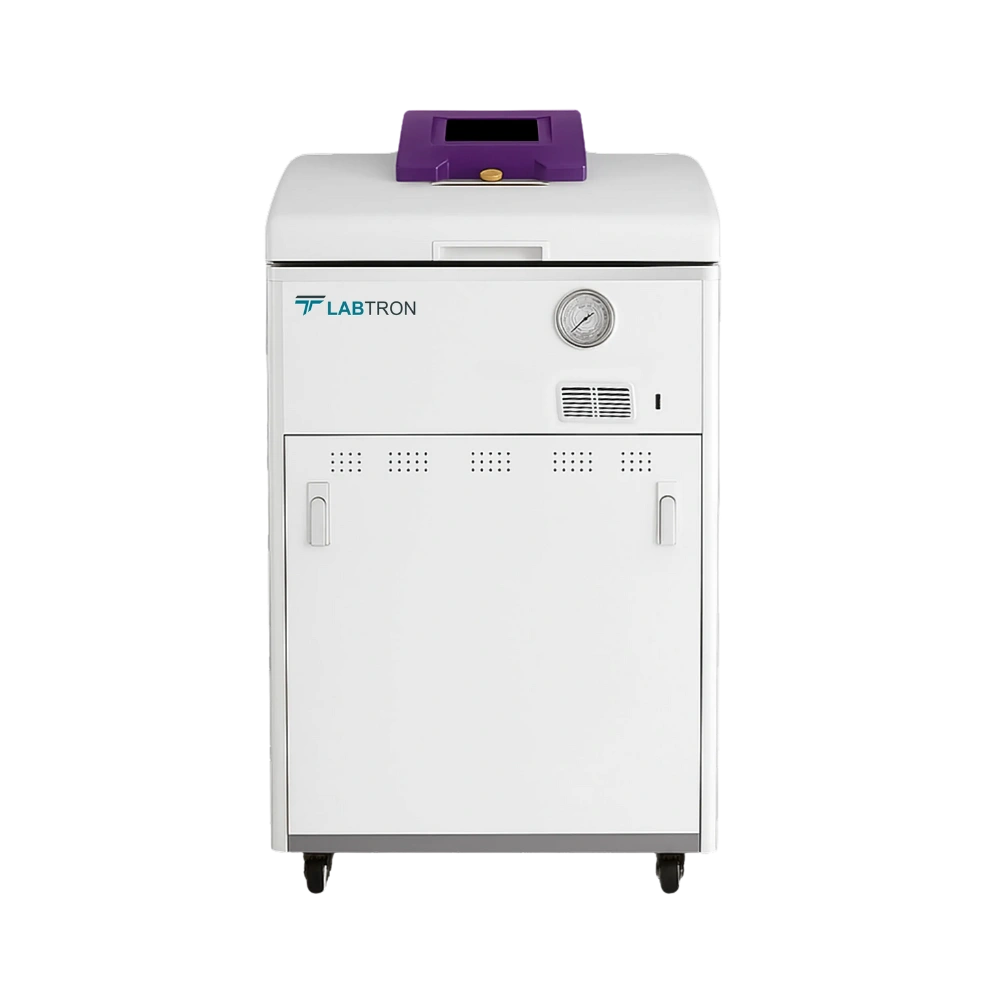

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.

.webp)






The Vertical Autoclave LVA-P11 comes with a 50-liter chamber capacity, making it ideal for medium to large-volume sterilization. It can sterilize a wide range of materials such as surgical instruments, glassware, culture media, laboratory waste, textiles, and wrapped or unwrapped medical tools. Its spacious design supports both a drum and a basket, allowing efficient organization and sterilization of various load types.
The LVA-P11 features a PID processor-based control system and a digital display, which work together to ensure accurate temperature regulation with ±0.1°C precision. It operates in a temperature range of 100 to 134°C, and maintains uniform heat distribution (less than equal to 1°C) throughout the chamber. This level of precision ensures thorough sterilization and compliance with laboratory safety standards.
Yes, the Vertical Autoclave LVA-P11 offers adjustable sterilization and drying time ranges from 0 to 999 minutes, allowing users to customize the cycle based on load type and material sensitivity. This flexibility is especially useful in settings where a wide variety of items need sterilizing under different conditions.
Absolutely. The LVA-P11 is compatible with a wide voltage range of 110 to 240V, 50/60Hz, making it suitable for use in global laboratory and clinical environments. Its power consumption of 2.5 KW ensures efficient performance without overloading typical power systems, even in remote or resource-limited setups.
The Vertical Autoclave LVA-P11 is built entirely from high-grade stainless steel 304, offering corrosion resistance, structural strength, and hygiene. It includes casters with brakes for easy mobility and stability during use. The unit also incorporates a stainless-steel steam generator, contributing to its durability and performance during repeated sterilization cycles.
