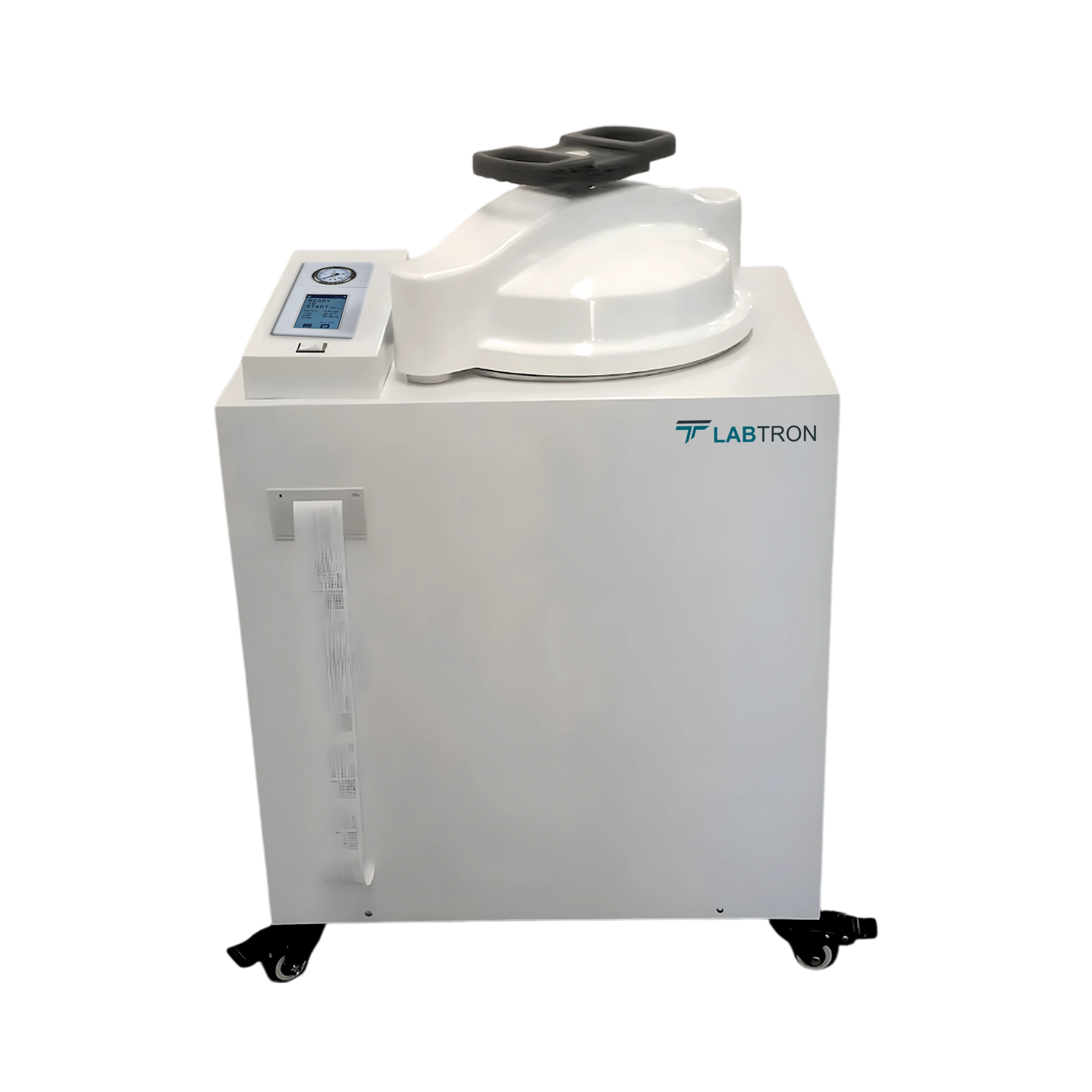

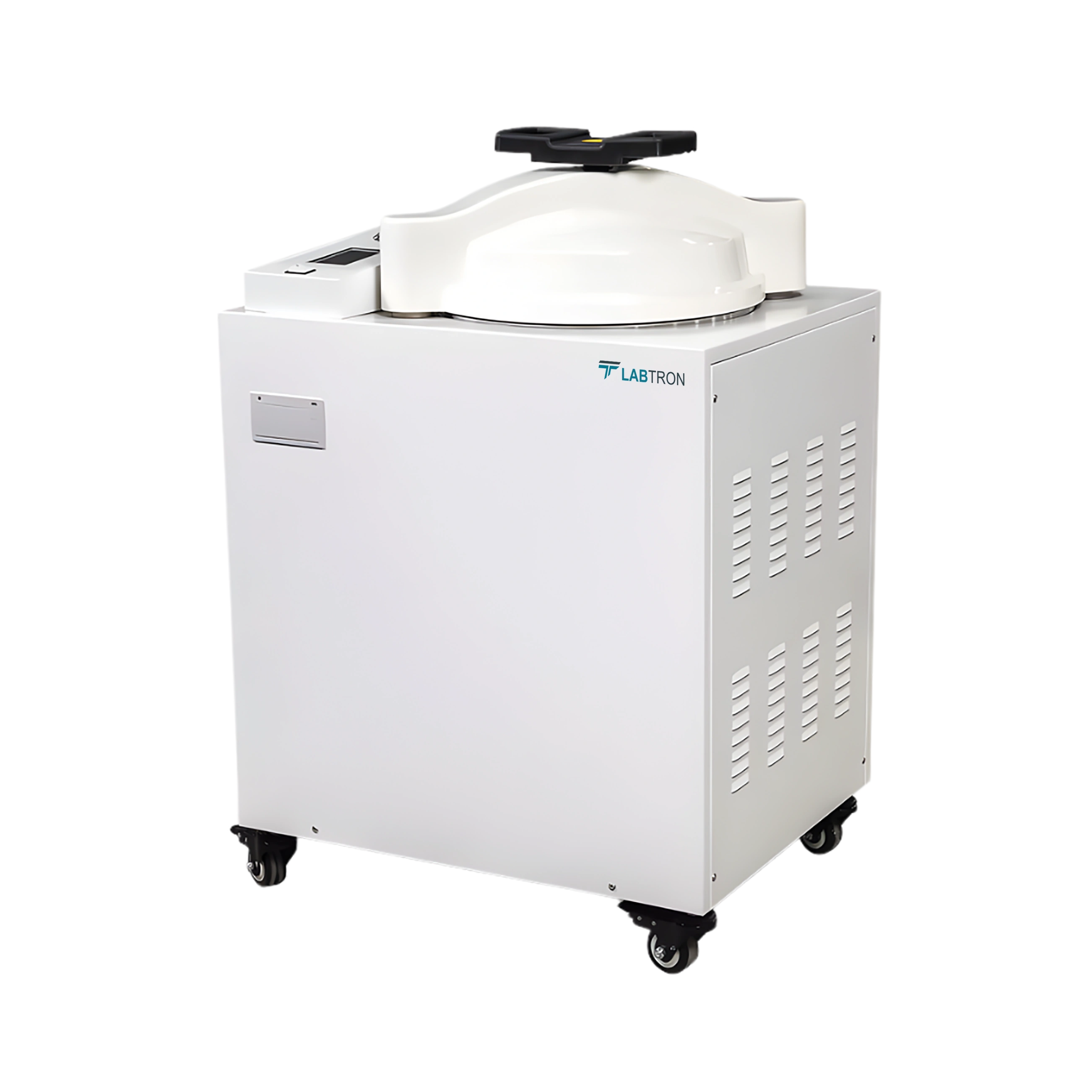

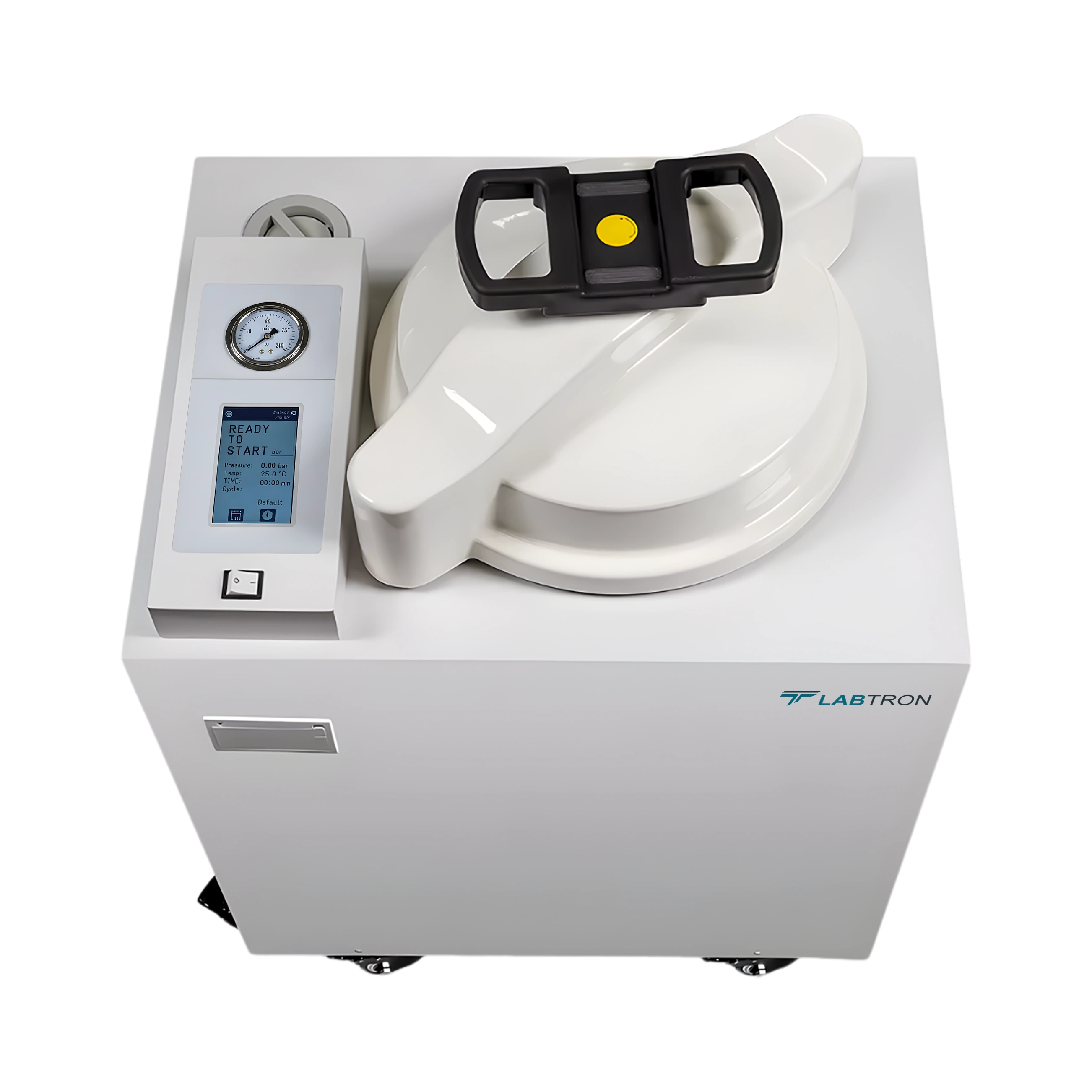

Vertical Autoclave LVA-L20

Vertical Autoclave LVA-L20

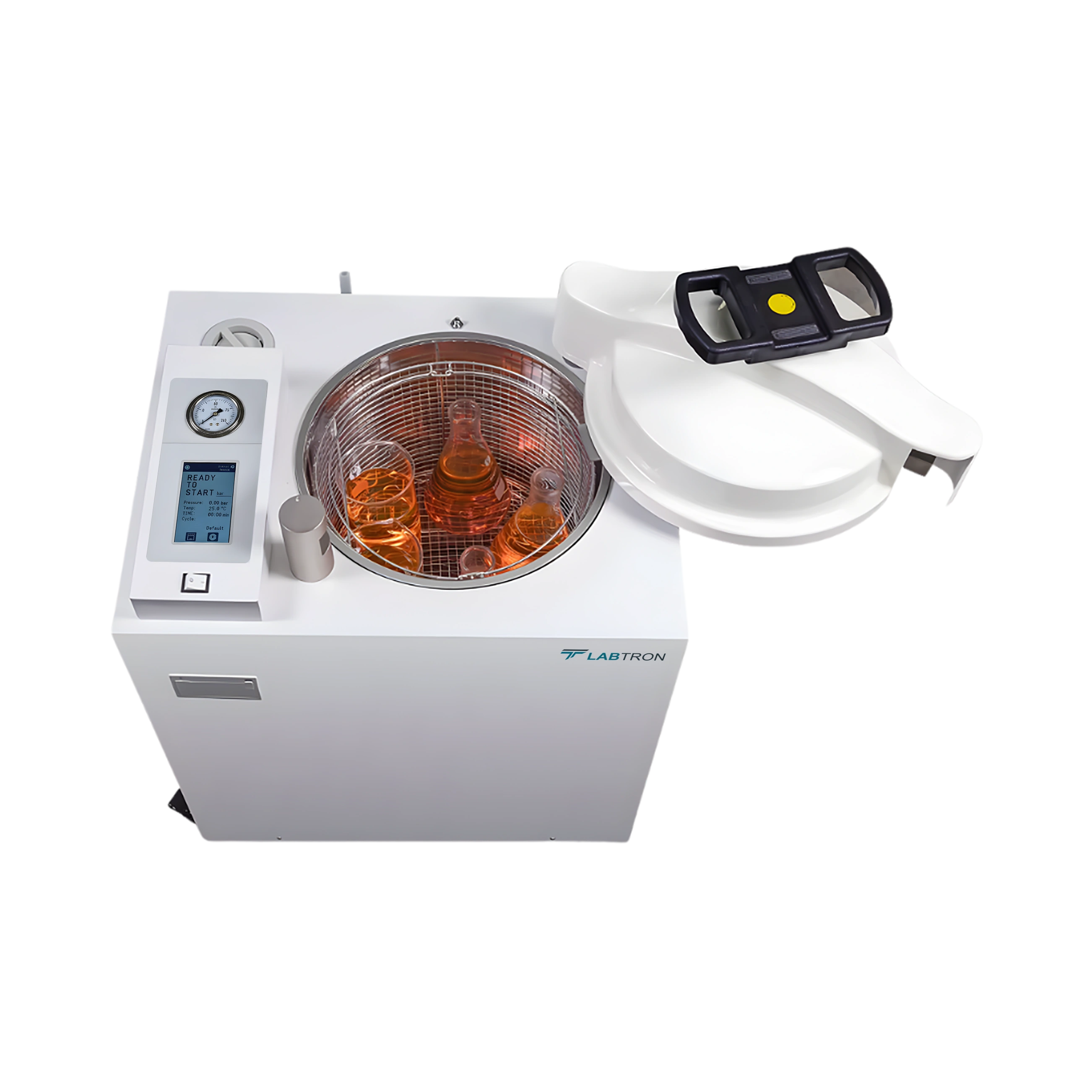

Vertical Autoclave LVA-L20 is fully automatic top loading vertical pressure steam sterilizer with chamber capacity of 36 L, working sterilization temperature ranges from 105 to 135˚C and 0.25 MPa maximum working pressure respectively. Designed with four wheels (castors) at base for easy movement of the unit. The standard (Diameter 300 × 200) × 2 of stainless steel baskets to keep the sterilization material load. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property. It is designed with microcomputer control system and big LCD screen to show all sterilization data.

Request Quote
Capacity 36 L
Chamber dimension Diameter 325 × 460 mm
Chamber material SUS 304
Stainless steel basket (Diameter 300 × 200) × 2
Temperature accuracy 0.1˚C
Temperature 5 to 45˚C
Humidity 10 % to 85 %
Display system LCD displayer
Sterilization temperature 105 to 135˚C
Sterilization time range 1 to 6000 minutes
Melting temperature 60 to 100˚C
Melting time 1 to 6000 minutes
Warming temperature 45 to 60˚C
Warming time range 1 to 9999 minutes
Pressure gauge -0.1 to -0.5 Mpa
Dimension 460×542×1070 mm
Packing dimension 690 × 610 × 125 mm
Power consumption 2300 W
Power supply 220 V, 16 A, 50/60 Hz
Weight 119 kg
  • Designed with microcomputer control system
  • Multilayered pressure protection system
  • Unique anti scaled design
  • Sterilization temperature ranges from 105 to 135˚C
  • Equipped with multiple sterilization cycles and memory system
  • Designed with big LCD screen to show all sterilization data
  • Over temperature protection system
  • Automatic troubleshooting system
  • Automatic internal discharging with steam collecting bottle inside
  • Exhaust speed is selected by 6 levels

Vertical autoclave used in pharmaceutical industry, medicine and health care industry, Biotechnology, Microbiology for effective sterilization of glassware’s, biological materials, culture media and others.

Accessories no.Name MaterialQuantity
1Basket Stainless steel02 pcs

Related Models :

Compare Models

Model Capacity Chamber dimension Chamber material Stainless steel basket Temperature accuracy Temperature Humidity Display system Sterilization temperature Sterilization time range Melting temperature Melting time Warming temperature Warming time range Pressure gauge Dimension Packing dimension Power consumption Power supply Weight
LVA-C10 35 L - - - - - - - - - - - - - - - - - - -
LVA-C11 50 L - - - - - - - - - - - - - - - - - - -
LVA-C12 75 L - - - - - - - - - - - - - - - - - - -
LVA-C13 100 L - - - - - - - - - - - - - - - - - - -
LVA-C14 120 L - - - - - - - - - - - - - - - - - - -
LVA-C15 150 L - - - - - - - - - - - - - - - - - - -
LVA-G10 35L - - - - - - - - - - - - - - - - - - -
LVA-G11 50L - - - - - - - - - - - - - - - - - - -
LVA-G12 75L - - - - - - - - - - - - - - - - - - -
LVA-G13 100L - - - - - - - - - - - - - - - - - - -
LVA-I10 35 L - - - - - - - - - - - - - - - - - - -
LVA-I11 50 L - - - - - - - - - - - - - - - - - - -
LVA-I12 75 L - - - - - - - - - - - - - - - - - - -
LVA-I13 100 L - - - - - - - - - - - - - - - - - - -
LVA-I14 120 L - - - - - - - - - - - - - - - - - - -
LVA-I15 150 L - - - - - - - - - - - - - - - - - - -
LVA-J10 35 L - - - - - - - - - - - - - - - - - - -
LVA-J11 50 L - - - - - - - - - - - - - - - - - - -
LVA-J12 75 L - - - - - - - - - - - - - - - - - - -
LVA-K10 60 L - - - - - - - - - - - - - - - - - - -
LVA-K11 80 L - - - - - - - - - - - - - - - - - - -
LVA-K12 100 L - - - - - - - - - - - - - - - - - - -
LVA-K13 120 L - - - - - - - - - - - - - - - - - - -
LVA-A10 35 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz -
LVA-A11 50 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz -
LVA-A12 75 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz -
LVA-A13 100 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz -
LVA-A14 120 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz -
LVA-A15 150 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz -
LVA-B10 35 L - - - - - - - - - - - - - - - - - - -
LVA-B11 50 L - - - - - - - - - - - - - - - - - - -

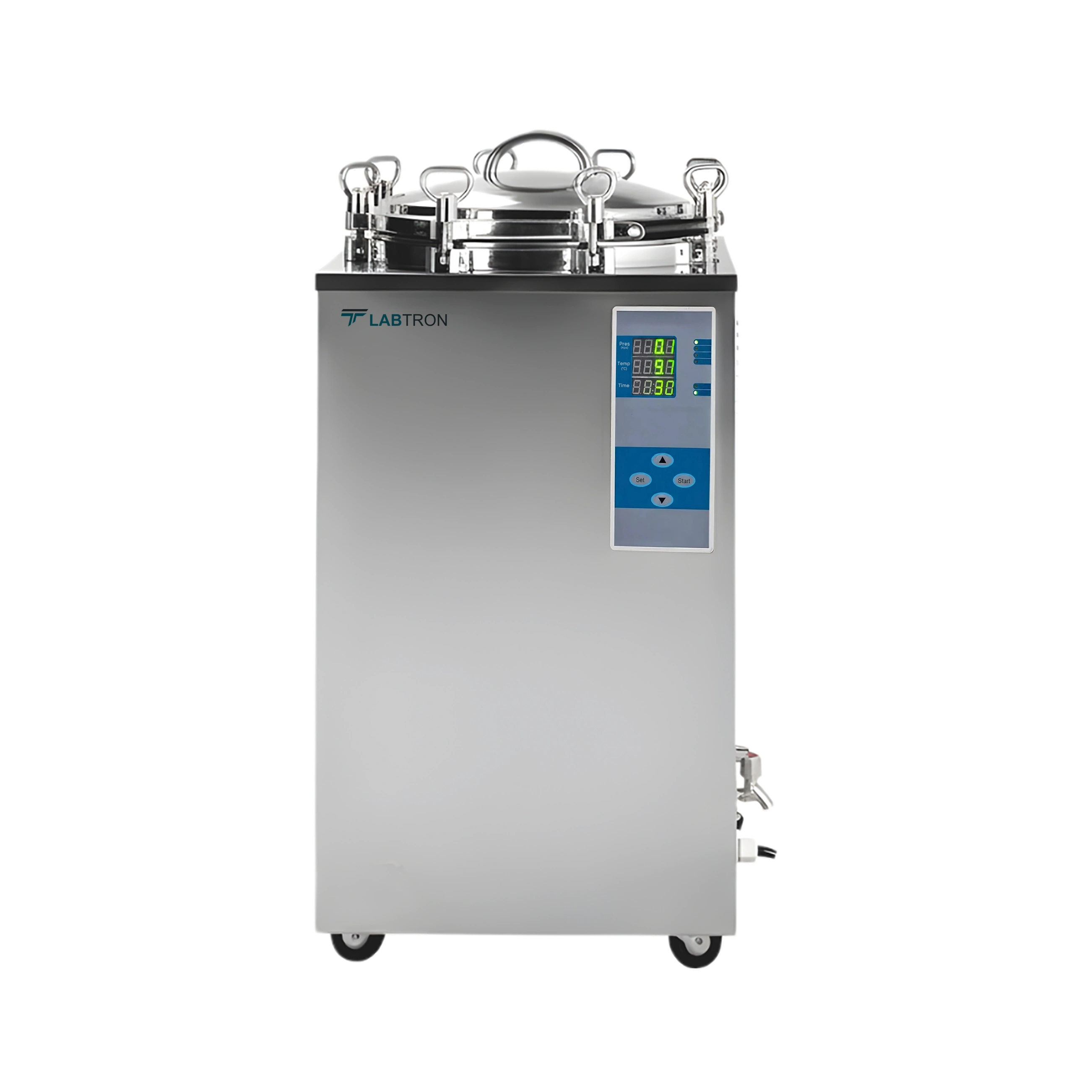

LVA-B12 75 L - - - - - - - - - - - - - - - - - - -
LVA-B13 100 L - - - - - - - - - - - - - - - - - - -
LVA-B14 120 L - - - - - - - - - - - - - - - - - - -
LVA-B15 150 L - - - - - - - - - - - - - - - - - - -
LVA-D10 35 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz -
LVA-D11 50 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz -
LVA-D12 75 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz -
LVA-D13 100 L - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz -
LVA-L10 60 L - SUS 304 - 0.1 °C - - - 105 °C to 138 °C 1 to 6000 minutes 45 °C to 60 °C - - - - - - - 2900 W -
LVA-L11 85 L - SUS 304 - 0.1 °C - - - 105 °C to 138 °C 1 to 6000 minutes 45 °C to 60 °C - - - - - - - 4600 W -
LVA-L12 110 L - SUS 304 - 0.1 °C - - - 105 °C to 138 °C 1 to 6000 minutes 45 °C to 60 °C - - - - - - - 4600 W -
LVA-L20 36 L Diameter 325 × 460 mm SUS 304 (Diameter 300 × 200) × 2 0.1˚C 5 to 45˚C 10 % to 85 % LCD displayer 105 to 135˚C 1 to 6000 minutes 60 to 100˚C 1 to 6000 minutes 45 to 60˚C 1 to 9999 minutes -0.1 to -0.5 Mpa 460×542×1070 mm 690 × 610 × 125 mm 2300 W 220 V, 16 A, 50/60 Hz 119 kg
LVA-L21 54 L Diameter 325 × 460 mm SUS 304 (Diameter 300 × 200) × 3 0.1˚C 5 to 45˚C 10 % to 85 % LCD displayer 105 to 135˚C 1 to 6000 minutes 60 to 100˚C 1 to 6000 minutes 45 to 60˚C 1 to 9999 minutes -0.1 to -0.5 Mpa 460×542×1070 mm 690 × 610 × 125 mm 2600 W 220 V, 32 A, 50/60 Hz 124 kg
LVA-H10 35 L - - - - - - - - - - - - - - - - - - -
LVA-H11 50 L - - - - - - - - - - - - - - - - - - -
LVA-H12 75 L - - - - - - - - - - - - - - - - - - -
LVA-H13 100 L - - - - - - - - - - - - - - - - - - -
LVA-F10 50 L - - - - - - - - - - - - - - - - - - -
LVA-F11 75 L - - - - - - - - - - - - - - - - - - -
LVA-F13 100 L - - - - - - - - - - - - - - - - - - -
LVA-F20 50 L - - - - - - - - - - - - - - - - - - -
LVA-F21 75 L - - - - - - - - - - - - - - - - - - -
LVA-F22 100 L - - - - - - - - - - - - - - - - - - -
LVA-F23 35 L - - - - - - - - - - - - - - - - - - -
