Vertical Laboratory Autoclave LVA-J10

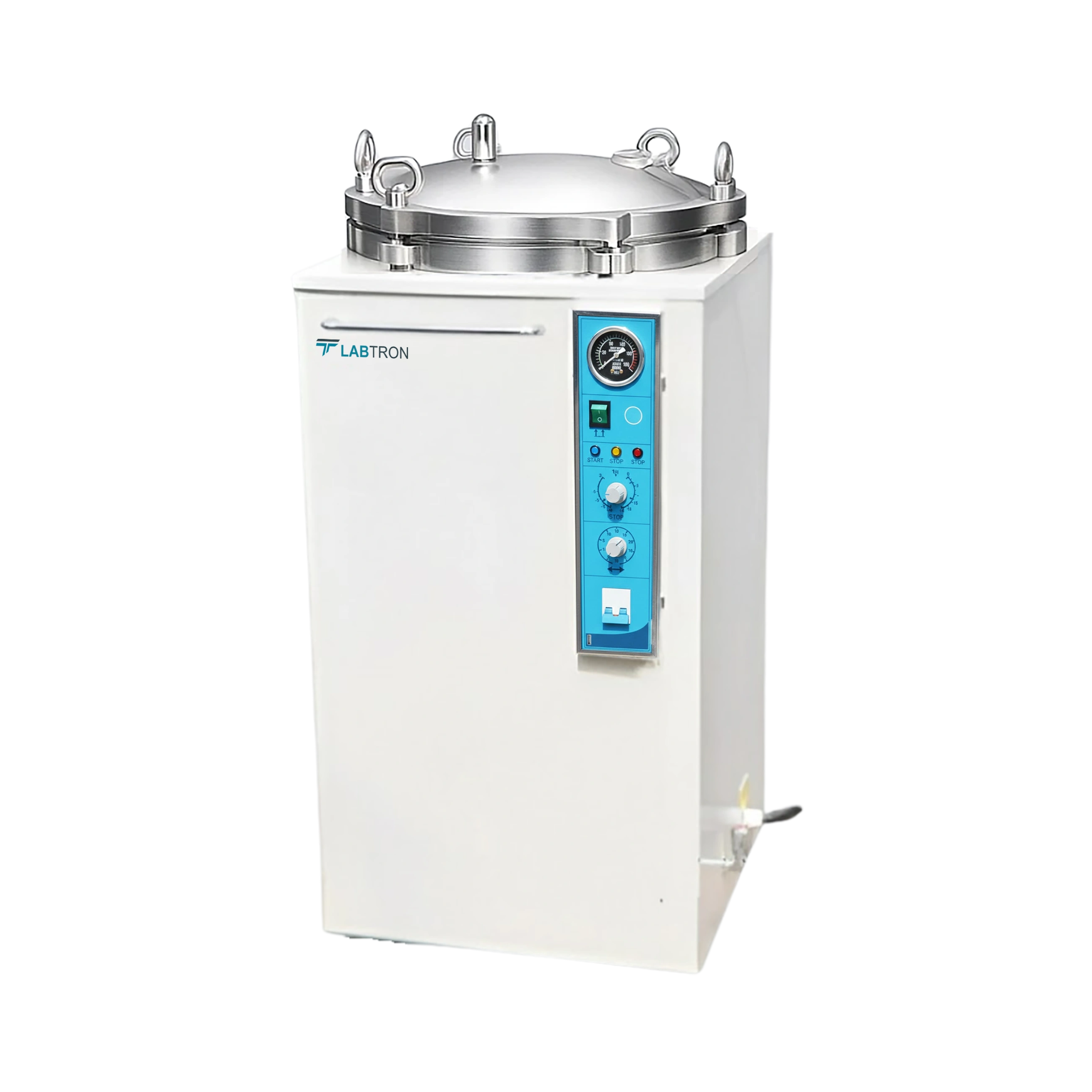

Vertical Autoclave LVA-J10 composed of SUS304 stainless steel which is durable and safe for use. Along with top loading this vertical autoclave, sterilizer has dual scale numerical pressure gauge to indicate temperature and pressure. It has provision to control sterilization time, pressure and temperature with the help of knobs. Autoclave comes with safety interlock door, user friendly control panel and automatic safety release valve for safe, economic and effective sterilization of laboratory instruments.

Request Quote
Capacity 35 L
Sterilization Temperature 115 to 129 °C
Sterilization Pressure 0.165 MPa
Chamber Dimension ( Φ × D ) 280 × 500 mm
Timer Range 0 - 80 min
Number of sterilizing baskets 2
Heat Average ≤ ± 1 ℃

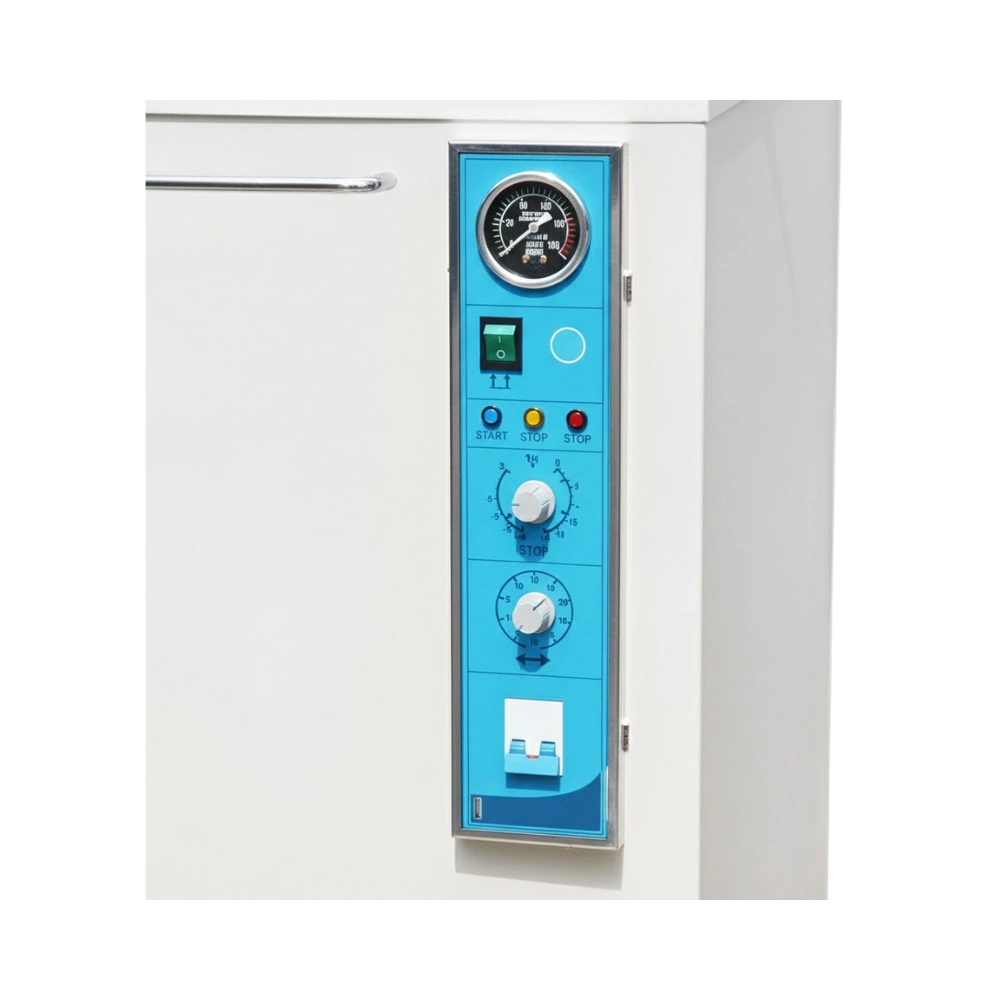

  • Dual scale numerical pressure gauge indicate temperature and pressure
  • Indicator lights indicates working status
  • Direct heating by immersed copper tubes of heating elements
  • Equipped with silicon rubber seal to prevent steam leakage and safety alarm
  • Composed of SUS304 stainless steel which is durable and safe
  • Provision for 2 sterilizing baskets
  • Provision to control sterilization time, pressure and temperature with the help of knob
  • Safety interlock door and automatic release safety valve

This vertical autoclave finds applications in Biochemistry, pharmaceutical industry, medicine and health care industry, Biotechnology, Microbiology and scientific research.

Available Range :

Capacity : 35 L Capacity : 50 L Capacity : 75 L Capacity : 100 L Capacity : 120 L Capacity : 150 L

Related Models :

Compare Models

Model Capacity Sterilization Temperature Sterilization Pressure Chamber Dimension ( Φ × D ) Timer Range Number of sterilizing baskets Heat Average
LVA-C10 35 L 134 °C 0.22 Mpa 318 × 450 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C11 50 L 134 °C 0.22 Mpa 340 × 550 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C12 75 L 134 °C 0.22 Mpa 400 × 600 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C13 100 L 134 °C 0.22 Mpa 440 × 650 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C14 120 L 134 °C 0.22 Mpa 480 × 660 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-C15 150 L 134 °C 0.22 Mpa 510 × 740 mm 0 - 60 min 2 ≤ ± 1 ℃
LVA-G10 35L 134 °C 0.22 Mpa 318 × 450 mm 0 - 99 min 2 ≤ ± 1 ℃
LVA-G11 50L 134 °C 0.22 Mpa 340 × 550 mm 0 - 99 min 2 ≤ ± 1 ℃
LVA-G12 75L 134 °C 0.22 Mpa 400 × 600 mm 0 - 99 min 2 ≤ ± 1 ℃
LVA-G13 100L 134 °C 0.22 Mpa 440 × 650 mm 0 - 99 min 2 ≤ ± 1 ℃
LVA-I10 35 L 134 °C 0.22 Mpa 280 × 500 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I11 50 L 134 °C 0.22 Mpa 320 × 610 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I12 75 L 134 °C 0.22 Mpa 388 × 530 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I13 100 L 134 °C 0.22 Mpa 388 × 670 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I14 120 L 134 °C 0.22 Mpa 460 × 670 mm 0 - 999 min - ≤ ± 1 ℃
LVA-I15 150 L 134 °C 0.22 Mpa 460 × 760 mm 0 - 999 min - ≤ ± 1 ℃
LVA-J10 35 L 115 to 129 °C 0.165 MPa 280 × 500 mm 0 - 80 min 2 ≤ ± 1 ℃
LVA-J11 50 L 115 to 129 °C 0.165 MPa 320 × 610 mm 0 - 80 min 2 ≤ ± 1 ℃
LVA-J12 75 L 115 to 129 °C 0.165 MPa 388 × 530 mm 0 - 80 min 2 ≤ ± 1 ℃
LVA-K10 60 L 134 °C 0.22 MPa 396 × 490 mm 0 - 99 min - ≤ ± 1 ℃
LVA-K11 80 L 134 °C 0.22 MPa 396 × 650 mm 0 - 99 min - ≤ ± 1 ℃
LVA-K12 100 L 134 °C 0.22 MPa 504 x 404 x 502 mm 0 - 99 min - ≤ ± 1 ℃
LVA-K13 120 L 134 °C 0.22 MPa 504 x 404 x 590 mm 0 - 99 min - ≤ ± 1 ℃
LVA-A10 35 L - - - - - ≤ ± 1°C
LVA-A11 50 L - - - - - ≤ ± 1°C
LVA-A12 75 L - - - - - ≤ ± 1°C
LVA-A13 100 L - - - - - ≤ ± 1°C
LVA-A14 120 L - - - - - ≤ ± 1°C
LVA-A15 150 L - - - - - ≤ ± 1°C
LVA-B10 35 L - - - - - ≤± 1℃
LVA-B11 50 L - - - - - ≤± 1℃
LVA-B12 75 L - - - - - ≤± 1℃
LVA-B13 100 L - - - - - ≤± 1℃
LVA-B14 120 L - - - - - ≤± 1℃
LVA-B15 150 L - - - - - ≤± 1℃
LVA-D10 35 L - - - - - ≤ ± 1°C
LVA-D11 50 L - - - - - ≤ ± 1°C
LVA-D12 75 L - - - - - ≤ ± 1°C
LVA-D13 100 L - - - - - ≤ ± 1°C
LVA-F10 50 L - - - - - ≤± 1℃
LVA-F11 75 L - - - - - ≤± 1℃
LVA-F12 35 L - - - - - ≤± 1℃
LVA-F13 100 L - - - - - ≤± 1℃
LVA-F20 50 L - - - - - ≤± 1℃
LVA-F21 75 L - - - - - ≤± 1℃
LVA-F22 100 L - - - - - ≤± 1℃
LVA-F23 35 L - - - - - ≤± 1℃
LVA-L10 60 L - - - - - -
LVA-L11 85 L - - - - - -
LVA-L12 110 L - - - - - -
LVA-L20 36 L - - - - - -
LVA-L21 54 L - - - - - -
LVA-H10 35 L - - - - - -
LVA-H11 50 L - - - - - -
LVA-H12 75 L - - - - - -
LVA-H13 100 L - - - - - -
